| Brand | BOXUN |
|---|---|
| Origin | Shanghai, China |

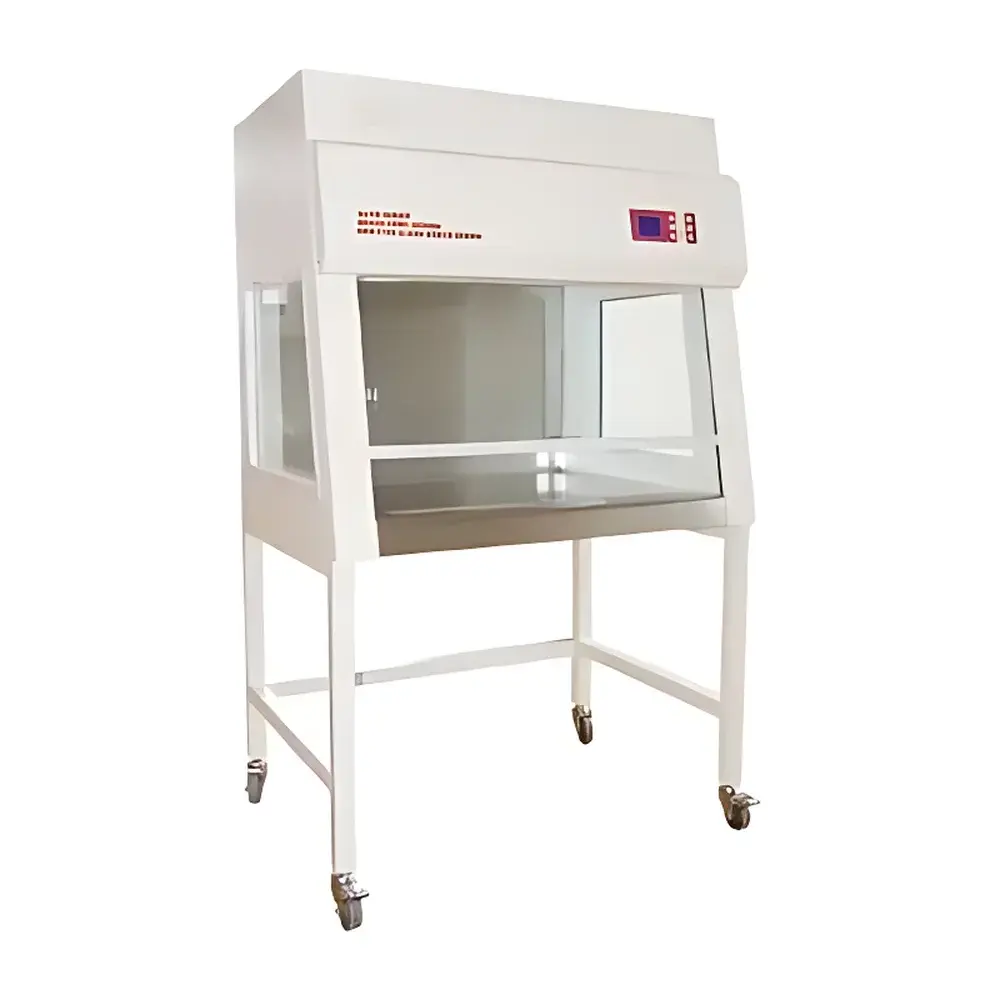

| Model | BJ-1CD / BJ-2CD |
| Airflow Type | Vertical Downflow |
| Cleanliness Class | ISO Class 5 (equivalent to Fed. Std. 209E Class 100 @ ≥0.5 µm) |
| Adjustable Air Velocity Range | 0.1–0.6 m/s |
| Noise Level | ≤62 dB(A) |
| Illuminance | ≥300 lx |
| Vibration Half-Peak Amplitude | ≤3 µm (X/Y/Z axes) |
| Power Supply | AC 220 V, 50 Hz |
| Max. Power Consumption | 0.2 kW (BJ-1CD) / 0.37 kW (BJ-2CD) |
| Net Weight | 115 kg (BJ-1CD) / 205 kg (BJ-2CD) |
| Work Area Dimensions | 830 × 700 × 520 mm (BJ-1CD) / 1300 × 700 × 520 mm (BJ-2CD) |
| External Dimensions | 891 × 725 × 1577 mm (BJ-1CD) / 1460 × 725 × 1577 mm (BJ-2CD) |
| HEPA Filter Specifications | 765 × 548 × 50 mm × 1 (BJ-1CD) / 1236 × 549 × 50 mm × 1 (BJ-2CD), Unibody Pleated HEPA, ≥99.995% @ 0.3 µm |
| Pre-filter | Synthetic Fiber Medium-Efficiency Panel Filter |
| Lighting | 30 W Fluorescent Lamp × 1 + 20 W UV Lamp × 1 (BJ-1CD) / 40 W Fluorescent Lamp × 1 + 30 W UV Lamp × 1 (BJ-2CD) |
| Safety Interlock | UV Lamp & Main Light Interlocked |
| Control Interface | LCD Display with Real-Time Parameters (Air Velocity, Differential Pressure, Cumulative Operating Time, Clock, HEPA Status) |
