| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | YM30B |
| Quotation | USD 940 (FOB Shanghai) |
| Instrument Type | Lid-Sealing Vertical Autoclave |
| Application Scope | Research & Clinical Laboratories |
| Chamber Volume | 30 L / 50 L / 75 L (Model-Dependent) |
| Sterilization Temperature Range | 105–135 °C |
| Operating Pressure Range | 0–0.22 MPa (gauge) |
| Heating Method | Immersed Electric Heating Elements |
| Sealing System | Radial Self-Inflating Silicone Rubber Gasket |
| Exhaust Method | Gravity Displacement |
| Safety Features | Dual-Stage Pressure Relief Valve, Low-Water-Level Auto-Replenishment with Audible/Visual Alarm, Overtemperature & Overpressure Interlock |
| Vacuum Degree | Not Applicable (Non-Vacuum Sterilizer) |
| Condensate Drain Capacity | Continuous discharge via bottom drain valve |
| Caster System | Lockable Swivel Casters with Brake |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (China) |
| Model | FD-1C-80 |
| Price | USD 7,600 (FOB Shanghai) |
| Condenser Temperature | ≤ −80 °C |
| Ultimate Vacuum | < 20 Pa |
| Ice Capacity | 4 kg/24 h |
| Condenser Dimensions | Φ200 × 200 mm |
| Sample Tray Diameter | Φ200 mm |
| Bottle Capacity | 24 × standard 10–50 mL vials |
| Power Supply | 220 V, 50 Hz, 1300 W |
| Overall Dimensions | 492 × 540 × 800 mm |
| Net Weight | ~78 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | FD-1A-50 / LGJ-12 |
| Condenser Temperature | ≤ −50 °C |
| Ultimate Vacuum | < 20 Pa |
| Freeze-Drying Area | 0.12 m² |
| Maximum Load Capacity (bulk) | 1.2 L (at 10 mm thickness) |
| Water Trapping Capacity | 3 kg/24 h |
| Condenser Dimensions | Φ220 × 130 mm |
| Sample Tray Size | Φ200 mm × 4 layers |
| Power Supply | 220 V, 50 Hz, 850 W |
| Unit Dimensions | 380 × 600 × 345 mm |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | FD-1E-80 |
| Price | USD 7,050 (FOB Shanghai) |
| Condenser Temperature | ≤ −80 °C |
| Ultimate Vacuum | < 20 Pa |
| Ice Capacity | 4 kg/24 h |
| Condenser Dimensions | Φ200 × 200 mm |
| Chamber Material | Transparent Acrylic Bell Jar |
| Refrigeration System | Dual-Stage Cascade Compressor |
| Power Supply | 220 V, 50 Hz, 1300 W |
| Overall Dimensions | 492 × 540 × 800 mm |
| Sample Compatibility | T-manifold with up to 8× Ø24 mm glass vials or 24× standard culture tubes |
| Data Display | Digital LED panel for real-time condenser temperature and chamber pressure |
| Brand | Chu Ding Technology |
|---|---|
| Origin | Shanghai, China |
| Model | FD-1C-50 |
| Cold Trap Temperature | ≤ −50 °C |
| Ultimate Vacuum | < 20 Pa |
| Shelf Area | 0.12 m² |
| Maximum Load Capacity (Bulk) | 1.2 L |
| Ice Capacity | 3 kg/24 h |
| Cold Trap Dimensions | Φ220 × 130 mm |
| Sample Tray Diameter | Φ200 mm × 4 layers |
| Manifold Ports | 8 independent vacuum-controlled ports |
| Power Supply | 220 V, 50 Hz, 850 W |
| Overall Dimensions | 380 × 600 × 345 mm |
| [Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | FD-1 |
| Price | USD 2,750 (FOB Shanghai) |
| Condenser Temperature | ≤ −50 °C |
| Ultimate Vacuum | < 20 Pa |
| Freeze-Drying Area | 0.06 m² |
| Shelf Capacity (Liquid Load) | 0.6 L |
| Water Trapping Capacity | 2 kg/24 h |
| Condenser Dimensions | Φ220 × 130 mm |
| Sample Tray | Φ200 × 2 pcs |
| Power Supply | 220 V, 50 Hz, 850 W |
| Unit Dimensions | 380 × 600 × 345 mm] |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (PRC) |
| Model | FD-1B-50 / LGJ-12 |
| Condenser Temperature | ≤ −50 °C |
| Ultimate Vacuum | < 20 Pa |
| Freeze-Drying Area | 0.07 m² |
| Shelf Capacity | 700 mL (10 mm layer thickness) or ~155 × 22 mm vials |
| Condenser Dimensions | Φ220 × 130 mm |
| Shelf Diameter | Φ180 mm (3-tier stainless steel) |
| Power Supply | 220 V, 50 Hz, 850 W |
| Unit Dimensions | 380 × 600 × 345 mm |
| Refrigeration System | Imported hermetic compressor |
| Vacuum Interface | Standard KF-25 flange |
| Optional | Sample temperature monitoring |
| Brand | Chu Ding Technology |
|---|---|
| Origin | Shanghai, China |
| Model | FD-1D-50 / LGJ-12 |
| Cold Trap Temperature | ≤ −50 °C |
| Ultimate Vacuum | < 20 Pa |
| Freeze-Drying Area | 0.07 m² |
| Shelf Loading Capacity | 0.7 L (bulk) |
| Condenser Capacity | 3 kg/24 h |
| Condenser Dimensions | Φ220 × 130 mm |
| Shelf Diameter | Φ200 mm × 3 shelves |
| Manifold Ports | 8 × standard ground-glass ports (accepting 100/250/500/1000 mL flasks) |
| Power Supply | 220 V, 50 Hz, 850 W |
| Dimensions (W×D×H) | 380 × 600 × 345 mm |
| Construction | Stainless steel condenser chamber, transparent acrylic drying chamber, integrated pre-freezing capability |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FD-1D-80 |
| Price | USD 7,850 (FOB Shanghai) |
| Condenser Temperature | ≤ −80 °C |
| Ultimate Vacuum | < 20 Pa |
| Condenser Capacity | 4 kg/24 h |
| Condenser Dimensions | Φ200 × 200 mm |
| Shelf/Drying Area | 0.07 m² |
| Sample Bottle Capacity | 8 vials (with stoppering mechanism) |
| Input Power | 220 V, 50 Hz, 1300 W |
| Overall Dimensions | 492 × 540 × 800 mm |
| Weight | 68 kg |
| Brand | Chu Ding Technology |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LGJ-12 |
| Price | USD 4,450 (approx.) |
| Cold Trap Temperature | ≤ −55 °C (−80 °C optional) |
| Ultimate Vacuum | < 10 Pa |
| Freeze-Drying Area | 0.07–0.1 m² |
| Water Capture Capacity | 3 kg/24 h |
| Load Volume (Bulk) | 0.7–1.2 L |
| Dimensions (W×D×H) | 565 × 420 × 700 mm |
| Tray Configuration | 4 stainless steel trays (Ø200 mm) for bulk loading |
| Vial Configuration | 3 trays (Ø180 mm) with manual vacuum-sealable lid compression |
| Max Vial Capacity | 135 × Ø22 mm vials or 8 multi-port flasks (100–1000 mL) |
| Optional Features | Nitrogen purge valve, rotary pre-freezing attachment |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | FD-1B-80 |
| Price | USD 6,750 (FOB Shanghai) |
| Cold Trap Temperature | ≤ −80 °C |
| Ultimate Vacuum | < 20 Pa |
| Freeze-Drying Area | 0.12 m² |
| Shelf Capacity (Liquid Load) | 1.2 L |
| Ice Trapping Capacity | 4 kg/24 h |
| Cold Trap Dimensions | Φ200 × 200 mm |
| Sample Tray Diameter | Φ200 mm |
| Power Supply | 220 V, 50 Hz, 1300 W |
| Overall Dimensions | 492 × 540 × 800 mm |
| Weight | 68 kg |
| Brand | Chu Ding Technology |
|---|---|
| Origin | Shanghai, China |
| Model | FD-1E-50 |
| Cold Trap Temperature | ≤ −50 °C |
| Ultimate Vacuum | < 20 Pa |
| Condenser Capacity | 3 kg/24 h |
| Condenser Dimensions | Φ220 × 130 mm |
| Sample Tray Size | Φ200 × 2 mm |
| Manifold Ports | 24 × standard glass tubing ports (for 10–22 mm OD ampoules) |
| Power Supply | 220 V, 50 Hz, 850 W |
| Overall Dimensions | 380 × 600 × 345 mm |
| Weight | ~65 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | FD-1A-80 |
| Price | USD 6,350 (FOB Shanghai) |
| Cold Trap Temperature | ≤ −80 °C |
| Ultimate Vacuum | < 20 Pa |
| Freeze-Drying Area | 0.12 m² |
| Shelf Capacity (Liquid Load) | 1.2 L |
| Ice Capacity | 4 kg/24 h |
| Cold Trap Dimensions | Φ200 × 200 mm |
| Sample Tray Diameter | Φ200 mm |
| Power Supply | 220 V, 50 Hz, 1300 W |
| Unit Dimensions (W×D×H) | 492 × 540 × 800 mm |
| Brand | Chu Ding Technology |
|---|---|
| Origin | Shanghai, China |
| Model | LGJ-12 |
| Cold Trap Temperature | < −55 °C (−80 °C optional) |
| Ultimate Vacuum | < 10 Pa |
| Freeze-Drying Area | 0.09–0.18 m² |
| Water Capture Capacity | 3 kg/24 h |
| Dimensions (W×D×H) | 560 × 460 × (710 + 430) mm |
| Shelf Diameter | Ø200 mm (4–6 shelves, adjustable spacing) or Ø180 mm (3 shelves, bottle-compatible) |
| Sample Volume Capacity | up to 1500 mL (bulk, 10 mm layer thickness) or 155 × Ø22 mm vials |
| Manifold Ports | 8 ports supporting 100/250/500/1000 mL flasks |
| Rotation Pre-Freezing Option | Available |
| Optional N₂ Inlet Valve | Available |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | FD-3 |
| Price | USD 12,200 (FOB Shanghai) |
| Freeze-Drying Area | 0.3 m² |
| Condenser Temperature | ≤ −45 °C |
| Ultimate Vacuum (No-Load) | ≤ 13 Pa |
| Water Capture Capacity | 10 kg/24 h |
| Tray Diameter | Φ280 mm |
| Power Supply | 380 V, 50 Hz, 3 kW |
| Dimensions (W×D×H) | 1250 × 660 × 800 mm (plus 1000 mm height for chamber + 515 mm for condenser base) |
| Cooling Method | Air-Cooled |
| Construction | Full Stainless Steel Condenser & Chamber |
| Control System | Programmable Temperature-Time Profile with Triple Thermal Protection |
| Brand | Chu Ding Technology |
|---|---|
| Origin | Shanghai, China |
| Model | LGJ-10 |
| Cold Trap Temperature | ≤ −55 °C (optional −80 °C) |
| Ultimate Vacuum | < 10 Pa |
| Freeze-Drying Area | 0.07–0.1 m² |
| Water Capture Capacity | 3 kg/24 h |
| Shelf Load Volume (bulk) | 0.7–1.2 L |
| Dimensions (W×D×H) | 565 × 420 × (360 + 340) mm |
| Tray Configuration | 4 stainless steel trays (Ø200 mm) for bulk loading |
| Bottle Configuration | 3 stainless steel trays (Ø180 mm) with manual hydraulic stoppering mechanism (supports up to 135 × Ø22 mm vials) |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |

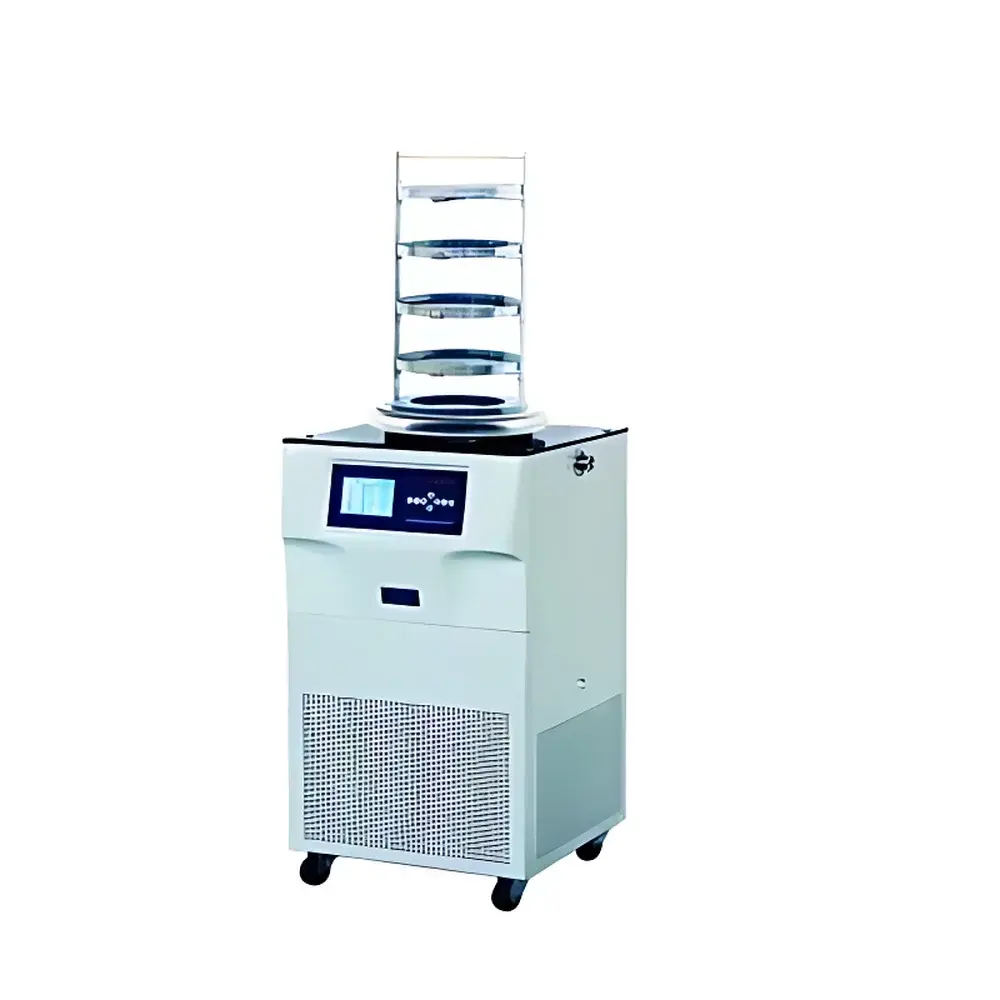

| Model | FD-2 |
| Price | USD 7,150 (FOB Shanghai) |
| Condenser Temperature | ≤ −70 °C |
| Ultimate Vacuum | < 13 Pa |
| Freeze-Drying Area | 0.27 m² |
| Tray Capacity | 2.7 L |
| Water Trapping Capacity | 6 kg/24 h |
| Condenser Dimensions | Φ280 × 420 mm |
| Tray Diameter | Φ240 mm |
| Power Supply | 220 V, 50 Hz, 1800 W |
| Overall Dimensions | 540 × 640 × 920 mm |
| Net Weight | Approx. 95 kg |
