| Brand | AOE Tech |
|---|---|
| Model | TNSLM017-A |
| Type | Phase-Modulating SLM |
| Liquid Crystal Mode | TN-type TFT-LCD |
| Pixel Count | 1024 × 768 |
| Pixel Pitch | 36 µm |
| Active Area | 1.8" (36.6 mm × 27.4 mm) |
| Optical Efficiency | 36% @ 632 nm |
| Wavefront Flatness | λ/3–λ/5 |
| Contrast Ratio | 400:1 |
| Aperture Fill Factor | 70% |
| Spectral Range | 380–1200 nm |
| Anti-Reflection Coating | Rₐᵥg < 1% (380–750 nm or 750–1200 nm) |
| Damage Threshold | 2 W/cm² |
| Response Time | 17 ms (rise), 30 ms (fall) |
| Data Interface | VGA (standard), DVI/USB (optional) |
| Frame Rate | 60–80 Hz |
| Pixel Clock | 66 MHz |
| Control Interface | RS-232 serial |
| Software Platform | Windows XP/2000 compatible |
| Power Supply | 16 V, 1 A |
| Key | Brand: AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | TM |
| Emissivity | 0.997 (high-temp cavity), 0.99 (ambient-temperature cavity) |
| Temperature Range (High-Temp Mode) | +5 °C to 1200 °C |
| Temperature Range (Ambient Mode) | 30 °C to 50 °C |
| Aperture Diameter | 12 mm (high-temp), 75 × 75 mm (ambient) |
| Temperature Stability | ±0.1 °C per 30 min (both modes) |
| Temperature Accuracy | ±0.01 °C (high-temp), ±0.05 °C (ambient) |
| Cavity Type | Precision machined, isothermal blackbody cavity with graphite-coated interior |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | HT-M1000020 |
| Cavity Aperture | 20 mm |
| Temperature Range | 5–1000 °C |
| Temperature Stability | ±0.1 °C / 30 min |
| Emissivity | 0.95 or 0.99 (selectable) |
| Temperature Resolution | 0.1 °C (standard), 0.01 °C (high-res option) |
| Temperature Accuracy | ±(0.15 °C + 0.002 × |
| Power Supply | 220 V ±1%, 50/60 Hz, 35 A |
| Dimensions (standard) | 395 × 200 × 252 mm (L×W×H) |
| with chopper | 230 × 296 × 278 mm |
| Compliance | Designed for ISO/IEC 17025-compliant calibration labs, compatible with ASTM E1545, ISO 18434-1, and MIL-STD-2154 thermal radiation source requirements |
| Brand | AOE Tech |
|---|---|
| Model | JF-H410B |
| Wavelength | 650 nm |
| Output Power | 5 mW |
| Spectral Width | ±5 nm @ 20°C |
| Fiber Compatibility | SM & MM |
| Operating Mode | CW / 2 Hz Modulated |
| Connector Interface | 2.5 mm Universal Ferrule |
| Power Supply | 2 × AAA batteries |
| Continuous Operation Time | 20–30 h |
| Operating Temperature | −10°C to +60°C |
| Storage Temperature | −25°C to +70°C |
| Dimensions | 17.5 × 2.6 × 2.6 cm |
| Weight | 200 g |
| Brand | AOE Tech |
|---|---|
| Model | HT-Series |
| Cavity Material | High-Purity Alumina Ceramic (Corundum) |
| Temperature Range | 300–1700 °C |
| Emissivity | ≥0.99 |
| Temperature Uniformity | ≤±0.5 °C across cavity aperture |
| Temperature Stability | ≤±0.1 °C / 30 min (at setpoint ≥1000 °C) |
| Temperature Resolution | 0.1 °C (≤1000 °C), 1 °C (>1000 °C) |
| Temperature Accuracy | ±(0.15 °C + 0.003× |
| Aperture Diameters | 24 mm, 30 mm, 40 mm |
| Standard Configurations | HT-H1200-040, HT-H1450-024, HT-H1450-030, HT-H1450-040, HT-H1700-040 |
| Housing Type | Integrated or Split-Body (Split: 550 × 584 × 913 mm |
| Integrated | 451 × 446 × 442 mm) |
| Power Supply | 220 V ±1%, 50/60 Hz, 35 A |
| Optional | Precision Aperture Diaphragms (ISO 11554 compliant) |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | JF-H620A / JF-H620C |
| Calibration Wavelengths | 850 nm, 980 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm |
| Wavelength Range | 850–1625 nm |
| Detector Type | InGaAs |
| Power Measurement Range (JF-H620A) | −70 to +6 dBm |
| Power Measurement Range (JF-H620C) | −50 to +26 dBm |
| Uncertainty | ±0.25 dB |
| Display Resolution | 0.1% (linear), 0.01 dBm (logarithmic) |
| Operating Temperature | −10 °C to +60 °C |
| Storage Temperature | −25 °C to +70 °C |
| Auto-Off Interval | 10 min (configurable) |
| Battery Life | ≥130 h |
| Power Supply | Two AA 1.5 V alkaline batteries |
| Weight | 225 g |
| Dimensions | 194.5 × 92.2 × 46.2 mm |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Type | Gas Laser System |
| Model | JF500HN |
| Output Power Range | 1.5–30 mW (CW) |
| Beam Mode | TEM₀₀ |
| Beam Diameter (1/e²) | 0.63–1.15 mm |
| Beam Divergence (1/e²) | ≤1.32 mrad |
| Polarization | Random or Linear (selectable) |
| Power Stability | ≤±1% (over 8 hrs) |
| Laser Head Dimensions | 240.03×35.1 mm to 550.3×46.5 mm (L×D, model-dependent) |
| Construction | Separated Laser Tube & Power Supply Architecture |
| Laser Tube Origin | USA-sourced sealed He-Ne tube |
| Sealing Technology | Hard-seal glass-metal hermetic encapsulation |
| Typical Lifetime | >20,000 hours |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | RSLM-HD70-A/P |
| Modulation Type | Amplitude & Phase |
| LCD Technology | Reflective LCoS |
| Resolution | 1920 × 1080 pixels |
| Pixel Pitch | 8.0 µm |
| Active Area | 15.36 mm × 8.64 mm |
| Grayscale Depth | 8-bit (256 levels) |
| Phase Range | ≥2π @ 632 nm |
| Contrast Ratio | >2000:1 |
| Fill Factor | >87% |
| Diffraction Efficiency | 75% @ 550 nm |
| Frame Rate | 60–480 Hz (configurable) |
| Spectral Range | 420–1100 nm |
| Interface | DVI |
| Operating Temperature | −5 °C to +55 °C |
| Max Incident Power Density | 2 W/cm² |
| Drive Voltage | DC +4.5 V to +5.5 V / 2 A |
| Brand | AOE Tech |
|---|---|
| Model | JF-H510i |
| Category | Optical Multimeter (Integrated Light Source & Optical Power Meter) |
| Calibration Wavelengths | 850 / 980 / 1310 / 1490 / 1550 / 1625 nm |
| Power Meter Range (JF-H510A) | –70 to +6 dBm |
| Power Meter Range (JF-H510C) | –50 to +26 dBm |
| Resolution | 0.01 dBm |
| Uncertainty | ±5% dB |
| Source Wavelengths | 650 / 1310 / 1550 nm (FP-LD) |
| Typical Output Power | –7 dBm |
| Power Supply | 3 × AA batteries |
| Auto-off Delay | 10 min |
| Battery Life | 28 h (power meter only) / ≥4 h (dual operation) |
| Operating Temperature | –10 °C to +60 °C |
| Dimensions | 189 × 99.4 × 49.8 mm |
| Weight | 245 g |
| Brand | AOE Tech |
|---|---|
| Origin | Netherlands |
| Model | OKO Mirrors |
| Type | Electrostatic Membrane Deformable Mirror |
| Actuator Count | 37 to 140 (configurable) |
| Surface Quality | λ/20 RMS (typ.) |
| Clear Aperture | 15 mm to 50 mm (model-dependent) |
| Stroke Range | ±5 µm (peak-to-valley, full scale) |
| Response Time | < 1 ms (90% step response) |
| Coating | Protected Aluminum (R > 90% @ 400–1000 nm), optional UV-enhanced or NIR-optimized variants |
| Interface | Analog voltage input (±10 V per actuator), compatible with standard DAC modules and real-time controllers (e.g., IrisAO, ALPAO, or custom FPGA-based systems) |
| Brand | AOE Tech |
|---|---|
| Model | SpotOn USB2.0 |
| Type | PSD-based Laser Beam Profiling & Position Monitoring System |
| Spectral Range | 350–1100 nm |
| Active Area | 9 mm diameter (PSD sensor) |
| Power Range | 10 µW – 2.5 mW |
| Interface | USB 2.0 |
| Dual-PSD Support | Yes |
| Real-time Position & Intensity Output | Yes |
| Auto-gain Control | Yes |
| Compliance | CE, RoHS |
| Origin | Shanghai, China |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | RSLM-HD70-A |
| Modulation Type | Amplitude & Phase |
| LCD Type | Reflective LCOS |
| Gray Levels | 8-bit (256 levels) |
| Resolution | 1920 × 1080 pixels |
| Pixel Pitch | 8.0 µm |
| Active Area | 15.26 mm × 8.64 mm |
| Phase Range | 1.2π @ 532 nm |
| Contrast Ratio | >2000:1 |
| Fill Factor | >87% |
| Frame Rate | 60 Hz |
| Operating Temperature | −40 °C to +55 °C |
| Diffraction Efficiency | 75% @ 550 nm |
| Maximum Incident Power Density | 2 W/cm² |
| Spectral Range | 420–1100 nm |
| Data Interface | DVI |
| Brand | Alphalas |
|---|---|
| Origin | Germany |
| Model | PICOPOWER-LD |
| Wavelength Options | 375, 405, 450, 488, 635, 670, 785, 976, 1030, 1064, 1300, 1550 nm (custom wavelengths available) |
| Pulse Width | <40–80 ps (wavelength-dependent) |
| Repetition Rate | 0.1 Hz to 20 MHz (optional up to 80 MHz) |
| Peak Power | Up to 3 W (wavelength- and configuration-dependent) |
| Average Power | 0.2–1.0 mW @ 20–40 MHz |
| Beam Divergence | 0.5–1.5 mrad |
| Output | Free-space collimated (TEM₀₀, elliptical) or fiber-coupled (SMF/PMF options) |
| Operating Temperature | 15–35 °C |
| Laser Head Dimensions | Ø25 × 125 mm |
| Driver Dimensions (PLDD-100-40) | 235 × 110 × 280 mm |
| Weight | Laser Head 120 g, Driver 2.6 kg |
| Compliance | CE, RoHS, IEC 60825-1:2014 (Laser Class 1M or 3B per wavelength) |
| Brand | Alphalas |
|---|---|
| Origin | Germany |
| Model | UPD |
| Spectral Range | 170–2600 nm |
| Rise Time | 15–500 ps |
| Bandwidth | DC to 25 GHz |
| Detector Materials | Si, GaAs, InGaAs, Ge |
| Optical Input | Free-space (polished/diffuse MgF₂/quartz/glass windows), FC/PC, or fiber-coupled (9 µm SMF) |
| RF Output Connector | SMA or BNC |
| NEP | 1.0 × 10⁻¹⁵ – 7.0 × 10⁻¹³ W/√Hz |
| Dark Current | 0.001–2000 nA |
| Sensitive Area | 55–2000 µm diameter (0.0024–3.14 mm²) |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | AC201-Rb |
| Cell Body Material | Pyrex or Fused Silica |
| Cell Diameter | Φ10 / 15 / 20 / 25.0 ± 1.6 mm |
| Cell Length | 10 / 20 / 50 / 100.0 ± 0.8 mm |
| Window Thickness | 3.0 ± 0.8 mm |
| Window Angle | 0° (Flat Parallel) |
| Fill Species | Rb (⁸⁵Rb / ⁸⁷Rb), optionally with buffer gases (He, Ne, CH₄, C₂H₆) |
| Operating Temperature Range (heated variant) | 40–200 °C |
| Compliance | Designed for traceable wavelength calibration per ISO/IEC 17025-aligned optical metrology workflows |
| Brand | ALPHALAS |
|---|---|
| Origin | Germany |
| Type | Actively Q-Switched DPSS Laser |
| Wavelength Options | 1047, 1053, 1062, 1064, 946, 1342 nm (with harmonic generation to 671, 532, 473, 355, 266 nm) |
| Pulse Width | 0.7–3.0 ns |
| Repetition Rate | 0.1 kHz – 100 kHz |
| Average Power | 100 mW – >1 W |
| Pulse Energy | up to 100 µJ @ 1 kHz |
| Beam Mode | TEM₀₀ |
| Compliance | CE, RoHS, ISO 9001-manufactured |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |

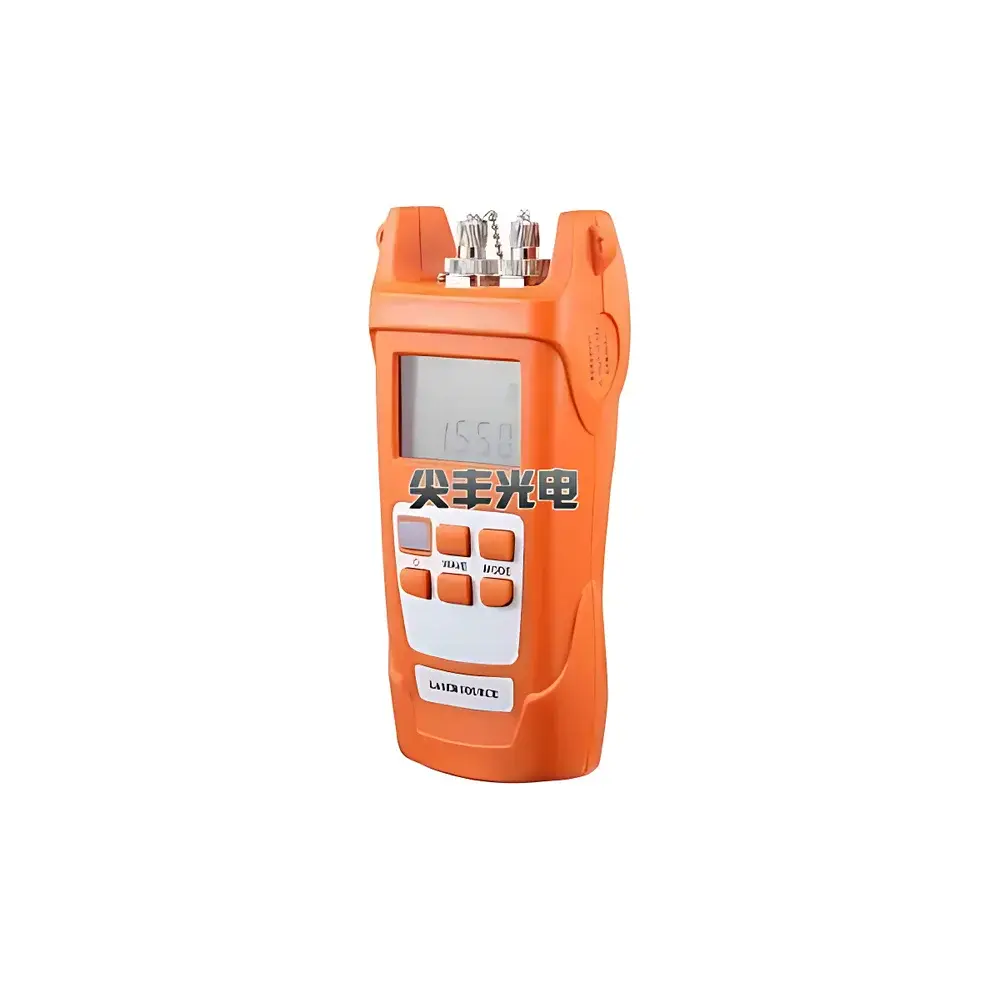

| Model | JF-H430 |
| Price Range | USD 0–7,200 |
| Brand | AOE Tech |
|---|---|
| Model | JF-H660i |
| Calibration Wavelengths | 1310 nm (upstream), 1490 nm (downstream voice/data), 1550 nm (downstream video) |
| Passband Ranges | 1260–1360 nm, 1470–1505 nm, 1535–1570 nm |
| Power Measurement Range | –40 to +10 dBm (1310/1490 nm), –40 to +20 dBm (1550 nm) |
| Inherent Uncertainty | ±0.5 dB |
| Polarization-Dependent Loss (PDL) | < ±0.25 dB |
| Linearity | ±0.1 dB |
| Insertion Loss | < 1.5 dB |
| Display Resolution | 0.01 dB or 0.01 dBm |
| Input Voltage | DC 8.4 V |
| Rechargeable Battery | 7.4 V Li-ion |
| AC Adapter | 8.4 V |
| Fiber Type | Single-mode (SMF-28 compliant) |
| Operating Temperature | –10 to +60 °C |
| Storage Temperature | –25 to +70 °C |
| Dimensions | 198 × 99.4 × 49.8 mm |
| Weight | Not specified |

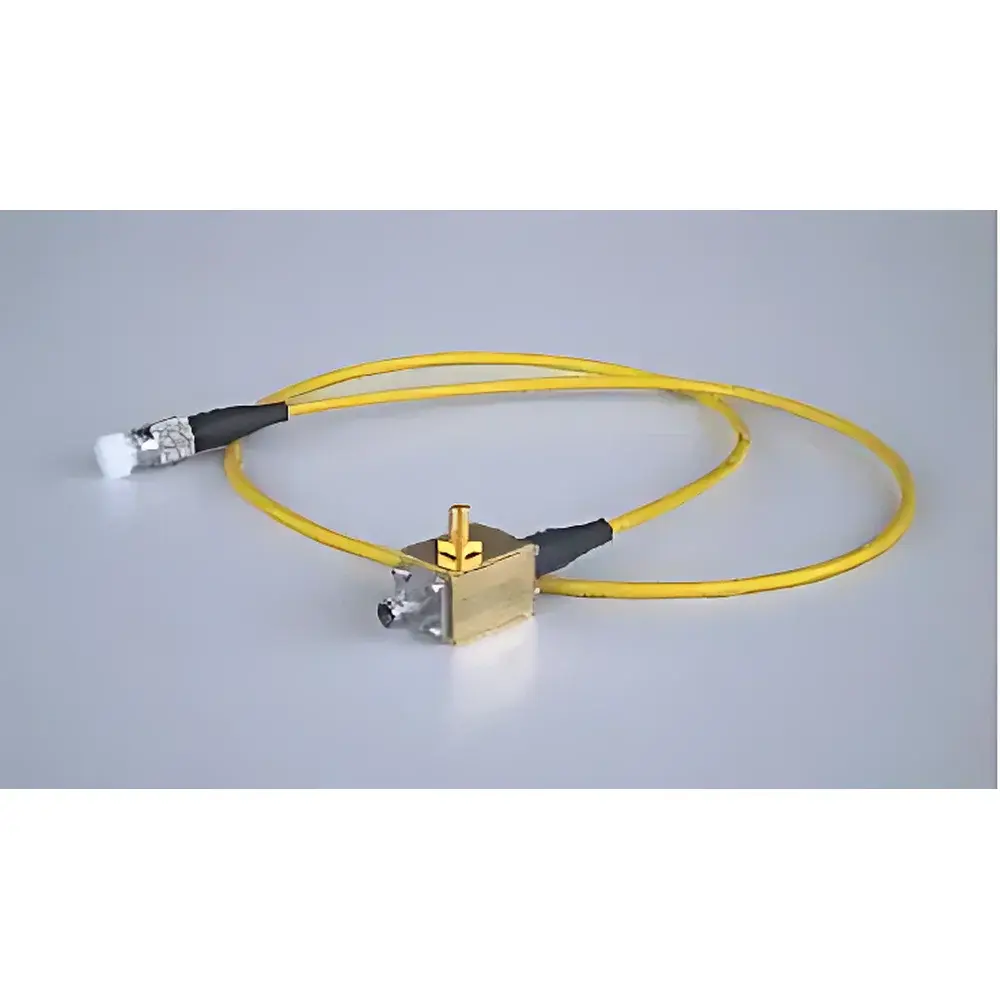

| Brand | A.L.S. GmbH / Advanced Laser Diode Systems |
|---|---|
| Origin | Germany |
| Model | MSM UltraFast-20 / UltraFast-35 |
| Bandwidth | DC–20 GHz / DC–35 GHz |
| Wavelength Range | 400–1600 nm |
| Detector Structure | Metal–Semiconductor–Metal (MSM) |
| Capacitance | Low |
| Series Impedance | Low |
| Active Area | Optimized for High-Speed Operation |
| Bias Voltage | 6 V (typ.) |
| Output Interface | 50 Ω RF coaxial |
| Compliance | RoHS, CE |
| Mounting Options | SM-fiber-coupled (UltraFast-20/35 SM) and free-space (UltraFast-20/35 FS) with integrated focusing lens |
| Brand | A.L.S. GmbH / Advanced Laser Diode Systems |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | DiLas DD50-2 |
| Core Components | Fiber-Coupled Semiconductor Laser Module, Integrated Laser Driver & TEC Controller, Active Air-Cooled Heat Sink |
| Max Output Current | 50 A |
| Max Output Voltage | 3–6 V (configurable) |
| Pulse Rise Time | 100 µs |
| Operating Modes | CW and Pulsed |
| Wavelength Options | 808 nm, 940 nm, 980 nm |
| Fiber Coupling | SMA905 connector, 400 µm or 600 µm core diameter |
| Thermal Load Capacity | Up to 120 W (HS 120) |
| TEC Integration | Integrated Peltier element with temperature sensor and active fan cooling |
| Control Interface | Front-panel keypad + RS232 |
| Analog Modulation | Supported (50 A version only) |
Show next
