| Brand | AOE Tech |
|---|---|
| Model | JF8149 |
| Light Source Type | Distributed Feedback (DFB) Semiconductor Laser |
| Wavelength Options | 840–860 nm, 1290–1330 nm, 1530–1560 nm (C/L-band) |
| Output Power | Up to 100 mW (standard), up to 200 mW with integrated EDFA (C/L-band only) |
| Spectral Linewidth | ≤0.1 nm (@ −3 dB), ≤0.5 nm (@ −20 dB) |
| SMSR | ≥35 dB |
| Power Stability | ±0.005 dB (15 min), ±0.03 dB (8 h) |
| Wavelength Stability | ±0.003 dB (short-term), TEC temperature control accuracy: ±0.1 °C |
| Modulation | Internal (0.2–500 kHz), External (0.5–10 MHz) |
| Interface | RS-232 |
| Display | Backlit LCD showing power, wavelength, TEC temperature, drive current |
| Dimensions | 280 × 260 × 112 mm |
| Input Voltage | 85–260 VAC |
| Power Consumption | ≤15 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −40–80 °C |
| Output Configuration | 1–4 independent wavelengths, 1–4 fiber-coupled FC/APC outputs |
| Compliance | CE-marked, RoHS-compliant, designed for GLP/GMP-aligned lab environments |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | JF8142 |
| Output Configuration | Fiber-Coupled (SM/MM) |
| Pulse Width | 10–300 ns |
| Repetition Rate | Up to 100 kHz |
| Peak Power | 0.7 W (SM single-emitter), 12 W (MM single-emitter), up to 2 kW (MOPA-amplified) |
| Wavelength Options | 808, 915, 940, 975, 980, 1064, 1550 nm |
| Spectral Width (FWHM) | ≤2–4 nm (–3 dB) |
| SMSR | ≥20 dB (MM), ≥35 dB (SM/MOPA) |
| Power Stability | ±5% (rms, over 8 hrs) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | –40–80 °C |
| Dimensions (L×W×H) | 280 × 260 × 112 mm |
| Power Consumption | ≤15 W |
| Synchronization Output | TTL-compatible electrical sync port |
| Modulation Modes | Internal (software/front-panel programmable) and External (triggered by user-supplied TTL/LVDS signal, including single-shot) |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | JF8146 |
| Price Range | USD 1,400 – 4,200 (FOB Shanghai) |
| Light Source Type | High-Power Diode Pump Source |
| Illumination Configuration | Internal Irradiation Design |
| Output Power | 1–10 W (adjustable) |
| Wavelength Options | 808 nm, 915 nm, 940 nm, 960 nm, 975 nm |
| Spectral Width (RMS) | ≤ 4.8 nm |
| Output Stability (15 min) | ±0.05 dB |
| Output Stability (8 h) | ±0.2 dB |
| TEC Temperature Stability | ±0.1 °C (typ.), ±0.2 °C (max.) |
| TEC Operating Range | 20–30 °C |
| Input Voltage | 170–260 VAC (system) |
| Power Consumption | ≤ 15 W |
| Operating Temperature | 0–45 °C |
| Storage Temperature | −40–80 °C |
| Output Fiber | 105/125 µm multimode, NA 0.22 or 0.15 |
| Dimensions (Desktop) | 280 × 260 × 112 mm |
| Control Interfaces | RS232 (standard), RS485 (optional) |
| APC & ATC Circuits | Integrated high-precision analog feedback loops |
| Brand | AOE Tech |
|---|---|
| Model | JF814B |
| Output Power | Up to 10 W |
| Wavelength Options | C-band (1530–1560 nm) or 1060 nm band (1035–1080 nm) |
| Spectral Linewidth (FWHM) | < 0.1 nm |
| Side Mode Suppression Ratio (SMSR) | > 35 dB |
| Output Stability | ±0.05 dB (typ.), ±0.1 dB (max.) |
| Output Fiber | SMF-28, FC/APC connector |
| Operating Temperature | −5 to +40 °C |
| Storage Temperature | −40 to +80 °C |
| Relative Humidity | 10–85% RH (non-condensing) |
| Power Supply | 170–264 VAC, 100 W max. |
| Dimensions | 280 × 260 × 112 mm |
| Compliance | Bellcore GR-1312-CORE |
| Brand | ALPHALAS |
|---|---|
| Origin | Germany |
| Model | 1064-200 |
| Wavelength | 1064 nm (customizable to 946 nm, 1342 nm, and frequency-doubled outputs) |
| Pulse Width | < 1 ns |
| Operating Mode | Passive Q-switching |
| Laser Type | Diode-pumped microchip solid-state laser |
| Illumination Configuration | External illumination |
| Compliance | CE-marked, RoHS-compliant |
| Cooling | Conductive (fanless, thermoelectrically stabilized) |
| Beam Quality | TEM₀₀ (M² < 1.1) |
| Repetition Rate | 1–100 kHz (model-dependent, standard 10–50 kHz) |
| Pulse Energy | Up to 50 µJ (at 1064 nm, 10 kHz) |
| Average Power | Up to 500 mW |
| Polarization | Linear, >100:1 extinction ratio |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | MONOPOWER™ |
| Light Source Type | Continuous-Wave (CW) Diode-Pumped Solid-State (DPSS) Laser |
| Wavelength | 532 nm (fundamental green) |
| Output Power Range | 10 mW to 10 W |
| Beam Quality | TEM₀₀ (Single Transverse Mode) |
| Relative Intensity Noise (RIN) | < −130 dB/Hz (typ. < 0.5% RMS, 10 Hz–10 MHz) |
| Linewidth | < 1 MHz (single longitudinal mode) |
| Polarization Extinction Ratio | > 100:1 |
| Cooling | Air-cooled (up to 2 W), Water-cooled (≥ 5 W) |
| Operating Temperature | 15–30 °C |
| Warm-up Time | < 15 min to full stability |
| Power Stability (8 hrs) | ±0.5% |
| Beam Diameter (1/e²) | 0.6–1.2 mm (model-dependent) |
| Divergence (full angle) | < 1.5 mrad |
| Modulation Capability | Analog & TTL modulation input (optional) |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 3B/4 laser safety |
| Brand | Alphalas |
|---|---|
| Origin | Germany |

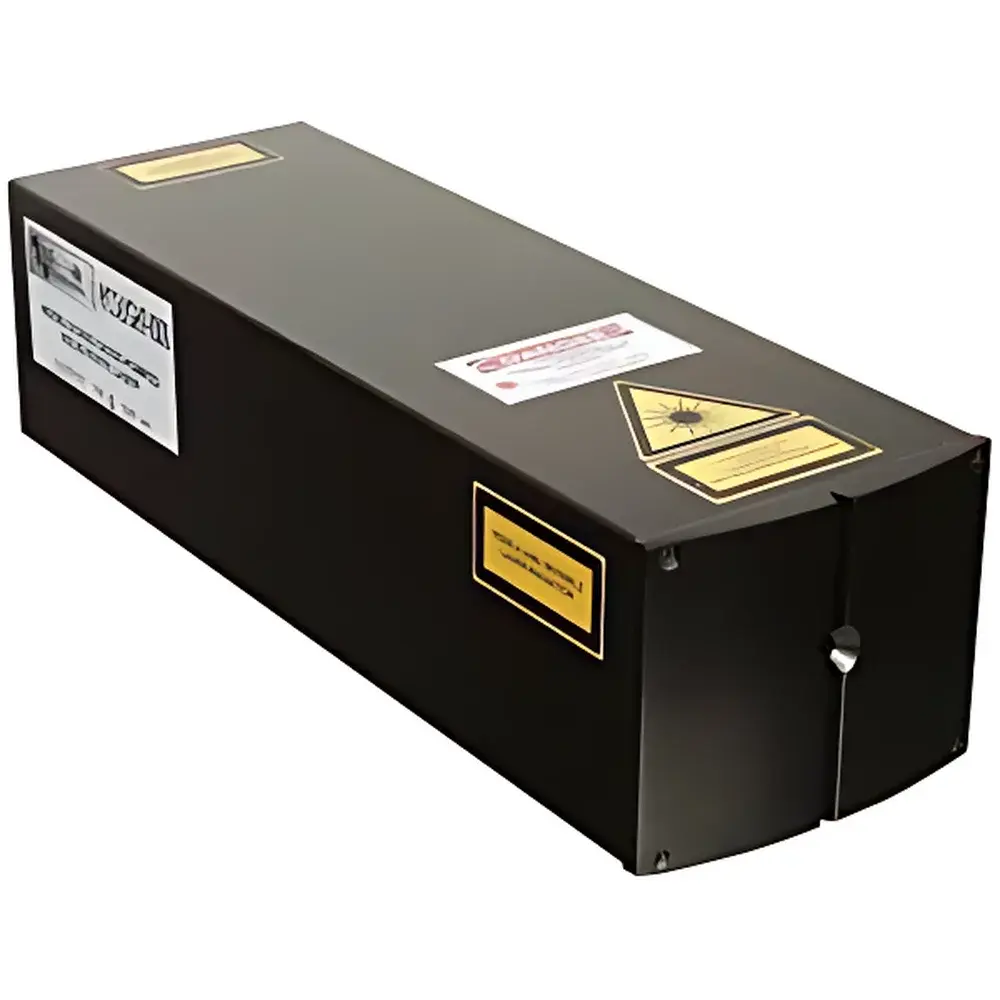

| Product Type | Imported Diode-Pumped Solid-State (DPSS) Laser System |
| Model | Modelocked_Picosecond_DPSS_Lasers |
| Wavelength Range | Fundamental IR Output (Typ. 1064 nm), Optional Harmonic Generation (532 nm, 355 nm, 266 nm) |
| Pulse Duration | <15 ps (FWHM) |
| Repetition Rate | 10–100 MHz (Standard), Configurable |
| Average Power | Up to 1.5 W @ 1064 nm |
| Peak Power | >100 kW |
| Beam Quality | M² < 1.2 |
| Noise | RMS < 0.3% (10 Hz–10 MHz) |
| Operation Mode | CW-mode-locked, Turnkey Operation |
| Cooling | Air-cooled |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | Actively Q-Switched DPSS Lasers |
| Wavelength Options | 1047 nm, 1053 nm, 1062 nm, 1064 nm, 946 nm, 1342 nm (with harmonic generation to 671 nm, 532 nm, 473 nm, 355 nm, 266 nm) |
| Pulse Width | 0.7–3.0 ns |
| Pulse Energy | 20–100 µJ @ 1–25 kHz |
| Average Output Power | 300–1000 mW |
| Repetition Rate | 0–25 kHz |
| Beam Mode | TEM₀₀ |
| Operating Mode | Actively Q-switched solid-state (Nd:YAG, Nd:YVO₄, or similar gain media) |
| Brand | ALPHALAS |
|---|---|
| Origin | Germany |
| Model | PICOPOWER™-LD |
| Wavelength Options | 375, 405, 450, 488, 635, 670, 785, 976, 1030, 1064, 1300, 1550 nm (custom wavelengths available) |
| Pulse Width | <40–80 ps (model-dependent) |
| Repetition Rate | 0.1 Hz to 20 MHz (optional up to 80 MHz) |
| Peak Power | up to 3 W (wavelength- and configuration-dependent) |
| Average Power | 0.2–1.0 mW @ 20–40 MHz |
| Beam Divergence | 0.5–1.5 mrad |
| Output | Free-space collimated or fiber-coupled (SM/PM fiber options) |
| Laser Head Dimensions | Ø25 × 125 mm |
| Driver Dimensions | 235 × 110 × 280 mm |
| Operating Temperature | 15–35 °C |
| Compliance | CE, RoHS, IEC 60825-1:2014 (Class 1M / 3B depending on wavelength & configuration) |
| Brand | A.L.S. GmbH / Advanced Laser Diode Systems |
|---|---|
| Origin | Germany |
| Model | PiL-x |
| Wavelength Range | 375–2000 nm |
| Pulse Width | 20 ps – 1 ns |
| Peak Power | 20–1000 mW |
| Repetition Rate | Single Shot to 120 MHz |
| Output | Free-space or Fiber-Coupled (SM/MM) |
| Polarization Extinction Ratio | >23 dB |
| Timing Jitter | <3 ps RMS |
| Warm-up Time | <5 min |
| Laser Head Dimensions | 95 × 31 × 147 mm³ |
| Controller Dimensions | 235 × 88 × 326 mm³ |
| OEM Housing | Compact, Sealed, Maintenance-Free |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | JF8147 |
| Light Source Type | Semiconductor Diode Pump Laser |
| Illumination Mode | Internal (Fiber-Coupled) |
| Output Power Range | 100–700 mW (adjustable) |
| Center Wavelength Options | 808 nm, 976 nm, 980 nm, 1053 nm, 1064 nm, 1420–1470 nm |
| Spectral Width (FWHM) | ≤12 nm |
| Power Stability (15 min) | ±0.05 dB |
| Power Stability (8 h) | ±0.2 dB |
| TEC Temperature Stability | ±0.1 °C (typ.), ±0.2 °C (max.) |
| TEC Operating Range | 20–30 °C |
| Input Voltage | 170–260 VAC (benchtop) |
| Power Consumption | ≤10 W |
| Dimensions (Benchtop) | 280 × 260 × 112 mm |
| Display | Integrated LCD |
| Control Interface | Local keypad + RS232 / USB / analog modulation input |
| Safety Compliance | IEC 60825-1:2014 Class 3B Laser Product |
| Cooling | Active TEC + heatsink |
| Fiber Output | SMF-28, FC/APC or FC/PC connector optional |
