| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | Single/Dual-Taper Fiber Tapering System |
| Component Category | Optical Components |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Key Features | 3-Axis Programmable Torch Positioning (X/Y/Z), Integrated Fusion & Tension Control, Dual-Mode Tapering Capability (Single- and Dual-Taper Configurations) |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Component Type | Polarization-Maintaining Fiber Collimator |
| Wavelength | 1310 nm |
| Fiber Type | PM Panda Fiber |
| Slow-Axis Alignment | Yes |
| AR-Coated Lens | Yes |
| Connector Option | Optional (affects IL, RL, ER) |
| Operating Power Handling | High-Power Compatible |
| Compliance | ISO 10110-7 (optical surface quality), Telcordia GR-1209-CORE (fiber optic reliability) |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Optical Component |
| Model | PMFOA |
| Wavelength Options | 980 nm, 1064 nm, 1310 nm, 1550 nm |
| Insertion Loss (Typ.) | ≤0.6 dB (P-grade), ≤0.8 dB (A-grade) |
| Extinction Ratio | ≥20 dB (P-grade), ≥17 dB (A-grade) |
| Directivity | ≥55 dB |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −40 °C to +85 °C |
| IL Tolerance (e.g., at 10 dB attenuation) | ±1.0 dB (P-grade), ±1.2 dB (A-grade) |
| Fiber Type | Panda-type PM fiber |
| Pigtail | 250 µm bare fiber or 900 µm loose tube (custom lengths available) |
| Connector Options | FC/PC, FC/APC, SC/PC, SC/APC, LC/UPC (optional) |
| Package Dimensions | Φ3 × 54 mm or Φ3 × 70 mm |
| Key | Brand: AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | PMOSW |
| Component Category | Optical Component |
| Wavelength Options | 1064 nm / 1310 nm / 1550 nm |
| Insertion Loss | ≤0.5 dB (Typ. 0.4 dB) |
| Extinction Ratio | ≥20 dB |
| Channel Crosstalk | ≥55 dB |
| Return Loss | ≥55 dB |
| Repeatability | ≤±0.05 dB |
| Switching Time | 10 ms |
| Lifetime | >1,000,000 cycles |
| Operating Voltage | 5 ±0.5 V DC or 5 V pulse |
| Operating Current | <50 mA |
| Fiber Type | PM Panda fiber |
| Package Dimensions | 26.5 × 13.4 × 11 mm (L×W×H) |
| Operating Temperature | −15 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Switching Mode | Latching or Non-latching |
| Brand | AOE Tech |
|---|---|
| Model | PMIWDM |
| Category | Polarization-Maintaining Optical Component |
| Type | Integrated Passive Fiber-Optic Device |
| Construction | Monolithic Hybrid Assembly |
| Operating Principle | Polarization-Selective Non-Reciprocal Isolation + Wavelength-Dependent Directional Coupling |
| [Key | Value] |
| Brand | AOE Tech |
| Origin | Shanghai, China |
| Model | PMIWDM |
| Component Type | Polarization-Maintaining Hybrid Optical Device |
| Signal Wavelength Range | 1530–1565 nm |
| Pump Wavelength Options | 960–990 nm (for 980 nm band) or 1460–1490 nm (for 1480 nm band) |
| Typical Peak Isolation | 40 dB (single-stage), 55 dB (dual-stage) |
| Isolation at 23 °C (Signal Path) | ≥30 dB (single-stage), ≥48 dB (dual-stage) |
| Insertion Loss (Signal Path, 23 °C) | ≤0.9 dB (single-stage, 1550/980), ≤1.2 dB (double-stage, 1550/1480) |
| Insertion Loss (Reflection Band) | ≤0.6 dB |
| Extinction Ratio | ≥22 dB (F-type, fast-axis blocked), ≥20 dB (B-type, both axes active) |
| Directivity | ≥55 dB |
| Return Loss | ≥50 dB |
| Thermal Stability of IL | ≤0.005 dB/°C |
| Max Optical Power Handling | 300 mW (CW) |
| Operating Temperature | −5 to +70 °C |
| Storage Temperature | −40 to +85 °C |
| Package Dimensions | Ø5.5 × L35 mm |
| Input/Output Fiber Options | PM1550 (transmit path), PM1550 / PM980 / HI1060 / SMF-28 (reflect path) |
| Alignment | Slow-axis aligned to connector key |
| Connector Options | FC/APC, FC/UPC, SC/APC, SC/UPC, LC/UPC, or bare fiber (250 µm or 900 µm) |

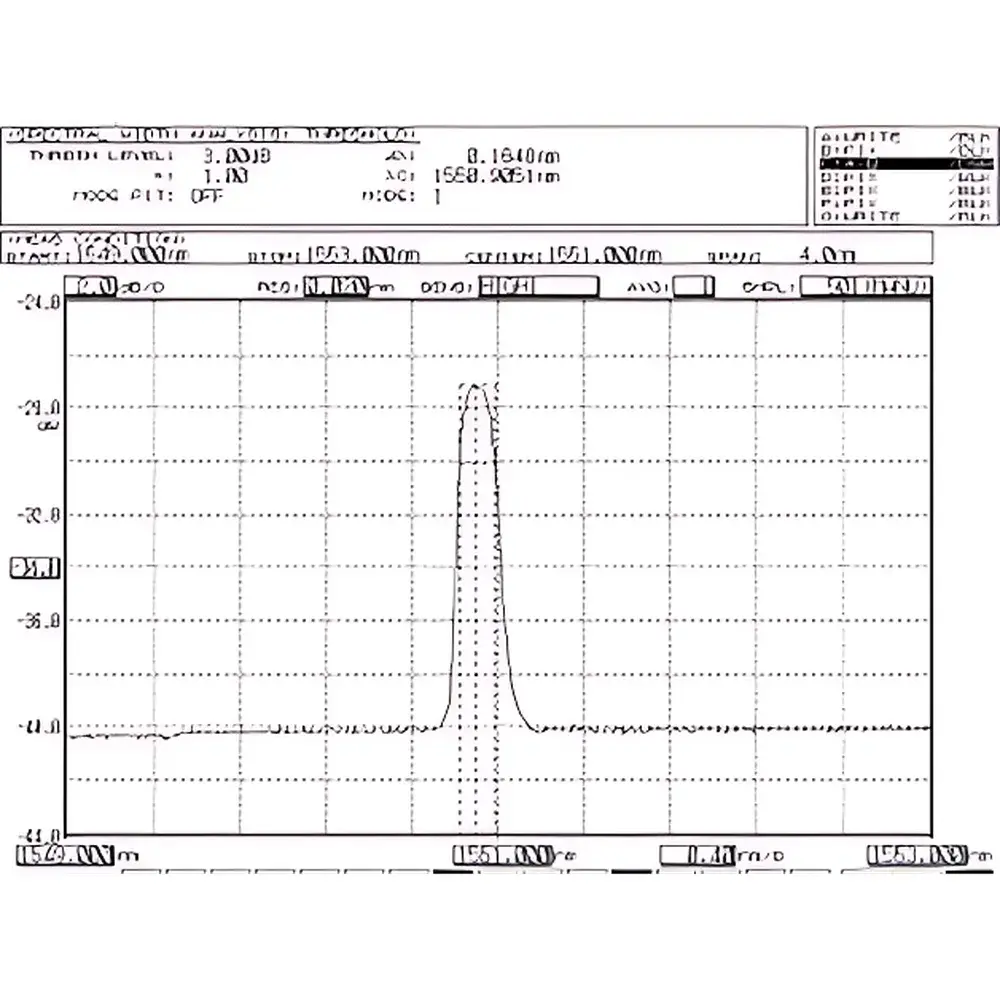

| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Component Category | Optical Element |
| Fiber Type Compatibility | HI980, HI1060, SMF-28e, PM980, PM1550, Active Fibers, or Custom |
| Center Wavelength Range | 1510–1590 nm ±0.05% |
| Reflectivity | 1–99.999% ±0.5% |
| Full Width at Half Maximum (FWHM) | 0.03–1.0 nm |
| Side Mode Suppression Ratio (SMSR) | >20 dB |
| Grating Length | 0.2–50 mm |
| Coating | Acrylate Recoating |
| Operating Temperature Range | −5 to +80 °C |
| Brand | AOE Tech |
|---|---|
| Model | WDM-1550/1625 |
| Operating Wavelength | 1550 ± 5 nm / 1625 ± 5 nm |
| Insertion Loss (Max.) | 0.4 dB |
| Polarization-Dependent Loss (Max.) | 0.15 dB |
| Channel Isolation (Min.) | 13 dB |
| Return Loss (Typ.) | >55 dB |
| Operating Power (Max.) | 5 W |
| Operating Temperature | –40 °C to +85 °C |
| Storage Temperature | –50 °C to +85 °C |
| Package Options | S9 (Ø3×76 mm, bare fiber), S10 (Ø3×92 mm, 0.9 mm loose tube), M3 (7.5×18×100 mm, supports 0.9 mm tube / 2 mm or 3 mm cable) |
| Fiber Type | SMF-28e or custom single-mode pigtail |
| Connector Options | FC/PC, FC/APC, SC/PC, SC/APC, ST, LC, MU, FC/UPC, SC/UPC |
| Brand | AOE Tech |
|---|---|
| Model | PMFC |
| Type | Polarization-Maintaining (PM) Filter-Based Coupler |
| Configuration | 1×2 / 2×2 |
| Operating Wavelengths | 1310 nm, 1550 nm, 980 nm, 1064 nm |
| Coupling Ratios | 1:99 to 50:50 (customizable) |
| Excess Loss | ≤0.7 dB (1×2, 1310/1550 nm) |
| Polarization Extinction Ratio (PER) | ≥20 dB (Type B), ≥22 dB (Type F) |
| Return Loss | ≥50 dB |
| Max Input Power | 300 mW |
| Fiber Type | Panda PM fiber (Ports 1 & 3) |
| Package Diameter × Length | φ5.5 mm × 35 mm |
| Operating Temperature | −5 °C to +70 °C |
| Storage Temperature | −40 °C to +80 °C |
| Connector Options | FC/APC, FC/UPC, SC/APC, SC/UPC |
| Slow-Axis Alignment | Key-aligned to connector key |
| Test Documentation | Full four-port IL, PER, and CR characterization per unit |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | PMF Fusion Tapering System |
| Price | USD 14,000 (FOB Shanghai) |
| Component Class | Optical Components |
| Brand | AOE Tech |
|---|---|
| Model | PMFWDM |
| Type | Polarization-Maintaining Optical WDM Component |
| Operating Wavelength Pairs | 980/1064 nm, 1030/1064 nm, 980/1550 nm, 1550/1064 nm, 1480/1550 nm |
| Insertion Loss (Transmit Port) | ≤0.8 dB |
| Insertion Loss (Reflect Port) | ≤0.6 dB |
| Isolation (Transmit Port) | ≥25 dB |
| Isolation (Reflect Port) | ≥13 dB |
| Extinction Ratio | ≥20 dB |
| Polarization-Dependent Loss (PDL) | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Thermal Stability of IL | ≤0.005 dB/°C |
| Max CW Power Handling | ≤300 mW |
| Fiber Types | Panda PM980, PM1550, HI1060, SMF-28e |
| Operating Temperature | 0–65 °C |
| Storage Temperature | −40–85 °C |
| Package Dimensions | Ø5.5 × 35 mm |
| Connector Key Alignment | Slow Axis |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | PMJP |
| Component Category | Optical Component |
| Connector Types | FC/UPC, SC/UPC, LC/UPC, FC/APC, SC/APC, LC/APC |
| Center Wavelengths | 980 nm, 1064 nm, 1310 nm, 1480 nm, 1550 nm |
| Insertion Loss | ≤0.3 dB (typ.), ≤0.5 dB (max.) |
| Return Loss | ≥50 dB (UPC), ≥60 dB (APC) |
| Extinction Ratio | ≥23 dB |
| Fiber Types | PM850, PM980, PM1310, PM1550 |
| Slow-Axis Alignment Accuracy | ±3° |
| Operating Temperature | –5 °C to +70 °C |
| Storage Temperature | –40 °C to +80 °C |
| Jacket Options | 250 µm bare fiber, 900 µm loose tube, 2 mm / 3 mm tight-buffered cable |
| Length Options | 1 m, 2 m, or custom |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | PMIS-1310nm_1480nm_1550nm |
| Operating Wavelengths | 1310 nm, 1480 nm, 1550 nm |
| Isolation Grade | Dual-Stage (PA) |
| Peak Isolation | ≥55 dB |
| Typical Insertion Loss | ≤0.6 dB (23 °C) |
| Extinction Ratio | ≥22 dB (Fast-Axis Blocked) |
| Return Loss (Input/Output) | ≥55 dB |
| Max. Optical Power Handling | 300 mW |
| Fiber Type | Panda PM Fiber |
| Operating Temperature | –5 °C to +70 °C |
| Package Dimensions | Ø5.5 mm × 35 mm |
| Compliance | Telcordia GR-1221-CORE, IEC 61300-2-4 (Insertion Loss), IEC 61300-2-17 (Return Loss) |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | SMMM |
| Component Category | Optical Fiber Transition Device |
| Operating Wavelength Range | Full-band (C+L band compatible) |
| Maximum Insertion Loss | 0.5 dB (Premium Grade) |
| Maximum Operating Power | 5 W |
| Splicing Method | Automated Fusion Splicing with Centralized Cladding Alignment |
| Splice Type | Permanent |
| Typical Application | Mode-field adaptation in hybrid fiber networks |
| [Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | PMVOA |
| Component Category | Passive Optical Component |
| Wavelength Options | 1310 nm, 1550 nm, 1310/1550 nm, 1064 nm |
| Operating Wavelength Bandwidth | ±20 nm (for dual-band) or ±40 nm (for single-band) |
| Attenuation Range | 0.6–40 dB (1310 nm), 0.8–40 dB (1550 nm) |
| Insertion Loss (Original) | ≤0.6 dB (1310 nm), ≤0.8 dB (1550 nm) |
| Extinction Ratio | ≥20 dB |
| Return Loss | ≥50 dB |
| Fiber Type | Panda-type PM fiber |
| Adjustment Resolution | 0.02 dB |
| Operating Temperature | –5 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Package Dimensions (L×W×H) | 26 × 18 × 8 mm |
| Connector Options | FC/PC, FC/APC, SC/PC, SC/APC, or bare fiber (900 µm, 2 mm, 3 mm loose tube) |
| Fiber Length Options | 0.8 m standard, custom lengths available] |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PM980 |
| Component Category | Optical Component |
| Price Range | USD 140 – 420 (FOB Shanghai) |
| Wavelength Options | 980 nm, 1064 nm, 1310 nm, 1550 nm |
| Center Wavelength Tolerance | ±0.05% |
| Reflectivity Range | 1–99.999% (±0.5% absolute) |
| FWHM | 0.03–1.0 nm |
| Side-Mode Suppression Ratio (SMSR) | >20 dB |
| Grating Length | 0.2–50 mm |
| Coating | UV-curable acrylate |
| Compatible Fibers | HI980, HI1060, SMF-28e, PM980, PM1550, active fibers (Yb-, Er-doped), or custom fiber |
| Operating Temperature | −5 to +80 °C |
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Optical Component |
| Model | PMOCIR |
| Wavelength Options | 1310 nm or 1550 nm |
| Insertion Loss (Typ., λc, 23°C) | 0.6–0.7 dB |
| Insertion Loss (Max.) | 0.8–0.9 dB |
| Peak Isolation (Typ.) | 40–52 dB |
| Isolation (λc, 23°C, Typ.) | 30–46 dB |
| Isolation (Min.) | 20–40 dB |
| Extinction Ratio (Min.) | 20 dB |
| Crosstalk (Min.) | 50 dB |
| Return Loss (Min.) | 50 dB |
| Max. CW Optical Power | 300 mW |
| Tensile Load (Max.) | 5 N |
| Operating Temperature | –5 to +70 °C |
| Storage Temperature | –40 to +85 °C |
| Port Count | 3 |
| Package | Φ5.5 × L35 mm cylindrical housing |
| Fiber Options | Panda-type PM fiber (E), 250 µm bare (S), or 900 µm loose tube (M) |
| Connector Options | FC/APC, SC/APC, FC/UPC, SC/UPC |
| Pigtail Length Options | 0.5 m, 0.75 m, 1.0 m |
| Brand | Andover |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Component |
| Model | Dichroic Filters |
| Price Range | USD 140 – 420 (per piece, depending on size and spectral specification) |
| Component Type | Optical Element |
| Size Tolerance | +0.0 mm / −0.25 mm |
| Thickness | 1.0 mm ± 0.25 mm |
| Clear Aperture | ≥95% of outer diameter |
| Substrate Material | Soda-lime glass |
| Flatness | 3–5 waves per 25 mm |
| Parallelism | ≤3 arc minutes |
| Surface Quality | 80/50 per MIL-O-13830B |
| Coating Quality | 40/20 per MIL-O-13830B |
| Environmental Durability | Compliant with MIL-C-675A (humidity & abrasion) |
| Max Operating Temperature | +100 °C |
| Mounting | Unmounted (bare substrate with thin-film coating) |
| Brand | Andover |
|---|---|
| Origin | USA |

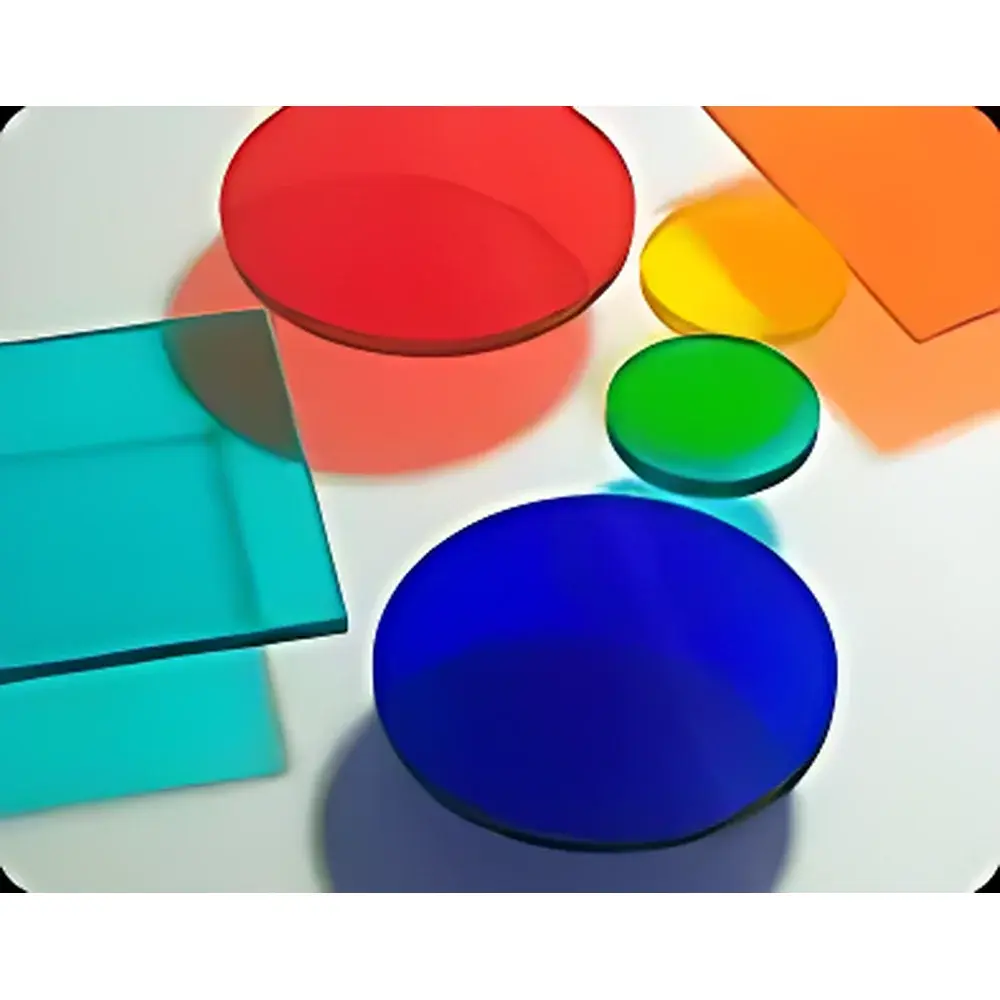

| Product Type | Colored Glass Optical Filters |
| Optical Thickness | 3.0 mm ± 0.5 mm |
| Mechanical Thickness (with ring mount) | +0.8 mm |
| Outer Diameter Tolerance | +0.00 / –0.25 mm |
| Surface Quality | 80–50 per MIL-M-13508 |
| Max Operating Temperature | +100 °C |
| Flatness | λ/4 per inch |
| Parallelism | ≤30 arc seconds |
| Spectral Data | Specified as internal transmittance |
| Corner Cropping | Applied to all 165 mm square parts unless otherwise specified |
| Brand | Andover |
|---|---|
| Origin | USA |
| Model | 193–299 nm |
| Component Category | Optical Element |
| Diameter Tolerance | +0/−0.25 mm |
| Usable Aperture | ≥9.0 mm (12.5 mm dia), ≥21.0 mm (25 mm dia), ≥45.0 mm (50 mm dia) |
| Surface Quality | 80–50 (per MIL-PRF-13830B) |
| Optical Quality | Commercial instrumentation grade |
| Out-of-Band Blocking | Avg. OD ≥4 (1×10⁻⁴ transmission) from X-ray to FIR |
| Max. Survival Temp Range | −50°C to +50°C (CW/L 214–380 nm) |
| Humidity Resistance | Per MIL-C-48497A |
| Mechanical Mounting | Anodized aluminum ring |
| Brand | Andover |
|---|---|
| Origin | USA |
| Filter Type | Edge Filter (High-Pass / Low-Pass) |
| Construction | Multi-layer dielectric thin-film coating on optical substrate |
| Design Principle | Quarter-wave interference stack |
| Mounting Option | Available unmounted or mounted in threaded rings (standard metric and imperial threads per Andover catalog p.60) |
| Compliance | Designed for laboratory-grade optical systems requiring high transmission, steep edge transition, and environmental stability |
| Cleaning Compatibility | Compatible with standard optical cleaning protocols (e.g., lint-free wipes, spectroscopic-grade solvents) |
Show next
