| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Instrument Type | Box Furnace |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Rate (to Max Temp) | ≤45 °C/min |
| Heating Element | Fe-Cr-Al Alloy Resistance Wire |
| Internal Dimensions | Model-Dependent |
| Nominal Volume | Model-Dependent |
| Brand | YiHeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | BSX2-5-12TP |
| Instrument Type | Box Furnace |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 3000 W |
| Heating Rate (to max temp) | ≤45 °C/min |
| Heating Rate (300–1000 °C) | ≥5 °C/min |
| Heating Element | Fe-Cr-Al Alloy Resistance Wire |
| Internal Chamber Dimensions | 200 × 300 × 120 mm |
| Brand | YIHENG |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | High-Temperature Resistance Furnace |
| Instrument Type | Box Furnace |
| Maximum Temperature | 1600 °C |
| Rated Power | 4000 W |
| Heating Element | Kanthal A1 Resistance Wire |
| Internal Chamber Dimensions (W×D×H) | 200 mm × 400 mm × 160 mm |
| Control System | Microprocessor-Based PID Controller with 10-Step Programmable Ramp/Soak Function |
| Insulation Material | Ceramic Fiber Board |
| Chamber Lining Options | Refractory Brick (N-Series) or Ceramic Fiber Module |
| Safety Features | Automatic Power Cut-off on Door Opening, Over-Temperature Protection, Over-Current & Over-Voltage Protection |
| Construction | Stainless Steel Inner Door Liner and Exterior Panel |
| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | SX2 Series |
| Instrument Type | Box Furnace |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 10 kW |
| Heating Method | Electric Resistance Heating |
| Insulation Material | Ceramic Fiber Board |
| Safety Features | Over-Temperature Protection, Door Interlock Switch, Dual-Stage Thermal Cut-Off, Fault Diagnostics (Heater Open, Thermocouple Failure, Memory Corruption, Over-Temp), Audible/Visual Alarm |
| Controller | Microprocessor-Based PID with Multi-Step Programmability (7 Programs × 9 Segments Each |
| Segment Duration | 0–5999 min) |
| Brand | YIHENG |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Instrument Type | Box Furnace |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 2.5 kW |
| Heating Rate (to max temp) | ≤45 °C/min |
| Heating Element | Fe-Cr-Al Alloy Resistance Wire |
| Internal Chamber Dimensions | 200 × 120 × 80 mm |
| Nominal Volume | 2 L |

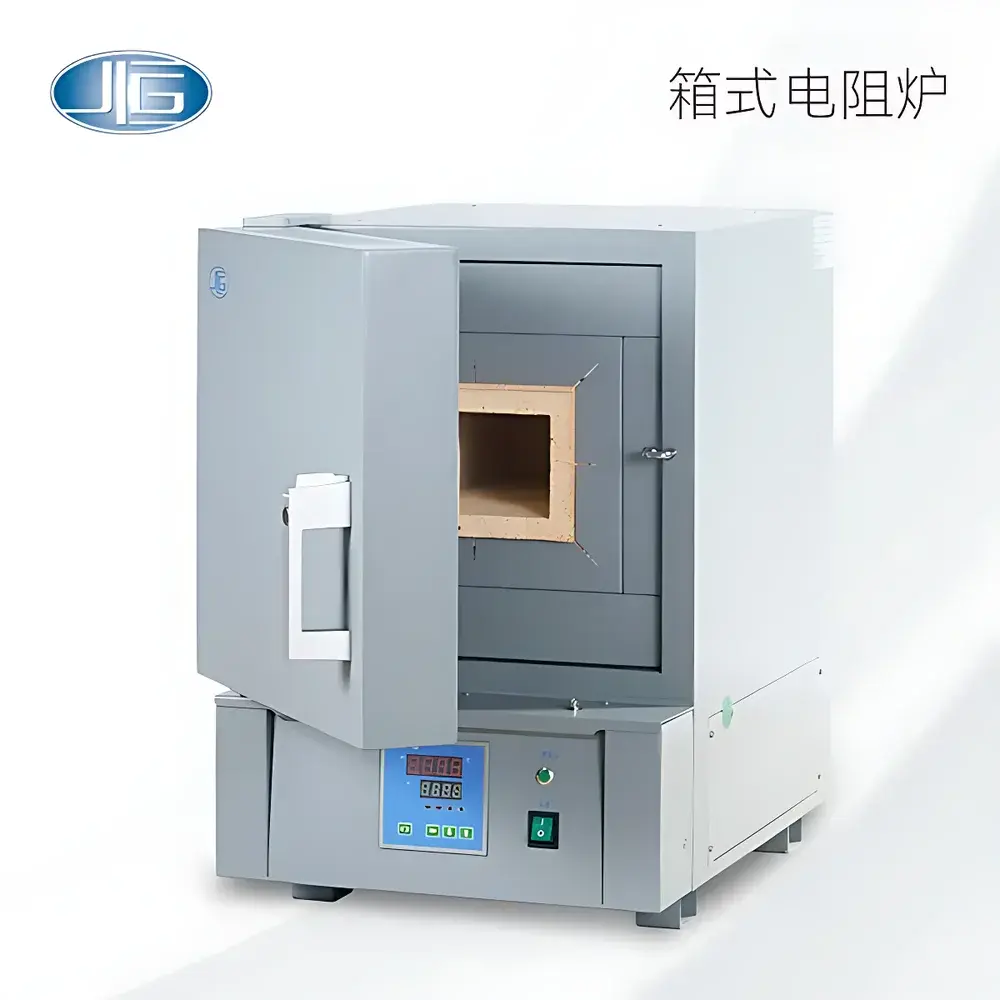

| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region | Domestic (China) |
| Model | SX2-5-12N |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 5000 W |
| Heating Rate to Max Temp | ≤60 min (typical, from ambient to 1200 °C) |
| Heating Element | High-Resistance Kanthal A1 Wire |
| Internal Chamber Dimensions | 200 mm × 300 mm × 120 mm |
| Nominal Volume | 7 L |
| Insulation Material | Ceramic Fiber Board |
| Chamber Liner Options | Refractory Brick (Standard N-Series) |
| Controller | Microprocessor-Based PID with Digital Display |
| Safety Features | Door-Interlocked Power Cut-off, Over-Temperature Protection, Over-Current & Over-Voltage Protection |
