| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Instrument Type | Air-Jacketed CO₂ Incubator |
| CO₂ Detection | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | RT+3°C to 55°C |
| Temperature Uniformity | ±0.3°C @ 37°C |
| CO₂ Concentration Control Range & Accuracy | 0–20% |
| Capacity Options | 40 L to 500 L |
| Typical Configuration | As per official specification sheet |
| Dimensions | Refer to product catalog |
| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Category | Domestic (China) |
| Model | BPN Series |
| Instrument Type | Air-Jacketed CO₂ Incubator |
| CO₂ Detection | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | RT+3°C to 55°C |
| Temperature Uniformity | ±0.3°C (@37°C) |
| CO₂ Concentration Control Range & Accuracy | 0–20%, ±0.1% (IR sensor) |
| Sterilization Method | 90°C High-Temperature Humid Heat Sterilization (RHP) |
| Optional Features | O₂ Control (Zirconia Sensor), External Independent Temp/CO₂ Monitoring, HEPA Filtration, Microbial Gas Filter (≥0.3 µm, 99.99% efficiency), RS-485 Communication, SMS Alarm, Dual-Gas Cylinder Auto-Switch, Multi-Level User Permissions |
| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region of Origin | Domestic (China) |
| Model Variants | BPN-50CH(UV), BPN-150CW(UV) |
| Instrument Type | Air-Jacketed CO₂ Incubator |
| CO₂ Detection Method | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | RT+5°C to 55°C |
| CO₂ Concentration Control Range & Accuracy | 0–20% (v/v) |
| Chamber Capacity | 50 L – 150 L |
| External Dimensions | See Manufacturer Datasheet |
| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | BPN-RHP |
| Instrument Type | Air-jacketed CO₂ Incubator |
| CO₂ Detection | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | +5 to 50 °C, ±0.1 °C (typical at setpoint) |
| Temperature Uniformity | ±0.3 °C (at 37 °C) |
| CO₂ Concentration Control Range & Accuracy | 0–20%, ±0.1% (full scale) |
| Chamber Dimensions (W×D×H) | 600 × 630 × 670 mm |
| External Dimensions (W×D×H) | 790 × 840 × 940 mm |
| Standard Sterilization System | 90 °C High-humidity Thermal Sterilization (RHP) |
| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | BPNZ Series |
| Price Range | USD 1,400 – 2,800 (FOB Shanghai) |
| Temperature Control Range & Accuracy | RT+5°C to 50°C ±0.1°C |
| Humidity Control | Not equipped |
| Chamber Capacity | 49–155 L |
| CO₂ Control Range | 0–20% (v/v) |
| CO₂ Control Accuracy | ±0.1% |
| CO₂ Sensor Type | Imported NDIR Infrared Sensor |
| CO₂ Recovery Time (after 30-sec door opening) | ≤3 min to 5% setpoint |
| Temperature Recovery Time (after 30-sec door opening) | ≤8 min to 37°C |
| Oscillation Frequency Range | 40–300 rpm |
| Oscillation Accuracy | ±1 rpm |
| Orbit Diameter | 20 mm (standard), 26 mm (optional) |
| Chamber Interior | Electropolished 304 Stainless Steel with Rounded Corners |
| Door | Heated Double-Layer Tempered Glass View Window |
| Safety Features | Independent Over-Temperature Cut-Off, CO₂ High/Low Alarm, Door-Open Interlock (stops heating, shaking, and fan), UV Sterilization Lamp (rear-mounted), Optional HEPA Filter (Class 100 air recovery within 5 min post-door closure) |
| Compliance | Designed for GLP-compliant cell culture workflows |
| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Gas-Jacketed CO₂ Incubator |
| CO₂ Sensing | Infrared (IR) Sensor |
| Temperature Range & Accuracy | RT+5°C to 55°C |
| CO₂ Concentration Range & Accuracy | 0–20% |
| Chamber Capacity | 150 L |
| External Dimensions (W×D×H) | 480 × 530 × 610 mm |
| Standard Configuration | As per manufacturer’s specification sheet |
| Microbial Filtration | ≥0.3 µm particles, 99.99% efficiency |
| UV Sterilization | Top-mounted germicidal UV lamp |
| Door Heating | Heated inner glass door to prevent condensation |
| Safety Features | Independent over-temperature alarm (optional), low/high/over-temperature alarms, door-open duration alarm |
| Fan Control | Automatic variable-speed circulation fan |
| Brand | YiHeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region of Origin | Domestic (China) |
| Model | BPH Series |
| Instrument Type | Air-Jacketed CO₂ Incubator |
| Temperature Control Range & Accuracy | RT+5°C to 80°C |
| Temperature Uniformity | ±1.5°C (at 37°C test point) |
| Humidity Control | Not Available |
| Chamber Capacity | 810 L |
| Dimensions | See Technical Datasheet |
| Standard Configuration | As per Factory Specification |

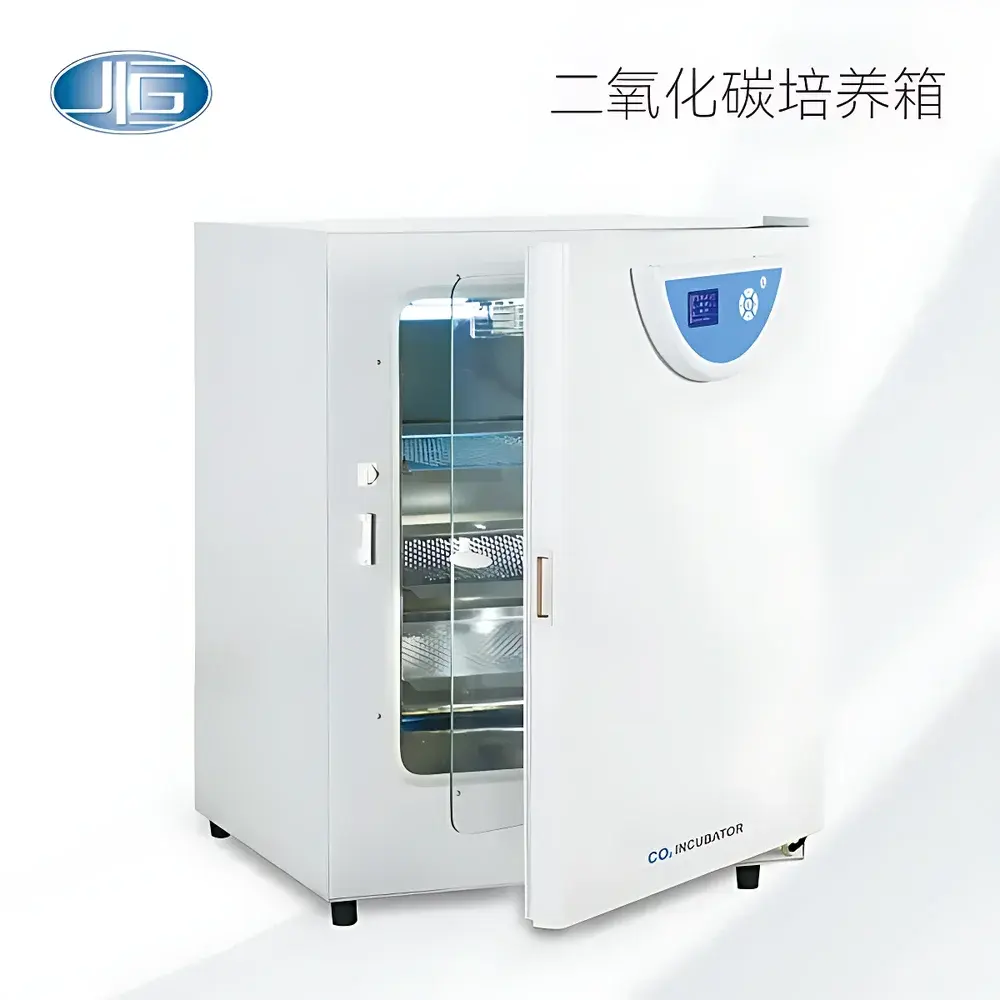

| Brand | YiHeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Gas-Jacketed CO₂ Incubator |
| CO₂ Sensing Technology | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | RT+3°C to 55°C |
| Temperature Uniformity | ±0.3°C at 37°C |
| CO₂ Concentration Control Range & Accuracy | 0–20% with ±0.1% accuracy (IR sensor) |
| Chamber Capacity | 80 L |
| External Dimensions (W×D×H) | 590 × 687 × 790 mm |
| Door Heating System | Yes (for inner glass door) |
| Sterilization Method | 90°C High-Humidity Heat Sterilization (Chamber-wide, including sensors, fan, shelves, and supports) |
| Air Filtration | HEPA Filter (ISO Class 5 compliant), 0.3 µm particle retention ≥99.99% |
| Safety Features | Independent Over-Temperature Alarm, Dual-Stage CO₂ Deviation Alert, Door-Open Duration Warning, UV Status Indicator, Audible/Visual Alarms |

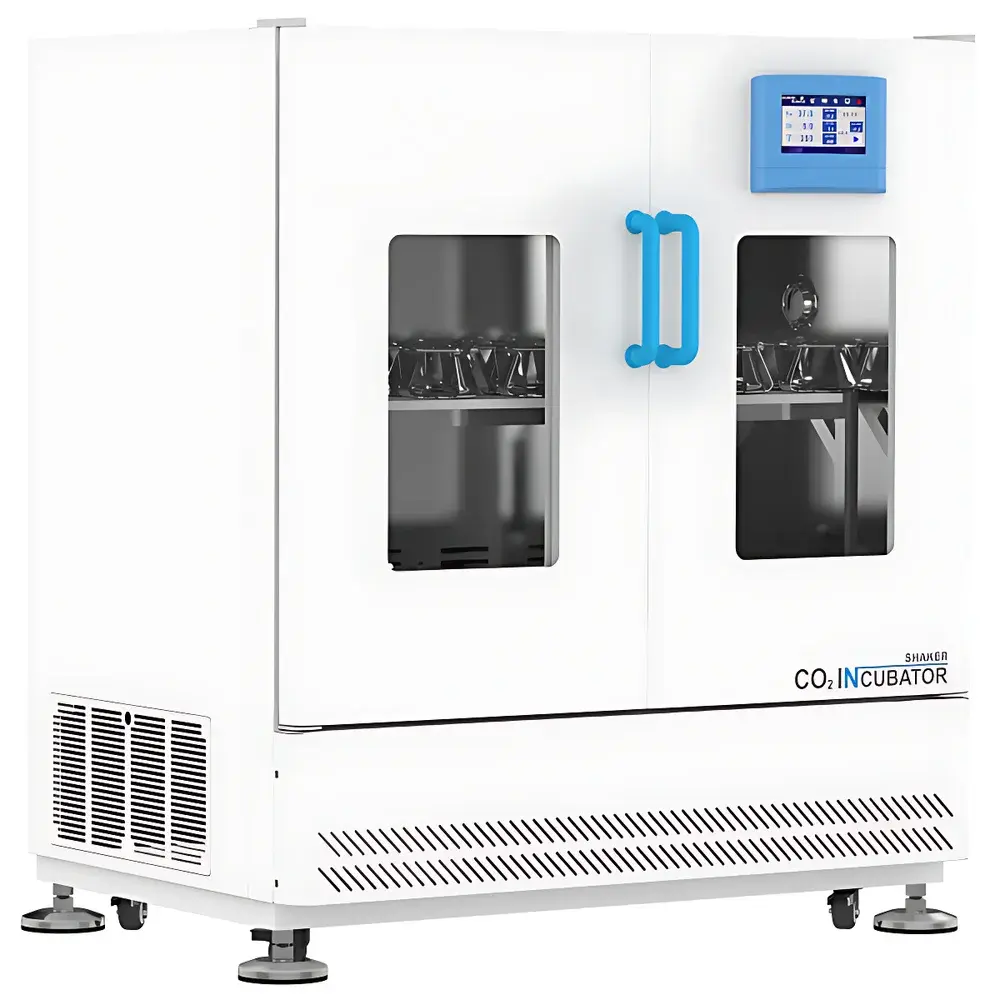

| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | BPNZ-500CS (Single-Tier), BPNZ-500CD (Dual-Tier) |
| Temperature Range & Stability | 4–65 °C ±0.1 °C |
| Temperature Uniformity | ±0.5 °C at 25 °C ambient |
| Humidity Control | 50–95% RH (≥85% RH at 37 °C, real-time control, ±1% RH deviation) |
| CO₂ Range & Accuracy | 0–20% ±0.1% |
| CO₂ Uniformity & Stability | ±0.1% at 5% setpoint |
| Shaking Frequency | 40–300 rpm ±1 rpm |
| Amplitude | 20 mm |
| Drive Mechanism | Triple-Eccentric-Balanced Drive |
| Max Load Capacity (incl. fixtures) | 30 kg (BPNZ-500CS), 50 kg (BPNZ-500CD) |
| Chamber Volume | 500 L (CS), 500 L (CD) |
| External Dimensions (W×H×D) | 1050×1370×875 mm (CS), 1200×1370×875 mm (CD) |
| Power Input | 220 V, 50 Hz |
| Sterilization | 90 °C moist-heat cycle (18 h, full-chamber including sensors, fans, shelves) |
| Optional | HEPA filtration (≥99.99% @ ≥0.3 µm), RS-485/USB data logging, multi-level user authentication (admin/operator/visitor), GLP-compliant audit trail, microbial CO₂ inlet filter (≥0.3 µm) |

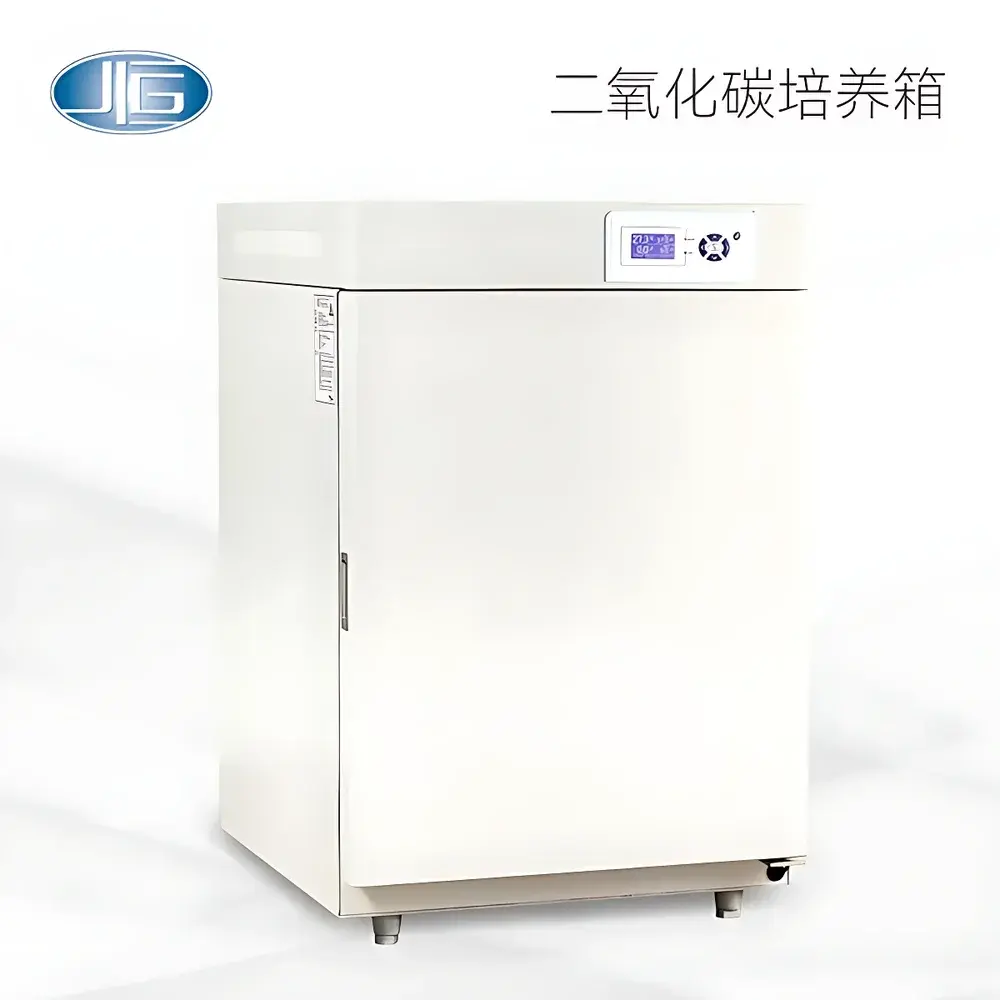

| Brand | Yiheng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | BPN-50CH(UV) |
| Instrument Type | Air-Jacketed CO₂ Incubator |
| CO₂ Detection | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | RT+5°C to 50°C |
| Temperature Uniformity | ±0.2°C |
| CO₂ Concentration Control Range & Accuracy | 0–20% (v/v) |
| Chamber Capacity | 50 L |
| Internal Dimensions (W×D×H) | 400 × 350 × 350 mm |
| Microbial Filter Efficiency | ≥99.99% for particles ≥0.3 µm |
| UV Sterilization | Top-mounted germicidal UV lamp (254 nm) |
