| Origin | Tianjin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |

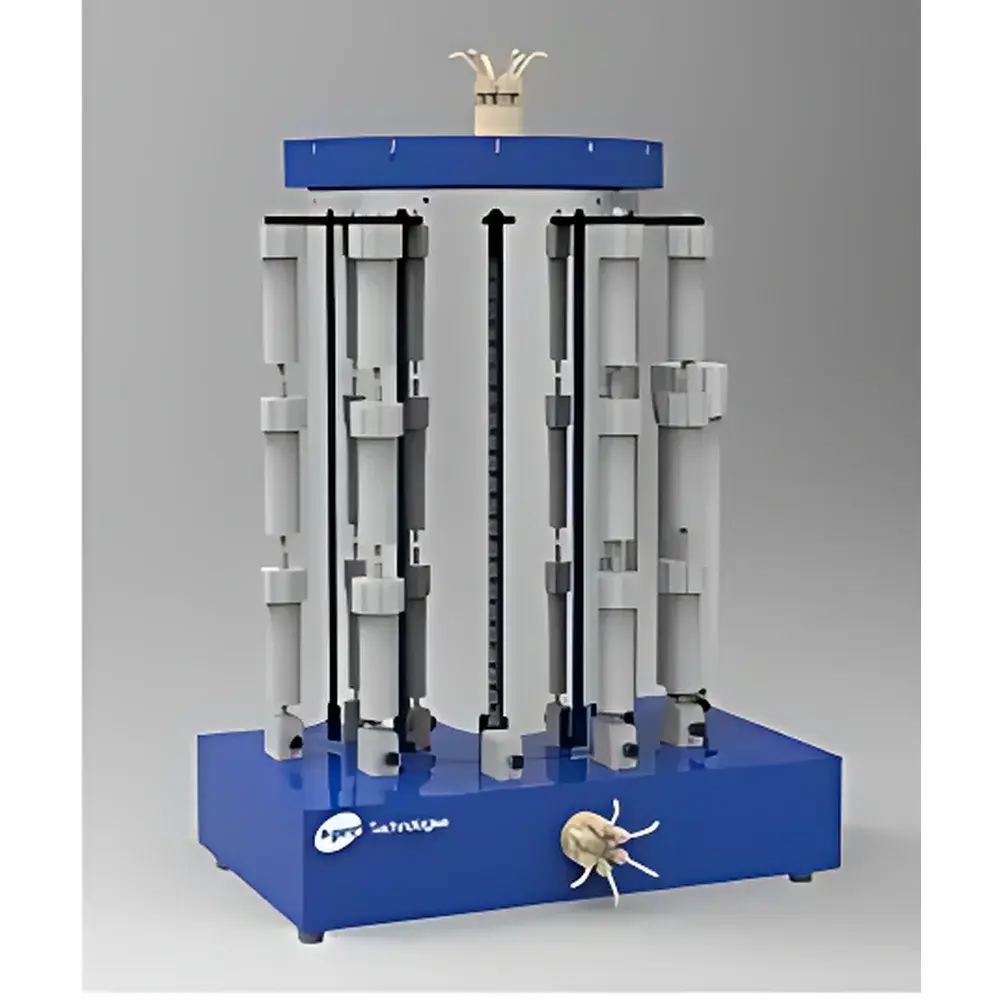

| Model | ACQ-06 |
| Pricing | Available Upon Request |
| Instrument Type | Liquid Chromatography Column Switching Module |
| Fluidic Path Materials | SS316L, PTFE, ETFE, PEEK |
| Origin | Tianjin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |

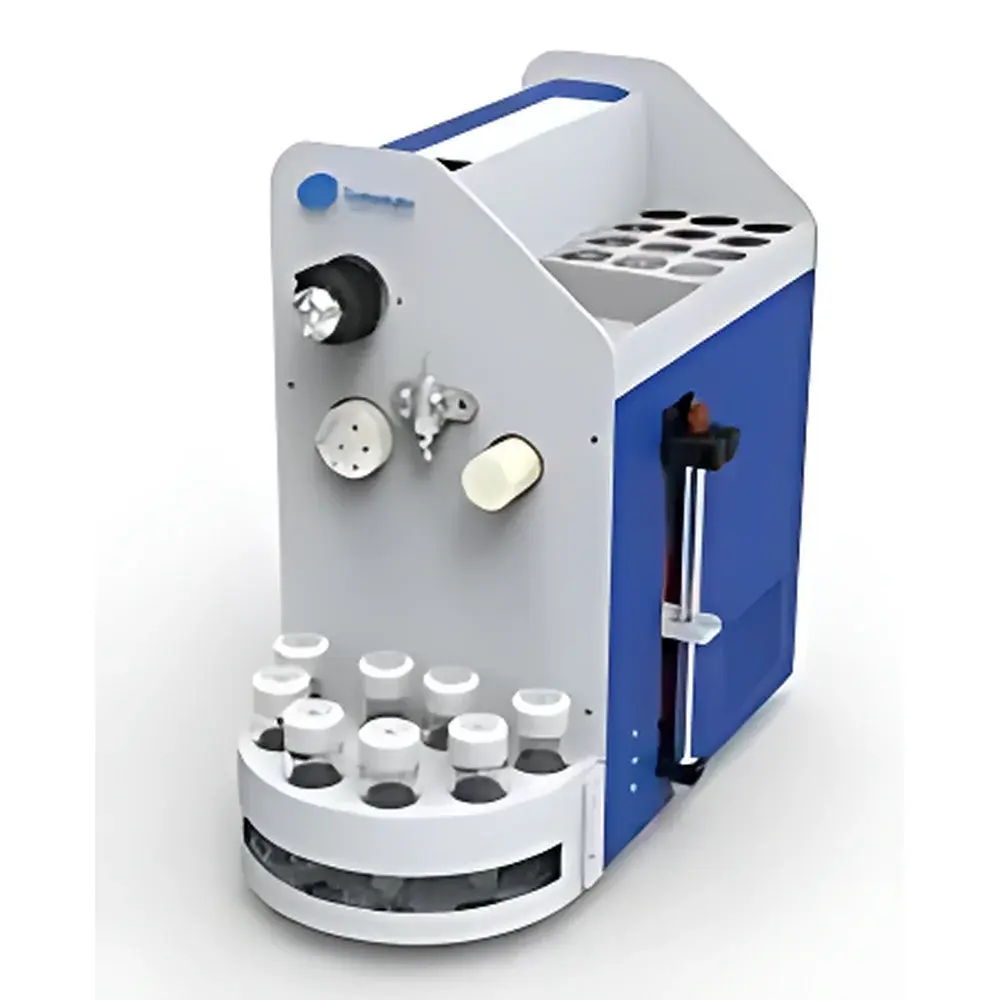

| Model | ATS-051 |
| Instrument Type | Liquid Chromatography Autosampler |
| Sample Channels | 5 |
| Wash Channel | 1 |
| Loop Volumes | 1 mL, 10 mL, 25 mL |
| Injection Volume Range | 1–25 mL |
| Wash Volume | 5 mL (programmable wash modes + manual override) |
| Language Interface | English |
| Operating Temperature | 20–35 °C |
| Dimensions (L×W×H) | 361 × 208.5 × 344.4 mm |
| Weight | 11.4 kg |
| Power Supply | 100–120 VAC / 200–240 VAC, 50/60 Hz |
| Brand | Agela |
|---|---|
| Origin | Tianjin, China |
| Model | ATS-051 |
| Instrument Type | Preparative HPLC/LC Autosampler |
| Maximum Sample Capacity | 5 vials |
| Minimum Sample Volume per Injection | 1 mL |
| Loop Volume Range | 2–20 mL |
| Positioning Accuracy | ±0.1 mm (verified by encoder feedback) |
| Drive Mechanism | Precision Syringe Pump |
| Needle Wash | Integrated Solvent Flush with Dual-Path Solvent Selection |
| Repeat Injection Capability | Unlimited cycles per sample |
| Maximum Single Injection Volume | 50 mL |
| Compatibility | Standalone operation or integration with third-party preparative LC systems (e.g., Gilson, Biotage, Teledyne ISCO, Shimadzu, Waters) |
| Brand | Agela |
|---|---|
| Origin | Tianjin, China |
| Model | ATS-A5 |
| Instrument Type | Liquid Chromatography Autosampler |
| Sample Capacity | 108 × 2 mL vials (standard), optional configurations available |
| Injection Modes | Full-loop, Partial-loop, and Needle-in-Loop (NIL) injection |
| Injection Volume Range | 0.1–25 µL (with standard loop) |
| Precision | RSD < 0.25% (full-loop), < 0.5% (partial-loop, >10 µL), < 0.8% (NIL, <5 µL) |
| Carryover | < 0.05% |
| Maximum System Pressure | 40 MPa (standard HPLC), 60 MPa (UHPLC-compatible) |
| Safety Features | Vial-missing detection, needle-strike alarm, tubing blockage detection, leak monitoring |
| Optional | Peltier-based sample cooling module |
| Dimensions (W×D×H) | 300 × 450 × 320 mm |
| Weight | ~25 kg |
