| Brand | Analysis |
|---|---|
| Origin | Germany |
| Manufacturer | Analysis GmbH |
| Origin Category | Imported |
| Model | UX50 |
| Pricing | Upon Request |
| Detector Type | Flat-Panel Detector (FPD) |
| Scanning Mode | Translation-Rotation (TR) |
| Accuracy | Micron-Level |
| Maximum Sample Weight | 100 kg |
| Dimensions (L×W×H) | 2250 × 1770 × 2350 mm |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Model | FF35 |
| Detector Type | Flat-Panel Detector |
| Scan Mode | Translation-Rotation (TR) |
| X-ray Energy | 225 kV (microfocus) / 190 kV (nanofocus) |
| Maximum Penetration | 350 mm steel-equivalent |
| Spatial Resolution | up to 2.5 lp/mm |
| Density Resolution | up to 2.5 lp/mm |
| Measurement Accuracy (Metrology Version) | MPESD = 5.9 µm + L/75 [L in mm] |
| Sample Weight Capacity | up to 50 kg |
| Compliant Standards | SEMI® S2-0818, SEMI® S8-0218, VDI/VDE 2630 |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | Y.MU2000-D |
| Detector Type | Flat-Panel Detector |
| Scanning Mode | Translation-Rotation (TR) |
| Spatial Resolution | Up to 2.5 lp/mm |
| Density Resolution | 0.2–0.5% |
| X-ray Energy | 225 kV |
| Maximum Penetration | 350 mm (steel equivalent) |
| Inspection Envelope | 800 mm × 1100 mm (diameter × height) |
| Dimensional Measurement Accuracy | ±0.011 mm |
| Density Measurement Accuracy | ±0.2% |
| Maximum Sample Weight | 100 kg |
| System Dimensions | 3700 mm × 2300 mm × 2800 mm (L × W × H) |
| Brand | YXLON |
|---|---|
| Origin | Germany |
| Model | FF65 CL |
| Detector Type | Image Intensifier-Based Laminography Detector |
| Sample Diameter | 795 mm |
| Sample Height | 20 mm |
| Max Sample Weight | 2 kg |
| System Dimensions | 1760 × 2000 × 2000 mm |
| CT Mode | Super-High-Resolution Computed Laminography (CL) |
| Manipulation | Super-Precise Manipulator with Active Anti-Vibration System |
| Vacuum Sample Hold Mechanism | Integrated |
| Effective Detection Area | 510 × 610 mm |
| X-ray Source | Next-Generation Nanofocus Tube (≤ 300 nm focal spot) |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Model | FF85 CT |
| Detector Type | Flat-Panel Detector (FPD) & Linear Detector Array (LDA) |
| Scan Mode | Translation-Rotation (TR) |
| Spatial Resolution | Up to 2.5 lp/mm |
| Density Resolution | 0.2–0.5% |
| X-ray Energy | 450 kV (dual-source: up to 600 kV microfocus + 300 kV minifocus) |
| Penetration Capability | 60 mm steel equivalent |
| Measurement Accuracy (Dimensional) | 0.001 mm |
| Density Measurement Accuracy | Up to 0.2% |
| Sample Weight Capacity | 100 kg |
| Max Sample Dimensions | Ø800 mm × H1100 mm |
| System Dimensions | 3700 mm × 2300 mm × 2800 mm (L×W×H) |
| Base Material | Precision Granite |
| Motion Axes | 7-axis motorized manipulator |
| Software Platform | Gemini CTScan Suite (including CTScan 3 LDA support, HeliExtend, ScatterFix 2.0, BHC, MAR) |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Model | Cheetah EVO |
| Detector Type | Flat-panel Detector |
| Scan Mode | Translation-Rotation (TR) |
| Spatial Resolution | Up to 2.5 lp/mm |
| X-ray Energy | 160 kV |
| Penetration Capability | Up to 350 mm steel-equivalent thickness |
| Precision | Nanoscale |
| Optional Features | Water-cooled X-ray tube (FXT 160.51), High-load capacity (< 20 kg), Low-dose imaging mode, Dose-reduction kit for sensitive components |
| Brand | Analysis |
|---|---|
| Model | PM1121 |
| Detection Principle | Geiger-Müller (GM) Tube-Based Ionizing Radiation Monitoring |
| Measurement Range | 0.01–10,000 µSv/h (Dose Rate), 0.01 µSv–9999 mSv (Cumulative Dose) |
| Energy Response | 40 keV–3 MeV |
| Sensitivity | >6000 CPM per µSv/h (relative to ¹³⁷Cs) |
| Alarm Response Time | ≤5 s |
| Operating Temperature | −15°C to +50°C |
| Power Supply | 2×AA batteries (alkaline or rechargeable) |
| Weight | 0.3 kg |
| Dimensions | 135 × 70 × 25 mm |
| Compliance | Designed for IEC 60846-1:2014 (Radiation Protection Instruments – Dose Rate and Dose Meters for Photon Radiation) and compatible with GLP/GMP field-use requirements |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Manufacturer | Analysis GmbH |
| Origin Category | Imported |
| Model | UX20 |
| Price | Upon Request |
| Detector Type | Flat-Panel Detector |
| Scanning Mode | Translation-Rotation (TR) |
| Accuracy | Micron-Level |
| Sample Load Capacity | 100 kg |
| Dimensions (W×D×H) | 2240 × 1770 × 2350 mm |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Model | Y.cougar |
| Detector Type | Flat-panel Detector |
| Scanning Mode | Translation-Rotation (TR) |
| Spatial Resolution | Up to 2.5 lp/mm |
| Density Resolution | 0.2–0.5% |
| X-ray Energy | 160 kV |
| Penetration Capability | Up to 350 mm steel-equivalent thickness |
| Accuracy | Nanoscale |
| Application Modes | 2D Radiography, 3D Computed Tomography (CT), Hybrid 2D/3D |
| Brand | Analysis |
|---|---|
| Model | PM1121 |
| Detector Type | Compensated Geiger-Müller (GM) Tube |
| Measurement Range | 0.01–10,000 µSv/h (dose rate), 0.01 µSv–9999 mSv (cumulative dose) |
| Energy Response | 40 keV–3 MeV |
| Sensitivity | >6000 cps per µSv/h (relative to ¹³⁷Cs) |
| Alarm Response Time | ≤5 s |
| Operating Temperature | −15°C to +50°C |
| Dimensions | 135 × 70 × 25 mm |
| Weight | 0.3 kg |
| Power Supply | Two AA batteries (alkaline or rechargeable) |
| Typical Current Draw | ≤4 mA |
| Display | Dot-matrix LCD with backlight |
| Language Options | English, Chinese, Japanese |
| Compliance | Designed for IEC 61526:2010 (Radiation protection instrumentation — Measurement of personal dose equivalents Hp(10) and Hp(0.07)) and compatible with national occupational radiation safety standards |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Manufacturer | Analysis GmbH |
| Type | Industrial Micro-CT System |
| Model | FF20 CT |
| Detector Type | Flat-Panel Detector |
| Scan Mode | Translation-Rotation (TR) |
| X-ray Source | 190 kV Water-Cooled Nanofocus Transmission Tube |
| Spatial Resolution (2D) | ≤150 nm |
| Sample Size Capacity | Small to Medium |
| System Dimensions | 2380 × 945 × 2180 mm |
| Base Material | Precision Granite |
| User Interface | Gemini Touchscreen GUI |
| Software Features | HeliExtend Spiral CT, Virtual Rotation Axis, Field-of-View Extension (Horizontal/Vertical), QuickScan & QualityScan Modes |
| Measurement Capabilities | Dimensional Metrology (CT-based GD&T), Defect Detection (<1 µm), Density Quantification, Assembly Verification, Porosity & Inclusion Analysis |
| Brand | YXLON |
|---|---|
| Origin | Germany |

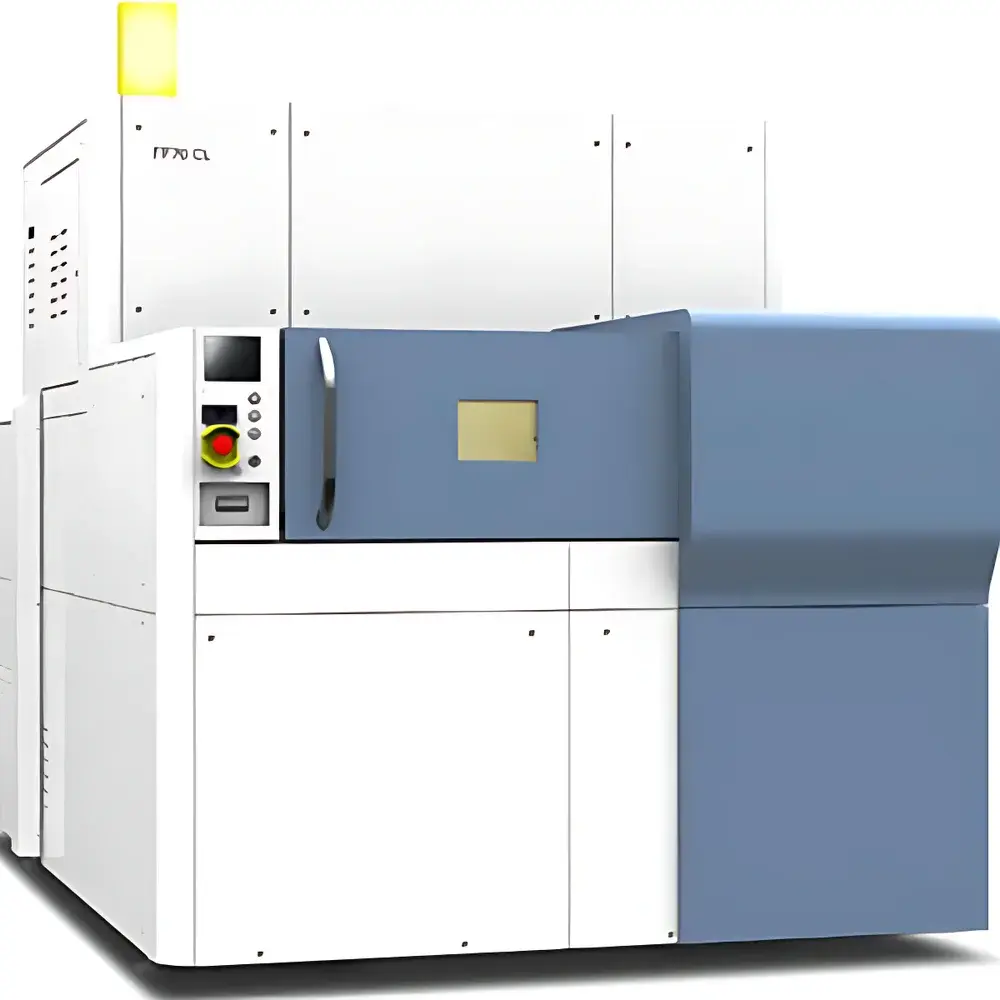

| Model | FF70 CL |
| Detector Type | High-Sensitivity Image Intensifier with Nano-Focus X-ray Source |
| Max. Sample Diameter | 795 mm |
| Max. Sample Height | 150 mm |
| Max. Sample Weight | 2 kg |
| System Dimensions (W×D×H) | 1940 × 2605 × 2000 mm |
| CT Mode | Ultra-High-Resolution Computed Laminography (CL) |
| Manipulation | Ultra-Precise Active Anti-Vibration Manipulator |
| Minimum Resolvable Feature Size | <150 nm |
| Inspection Area | 510 × 610 mm |
