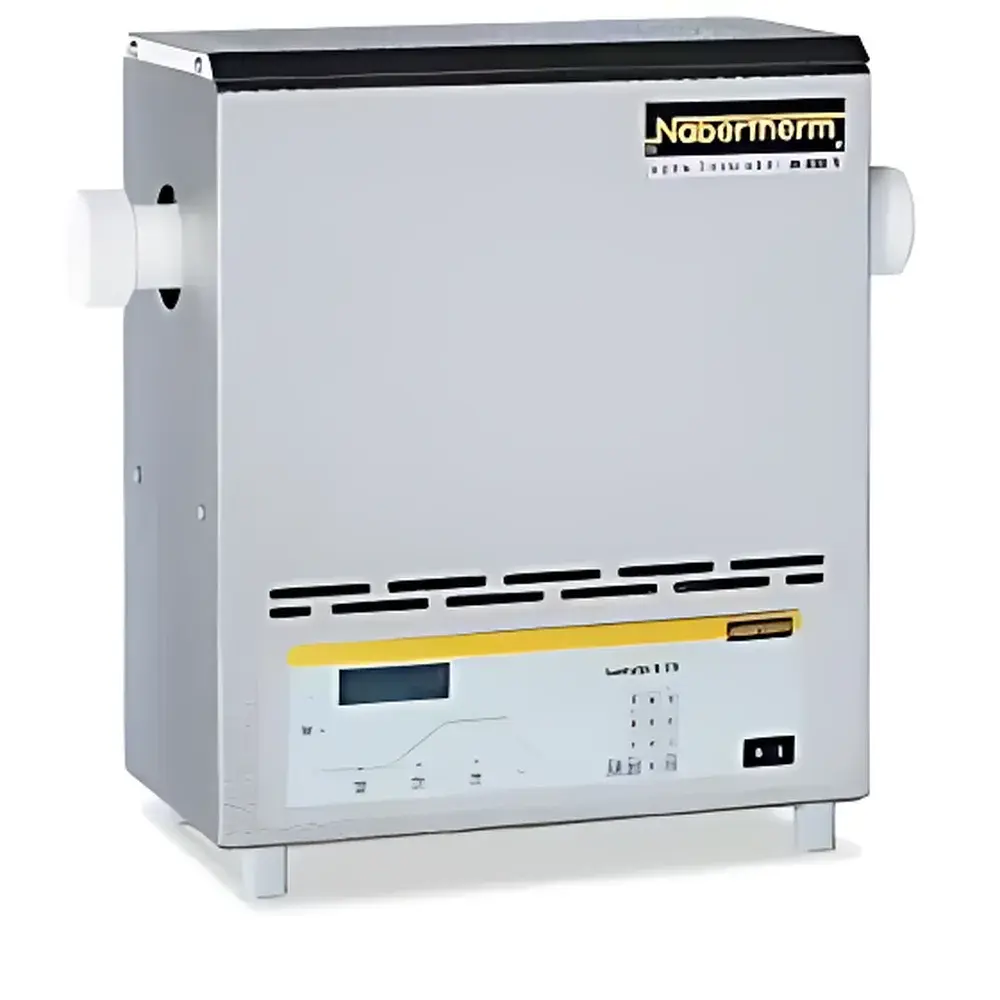

| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | R 50/250/12 |
| Instrument Type | Tube Furnace |
| Max Temperature | 1200 °C or 1300 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 6.5 kW |
| Heating Time to Max Temp | 60 min |
| Heating Method | Resistance Wire |
| Tube Outer Diameter Range | 50–120 mm |
| Electrical Supply | 1-phase or 3-phase, depending on model |
| Weight | 20–230 kg (model-dependent) |
| Compliance | EN 60519-2 (thermal protection class 2), CE-marked |

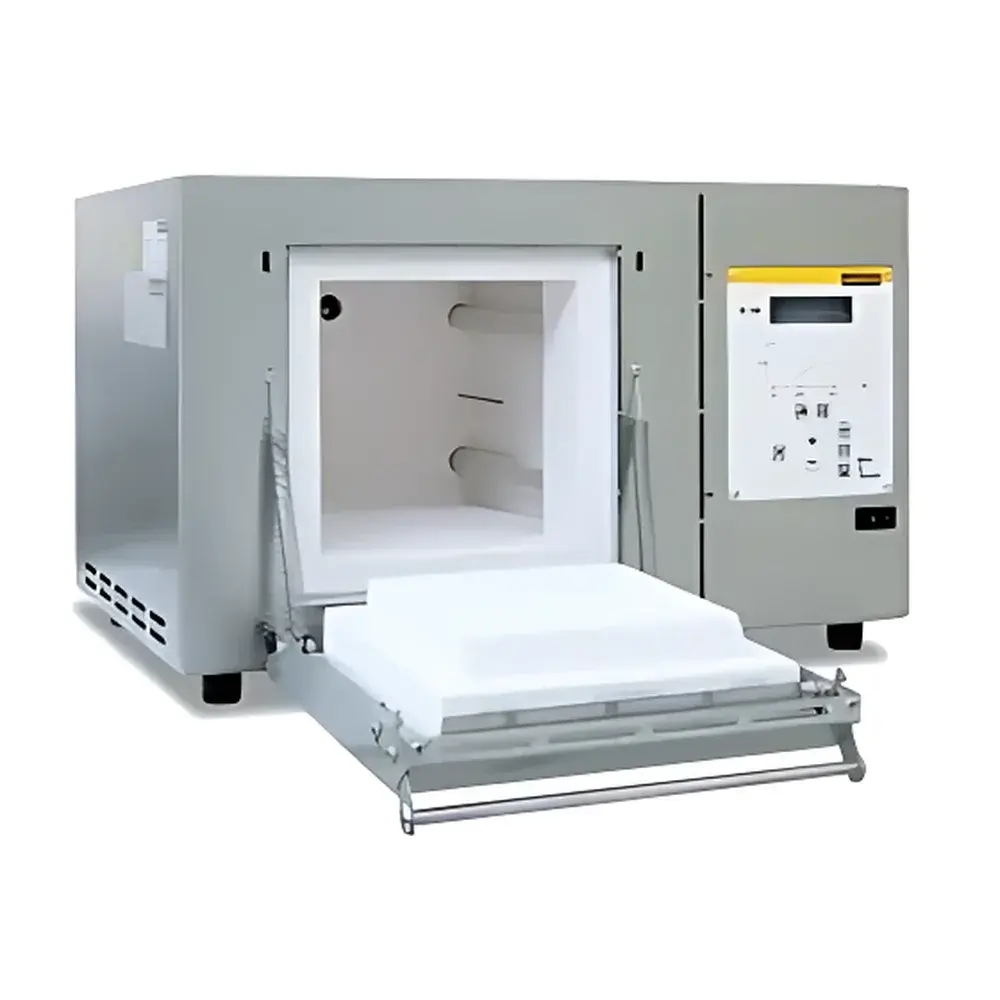

| Origin | Germany |
|---|---|
| Type | Box-Type Muffle Furnace |
| Max Operating Temperature | 1400 °C / 1500 °C / 1600 °C |
| Temperature Uniformity | ±1 °C |
| Heating Element | Silicon Carbide (SiC) Rods |
| Internal Chamber Dimensions | 170 × 290 × 170 mm |
| Max Power Input | 13.0 kW |
| Ramp Time to Max Temperature | ≤45 min |
| Construction | Dual-Wall Stainless Steel Housing with Ceramic Fiber Insulation |
| Compliance | EN 60519-2 (Thermal Protection Class 2), CE Marked |

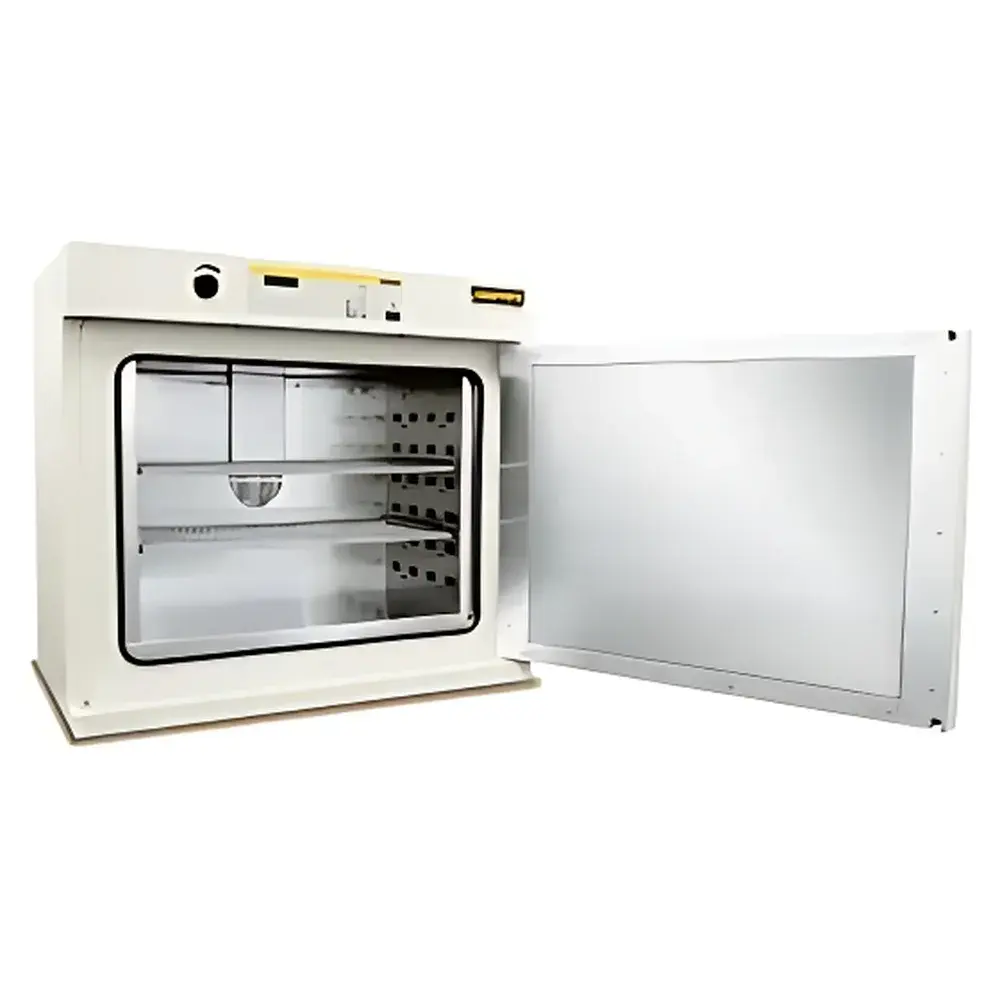

| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | N 30/45H |
| Instrument Type | Box-Type Muffle Furnace |
| Max. Operating Temperature | 450 °C |
| Temperature Uniformity | ±3 K (within working chamber, per DIN 17052-1) |
| Control Accuracy | ±1 °C |
| Max. Power Consumption | 9 kW |
| Heating Rate to Max. Temp. | ≤30 min |
| Heating Element | Resistance Wire (NiCr Alloy) |
| Internal Chamber Volume Options | 5–500 L |
| Construction | Stainless Steel Inner Chamber (AISI 304), Reinforced Insulation, Horizontal Air Circulation System |
| Compliance | DIN 17052-1, EN 61000-6-3, EN 61000-6-4 |

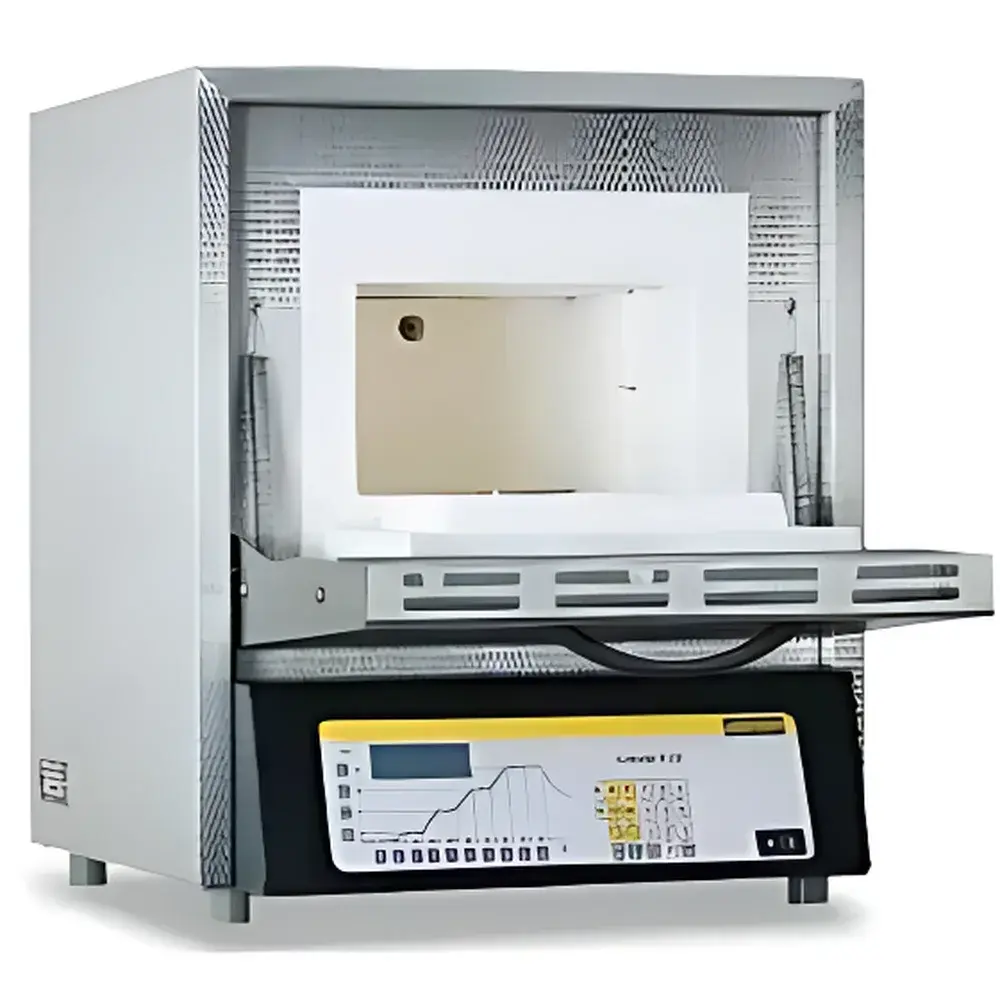

| Origin | Germany |
|---|---|
| Type | Box-type Muffle Furnace |
| Max. Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C |
| Heating Method | Embedded Resistance Wire in Ceramic Heating Panels |
| Internal Volume | 1–40 L |
| Power Rating | 1.2–6 kW |
| Ramp Time to Max Temp | ≤30 min |
| Construction | Double-walled Stainless Steel (V2A) Housing with Vacuum-Insulated Fiber Modules |
| Door Options | Flip-up or Lift-up Configuration |
| Safety Compliance | EN 60519-2, Thermal Protection Class 2 |
| Software Control | Compatible with Controltherm MV Process Management Suite |

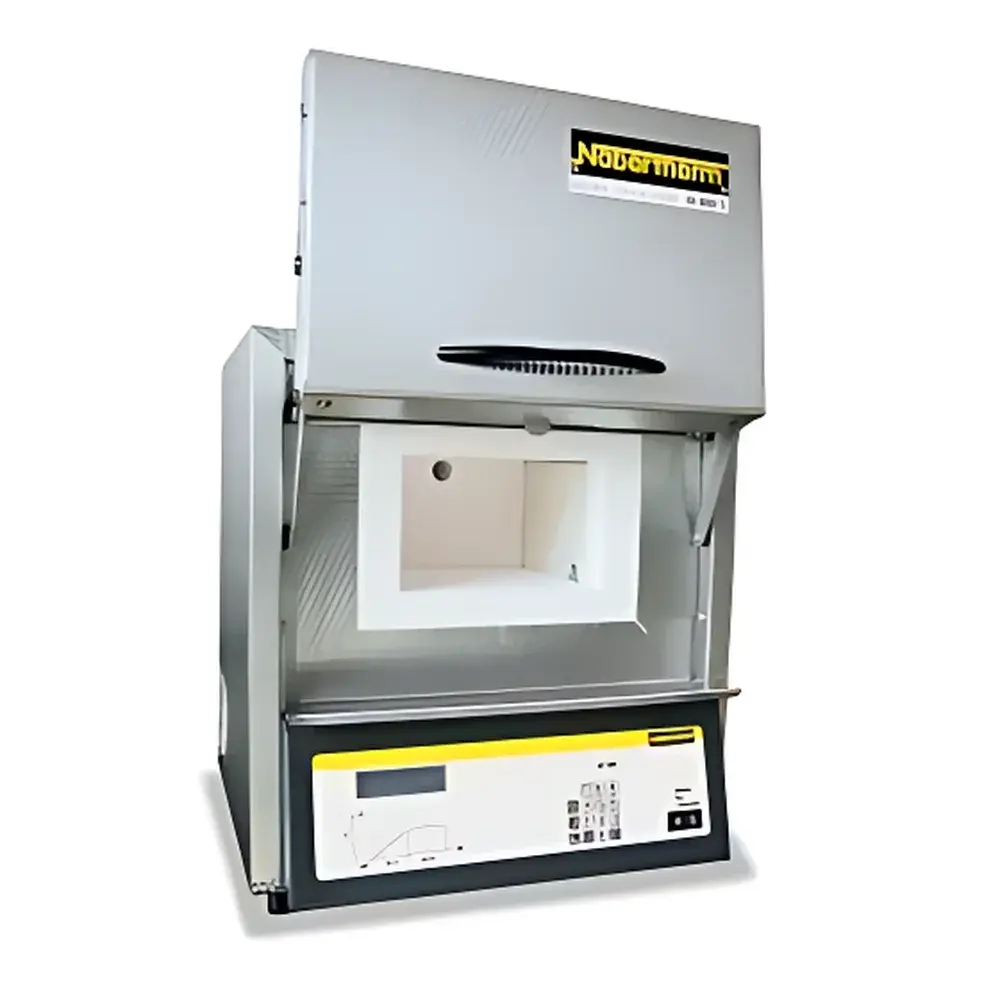

| Origin | Germany |
|---|---|
| Type | Box-Type Muffle Furnace |
| Max. Temperature | 1100 °C or 1200 °C |
| Temperature Accuracy | ±1 °C |
| Max. Power | 6 kW |
| Heating Rate to Max. Temperature | ≤40 min |
| Heating Method | Dual-Side Ceramic Heating Plates (Triple-Side for L24/11–LT40/12 models) |
| Internal Volume | 1–40 L |
| Compliance | EN 60519-2, IEC 61000-6-3, CE Marked |

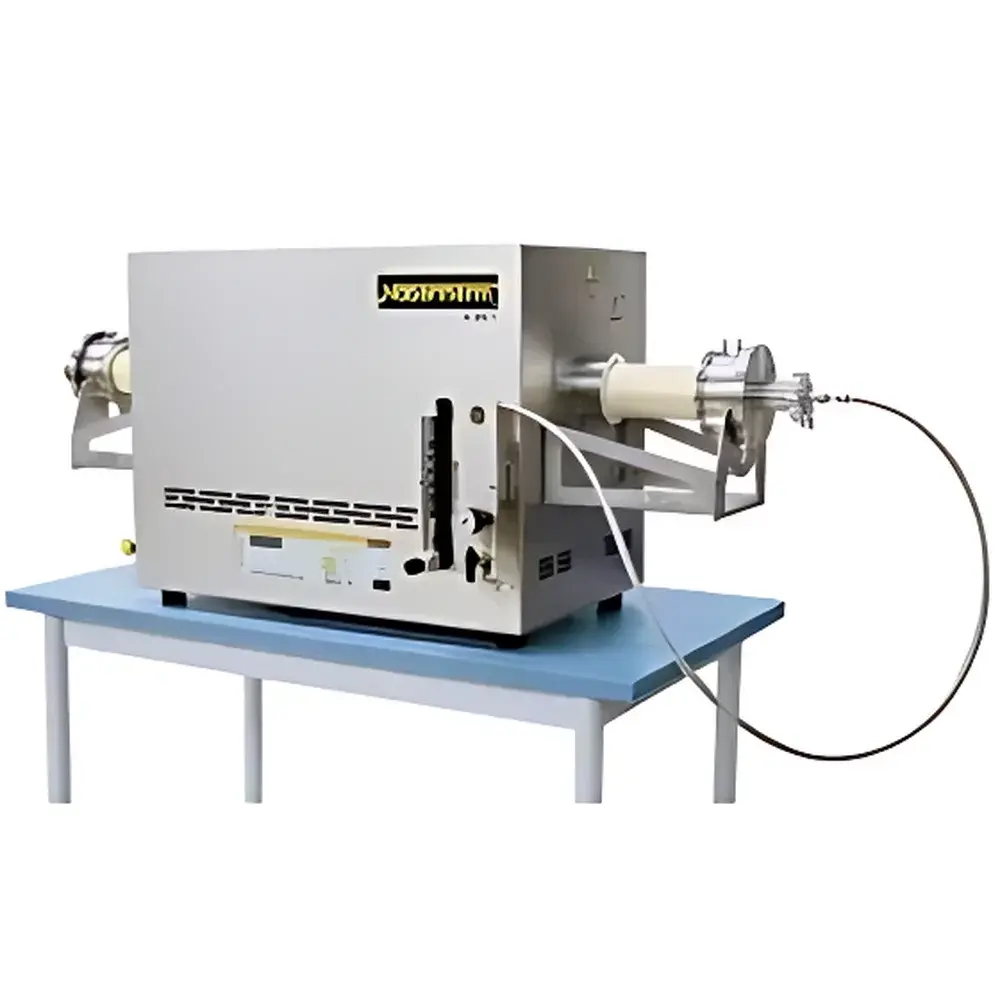

| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | RHTC 80-230/15 / RHTC 80-710/15 |
| Temperature Range | Up to 1500 °C |
| Temperature Uniformity | ±10 K over specified hot zone length |
| Control Accuracy | ±1 °C |
| Heating Method | Silicon Carbide (SiC) Rod Heaters |
| Maximum Power | 11.7 kW |
| Chamber Inner Diameter | 80 mm |
| External Dimensions (W×D×H) | up to 1070×430×580 mm |
| Weight | up to 90 kg |
| Electrical Supply | 3-phase, 400 V AC |
| Thermal Insulation | High-performance ceramic fiber module system |
| Safety Compliance | EN 60519-2 Class 2 Overtemperature Protection |
| Brand | Analysis |
|---|---|
| Origin | Germany |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Imported |
| Model | L 9/11/SKM |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 3 kW |
| Heating Rate to Max Temp | 90 min |
| Heating Configuration | Four-Side Heating |
| Internal Dimensions | 230 × 240 × 170 mm |
| Nominal Chamber Volume | 9 L |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Range | RS 80/300/11 – RS 170/1000/13 |
| Heating Method | Resistance Wire |
| Max Temperature | 1100 °C or 1300 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 12.6 kW |
| Internal Tube Diameter | 80 mm to 170 mm |
| Standard Tube Material | C 530 (Alumina-Rich Ceramic, Suitable for Air Atmosphere) |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model Range | N 7/H – N 87/H |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1280 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 20 kW |
| Ramp Time to Max Temp | 120 min |
| Heating Configuration | Triple-Sided (Left, Right & Bottom) |
| Internal Volume | 7–61 L |
