| Brand | ATAGO |
|---|---|
| Origin | Japan |

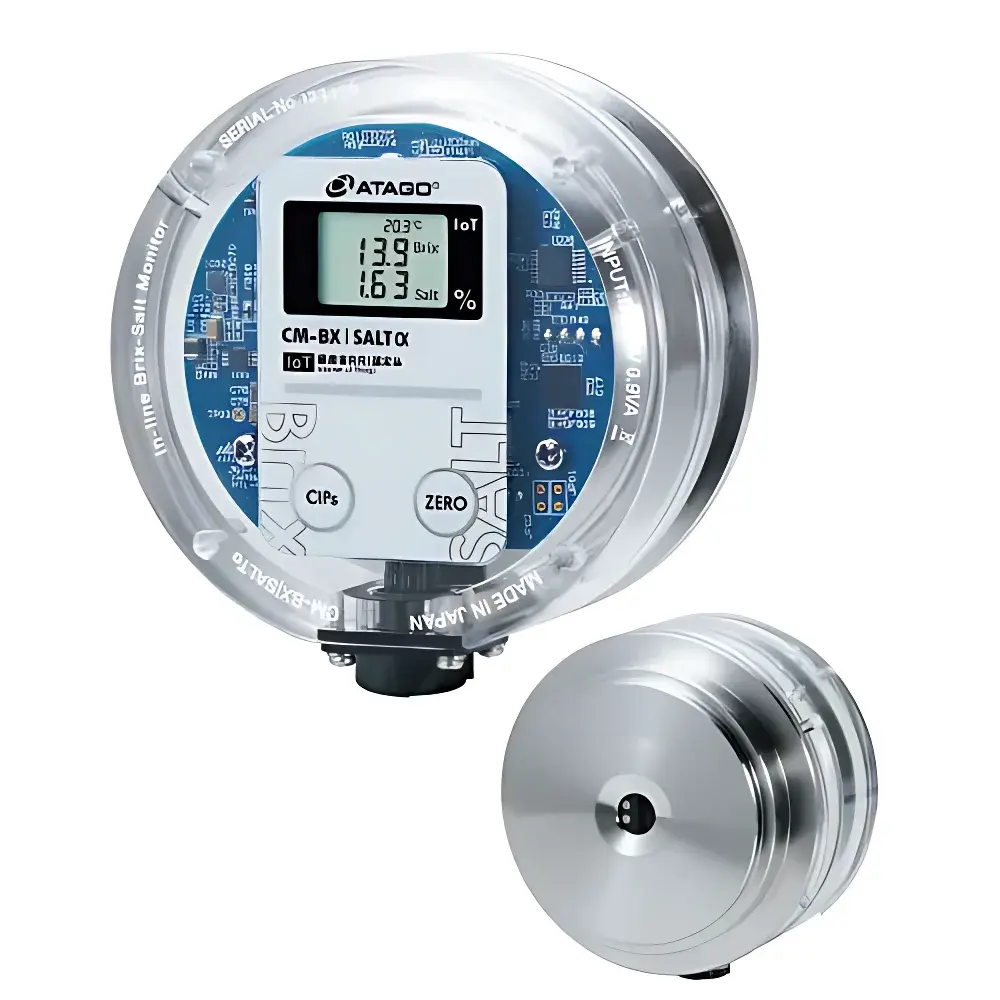

| Model | CM-BX/SALT α |
| Measurement Range | Brix 0.0–93.0%, Salt 0.00–15.00% |
| Resolution | Brix 0.1%, Salt 0.01% |
| Accuracy | Brix ±0.5% |
| Temperature Control Range | 4–95 °C |
| Wetted Materials | SUS 316L stainless steel + synthetic sapphire prism |
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | CM-800α (Chlor-Alkali Industrial Application) |
| Measurement Principle | Refractive Index (Brix, ATC) |
| Accuracy | ±0.1% Brix, ±1°C/°F |
| Range | 0.00–80.00% Brix (ATC), -15–160.0°C |
| Temperature Compensation | 5–100°C |
| Output | 4–20 mA, RS-232C |
| IP Rating | IP67 |
| Light Source | LED (≈589 nm, sodium D-line equivalent) |
| Prism Material | Synthetic Sapphire |
| Cell Body Material | SUS316L Stainless Steel |
| Dimensions | 160 × 167 × 110 mm |
| Weight | 2.4 kg |
| Response Interval | ~1 sec (configurable up to 5 intervals) |
| Brand | ATAGO |
|---|---|
| Origin | Japan |

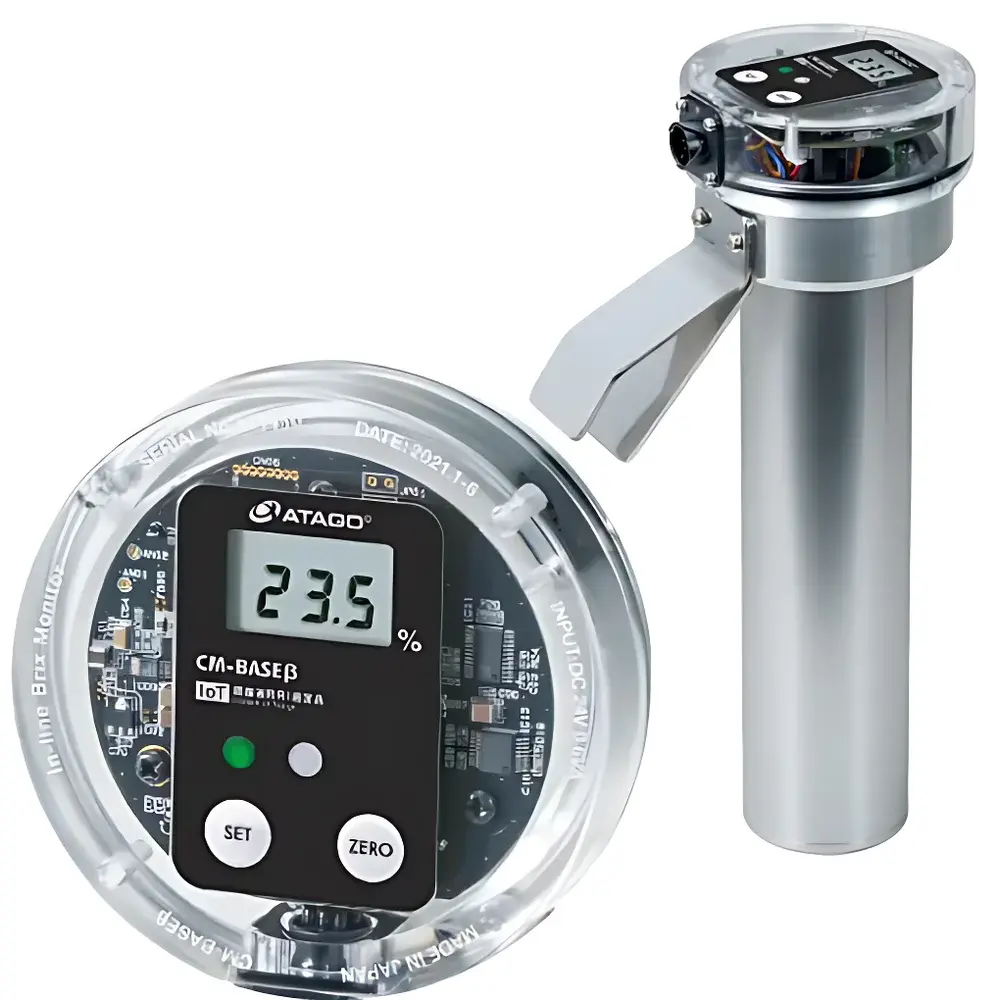

| Model | CM-BASE β (Edge-Mountable) |
| Measurement Range | 0.0–93.0% Brix (ATC) |
| Temperature Compensation Range | 10–95°C |
| Resolution | 0.1% Brix |
| Accuracy | ±0.2% Brix |
| Output | DC 4–20 mA / RS-232C |
| IP Rating | IP67 |
| Power Supply | DC 24 V |
| Probe Length Options | 200 mm (P/N 5851), 300 mm (P/N 5852), 500 mm (P/N 5853) |
| Brand | ATAGO |
|---|---|
| Origin | Japan |

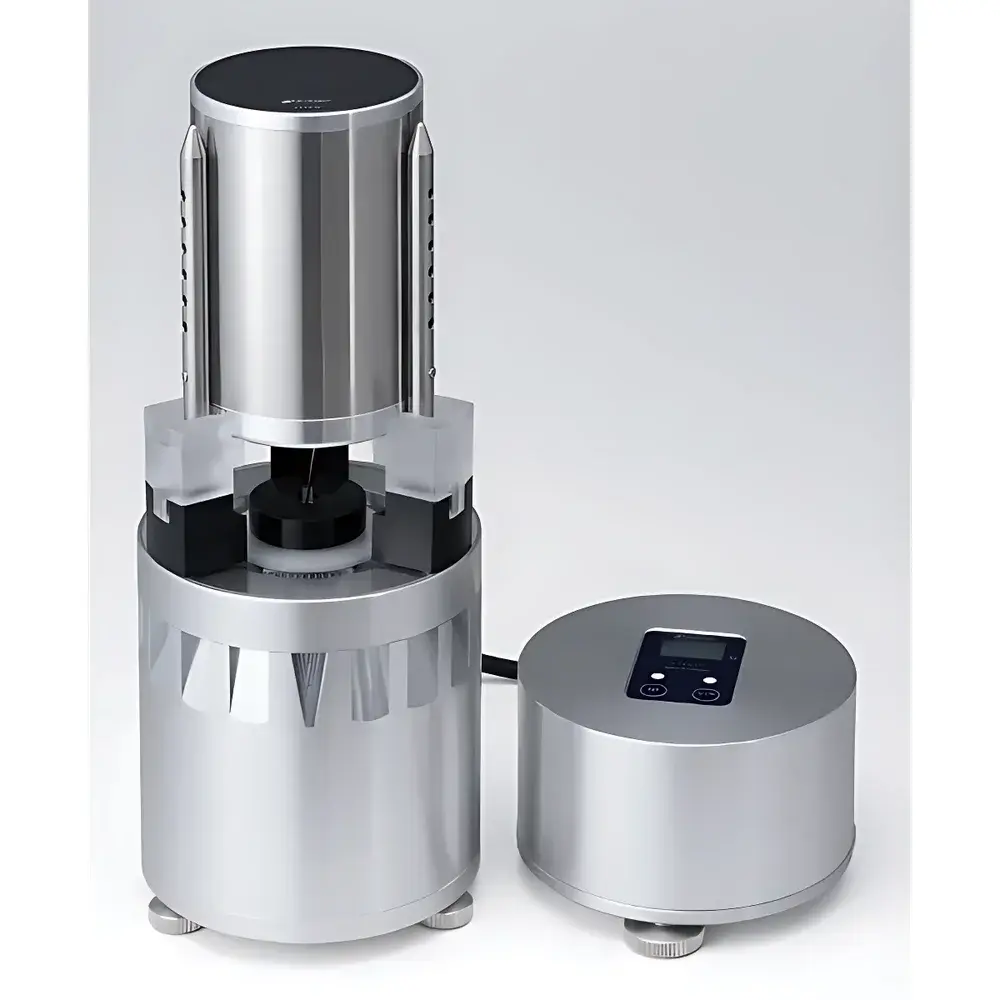

| Model | VISCO Series |
| Temperature Control | Integrated Peltier Module |
| Weight | 4 kg (Thermostat Unit), 2.7 kg (Controller) |
| Interface | Dual-Button Operation |
| Compliance | Designed for ISO 2555, ASTM D2196, and USP <911> viscosity testing protocols |
