| Origin | Beijing |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | XJL-300C |
| Quotation | Upon Request |
| Ambient Temperature Range | 10–35 °C |
| Hammer Mass Range | 0.250–15.00 kg (increments of 0.100 kg and 0.250 kg |
| certified masses | 1.000 kg and 2.000 kg with ±0.1% accuracy) |
| Hammer Nose Radii | R5 mm, R10 mm, R12.5 mm, R30 mm, R50 mm |
| Impact Height Range | 50–2000 mm (height indication error ≤ ±2 mm) |
| Specimen Diameter Capacity | Φ10–Φ630 mm |
| Power Supply | 220 V AC ±10%, 50 Hz, 500 W (single-phase, three-wire) |
| Lifting Speed | 12 m/min |
| Overall Dimensions | 850 mm × 950 mm × 3350 mm |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

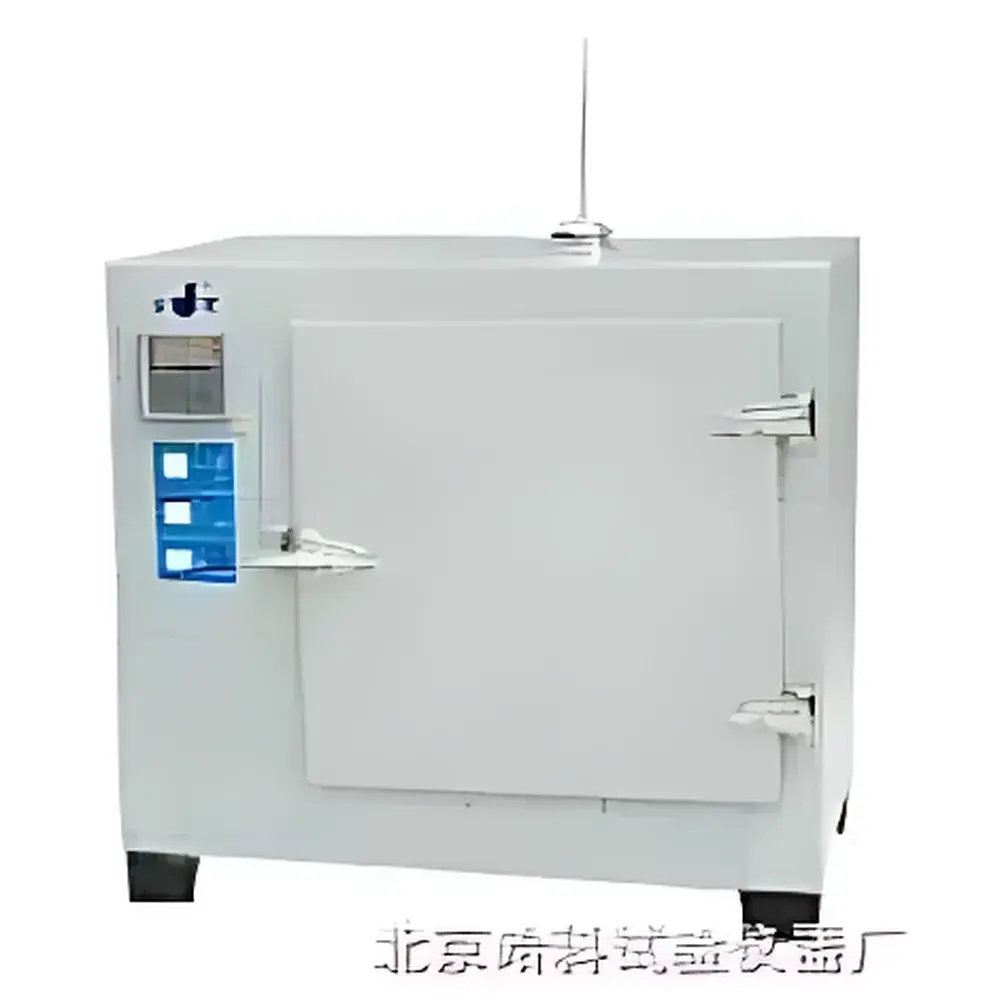

| Model | XCB-300I |
| Pricing | Available Upon Request |
| Max Operating Temperature | 300 °C |
| Temperature Control Range | 50–300 °C |
| Temperature Stability | ±2 °C |
| Temperature Uniformity | ±2.5% (at setpoint) |
| Internal Chamber Dimensions | 450 mm × 550 mm × 550 mm (W × D × H) |
| Fan Motor Power | 40 W |
| Heating Power | 2.8 kW |
| Input Voltage | 220 VAC ±10% (−15% to +10% tolerance) |
| External Dimensions | 675 mm × 920 mm × 950 mm (W × D × H) |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | XCB-300II |
| Pricing | Available Upon Request |
| Key | Origin: Beijing, China |
|---|---|
| Manufacturer Type | Distributor |
| Model | DRY-3.5 |
| Quotation | Upon Request |
| Total Force | 3.50 ± 0.02 N |
| Plunger Tip Diameter | 3.15 ± 0.03 mm |
| Test Station Capacity | 6-position fixture |
| Specimen Geometry | Ø12 mm circular disc or 12 mm × 12 mm square |

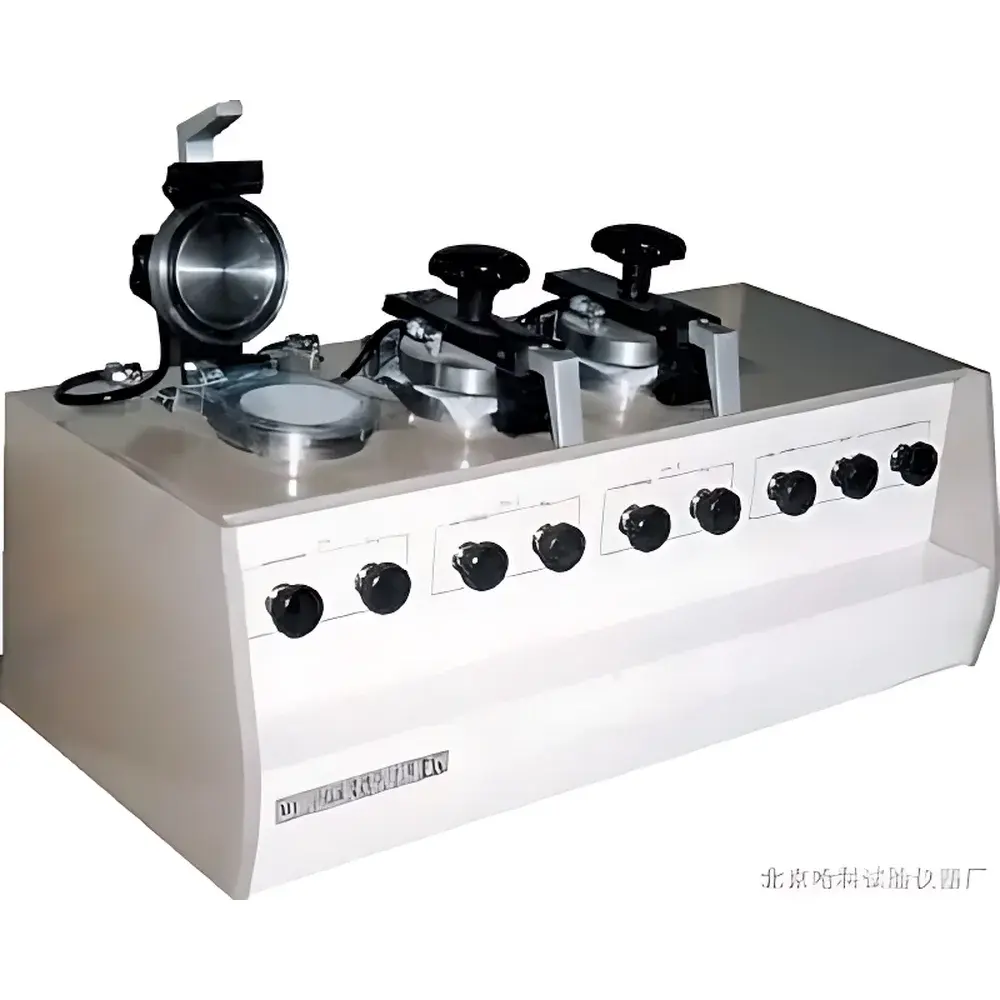

| Brand | HARKE |
|---|---|
| Model | HK-Q3 |
| Measurement Principle | Vacuum Method (ASTM D1434, ISO 2556, ISO 15105-1) |
| Test Gases | O₂, N₂, CO₂, Air, He, H₂, CH₄, C₃H₈, C₄H₁₀, NH₃ |
| Permeation Range | 0.05–160,000 cm³/(m²·24h·0.1 MPa) |
| Resolution | 0.001 cm³/(m²·24h·0.1 MPa) |
| Vacuum Resolution | 0.1 Pa |
| Temperature Control Range | 5–95 °C (external chiller/heater required) |
| Temp. Stability | ±0.1 °C |
| Sample Thickness | ≤5 mm (customizable) |
| Sample Area | 48 cm² |
| Sample Dimensions | ≥150 mm × 94 mm or circular |
| Test Pressure Range | −0.1 to +0.1 MPa |
| Supply Gas Pressure | 0.3–1.0 MPa |
| Gas Inlet Port | Ø8 mm |
| Dimensions (L×D×H) | 330 × 600 × 330 mm |
| Weight | 28 kg |
| Power | AC 220 V, 50 Hz |
| Compliance | ASTM D1434, ISO 2556, ISO 15105-1, GB/T 1038, YY/T 0698.5 |
