| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |

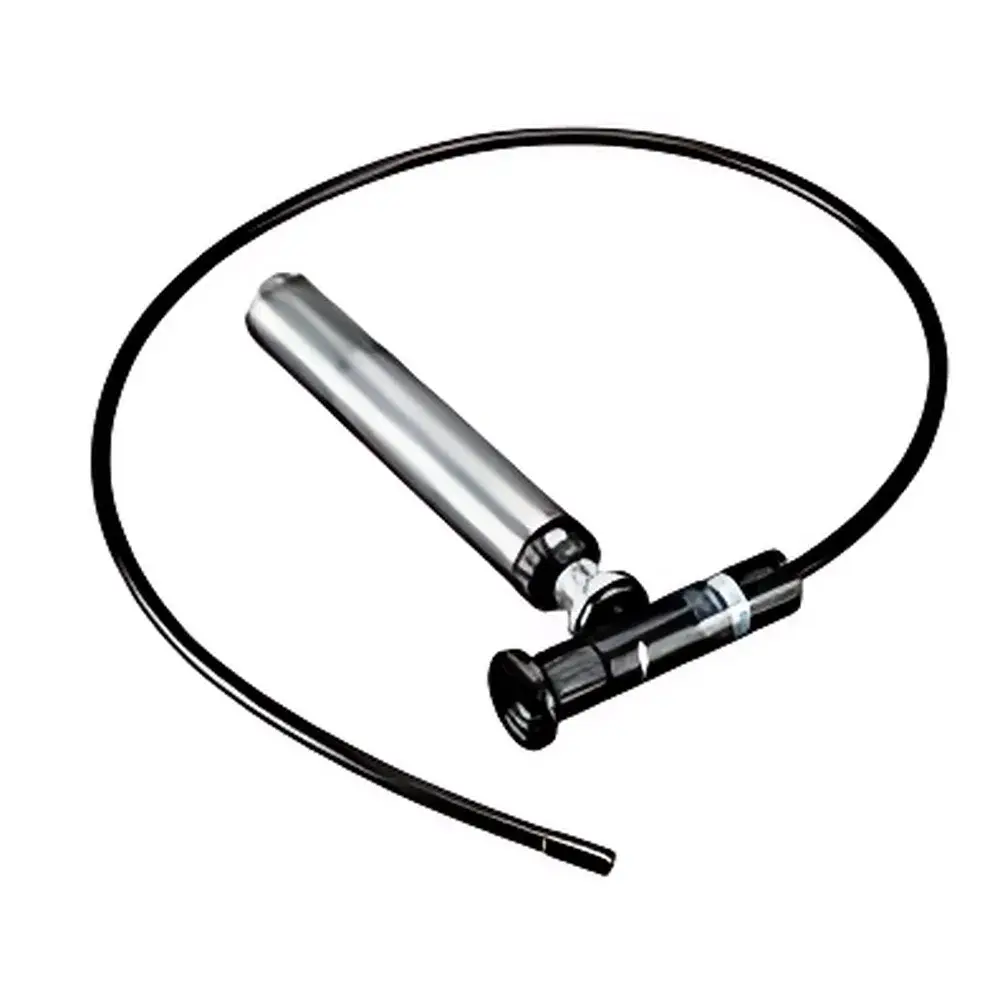

| Model | TMES 1/2 |
| Pricing | Upon Request |
| Fiber Optic Core | Acrylic |
| Pixel Count | TMES 1: 3,500 |
| TMES 2 | 7,400 |
| Fiber Diameter | TMES 1: 35 mm |
| TMES 2 | 13 mm |
| Max Fiber Damage Tolerance | TMES 1: ≤2% |
| TMES 2 | ≤0.5% |
| Cable Material | SUS304 stainless steel braid with PVC jacket |
| Minimum Bend Radius | 40 mm |
| Cable Length | TMES 1: 1 m |
| TMES 2 | 3 m |
| Cable Diameter | TMES 1: 8 mm |
| TMES 2 | 5 mm |
| Light Source | 3.5 V, 0.7 A, 2.55 W LED-equivalent incandescent |
| Power Supply | 3 × C (LR14) alkaline batteries |
| Viewing Direction | Straight-ahead |
| Field of View | TMES 1: 60° |
| TMES 2 | 55° |
| Fixed Focus Distance | 10 mm |
| Waterproof Rating | Objective lens and fiber cable rated for 1–1.3 bar air pressure (IP65 equivalent for probe section) |
| Operating Temperature | −20 °C to +60 °C |
| Total Weight | 1,135 g |
| Packaging Dimensions | 360 × 270 × 80 mm |
