| Brand | Xutongyongfu |
|---|---|

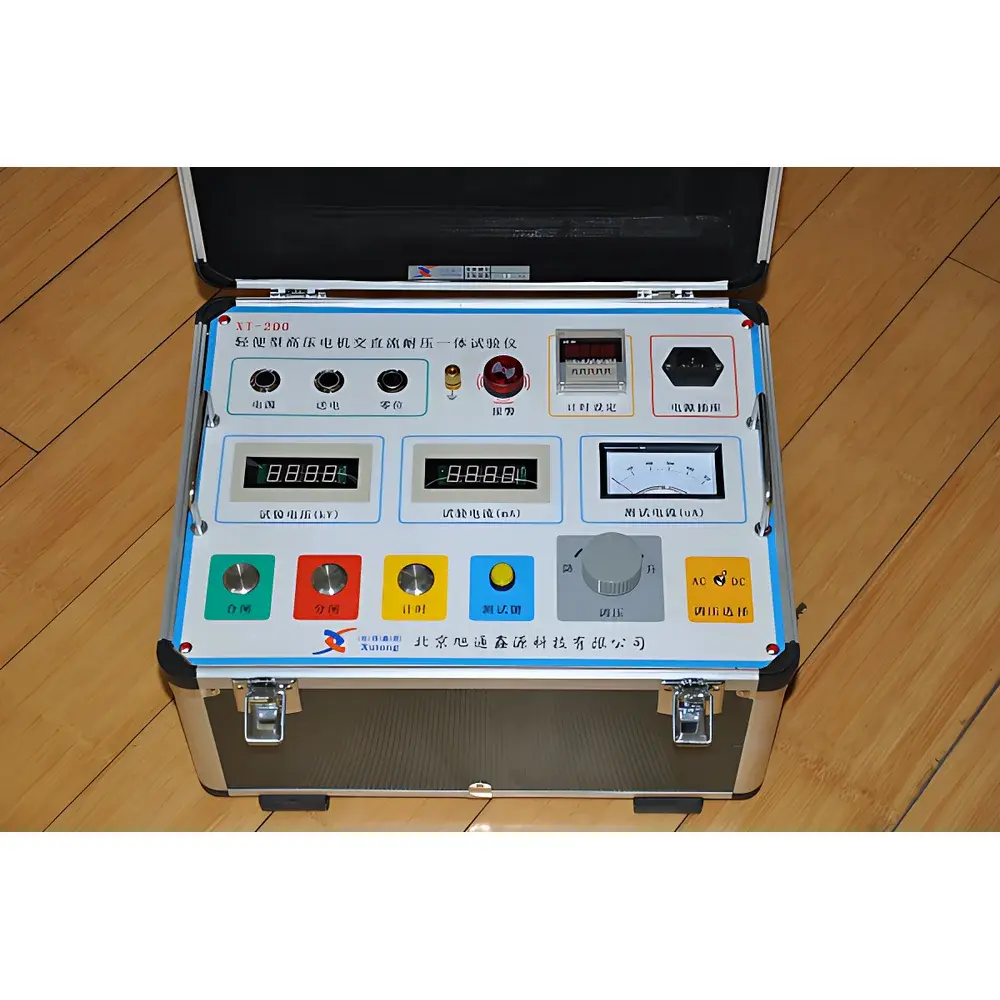

| Model | XT200 |
| Output Voltage (AC) | 10 kV (6 kV motor class), 15 kV (10 kV motor class) |
| Output Voltage (DC) | 15 kV (6 kV motor class), 25 kV (10 kV motor class) |
| Max Output Current | 550 mA (with compensating reactor) |
| Rated Transformer Capacity | 1.0–1.5 kVA |
| Input Power | AC 220 V ±10%, 50 Hz ±1 Hz |
| Display | Analog pointer meter |
| Voltage Accuracy | ±1.5% |
| Timing Range | 0–999 s (±0.5% accuracy) |
| Overcurrent Protection | 6.7 A |
| Zero-Position Interlock | Yes |
| Auto Trip on Timeout/Overcurrent | Yes |
| Dimensions (W×D×H) | 400 × 300 × 300 mm |
| Weight | 22 kg |
| Operating Temperature | –15 °C to +50 °C |
| Relative Humidity | ≤90% at +25 °C |
| Compliance | GB 50150–2006, DL/T 596–2005, DL/T 848.2–2004 |
| Brand | Xutongyongfu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XT-106 |
| Price Range | USD 1,400 – 7,000 (FOB) |
| Max Test Force | 50 kN |
| Load Rate | 50 N/s |
| Platen Spacing | 300 mm |
| Platen Size | 400 mm × 400 mm |
| Rated DC Output Voltage | 14 kV ±1.5% |
| Rated Capacity | 200 VA |
| Power Supply | AC 220 V ±10%, 50 Hz ±1 Hz |
| Operating Temp | −5 °C to +40 °C |
| Relative Humidity | ≤90% at +25 °C |
| Display | Dual Analog Pointer + Digital LCD |
| Protection | Overcurrent Trip, Timed Audible/Visual Alarm |
| Safety | Zero-Position Interlock, Automatic Discharge Circuit |
| Dimensions | 400 mm × 300 mm × 200 mm (W×D×H) |
| Brand | Xutongyongfu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Model | XT200-1 |
| Price Range | USD 7,000 – 14,000 (FOB) |
| AC Breakdown Voltage Output | Up to 15 kV (rms) |
| DC Breakdown Voltage Output | Up to 25 kV (dc) |
| Max. Output Current (with reactor compensation) | 550 mA |
| Rated Transformer Capacity | 1.0–1.5 kVA |
| Weight | 22 kg |
| Dimensions (W×D×H) | 400 × 300 × 300 mm |
| Operating Temperature | −15 °C to +50 °C |
| Relative Humidity | ≤90% at +25 °C |
| Compliance | GB 50150–2006, DL/T 596–2005, DL/T 848.2–2004 |
| Brand | Xutongyongfu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XT200-2 |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Maximum Breakdown Voltage | 20 kV AC/DC |
| Output Current | Up to 550 mA (with compensating reactor) |
| Input Power | AC 220 V ±10%, 50 Hz ±1 Hz |
| Accuracy | ±1.5% of reading (voltage), ±0.5% (timer) |
| Timer Range | 0–999 s (selectable in seconds, minutes, hours) |
| Overcurrent Protection | 6.7 A |
| Operating Temperature | −15 °C to +50 °C |
| Relative Humidity | ≤90% at +25 °C |
| Dimensions | 400 × 300 × 300 mm |
| Weight | 22 kg |
| Compliance | GB 50150–2006, DL/T 596–2005, DL/T 848.2–2004 |
| Brand | Xutongyongfu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XT-200 |
| Price Range | USD 7,000–14,000 (FOB) |
| Breakdown Voltage | 20 kV |
| AC Output | 6–15 kV (±1.5% accuracy) |
| DC Output | 10–25 kV (±1.5% accuracy) |
| Max Output Current | 550 mA (with compensating reactor) |
| Transformer Capacity | 1.0–1.5 kVA |
| Input Power | AC 220 V ±10%, 50 Hz ±1 Hz |
| Timer Range | 0–999 s (±0.5% accuracy) |
| Dimensions | 400 × 300 × 300 mm |
| Weight | 22 kg |
| Operating Temperature | −15 °C to +50 °C |
| Relative Humidity | ≤90% at +25 °C |
| Compliance | GB 50150–2006, DL/T 596–2005, DL/T 848.2–2004 |
| Brand | Xutongyongfu |
|---|---|
| Model | XT-100 |
| Rated Output Voltage | 0–50 kV |
| Max Output Current | 3 A @ 50 kV |
| Rated Capacity | 150 kVA |
| Output Frequency | 50 Hz ±5% |
| Waveform Distortion Rate | <1.0% (sinusoidal) |
| Quality Factor (Q) | 30–80 |
| Continuous Duty Cycle | 15 min at full load |
| Operating Ambient | −10°C to +40°C, RH <90% (non-condensing) |
| Input Power | AC 220 V ±10%, 50 Hz ±1 Hz |
| Protection | Overcurrent auto-trip, zero-position interlock, audible/visual timer alarm (0–99.9 s) |
| Accuracy | ±0.5% |
| Compliance | GB 50150–91, DL/T 596–1996, DL/T 848.2–2004 |
| Brand | Xutongyongfu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XT-105 |
| Price Range | USD 1,400 – 7,000 (based on exchange rate and configuration) |
| Max Test Force | 50 kN |
| Force Loading Rate | 50 N/s |
| Platen Spacing | 300 mm |
| Platen Dimensions | 400 mm × 400 mm |
| Input Voltage | AC 220 V ±10%, 50 Hz |
| Output Voltage | AC 0–250 V (continuously adjustable) |
| Output Current | AC 0–10 A |
| Output Modes | Continuous & Triggered |
| Overcurrent Protection Thresholds | 4.5 A / 9 A |
| Weight | 16 kg |
| Dimensions (W×D×H) | 400 × 300 × 200 mm |
| Operating Temperature | −15 °C to +50 °C |
| Relative Humidity | ≤85% at 20 °C |
| Brand | Xutongyongfu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XT-107 |
| Price Range | USD 8,500 – 11,500 (FOB) |
| Max Test Force | 50 kN |
| Loading Rate | 50 N/s |
| Platen Spacing | 300 mm |
| Platen Size | 400 mm × 400 mm |
| Rated DC Output Voltage | 4.5 kV |
| Rated AC Output Voltage | 3 kV |
| Output Capacity | 2 kVA |
| Voltage/Current Measurement Accuracy | ±1.5% |
| Operating Ambient | −5°C to +40°C, ≤90% RH at +25°C |
| Power Supply | AC 220 V ±10%, 50 Hz ±1 Hz |
| Display | 4½-digit digital meters + embedded oscilloscope module |
| Safety Features | Zero-position interlock, overcurrent protection, audible/visual timer alarm |
| Isolation | Galvanically isolated input/output circuits |
