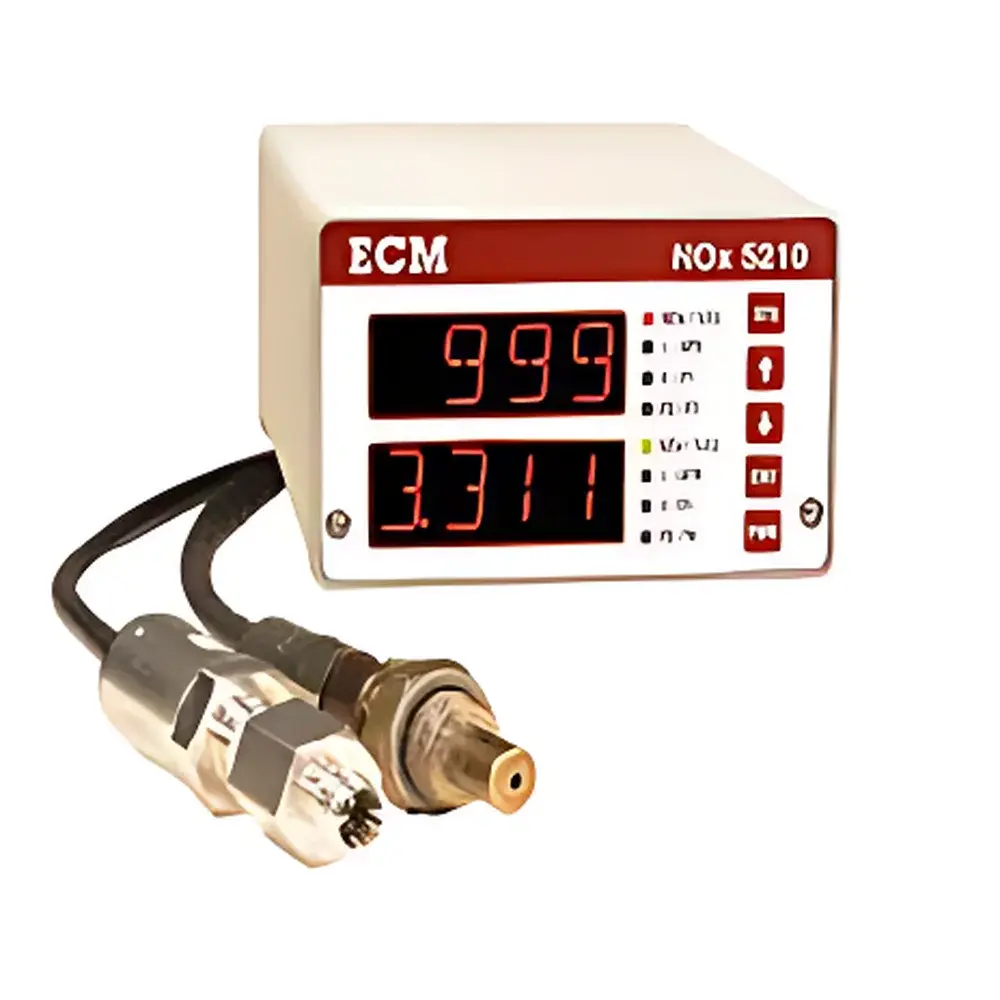

| Brand | ECM |
|---|---|
| Origin | USA |
| Model | NOx5210 |
| Measurement Principle | Electrochemical (Ceramic Zirconia-based Dual-Chamber Sensor) |
| NOx Range | 0–5000 ppm (NTK sensor) |
| Lambda (λ) Range | 0.4–25 |
| AFR Range | 6–364 |
| Equivalence Ratio (Φ) Range | 0.04–2.5 |
| O₂ Range | 0–25% vol |
| NOx Accuracy | ±30 ppm (0–1000 ppm), ±3% FS (remaining range) |
| Lambda Accuracy | ±0.008 at λ=1, ±0.016 (λ=0.8–1.2), ±0.018 (elsewhere) |
| O₂ Accuracy | ±0.4% (0–2% O₂), ±0.8% (elsewhere) |
| Response Time (t₉₀) | 700 ms (NOx, NTK), <150 ms (λ/Φ/AFR/O₂) |
| Operating Temperature | −40 °C to +85 °C |
| Power Supply | 11–28 VDC |
| Dimensions (H×W×D) | 64 × 105 × 165 mm |
| Weight | 676 g (main unit), 244 g (sensor module) |
| Sensor Mounting | M18×1.5 thread |
| Max Cable Length | 100 m (standard 4 m included) |
| Analog Outputs | 6 × 0–5 V (linearized, user-configurable per parameter) |
| Digital Interfaces | CAN 2.0B (user-definable protocol), USB 2.0, RS-232 |
| Fuel Flexibility | Adjustable H:C, O:C, N:C, and H₂ content ratios |
| Optional Features | Dual-channel configuration, pressure compensation module, AC/DC power adapter |
