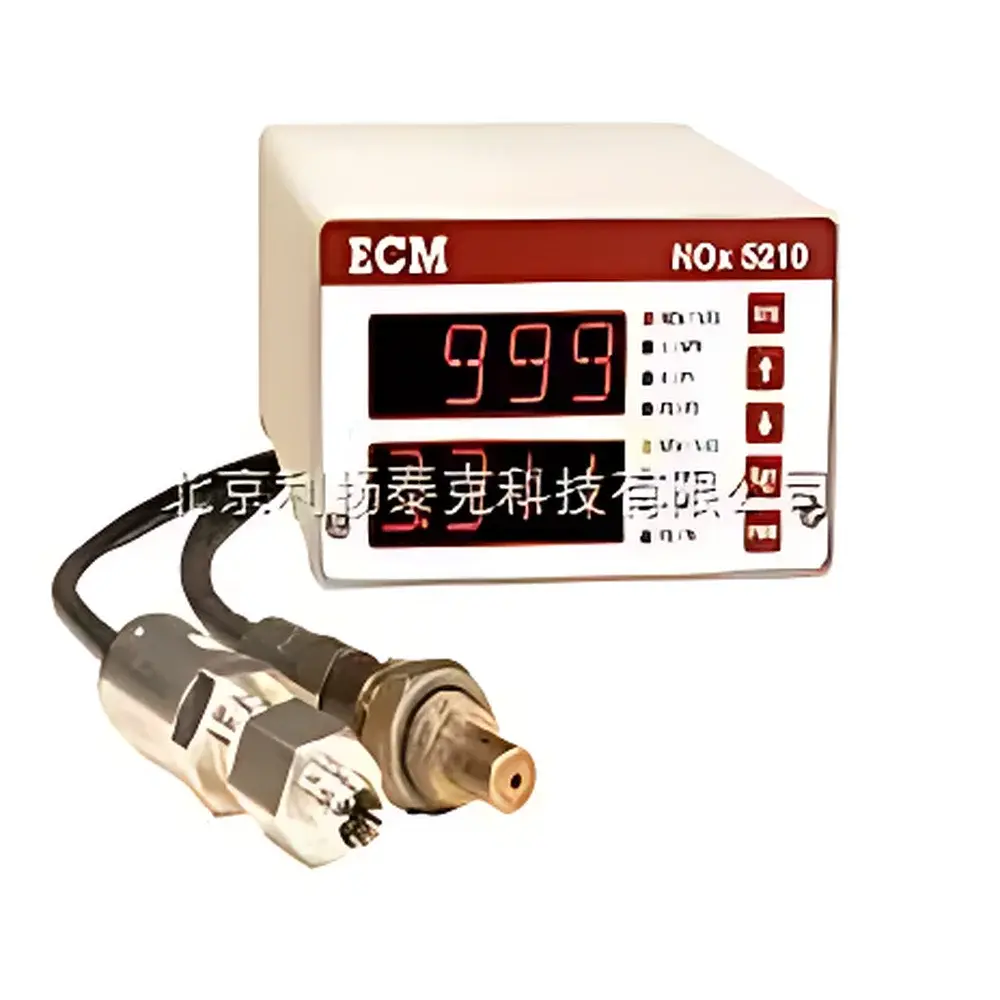

ECM NOx5210 On-Engine Nitrogen Oxides (NOx), Lambda, and Oxygen Analyzer

Overview

The ECM NOx5210 is a high-performance, on-engine nitrogen oxides (NO_x), lambda (λ), air-fuel ratio (AFR), equivalence ratio (Φ), and oxygen (O₂) analyzer engineered for real-time combustion and aftertreatment system development in internal combustion engine test environments. It employs dual-chamber zirconia-based electrochemical sensing technology—specifically optimized for direct-in-situ measurement in hot, high-flow exhaust streams. Unlike extractive systems requiring sample conditioning, pumps, and heated lines, the NOx5210 integrates a robust ceramic NO_x sensor directly into the exhaust pipe via an M18×1.5 threaded mount, enabling true in-situ quantification without transport delay or condensation artifacts. Its architecture supports both lean-burn and stoichiometric combustion regimes (λ ≥ 1 and λ < 1), making it suitable for diesel, lean-burn gasoline, HCCI, and turbine applications. The analyzer’s compact form factor (64 × 105 × 165 mm), wide operating temperature range (−40 °C to +85 °C), and ignition-triggered power management facilitate seamless integration into vehicle-dyno test cells and mobile R&D platforms.

Key Features

• True in-situ measurement with no sampling pump, heated line, or gas conditioning system required
• Plug-and-play ceramic NO_x sensor (NTK or NGK compatible) with embedded calibration memory — all zero/span data stored in the sensor connector’s EEPROM
• Simultaneous real-time output of NO_x, λ, AFR, Φ, and O₂, with full parametric visibility including sensor aging diagnostics
• Configurable fuel composition support: adjustable H:C, O:C, N:C, and H₂ ratios for accurate stoichiometry calculation across diverse fuels (diesel, gasoline, biofuels, hydrogen blends)
• Ultra-fast response: t₉₀ ≤ 150 ms for λ/Φ/AFR/O₂; 700 ms for NO_x — critical for transient cycle analysis (e.g., WLTC, FTP-75, RDE)
• 6 isolated 0–5 V analog outputs with linearized scaling, fully assignable to any measured parameter
• Dual communication architecture: CAN 2.0B (with customizable message ID, baud rate, and frame structure) plus USB 2.0 and RS-232 for legacy DAQ compatibility
• Automotive-grade power management: auto-on/auto-off triggered by vehicle ignition signal (11–28 VDC input)

Sample Compatibility & Compliance

The NOx5210 is designed for direct mounting in exhaust manifolds, downpipes, and aftertreatment canisters under high-temperature, high-vibration conditions. Its NTK-certified NO_x sensor complies with SAE J1930 and ISO 20000-1 requirements for on-board emissions instrumentation. While not certified for regulatory enforcement use (e.g., EPA 40 CFR Part 1065 or EU Regulation (EU) 2017/1151), the analyzer meets the metrological rigor expected in R&D-grade engine calibration labs operating under GLP-aligned quality systems. All calibration traceability is maintained via embedded EEPROM storage, supporting audit-ready documentation per ISO/IEC 17025 clause 7.7. The device’s analog and CAN outputs are compatible with industry-standard data acquisition systems (e.g., ETAS INCA, dSPACE SCALEXIO, National Instruments VeriStand), enabling synchronized multi-parameter logging aligned with engine control unit (ECU) signals.

Software & Data Management

The NOx5210 operates as a standalone embedded instrument with no host PC dependency. Configuration, calibration, and real-time monitoring are performed via the built-in LCD interface or through the ECM-provided Windows-based configuration utility (ECM ConfigTool v3.x). This utility enables full setup of fuel composition parameters, analog output assignments, CAN message mapping, and sensor calibration routines—including two-point zero/span adjustment with automatic EEPROM write-back. All calibration events are timestamped and logged internally. While the device does not implement FDA 21 CFR Part 11 electronic signature controls, its deterministic firmware behavior, non-volatile calibration storage, and hardware-level watchdog timers ensure data integrity in unattended long-duration tests. Raw parameter values and diagnostic flags (e.g., sensor temperature, aging index, heater status) are accessible via all digital interfaces for integration into automated test sequence frameworks.

Applications

• Development and validation of selective catalytic reduction (SCR), lean NO_x traps (LNT), and ammonia slip control strategies
• Real-time combustion optimization for low-NO_x / high-efficiency operation in diesel and advanced gasoline engines
• Aftertreatment system durability testing under cyclic thermal and chemical stress
• RDE (Real Driving Emissions) portable emissions measurement system (PEMS) integration, subject to local regulatory acceptance criteria
• Calibration of model-based NO_x estimators used in closed-loop ECU control algorithms
• Fuel-flexible engine research involving synthetic fuels, e-fuels, and hydrogen-enriched blends

FAQ

Does the NOx5210 require periodic factory recalibration?
No. The embedded EEPROM in each sensor connector retains full calibration history. Users perform field zero/span calibrations using certified span gases; new coefficients are written directly to the sensor’s memory and persist across instrument power cycles.
Can the NOx5210 measure NO and NO₂ separately?
No. It measures total NO_x (NO + NO₂) as a single parameter using a chemically selective dual-chamber zirconia sensor. Separate NO/NO₂ speciation requires CLD or UV-Vis spectroscopic analyzers.
Is pressure compensation mandatory for accurate λ or AFR calculation?
Not mandatory, but strongly recommended for high-altitude or turbocharged applications. The optional pressure compensation module corrects for barometric and manifold pressure effects on O₂ partial pressure, improving stoichiometric accuracy by up to ±0.003 λ units.
What is the maximum allowable exhaust gas temperature at the sensor tip?
The NTK sensor is rated for continuous exposure up to 900 °C at the tip, with integrated thermocouple feedback enabling active heater control and thermal derating logic within the analyzer firmware.
Can the NOx5210 be used in stationary power generation or industrial boiler applications?
Yes — provided the installation environment meets the mechanical, thermal, and vibration specifications. However, its primary design intent and validation scope remain focused on mobile engine and propulsion R&D environments.
