| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ME-288B |
| Pricing | Upon Request |
| Brand | Graywolf |
|---|---|
| Model | TC-302HY |
| Type | K-Type Thermocouple Probe |
| Measurement Range | –80 °C to +205 °C |
| Output Sensitivity | ≈40 µV/°C |
| Probe Configuration | Subcutaneous (Needle-Type) |
| Sheath Material | Stainless Steel 316 |
| Lead Length | Standard 2 m (shielded, twisted-pair PTFE-insulated cable) |
| Connector | Miniature Thermocouple Connector (MJ) compatible with Graywolf handheld meters (e.g., Solo, DP-Calc, AirWolf series) |
| Compliance | RoHS-compliant construction |
| Calibration | NIST-traceable calibration certificate available upon request |
| Operating Environment | Indoor, non-explosive, non-corrosive ambient (IP54-rated probe tip when used with compatible host) |
| Brand | ESSA |
|---|---|
| Origin | Imported (Non-China) |
| Manufacturer Type | Authorized Distributor |

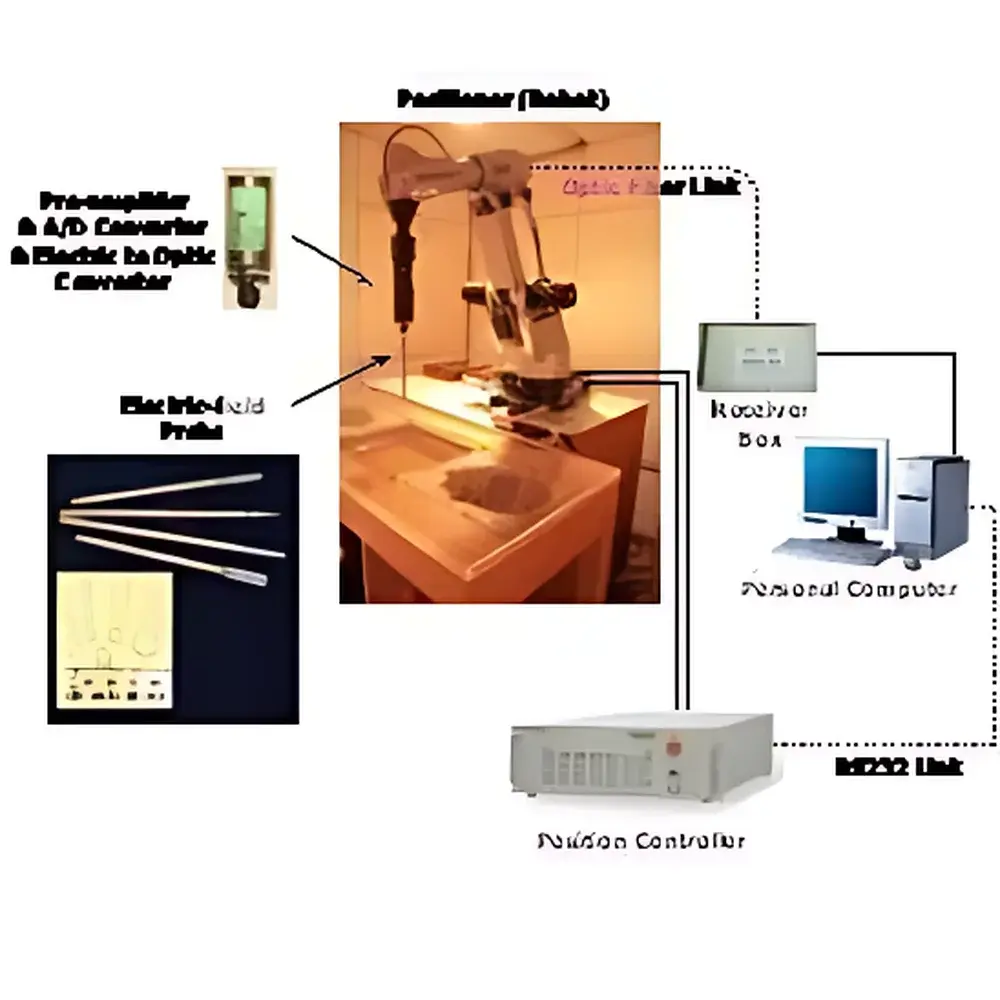

| Model | ESSAY-3 |
| Price | Upon Request |
| SAR Probe Frequency Range | 10 MHz – 10 GHz |
| Probe Spatial Resolution | ≤ 25 mm³ |
| Probe Dynamic Range | 2 mW/kg – 100 W/kg |
| Robot Position Repeatability | < 0.01 mm |
| SAM Phantom Compliance | IEEE Std 1528-2003 / IEC 62209-1 |
| Angular Isotropy | ±0.2 dB |
| Probe Impedance | ≈2 MΩ |
| Dipole Length | 2.0 mm |
| Tip O.D. | 4.0 mm |
| Offset | 2.0 mm |
| Robot Payload Capacity | 6 kgf |
| Robot DOF | 6-axis vertically articulated |
| Motor Type | DC servo |
| Robot Weight | 58 kg |
| Flat Phantom Dimensions | 42 cm × 36 cm × 19 cm |
| Phantom Shell Thickness | 2.0 mm ± 0.2 mm |
| Phone Fixture Angular Tolerance | ±1° |
| Fixture Material | εᵣ < 5, tanδ ≤ 0.05 |
| Origin | Italy |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VDH-01 |
| Pricing | Available Upon Request |
| Frequency Range | 20 kHz – 10 MHz |
| Equivalent Protection Circuit | Integrated Transient Current Limiter per IEC 62493 |
| Output Impedance | 50 Ω |
| RF Input Interface (Sphere) | BNC Female |
| RF Output Interface | BNC Female |
| Sphere Diameter | 210 mm |
| Neck Simulator Wire Length | 300 mm |
| Tripod Mount Thread | 1/4″–20 UNC |
| Operating Temperature | −10 °C to +45 °C |
| Storage Temperature | −20 °C to +70 °C |
| Weight (Excl. Tripod) | 1.7 kg |

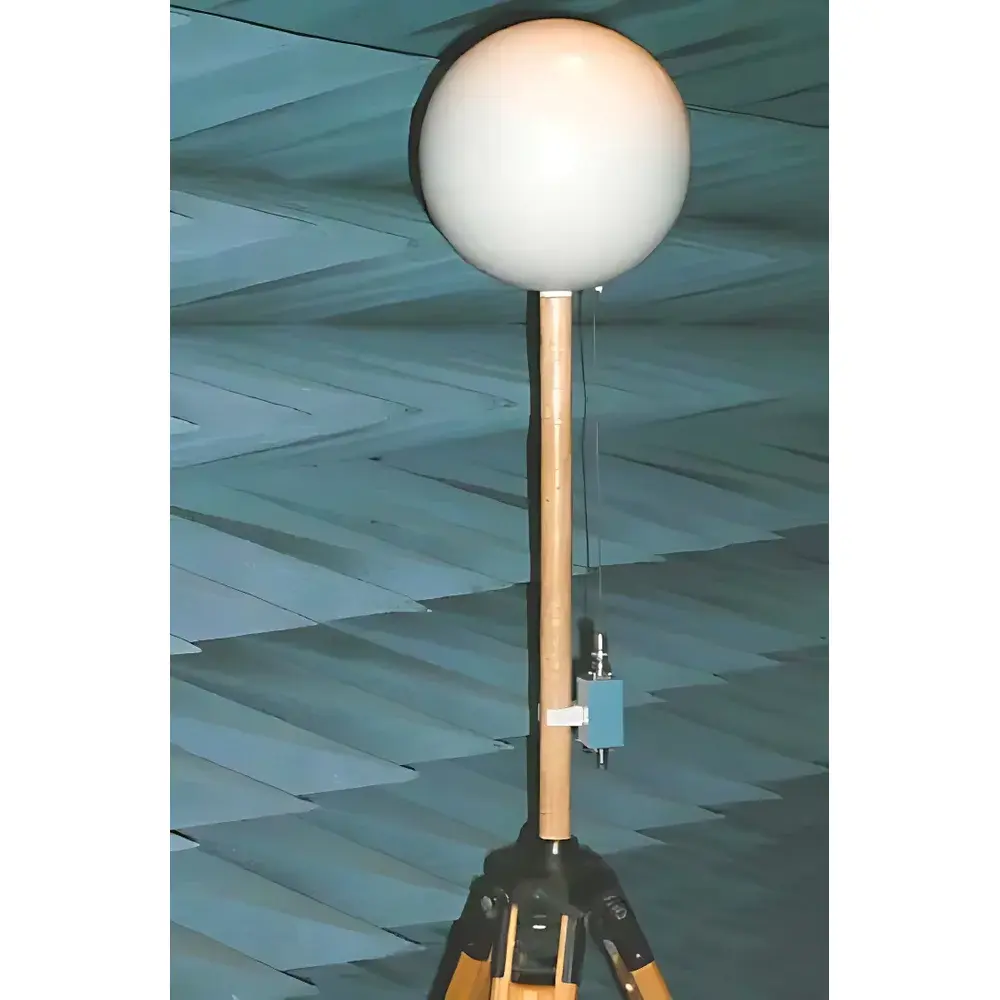

| Brand | PMM |
|---|---|
| Model | VDH-01 |
| Compliance | IEC 62493 |
| Frequency Range | 20 kHz – 10 MHz |
| Output Impedance | 50 Ω |
| Interface | BNC |
| Weight | 1.7 kg |
| Components | Measurement Probe, Protection Network, Coaxial Cables, Wooden Tripod |
| Optional Accessories | RF Switching Unit, PMM 9010 EMI Receiver |
| Brand | Narda |
|---|---|
| Origin | Germany |
| Model | EP602 |
| Frequency Range | 5 kHz to 9.25 GHz |
| Dynamic Range | 1.5–1500 V/m |
| Overload Limit | 3000 V/m |
| Sampling Rate | 22 samples/sec |
| Output Interface | Fiber-optic direct connection to PC |
| Calibration Data Storage | Embedded memory with traceable calibration factors |
| Temperature Monitoring | Integrated sensor for real-time thermal compensation |
| Physical Size | Smallest in Narda’s EP-series field probe lineup |
| Compliance | Designed for IEC 61000-4-3, MIL-STD-461G RS103, DO-160 Section 20, and other RF immunity test standards |
| Brand | PMM |
|---|---|
| Origin | Italy |
| Model | HP-050 |
| Frequency Range | 10 Hz – 5 kHz |
| Magnetic Flux Density Range | 10 nT – 40 µT |
| Dynamic Range | > 72 dB |
| Resolution | 1 nT |
| Sensitivity | 10 nT |
| Absolute Error @ 50 Hz / 200 nT / 25 °C | ±0.4 dB |
| Frequency Response (40 Hz – 1 kHz) | ±1 dB |
| Isotropy @ 50 Hz / 200 nT | ±0.3 dB |
| Electric Field Rejection | > 20 dB |
| Temperature Coefficient | 0.015 dB/°C |
| Calibration | Built-in EEPROM |
| Dimensions | 350 mm (L) × 133 mm (Ø) |
| Weight | 400 g |

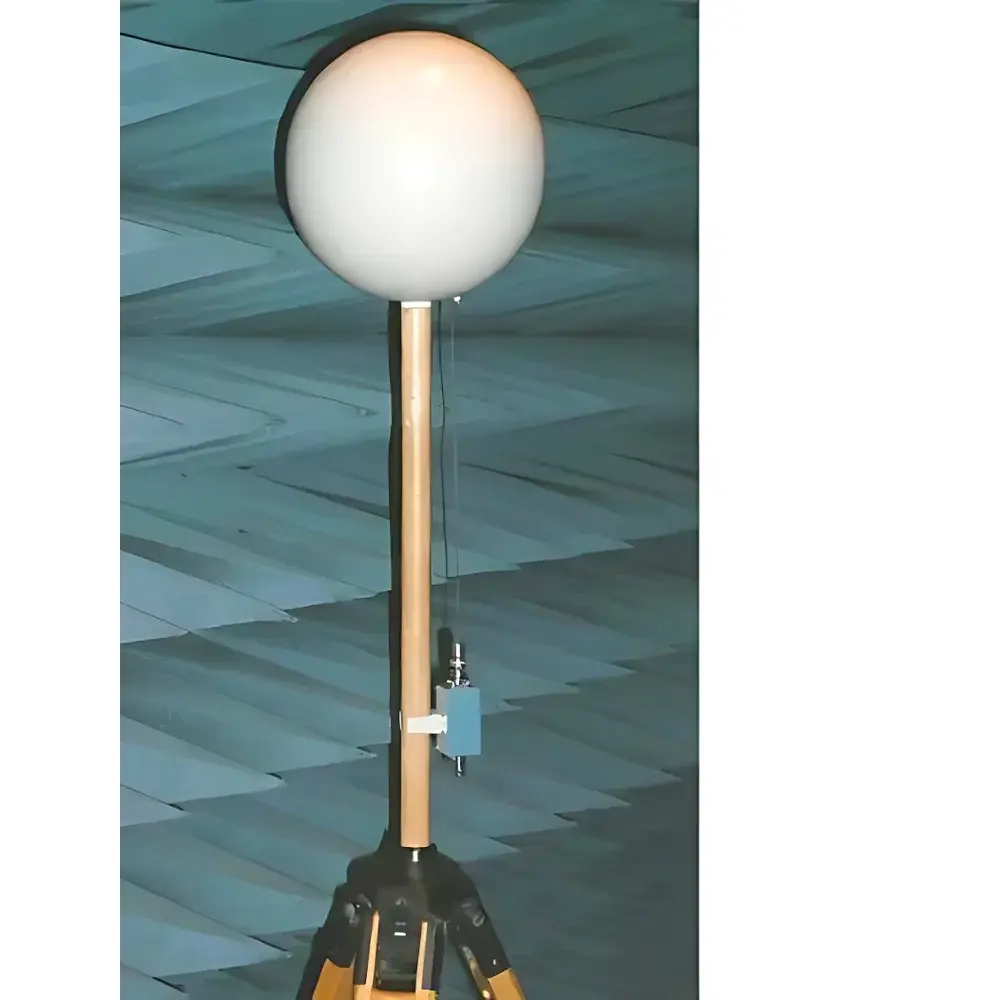

| Origin | Italy |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VDH-01 Test Head |
| Quotation | Upon Request |
| Frequency Range | 20 kHz – 10 MHz |
| Equivalent Protection Circuit | Integrated Transient Current Protection |
| Compliance | Fully IEC 62493 Conformant |
| Output Impedance | 50 Ω |
| RF Input Interface (Sphere) | BNC Female |
| RF Output Interface | BNC Female |
| Sphere Diameter | 210 mm |
| Neck Simulator Length | 300 mm |
| Tripod Mount | 1/4″–20 UNC Thread |
| Operating Temperature | −10 °C to +45 °C |
| Storage Temperature | −20 °C to +70 °C |
| Weight (excl. tripod) | 1.7 kg |
| Brand | PMM |
|---|---|
| Origin | Italy |
| Model | HP-33M |
| Frequency Range | 700 MHz – 3 GHz |
| Electric Field Range | 0.3 – 300 V/m |
| Overload Protection | > 600 V/m |
| Dynamic Range | > 60 dB |
| Resolution | 0.01 V/m |
| Sensitivity | 0.3 V/m |
| Absolute Accuracy @ 930 MHz (20 V/m) | ±1 dB |
| Frequency Response (900 MHz – 3 GHz) | ±1.5 dB |
| Isotropy @ 930 MHz | ±1 dB |
| H-Field Rejection | > 20 dB |
| Temperature Coefficient | 0.05 dB/°C |
| Calibration | Built-in EEPROM |
| Dimensions | 317 mm × Ø58 mm |
| Weight | 100 g |
