| Brand | Aolong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

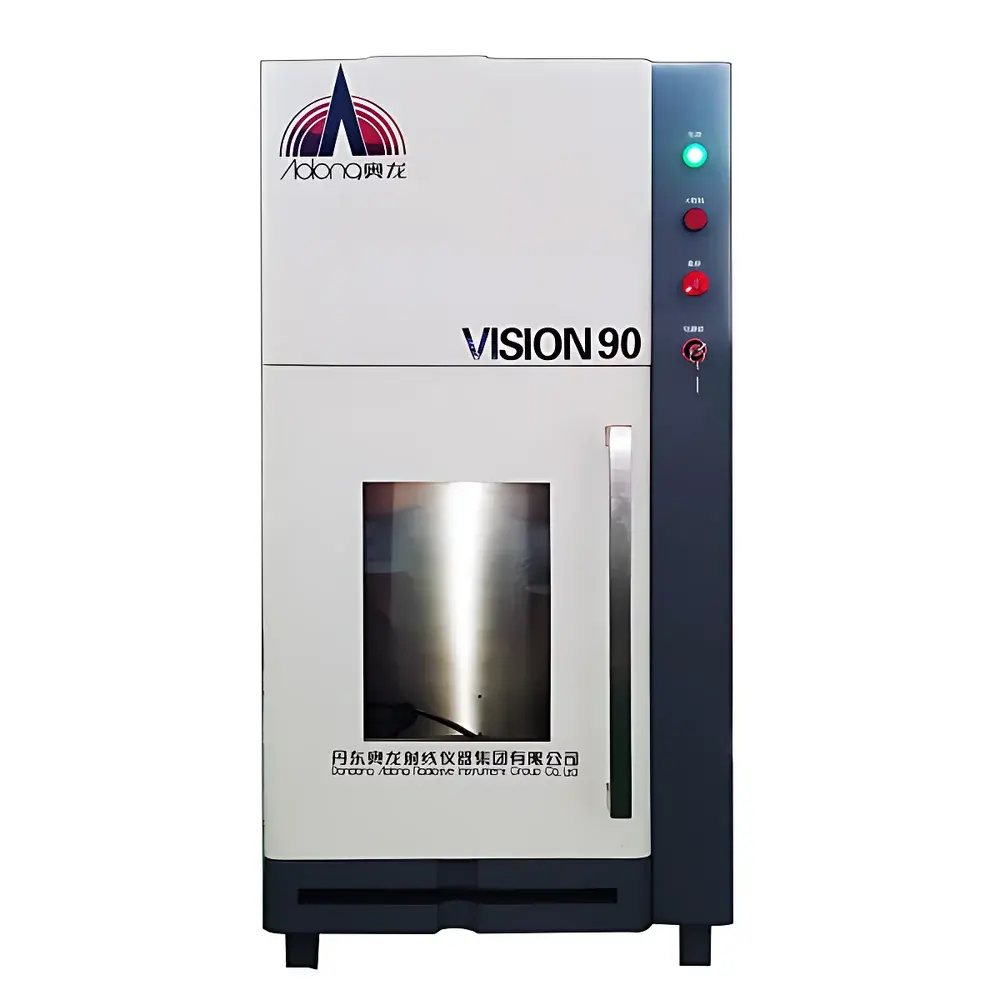

| Model | VISION90 |
| Imaging Modality | Transmission X-ray (Microfocus Radiography) |
| Field of View | 15 × 10 cm |
| Effective In Vivo Resolution | 3 µm |
| Tube Voltage | 90 kV |
| Focal Spot Size | 5 µm |
| Detector Pixel Pitch | 49 µm |
| A/D Conversion | 16-bit |
| Geometric Magnification | Up to 10× (customizable) |
| Maximum Sample Area | 15 × 10 cm (optional extended FOV available) |
| Compliance | Meets GBZ 138–2017 (Chinese National Standard for Leakage Radiation from X-ray Equipment) |
| Brand | Aolong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | Small Animal Spectral Micro-CT |
| Field of View | Ø65 mm × L200 mm |
| X-ray Source | 90 kV sealed-tube, maintenance-free |
| Detector | Photon-counting energy-resolving detector |
| Minimum Pixel Resolution | 8 µm |
| Energy Bins | 2–8 selectable |
| Image Matrix | 512×512 to 1547×1547 |
| Radiation Leakage | <0.5 µSv/h at any external point |
| Dimensions (H×W×D) | 1622×1192×1458 mm |
| Power Supply | 100–240 VAC, 50–60 Hz, <300 W (excl. workstation) |
| Workstation | Intel Xeon 8-core CPU, 64 GB RAM, 256 GB SSD + 1 TB SSD + 4 TB HDD, 29″ display |
| Brand | AoLong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Lab-Specific In Vivo Micro-CT Imaging System |
| Instrument Type | Tomographic Imaging |
| Tube Voltage | 20–90 kV |
| Focal Spot Size | 5 µm |
| Spatial Resolution | 3 µm |
| Density Resolution | 0.3–0.5% |
| Scan Geometry | Cone-Beam |
| Detector | Digital Flat-Panel Detector |
| Scan Time | 30 s – 2 min |
| Image Reconstruction Speed | 1024×1024, 720 projections |
