| Brand | Aolong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

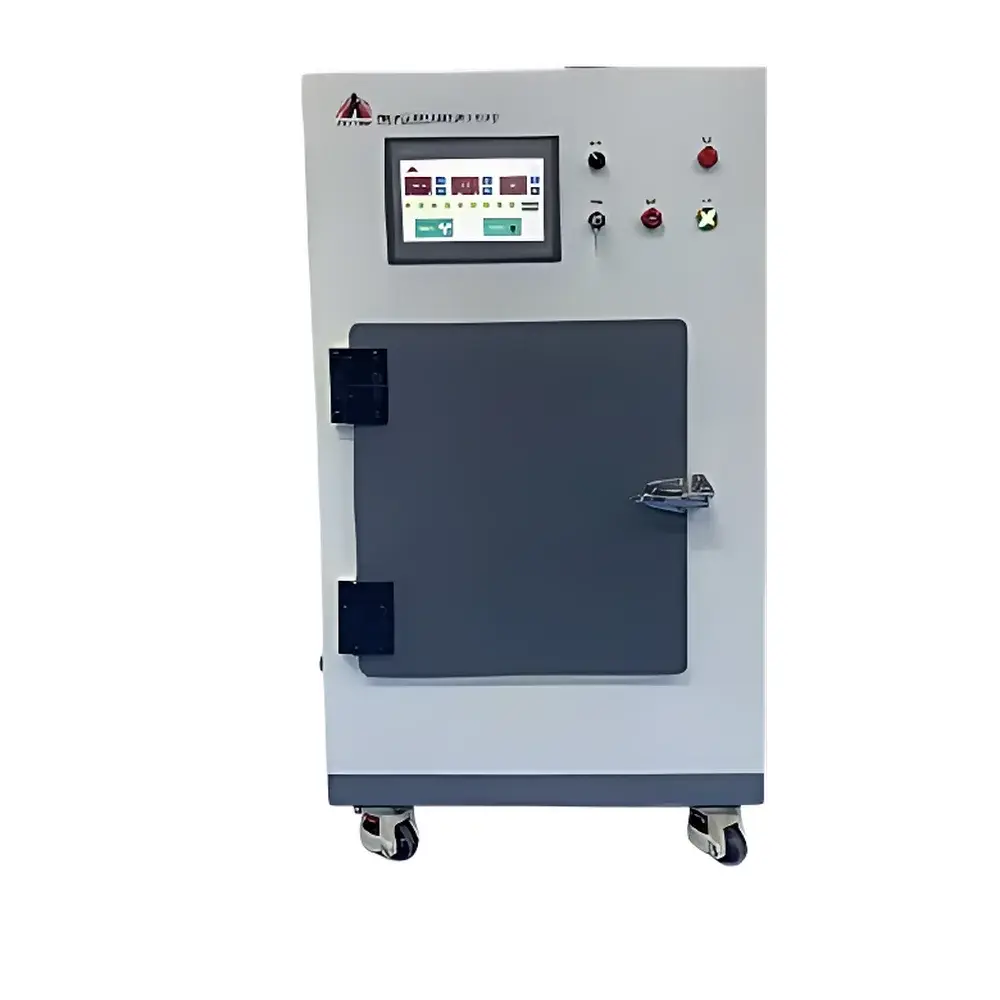

| Model | ChiRad 160C |
| Price | Upon Request |
| X-ray Energy Range | 40–160 kV |
| Tube Current | 10 mA |
| System Power | 800 W (configurable) |
| Focal Spot Size | 1.2 mm |
| Beam Coverage Diameter | 40 cm |
| Source-to-Object Distance | 13–55 cm |
| Exposure Time | 1–180 min |
| Input Power | 220 VAC ±10%, 50/60 Hz, Single-phase, 9 kVA |
| Cooling | Integrated Closed-loop Heat Exchanger |
| Sample Turntable | Motorized, 2 RPM |
| Internal Chamber Dimensions | 335 × 375 × 395 mm (W×D×H) |
| External Dimensions | 730 × 560 × 1300 mm (W×D×H) |
| Weight | 660 kg |
| Leakage Dose | <0.5 µSv/hr at 10 cm from surface (max energy operation) |
| Brand | Aolong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | ChiRad 4000 |
| Price | Upon Request |
| Maximum Tube Voltage | 75 kV (adjustable) |
| Focal Spot Size | 7.5 mm |
| Max Tube Current | 50 mA (adjustable) |
| System Power | 4000 W (adjustable) |
| Radiation Cone Angle | 40° |
| Max Irradiation Field Diameter (on Rotating Platform) | 30 cm |
| Source-to-Sample Distance (SSD) | 5–50 cm (adjustable) |
| Single Exposure Duration | 1–60,000 s (adjustable) |
| Dose Rate | Up to 600 Gy/min |
| Irradiation Chamber Dimensions (W×H×D) | 45 × 50 × 40 cm |
| Overall Enclosure Dimensions (H×W×D) | ~182 × 110 × 88 cm |
| Cooling System | Industrial Air-Cooling + Compressor-Based Water Chiller |
| Shielding | Lead-lined Enclosure |
| Uniformity | ≥95% (with Motorized Turntable & Beam Filtration) |
| Brand | Aolong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |

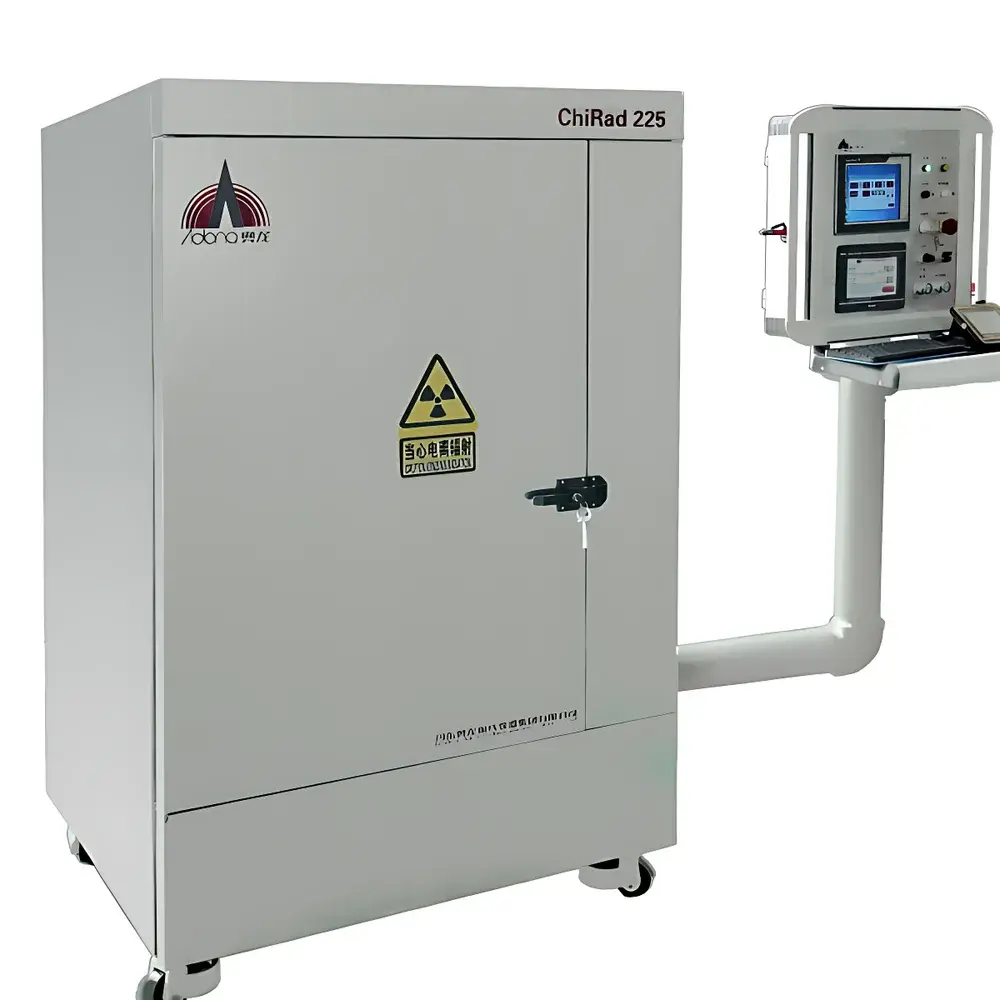

| Model | ChiRad225 Pro |
| Pricing | Upon Request |
| Maximum Tube Voltage | 225 kV |
| Tube Current | 20 mA |
| System Power | 4.5 kW |
| Focal Spot Size (EN) | 5.5 mm |
| Inherent Filtration | 2 mm Be |
| Radiation Beam Angle | 40° |
| Effective Irradiation Field Diameter | 40–50 cm |
| Source-to-Object Distance Range | 13–80 cm |
| Exposure Time Range | 1 s to 9999 h |
| Input Power | 220 VAC ±10%, 50/60 Hz, Single-phase, 9 kVA |
| Cooling System | Integrated Closed-loop Heat Exchanger |
| Sample Stage | Motorized Vertical Lift & Rotation (2 RPM) |
| Internal Chamber Dimensions | 75 cm (H) × 55 cm (W) × 55 cm (D) |
| Leakage Dose | <0.5 µSv/h at 10 cm from surface (at max output) |
| Brand | Aolong |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Model | 31-040A |
| Price | Upon Request |
| Detection Radiation | X-ray & Gamma (γ) |
| Dose Rate Range | 0.01 µSv/h – 10 mSv/h |
| Cumulative Dose Range | 0.1 pSv – 1 Sv |
| Energy Response Range | 30 keV – 3 MeV |
| Dose Rate Accuracy | ±30% (typical, per IEC 61526 ed.3) |
| Operating Temperature | −20 °C to +50 °C |
| Relative Humidity | ≤90% RH (non-condensing) |
| Power Input | DC 5 V / 200 mA |
| Ingress Protection | IP65 |
| Battery Life | >72 h (background radiation environment, no external power) |
