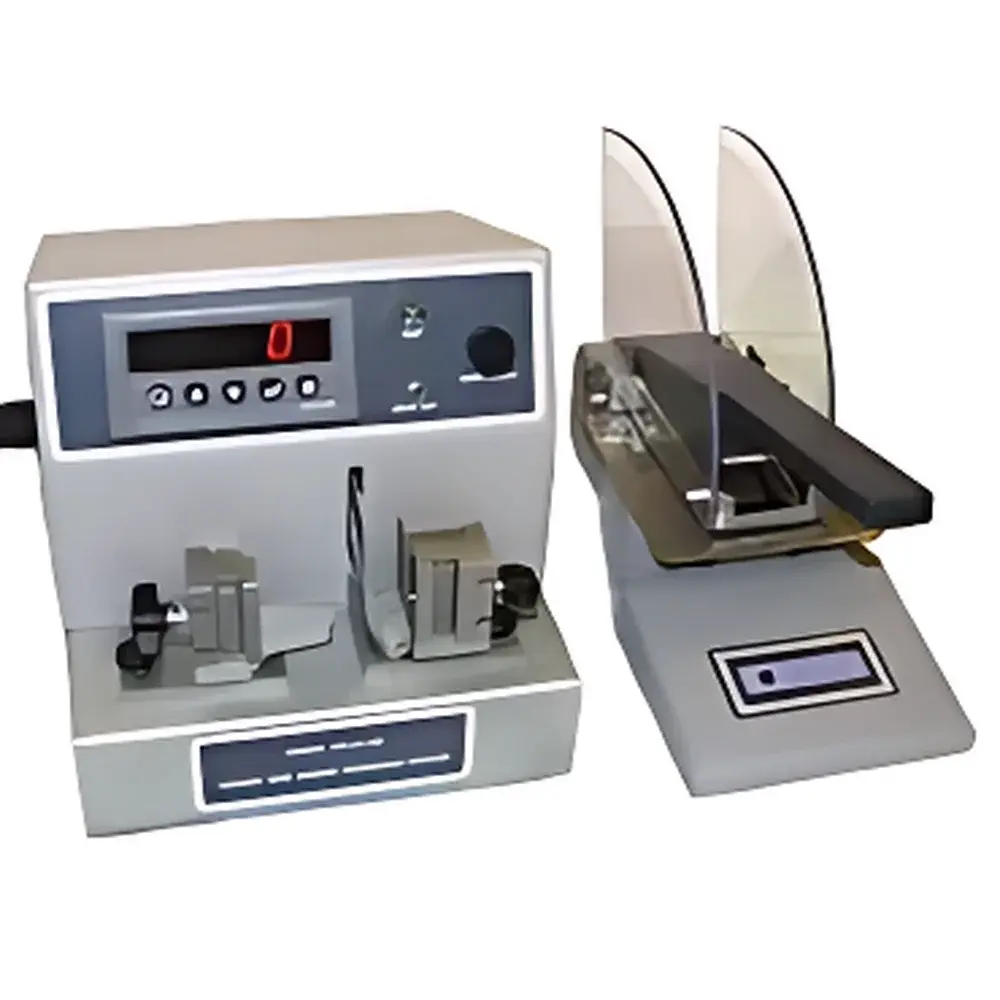

| Brand | TMI |
|---|---|
| Origin | USA |
| Model | 79-11-00 |
| Measurement Range | 0–399 gf |
| Display | 3-digit LCD |
| Creasing Angle | 90° |
| Stiffness Bend Angle | 15° |
| Readout Time | 15 s |
| Resolution & Accuracy | ±1.0 gf |
| Power Supply | 240 V, 50 Hz |
| Fuse | 500 mA |
| Dimensions (Instrument) | 235 mm (H) × 180 mm (L) × 320 mm (W) |
| Dimensions (Packed) | 670 mm (H) × 550 mm (L) × 520 mm (W) |
| Weight (Instrument) | 11 kg |
| Weight (Packed) | 14 kg |
| Includes | Precision cutting knife and calibration weights |
| Brand | IDM |
|---|---|
| Origin | Australia |
| Model | C0039 |
| Measurement Range | 0–1000 gf |
| Resolution | 0.5 gf |
| Crease Bending Angle | 90° |
| Board Stiffness Bending Angle | 15° |
| Sample Dimensions (Board Stiffness) | 70 × 38 mm |
| Sample Dimensions (Crease Stiffness) | 38 × 36 mm |
| Test Duration | 15 s |
| Calibration Weight | 200 g |
| Compliance Standards | BS 6965, BS 3748, ISO 2493:1992 |
| Data Interface | RS232 |
| Power Supply | 220/240 V @ 50 Hz or 110 V @ 60 Hz (configurable at order) |
| Dimensions (H×W×D) | 140 × 275 × 150 mm |
| Weight | 5 kg |

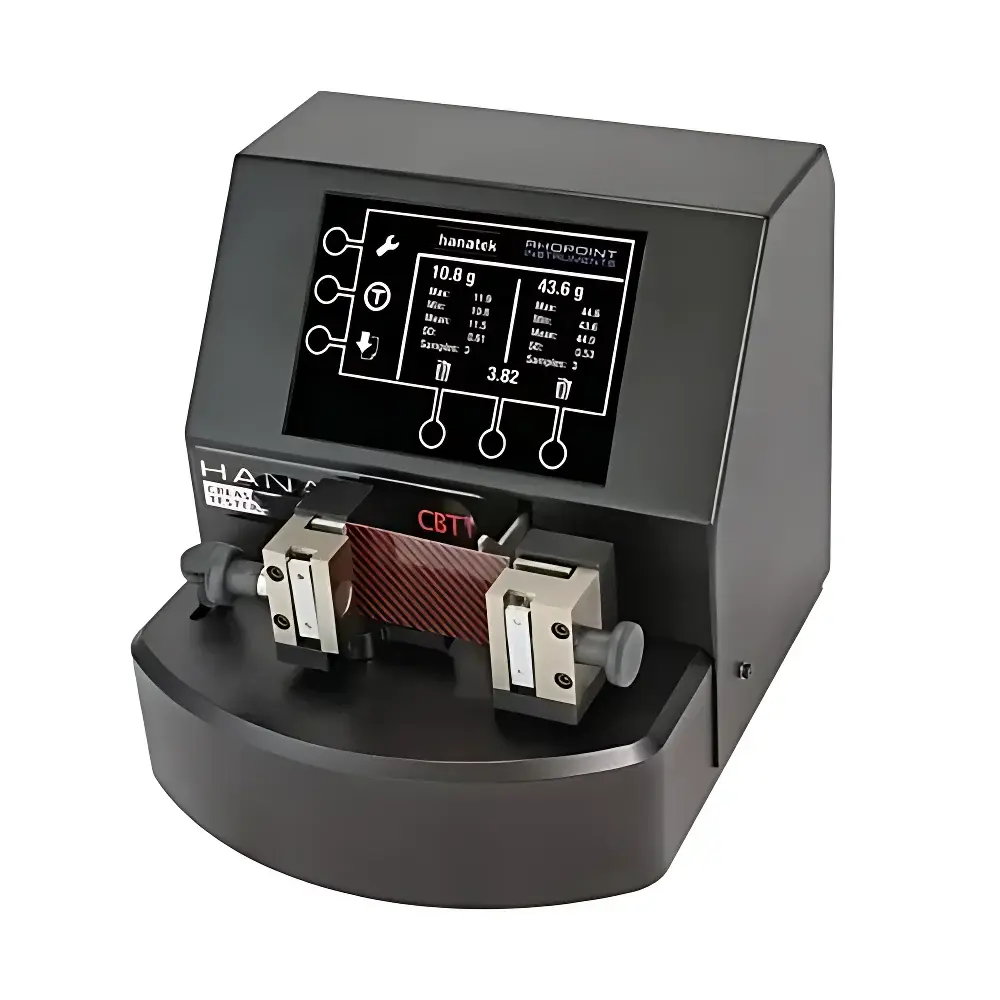

| Brand | Hanatek |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | CBT1 |
| Price | USD 13,500 (FOB UK) |
| Compliance Standards | BS 6965-1:1988, BS 3748, ISO 2493, TAPPI T556, DIN 53121, SCAN P29 |
| Resolution | 0.1 g |
| Accuracy | ±0.1 g |
| Measurement Range | 0–450 gf |
| Power Supply | 110/240 V AC, 50/60 Hz |
| Dimensions (H×W×D) | 230 × 175 × 250 mm |
| Net Weight | 7.6 kg |
| Packaging Weight | 10 kg |
| Sample Preparation Tools | BS 6965–compliant dedicated crease sample cutter, universal sample cutter, label printer with custom interface cable and preloaded firmware |

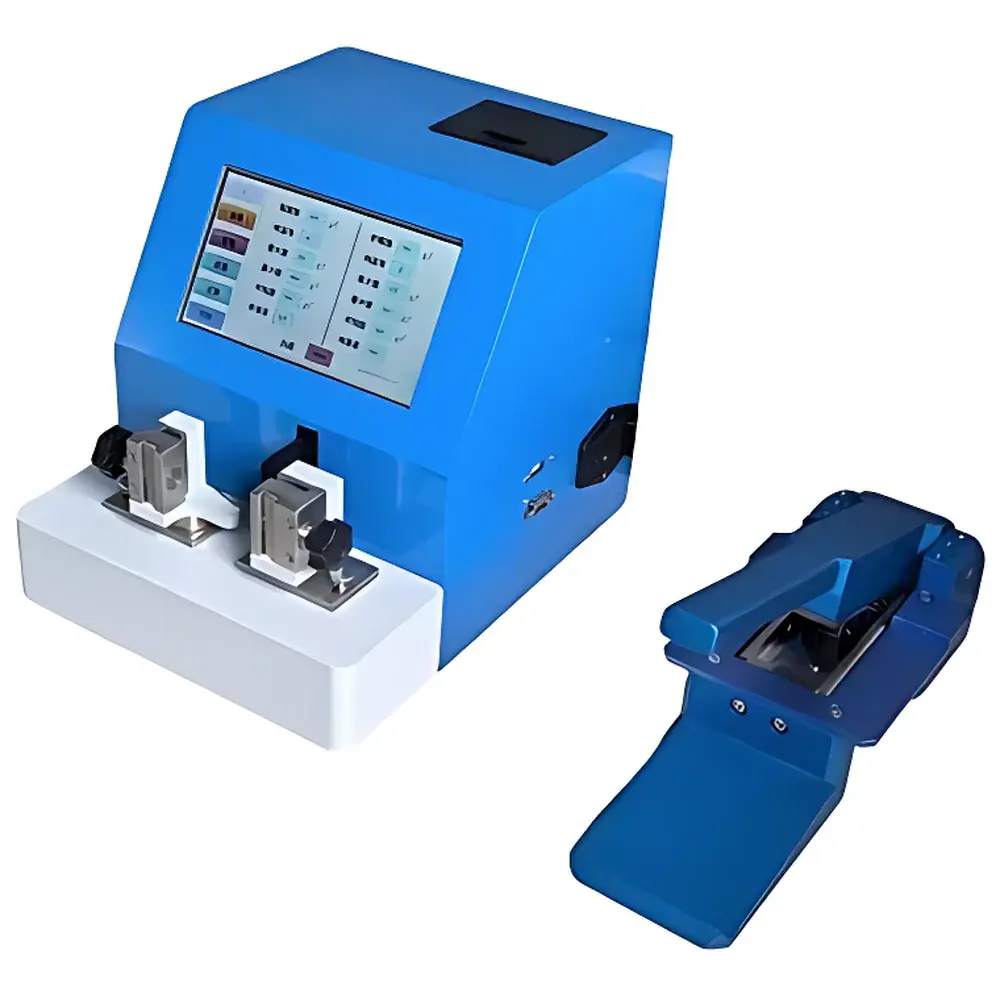

| Brand | Shang Zun |
|---|---|
| Origin | Guangdong, China |
| Model | CS-06 Series |
| Testing Range | 0–1200 gf |
| Crease Angle | 90° (rounded crease option available on CS-06R and CS-06M) |
| Board Stiffness Angle | 15° |
| Sample Dimensions (Crease) | 38 × 36 mm |
| Sample Dimensions (Board) | 70 × 38 mm |
| Resolution | 0.1 gf |
| Test Duration | Adjustable 0–15 s |
| Standard Mass | 200 g |
| Interface | USB + RS-232 |
| Power Supply | 100–240 V AC, 50 Hz |
| Compliance | ISO 5628, TAPPI T 823, GB/T 22895 |
