| Brand | Rocktek |
|---|---|
| Model | DIA / D-DIA |
| Type | Kawai-Style Multi-Anvil Apparatus |
| Maximum Load Capacity | 1000–2000 metric tons |
| Sample Pressure Range | >20 GPa |
| Sample Temperature Range | >2000 °C |
| Anvil Material | Tungsten Carbide (WC) |
| Stroke | 150 mm |
| Low-Pressure Drive | Hydraulic System |
| High-Pressure Fine Control | Servo-Motor-Driven with PLC Feedback Loop |
| Pressure Control Accuracy | ±0.5 bar |

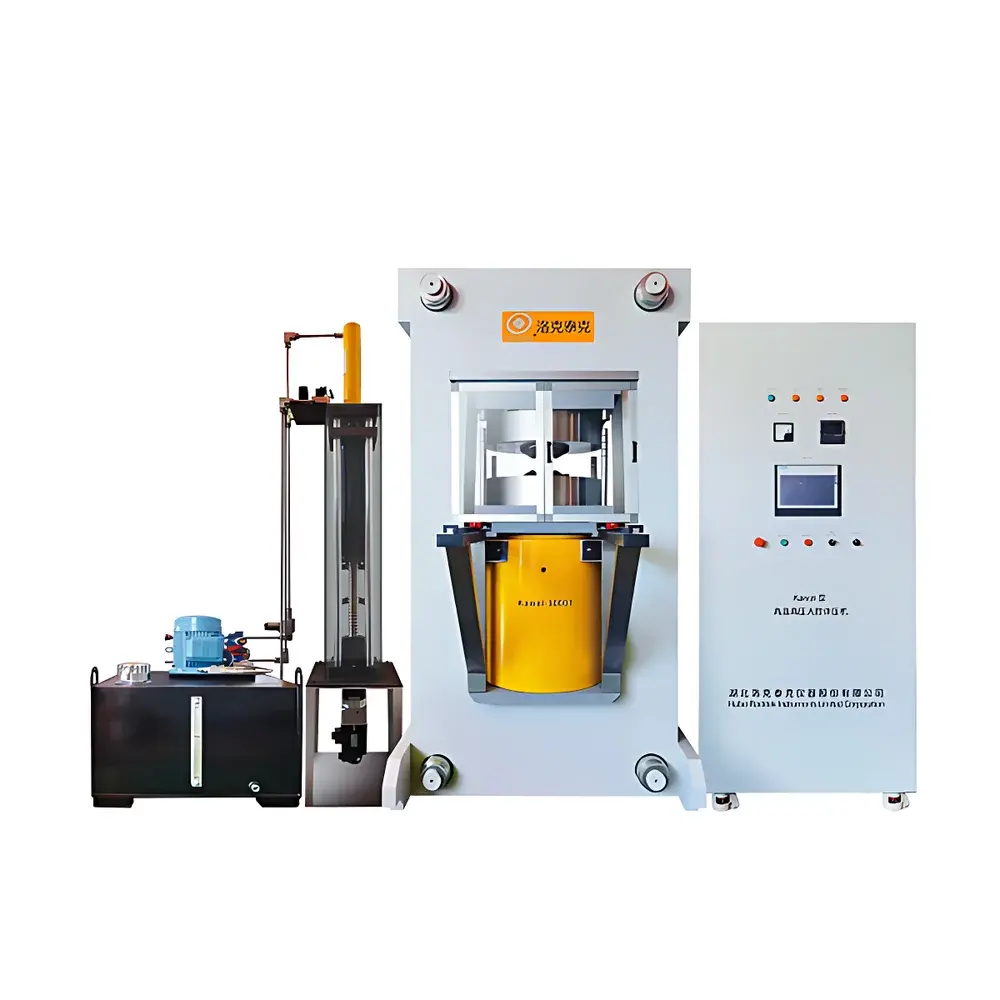

| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Model | RTK-Kawai Large-Volume Multi-Anvil Press |
| Maximum Load Capacity | 1000–2000 metric tons |
| Maximum Pressure | >20 GPa |
| Maximum Temperature | >2000 °C |
| Anvil Material | Tungsten Carbide (WC) |
| Stroke | 150 mm |
| Low-Pressure Drive | Hydraulic System |
| High-Pressure Regulation | Servo-Motor-Controlled Precision Actuation |
| Pressure Control Accuracy | ±0.5 bar |
| Control Architecture | PLC-Based Segmented Programmable Logic with Real-Time Digital Pressure Feedback |
| Communication Interface | Ethernet (TCP/IP) to Host PC |
| Compliance | Designed for ISO/IEC 17025-aligned laboratory environments |
| Brand | Rocktek |
|---|---|
| Origin | Wuhan, Hubei, China |
| Manufacturer | Hubei Rocktek Instrument Co., Ltd. |
| Configuration | Kawai-type 6–8 anvil assembly |
| Max. Load Capacity | 1000–2000 tons |
| Max. Sample Pressure | >20 GPa |
| Max. Sample Temperature | >2000 °C |
| Piston Stroke | 150 mm |
| Low-Pressure Drive | Hydraulic system |
| High-Pressure Regulation | Servo-motor-controlled with PLC |
| Pressure Control Accuracy | ±0.5 bar |
| Control Interface | Ethernet-enabled digital pressure sensor feedback loop |
| Compliance | Designed for GLP-compliant research environments |
| Software Integration | Real-time pressure/time profiling with event logging and remote monitoring capability |

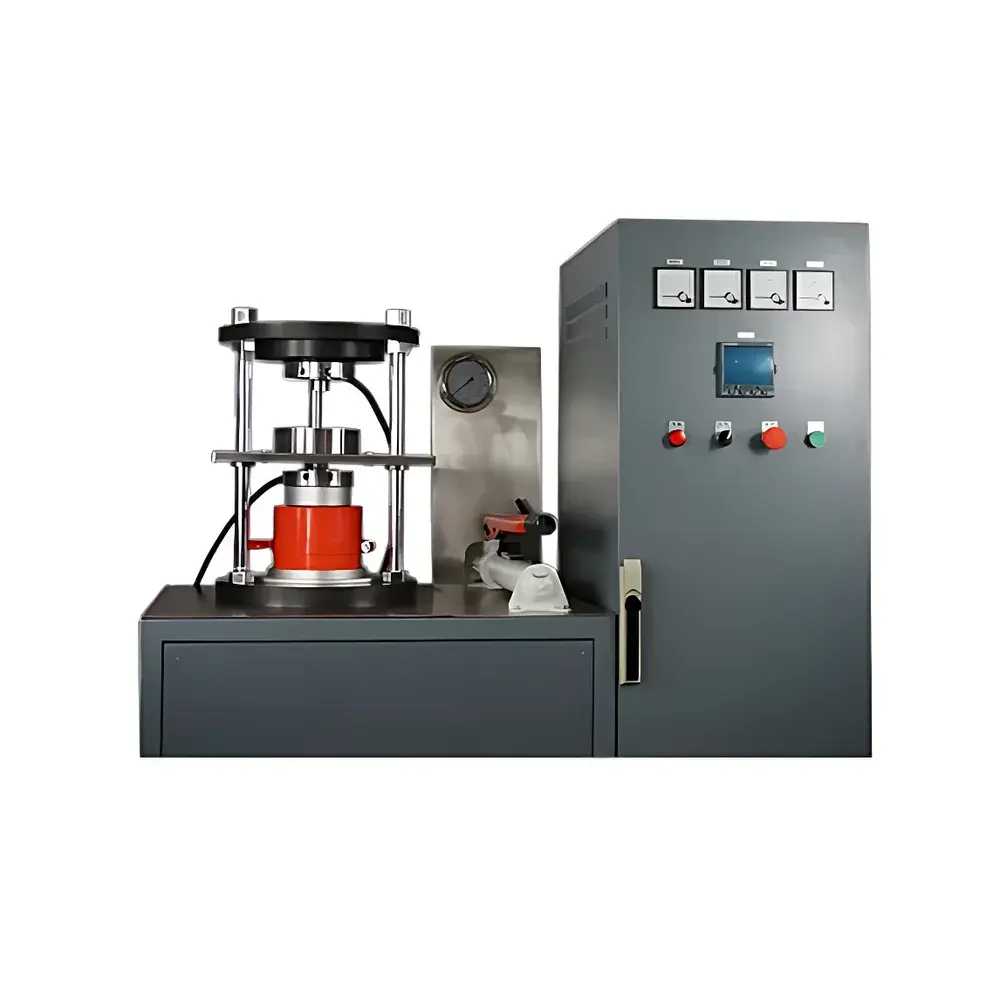

| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | RTK04 |
| Pricing | Upon Request |
| Pressure Range | 0–4 GPa |
| Temperature Range | 25–1800 °C |
| Sample Chamber Diameter Options | 10 mm / 13 mm / 19 mm |
| Continuous Operation Duration | Hours to Multiple Days |
