| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Model | RTK-PC-1 |
| Maximum Pressure | 4.0 GPa |
| Pressure Range | 0.3 MPa – 4.0 GPa |
| Sample Diameter | 3–7 mm |
| Temperature Range | Ambient – 1600 °C |
| Temperature Control Accuracy | ±1 °C |
| Pressure Control Accuracy (with auto-pressurization) | ±0.03 GPa |
| System Type | Static High-Pressure Piston-Cylinder |
| Frame Load Capacity | 100-ton hydraulic press |
| Vacuum Capability | Not applicable (GPa misassigned |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments |
| Software | RTK PC Control Suite (Windows-based, real-time pressure/temperature logging, audit trail enabled) |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Model | Rocktek-1 |
| Max Operating Temperature | 1800 °C |
| Max Static Pressure | 4 GPa |
| Heating Method | Resistive (Graphite or Ceramic Heating Elements) |
| Pressure Generation | Hydraulic or Mechanical Piston-Based Static Press System |
| Compliance | Designed for laboratory-scale static high-pressure synthesis per ASTM E2567 and ISO 13320 principles (application-specific calibration required) |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Model | RTK-PC-2 |
| Pressure Range | 0–4 GPa |
| Temperature Range | 25–1800 °C |
| Chamber Diameter Options | 10 / 13 / 19 mm |
| Automation | Fully Automated Pressure Ramp & Hold |
| Heating/Cooling Rate Control | Yes |
| Continuous Operation Duration | Hours to Days |
| Compliance | Designed for GLP-aligned laboratory workflows |
| Brand | Rocktek |
|---|---|

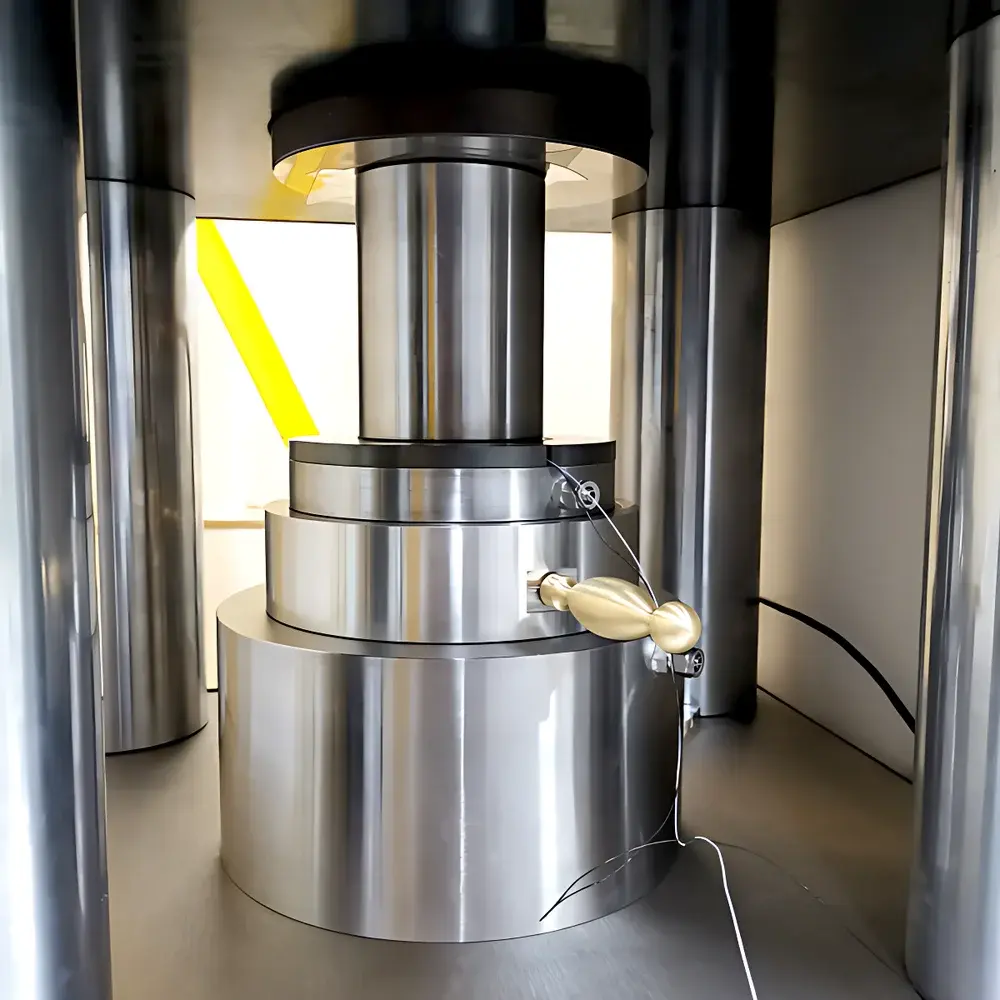

| Model | RTK-PC-II |
| Origin | Hubei, China |
| Maximum Pressure | 4.5 GPa |
| Pressure Control Accuracy | ±0.03 GPa |
| Temperature Range | Ambient to 1600 °C |
| Temperature Control Accuracy | ±1 °C |
| Sample Diameter | 3–7 mm |
| Drive System | Dual-piston hydraulic actuation via 250 T / 300 T press |
| Control Interface | RTK PC Software with real-time pressure & temperature monitoring |
| Safety Features | Overpressure protection, thermal overload cutoff, chiller interlock |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |

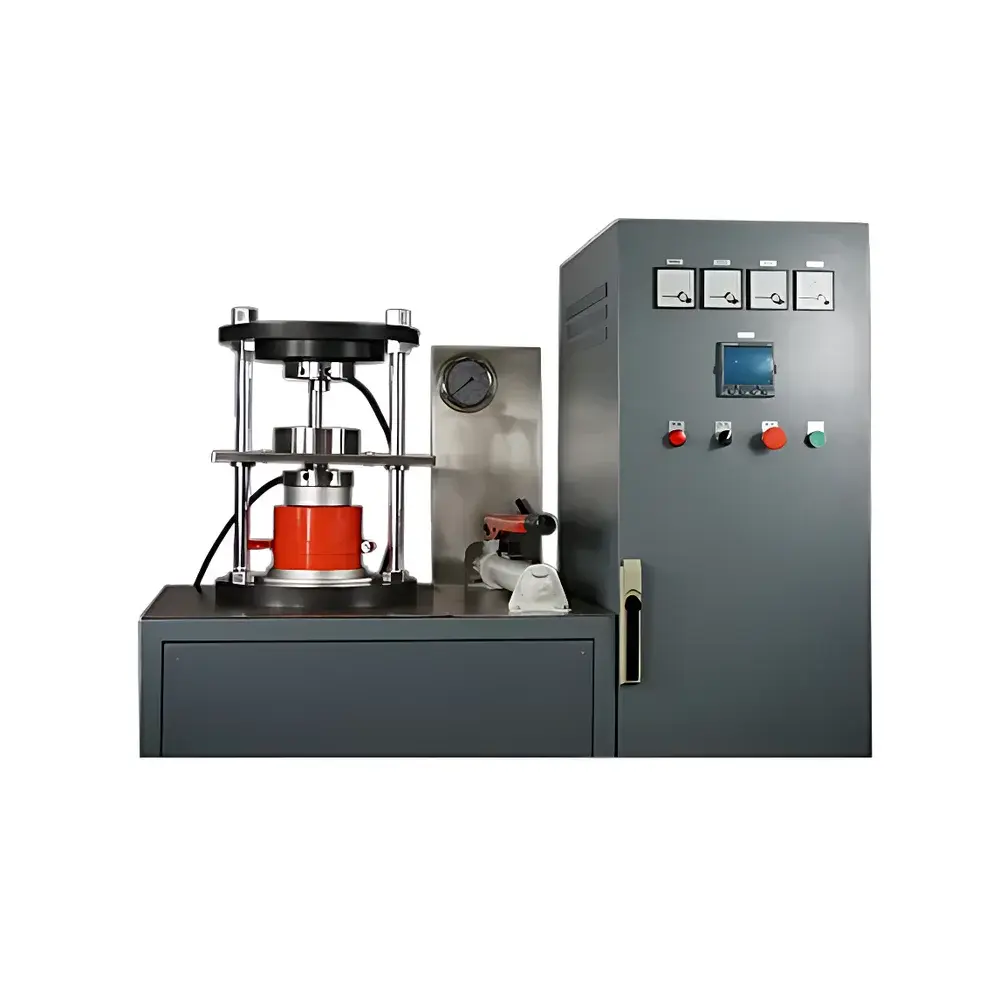

| Model | RTK Piston-Cylinder High-Pressure Apparatus (Automated) |
| Pressure Range | 0–4 GPa |
| Temperature Range | 25–1800 °C |
| Sample Chamber Diameter Options | 10 / 13 / 19 mm |
| Automation | Fully automated pressure ramping and isobaric hold |
| Thermal Ramp & Cool-down Rate | Programmable |
| Continuous Operation Duration | Hours to multi-day stable runs |
| Compliance | Designed for GLP-aligned research environments |
