| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | RTK Rapid Thermal Flash Sintering System |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Maximum Temperature | ≤1600 °C (1 h rating) |
| Operating Temperature Range | Up to 1550 °C |
| Temperature Uniformity Zone | 150 mm (within ±1 °C) |
| Heating Zone Length | 300 mm |
| Tube Dimensions | Alumina (99.7% Al₂O₃), Ø100 mm |
| Vacuum Performance | Ultimate Pressure ≤2×10⁻³ mbar, Pumping Speed 16.5 m³/h |
| Insulation | High-Purity Alumina Fiber Blanket |
| External Casing | Dual-Layer Water-Cooled Stainless Steel Shell (Surface Temp. <60 °C) |
| Viewing Port | Integrated Quartz Observation Window on Inlet Flange |
| Temperature Monitoring | Dual-Channel IR Pyrometer (Sample Surface) + Thermocouple (Furnace Ambient) |
| Power Supply Interface | Programmable DC Source (Voltage/Current Setpoint, Ramp Control) |
| Data Acquisition | 50 ms Sampling Interval, Real-Time V–t / I–t Plotting, Excel Export (CSV-compatible) |
| Control Architecture | PID + Programmable Ramp-Soak Profiles |
| Software Compliance | Audit Trail Ready, Timestamped Event Logging, Configurable Communication Protocols (RS485/Modbus TCP) |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

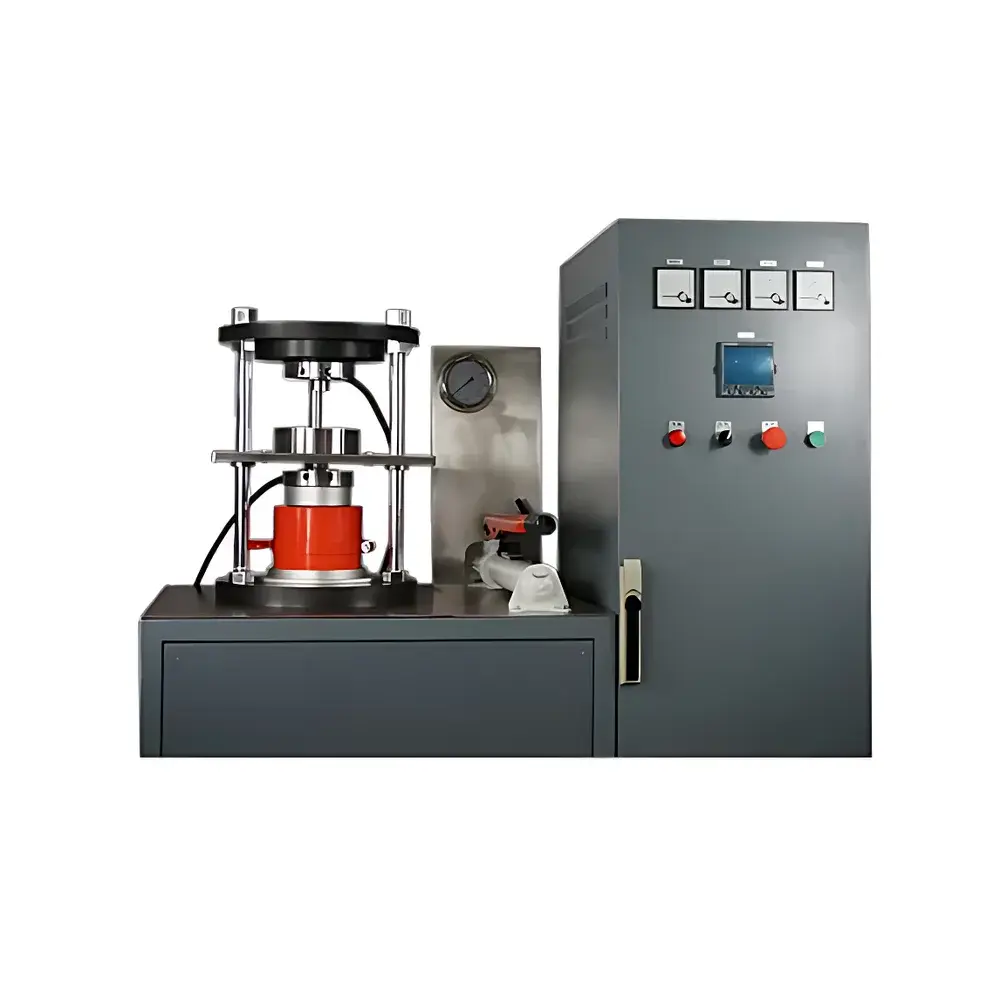

| Model | RTK1000 |
| Pressure Control Accuracy | ±10 PSI |
| Max Sample Pressure | >20 GPa |
| Max Sample Temperature | >2000 °C |
| Temperature Accuracy | ±1 °C |
| Control Architecture | PLC-Based Closed-Loop Servo System with Ethernet Communication |
| Programmable Segments | 9-Step Pressure-Time Profile |
| Drive Mechanism | Dual-Mode — Hydraulic (Low-Pressure Rapid Stroke) + Precision Servo Motor (High-Pressure Fine Regulation) |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |

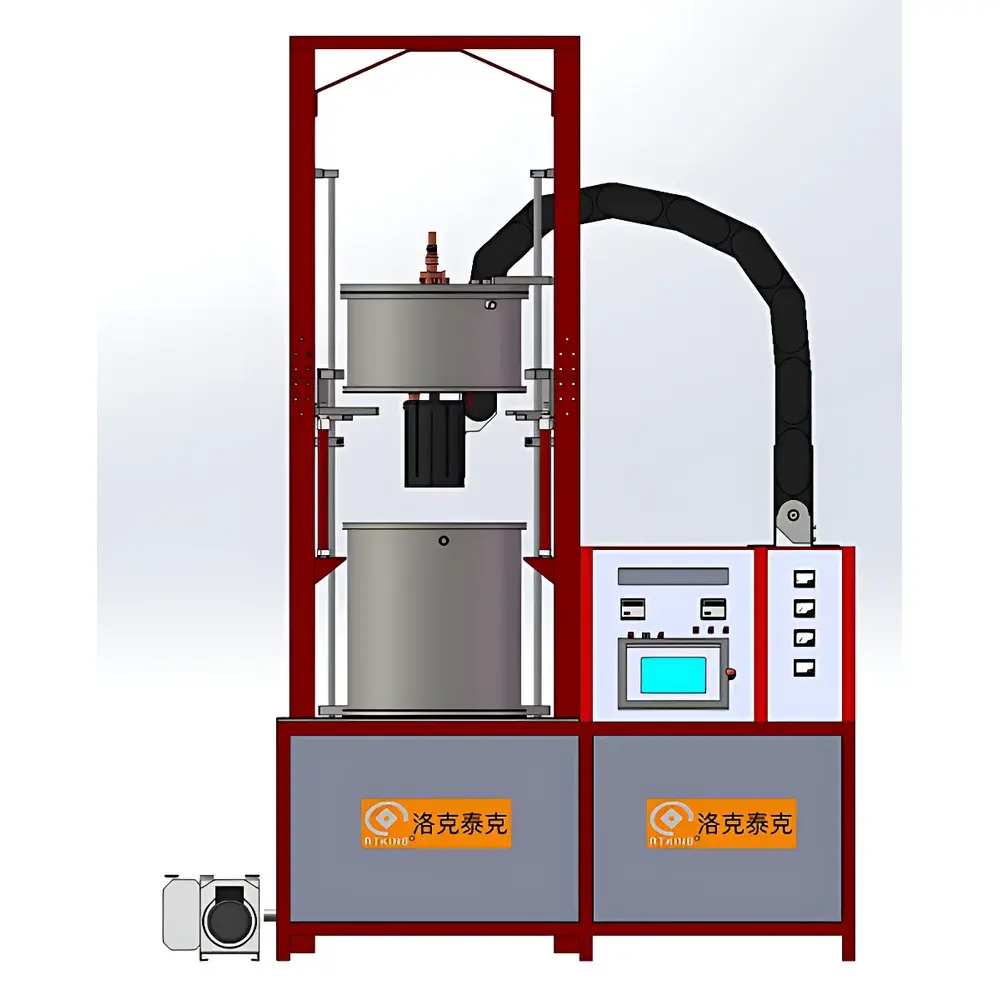

| Model | RTK-003 |
| Max Operating Temperature | 2000 °C (Rated: 2100 °C) |
| Temperature Control | Single-zone PID |
| Ramp Rate | 0–20 °C/min (adjustable) |
| Ultimate Vacuum | ≤30 Pa (achieved within ≤30 min) |
| Pressure Rise Rate | ≤0.65 Pa/h |
| Heating System | Cage-type graphite heater |
| Cooling Method | Forced recirculating water cooling (furnace shell, top/bottom flanges, copper electrodes, cables) |
| Control Architecture | Industrial PC + high-performance hybrid logic controller |
| Operation Modes | Fully automatic / local manual |
| Data Logging | Real-time acquisition of temperature, vacuum pressure, runtime |
| Compliance Support | GLP-compliant data integrity (audit trail, user access control, electronic signature readiness per FDA 21 CFR Part 11) |
| Brand | Rocktek |
|---|---|
| Model | Kawai-01 |
| Type | Walker-Type Multi-Anvil High-Pressure Apparatus |
| Maximum Pressure | >20 GPa |
| Maximum Temperature | >2000 °C |
| Press Capacity | 1000–2000 metric tons |
| Stroke | 50 mm |
| Pressure Control Accuracy | ±0.5 bar |
| Low-Pressure Drive | Hydraulic System |
| High-Pressure Fine Control | Servo Motor + PLC |
| Pressure Sensing | Digital Pressure Transducer |
| Communication Interface | Ethernet-based Industrial Protocol |
| Compliance | Designed for ISO/IEC 17025-aligned laboratory environments |
| Origin | Wuhan, Hubei, China |
| Manufacturer Role | Authorized Distributor |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | Cubic-01 |
| Pricing | Available Upon Request |
| Pressure Generation Principle | DIA-type Multi-Anvil Apparatus |
| Maximum Pressure | >20 GPa |
| Maximum Temperature | >2000 °C |
| Load Capacity Options | 1000 ton / 2000 ton |
| Low-Pressure Drive | Hydraulic System |
| High-Pressure Regulation | Servo-Motor-Controlled Precision Actuation |
| Pressure Control Accuracy | ±0.5 bar |
| Control Architecture | PLC-Based Segmented Programmable Logic with Real-Time Digital Pressure Feedback |
| Communication Interface | Ethernet (Modbus TCP / OPC UA compatible) |
| Operating Mode | Fully Automated Closed-Loop Pressure & Time Profiling |
| Brand | Rocktek |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | RTK-ZYJ01 |
| Pricing | Available Upon Request |
| Maximum Pressure (Piston-Cylinder) | 2.0 GPa |
| Maximum Pressure (Bridgman Anvil) | 5.0 GPa |
| Temperature Range (Piston-Cylinder) | Up to 1600 °C |
| Temperature Range (Bridgman Anvil) | Up to 1000 °C |
| Sample Dimensions (Piston-Cylinder) | Ø4 × 6 mm |
| Sample Dimensions (Bridgman Anvil) | Ø5 × 1.8 mm |
| Pressure Rise Time | ≤20 ms |
| Pressure Ramp Rate (Piston-Cylinder) | 1–2 GPa/20 ms |
| Pressure Ramp Rate (Bridgman Anvil) | 3–10 GPa/20 ms |
