| Brand | HORIBA |
|---|---|
| Origin | Japan |
| Model | XGT-7200WR |
| Detection Principle | Energy Dispersive X-Ray Fluorescence (ED-XRF) |
| Spot Size Range | 10 µm to 1.2 mm |
| Detector Type | Silicon Drift Detector (SDD), Liquid-Nitrogen-Free |
| Maximum Scan Area | 10 cm × 10 cm |
| Optical-Element Image Co-Registration | Yes |
| Elemental Mapping Resolution | ≤10 µm |
| Compliance | ASTM E1621, ISO 8256, IEC 62321-5 (RoHS), USP <232>/<233>, GLP/GMP-ready data audit trail |
| Brand | HORIBA |
|---|---|
| Origin | Japan |

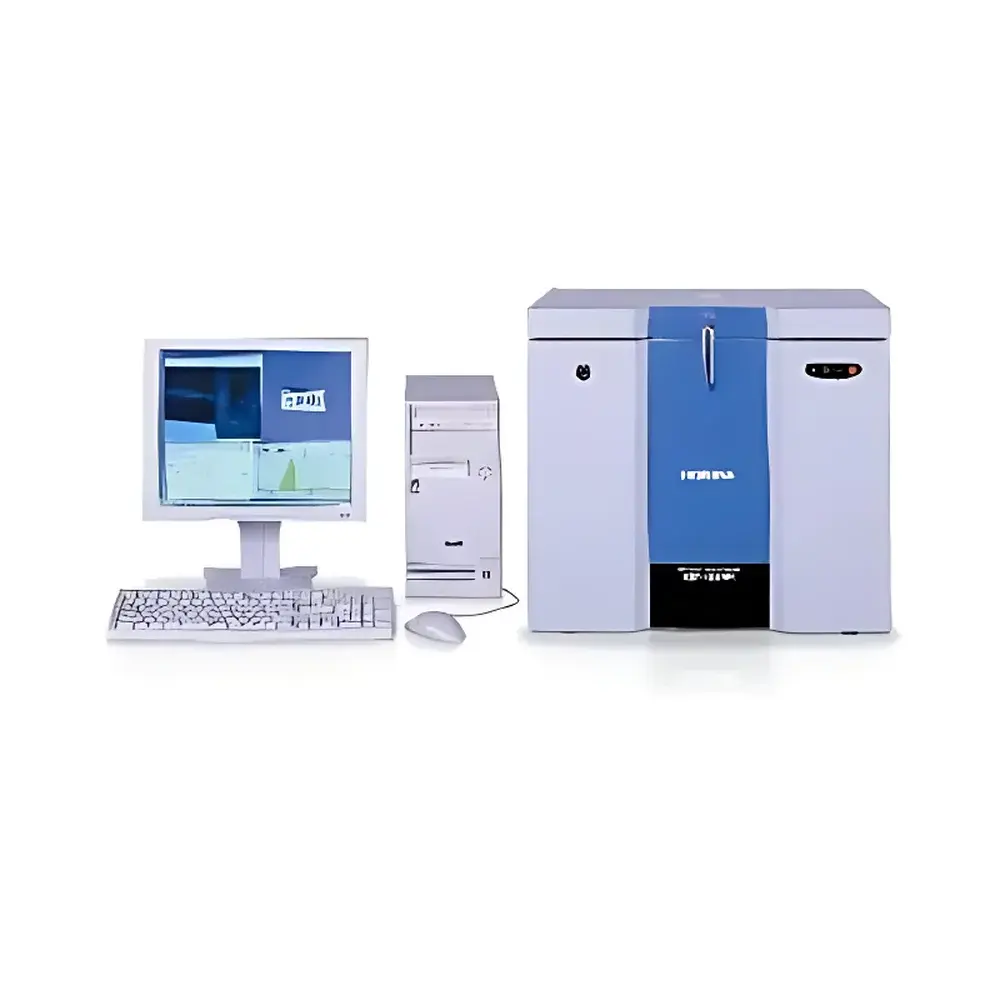

| Model | XGT-5200WR |
| Sample Environment | Air (Atmospheric) |
| Elemental Range | Na to U |
| Quantification Range | 1 ppm – 99.99% |
| Operating Conditions | 50 kV / 1 mA |
| Repeatability | ±0.1% RSD |
| Spot Size | Standard 400 µm, Optional 10 µm |
| Detector | Silicon Drift Detector (SDD), LN2-free |
| Geometry | Coaxial Optical Microscope Integration |
| Analysis Mode | Non-destructive, No Vacuum Required, No Sample Preparation |
| Brand | HORIBA |
|---|---|
| Origin | Japan |

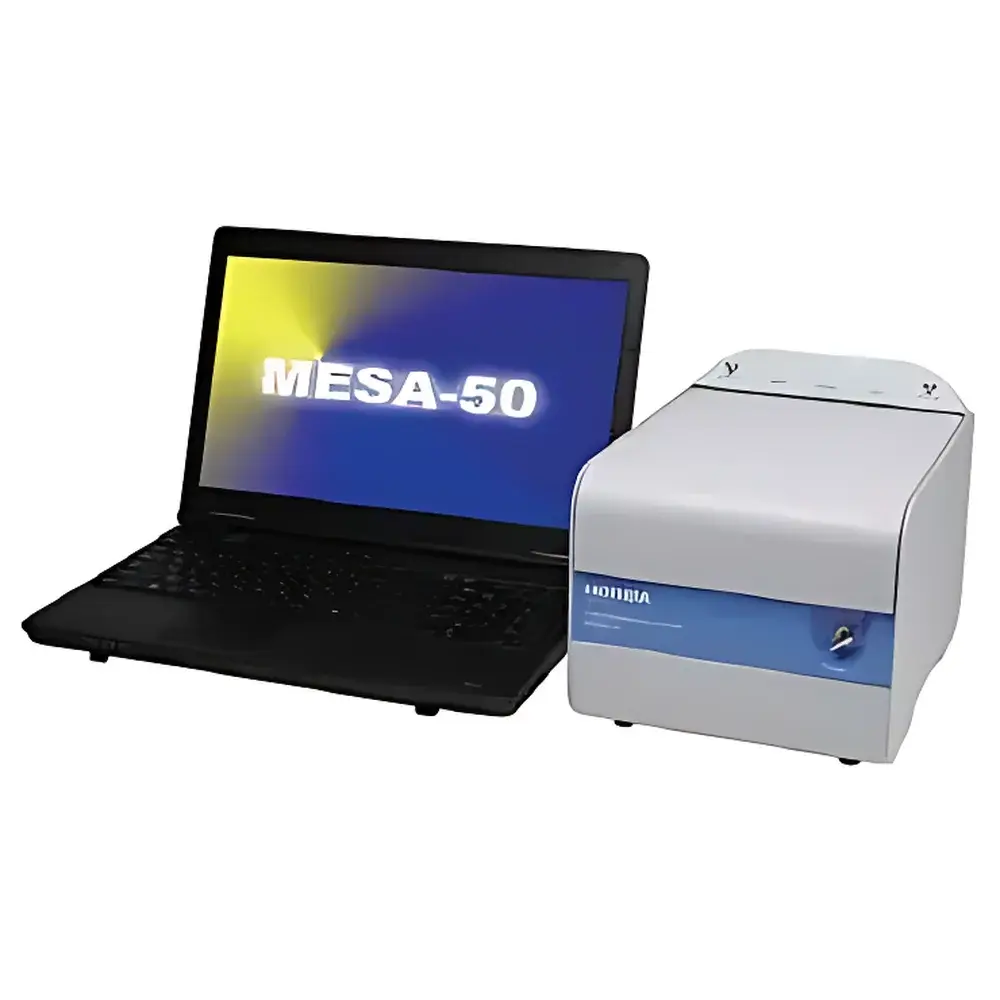

| Model | MESA-50 |
| Detector Type | Silicon Drift Detector (SDD) |
| Excitation Source | Micro-focus X-ray Tube |
| Analytical Spot Sizes | 0.1 mm, 0.3 mm, and 1.2 mm |
| Minimum Detection Limit (MDL) | ≤2 ppm for Pb, Cd, Hg, Cr, Br |
| Measurement Time | Typically 60–300 s per point |
| Sample Viewing | Integrated High-Resolution CCD Camera with 30× Optical Zoom |
| Operating Environment | Ambient air (no vacuum or helium required) |
| Software Interface | Multilingual (English/Chinese), Excel-compatible data export |
| Compliance Support | RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, ELV Directive 2000/53/EC, China RoHS II (SJ/T 11364-2014), JEITA EG0201, ASTM F2617-23 |
