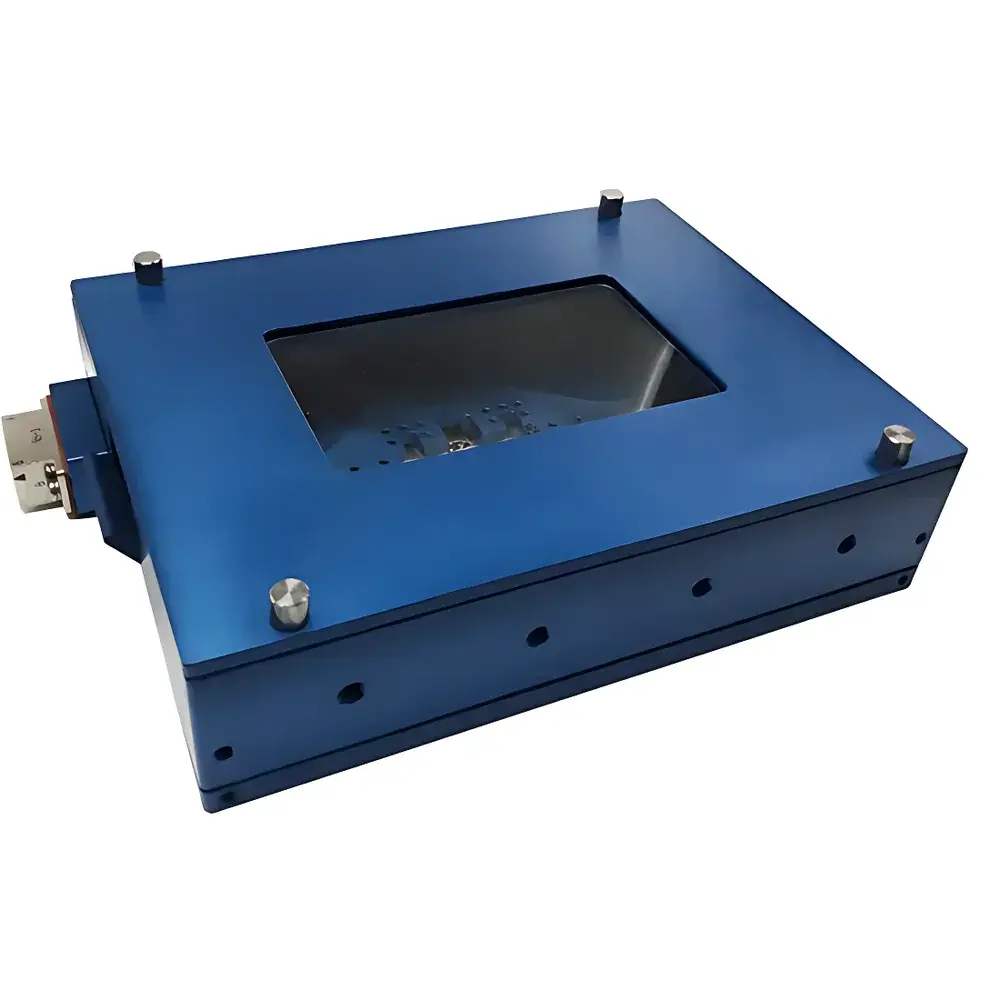

| Brand | Microblox |
|---|---|
| Model | ECO-M |
| Category | CO₂ Incubator for Microfluidic Platforms |
| Origin | Beijing, China |
| Temperature Range | Ambient to 50 °C (customizable up to 65 °C) |
| Humidity Range | 5–95% RH |
| Internal Dimensions | 152 × 110 × 32 mm (L × W × H) |
| Chip Compatibility | Standard microscope slides (75 × 25 × 2 mm), dual 45 × 15 × 2 mm formats, PDMS/glass/plastic chips |
| Heating Method | Transparent metal-oxide conductive glass (uniform thermal distribution) |
| Observation Windows | Bottom optical glass (0.7–1.0 mm thick, customizable), top quartz or heated glass |
| Fluidic Interface | 1/16″ stainless steel ferrule ports |
| Gas Interface | Push-to-connect fittings (CO₂/O₂/N₂ mixing capable) |
| Electrical Interface | Quick-lock IEC 60320 C14 input |
| Sensor Accuracy | ±0.1 °C (PT1000 RTD) |
| Optional CO₂ Control | 0–15% v/v, flow rate 0.6–1.0 L/min |
