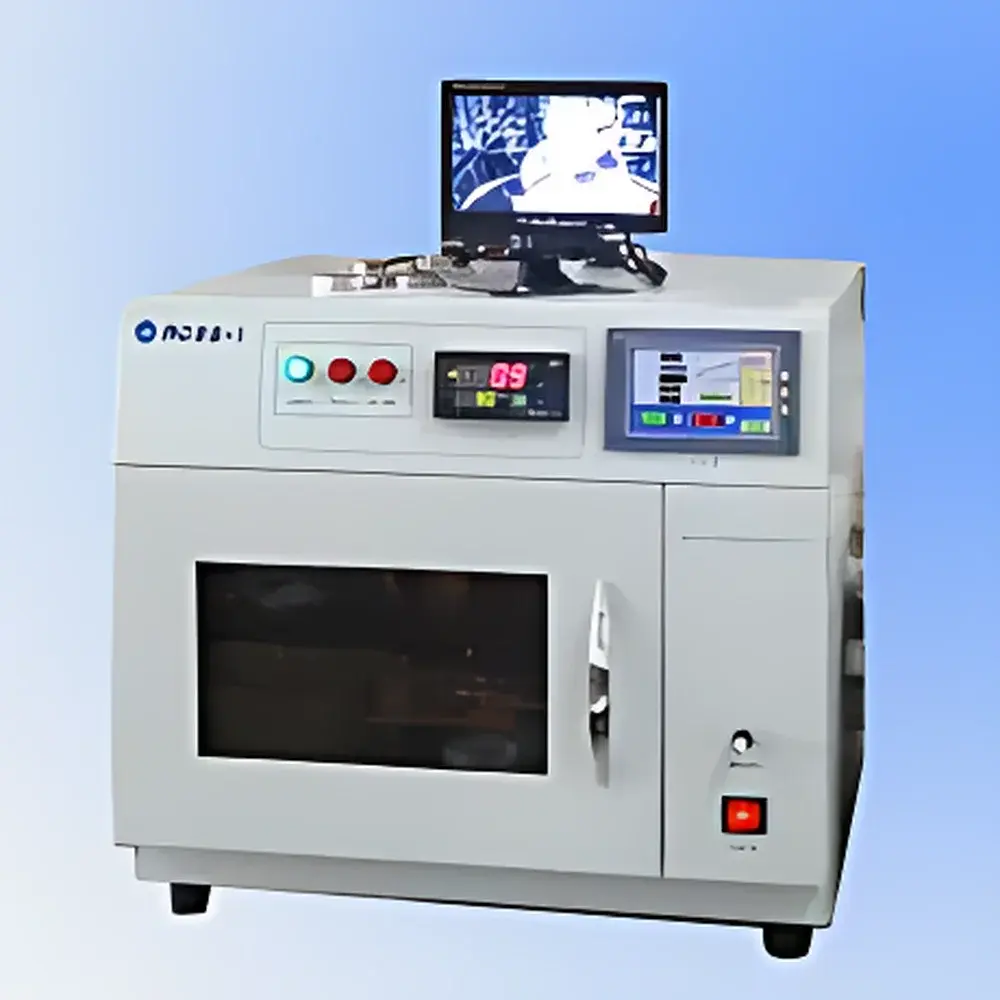

| Brand | Hyoyan |
|---|---|
| Origin | Jiangsu, China |
| Model | MC8S-1 |
| Microwave Power | 0–1000 W (continuous, linearly adjustable) |
| Microwave Frequency | 2450 MHz ±50 MHz |
| Ultrasonic Power | 50 W |
| Ultrasonic Frequency | 40 kHz |
| Temperature Range | 0–300 °C (±1 °C accuracy) |
| Reaction Volume | 10–500 mL |
| Cavity Material | Stainless steel |
| Safety Compliance | Microwave leakage < national safety limit (GB 10436 / IEC 61000-3-2) |
| Interface | Full-color TFT LCD touchscreen, RS-485 optional (Modbus RTU), video output (composite analog) |

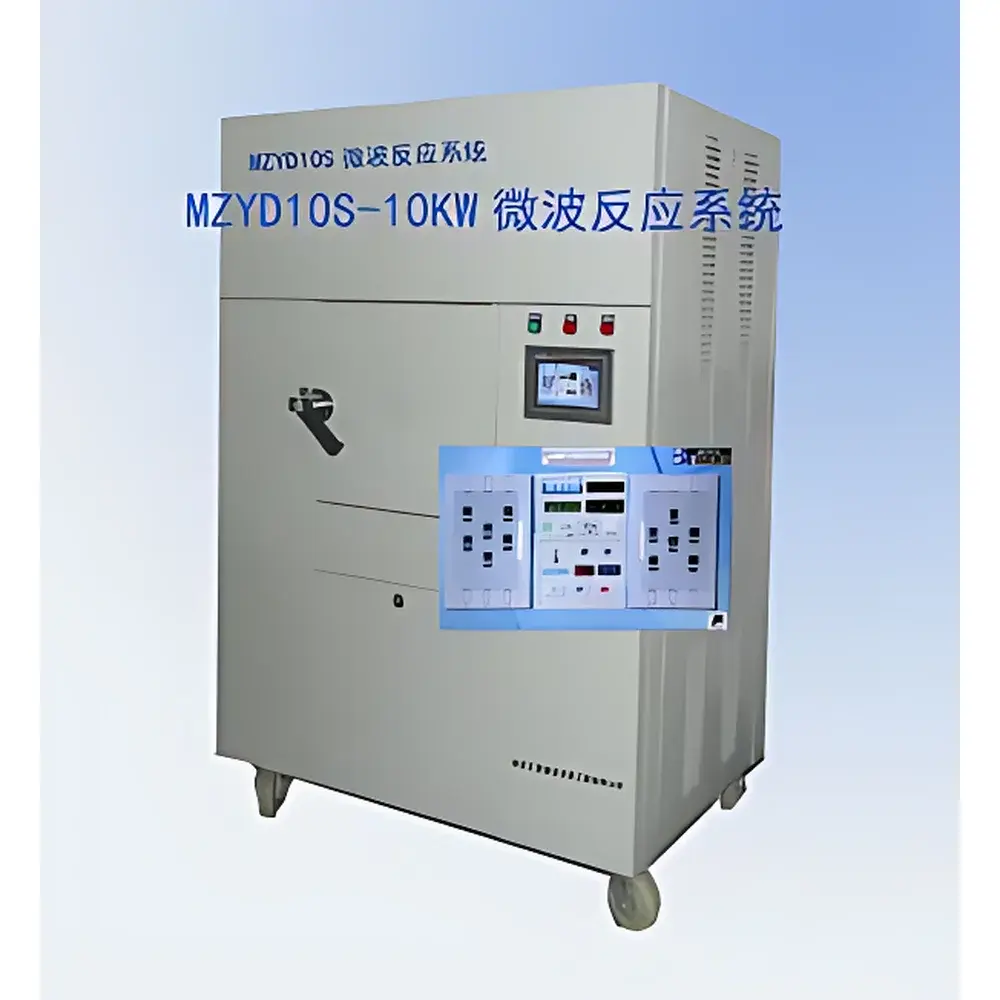

| Brand | Hyeyan |
|---|---|
| Model | MZYD10S |
| Output Power | 0–10 kW (adjustable in discrete steps) |
| Input Voltage | AC 380 V ±10% |
| Operating Frequency | 2450 MHz ±50 MHz |
| Apparent Input Power | ≤18 kVA |
| Cavity Dimensions (L×W×H) | 600 mm × 600 mm × 1000 mm |
| Control System | Industrial PLC with HMI touchscreen interface |
| Cooling | Forced-air cooling with magnetron temperature monitoring and fault alarm |
| Mobility | Integrated heavy-duty casters |
| Compliance | Designed for laboratory-scale process development and pilot-scale microwave-assisted synthesis, extraction, and thermal treatment applications |

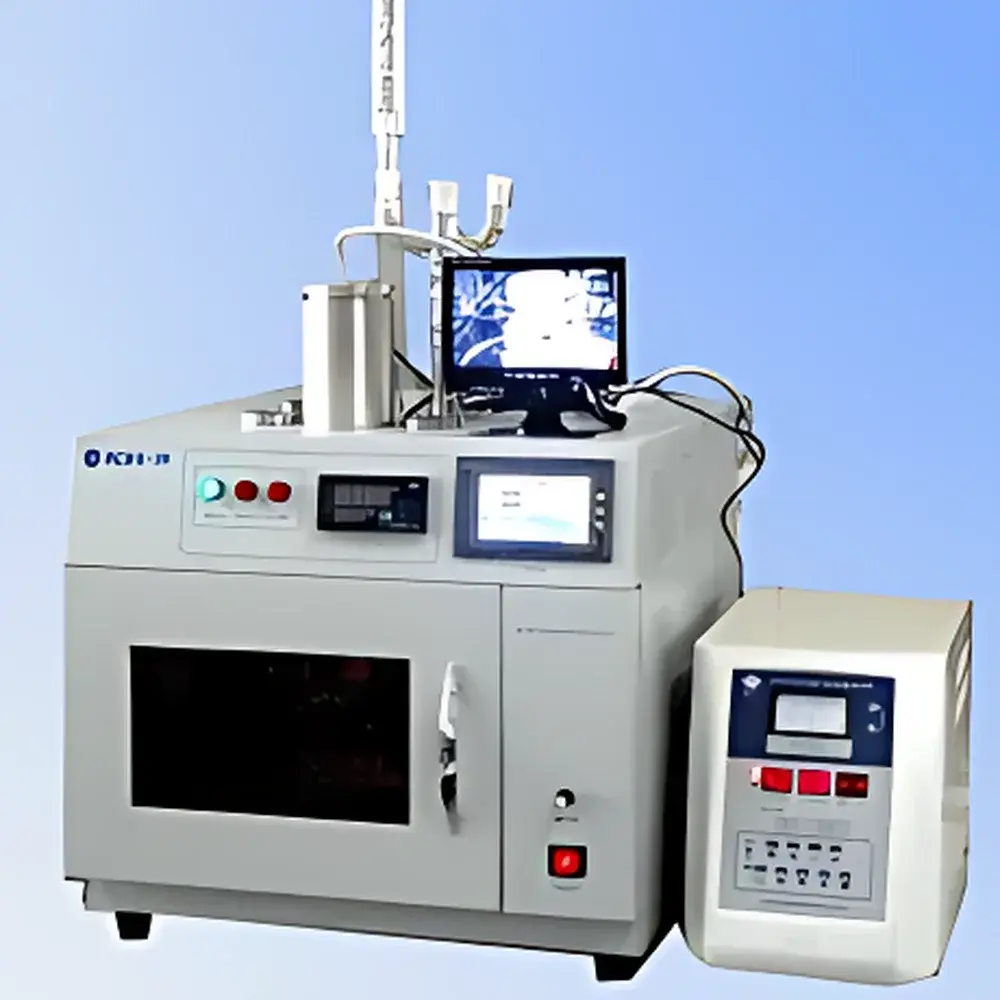

| Brand | Hywell |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MC8S-1A |
| Price Range | USD 1,400–7,200 (FOB) |
| Microwave Power | 0–1000 W (continuous, linearly adjustable) |
| Microwave Frequency | 2.45 GHz ± 0.05 GHz |
| Temperature Control Range | 0–300 °C |
| Temperature Control Accuracy | ±1 °C |
| Cavity Material | 304 Stainless Steel |
| Ultrasonic Power | 0–900 W (continuous, adjustable) |
| Ultrasonic Frequency | 25 kHz |
| Transducer Type | Immersion-type with Φ8 mm titanium alloy probe |
| Stirring | Built-in magnetic stirrer (speed continuously adjustable) |
| Reaction Volume Capacity | 10–1000 mL |
| Cavity Ports | Three microwave-suppressed top ports for condenser, gas inlet/outlet, coolant, or probe insertion |
| Safety Compliance | Meets GB 10436-2008 (Microwave Leakage ≤ 1 mW/cm² at 5 cm) |
