| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HY-JL26FA |
| Pricing | Available Upon Request |
| Brand | Huayan |
|---|---|
| Origin | Jiangsu, China |
| Model | MY1500S / MY800S |
| Output Power | 0–1500 W (MY1500S) / 0–800 W (MY800S), continuously adjustable |
| Frequency | 2450 MHz ±50 MHz |
| Waveguide Interface | Standard BJ-26 or BJ-22 |
| Input Voltage | 220 V AC, 50 Hz |
| Cooling | Forced-air or water-cooled (configurable) |
| Safety Compliance | Meets GB 4706.21 & GB 10683 (Chinese National Standards for Microwave Leakage ≤5 mW/cm² at 5 cm) |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | HY-JL22FA |
| Quotation | Upon Request |
| Cavity Material | Oxygen-Free Copper or 6061-T6 Aluminum |
| Waveguide Interface | Standard BJ-22 (WR-284, 72.14 mm × 34.04 mm) |
| Rated Power Handling | 3 kW CW (with 2 kW / 3 kW Magnetron Compatibility) |
| Operating Frequency Range | 2.45 GHz ± 15 MHz |
| Cooling | Forced Air or Water-Cooled Mounting Base (Optional) |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

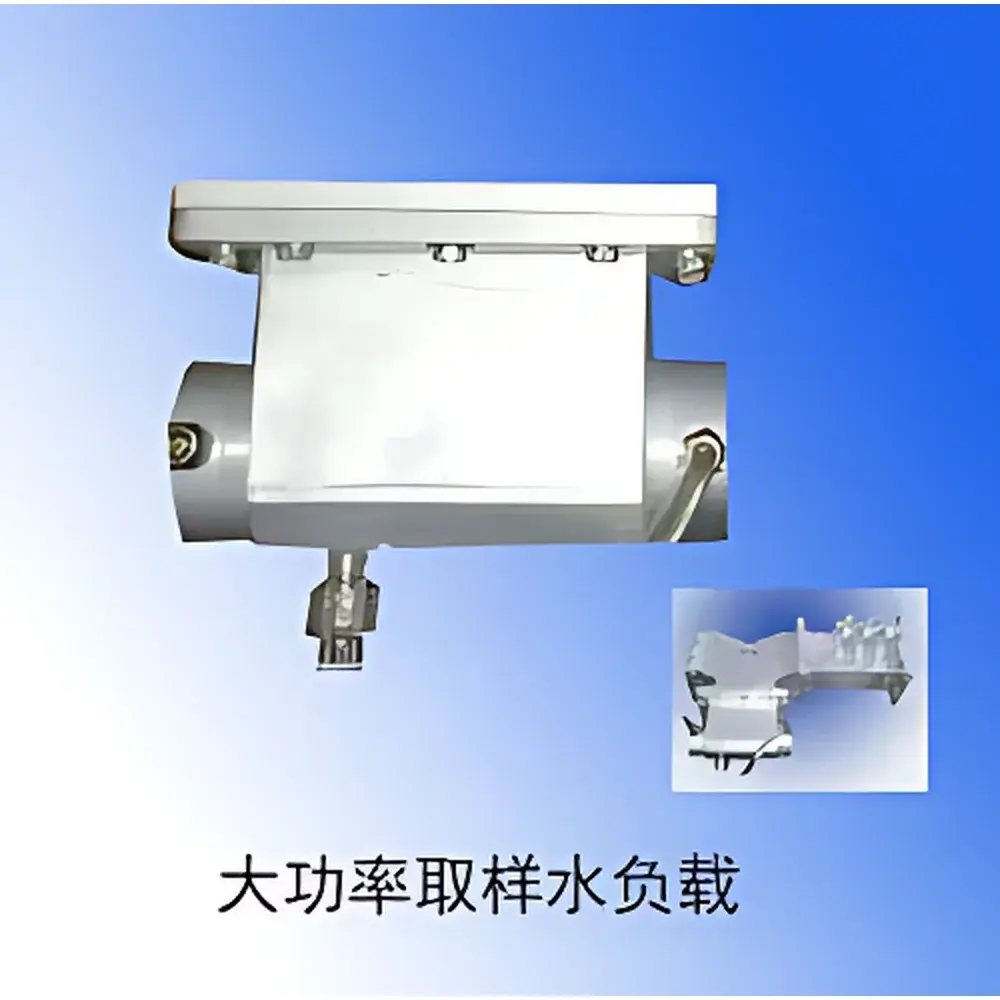

| Model | HY-W22FAQ |
| Quotation | Available Upon Request |
| Microwave Frequency | 2.45 GHz |
| Waveguide Interface | BJ-26 / BJ-22 |
| VSWR | ≤1.05 |
| Detection Port | N-Type / L16 |
| Brand | Hyeyan |
|---|---|
| Model | MY200S |
| Output Type | LY16 Coaxial or BJ26 Waveguide |
| Max. Output Power | 200 W (linearly adjustable) |
| Operating Frequency | 2450 ± 50 MHz |
| Input Voltage | AC 220 V ± 10%, 50 Hz |
| Input Apparent Power | < 500 VA |
| Anode Current | Continuously Adjustable with Overload Protection |
| Housing | Full Aluminum with Powder-Coated Finish |
| Safety | Multi-Level Interlock Protection, Overcurrent Protection, Real-Time Control Logic |
| Compliance | Designed for integration into CE-compliant microwave synthesis platforms per IEC 61000-6-3/6-4 and EN 61010-1 |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | YZ10 |
| Pricing | Available Upon Request |
| Frequency | 2450 MHz ±50 MHz |
|---|---|
| Power Output | 0–1500 W (non-pulsed continuous & adjustable pulsed modes) |
| Temperature Range | 0–300 °C, accuracy ±1 °C |
| Temperature Sensor | Pt100 contact probe with corrosion-resistant tip |
| Timing Control | 0–900 min, resolution 1 s |
| Reaction Volume | 10–1000 mL |
| Stirring | Dual-mode (magnetic & mechanical, speed continuously adjustable) |
| Safety | Microwave leakage < GB 10436-2008 limit |
| Control System | Industrial PLC + full-color Chinese touchscreen HMI |
| Safety Interlocks | Magnetron overtemperature protection, door interlock, cavity shielding |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | BJ26, BJ22 |
| Price | Upon Request |
| Waveguide Standard | BJ26, BJ22 |
| Operating Frequency | 2.45 GHz |
| Coupling Factor | 50 ± 2 dB |
| Directivity | >20 dB |
| Coupled Port Interface | L16 coaxial connector |
| Coupled Line Specification | 7/3 coaxial cable |
| Housing Material | Copper and Aluminum |
| Brand | HY-Research |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HY-JL22FB |
| Pricing | Upon Request |
| Waveguide Interface | BJ-22 Flange |
| Flange Material | FDP22 (Copper Alloy, Nickel-Plated) |
| Rated Power Handling | 2 kW (Compatible with 2–3 kW Magnetrons) |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Model | BJ26-BJ22 |
| Pricing | Available Upon Request |
| Microwave Frequency | 2.45 GHz |
| Waveguide Interfaces | BJ26, BJ22 |
| Coaxial Connectors | L16, L29, N-Type |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Model | BJ26, BJ22 |
| Pricing | Upon Request |
| Microwave Frequency | 2.45 GHz |
| Waveguide Interface | WR-284 (BJ-26), WR-340 (BJ-22) |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Material | Oxygen-Free Copper or Copper Alloy, Fully Silver-Plated Critical Components |
| Brand | Hyeyan |
|---|---|
| Model | ZDM-1000 |
| Microwave Power | 0–1000 W (continuously adjustable, linear control) |
| Frequency | 2450 MHz ± 50 MHz |
| Input Power | 220 V, 50 Hz |
| Temperature Monitoring Range | 0–500 °C |
| Temp. Control Accuracy | ±1 °C |
| Waveguide Interface | Standard WR-340 (or equivalent) |
| Safety Compliance | Meets GB 10436–2008 (China National Standard for Microwave Leakage Limits) |
| Control Interface | Industrial-grade color touchscreen HMI (Chinese-language UI) |
| Cooling | Forced-air magnetron cooling with thermal interlock |
| Protection Features | Circulator-based isolation, full-reflection tolerance, IR-based real-time temperature feedback, multi-level hardware safety interlocks |
| Brand | Hyoyan |
|---|---|
| Origin | Jiangsu, China |
| Model | MC8S-1 |
| Microwave Power | 0–1000 W (continuous, linearly adjustable) |
| Microwave Frequency | 2450 MHz ±50 MHz |
| Ultrasonic Power | 50 W |
| Ultrasonic Frequency | 40 kHz |
| Temperature Range | 0–300 °C (±1 °C accuracy) |
| Reaction Volume | 10–500 mL |
| Cavity Material | Stainless steel |
| Safety Compliance | Microwave leakage < national safety limit (GB 10436 / IEC 61000-3-2) |
| Interface | Full-color TFT LCD touchscreen, RS-485 optional (Modbus RTU), video output (composite analog) |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HY-JL9FA |
| Price | Upon Request |
| Waveguide Standard | BJ-9 |
| Operating Frequency | 915 MHz |
| Construction Material | Anodized Aluminum Alloy |
| Compatible Magnetron Power Range | 5 kW – 20 kW |
| Compatible Magnetron Models | CK611, CK147, and other standard industrial 915 MHz magnetrons |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JL95A |
| Pricing | Upon Request |
| Brand | Huayan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Model | Custom-Engineered |
| Pricing | Available Upon Request |
| Waveguide Standards | BJ26/WR340, BJ22/WR430, BJ32/WR284, BJ9/WR975 |
| Flange Standards | FDP26, FDP22 (×2), FDP9 |
| Construction Materials | Anodized Aluminum or Oxygen-Free Copper |
| Operating Frequencies | 915 MHz and 2450 MHz |
| Power Handling Capacity | 900 W – 20 kW (continuous wave, CW) |
| Magnetron Compatibility | Universal fit for industrial and scientific magnetrons per IEC 60705 and MIL-STD-461E RF interface specifications |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |

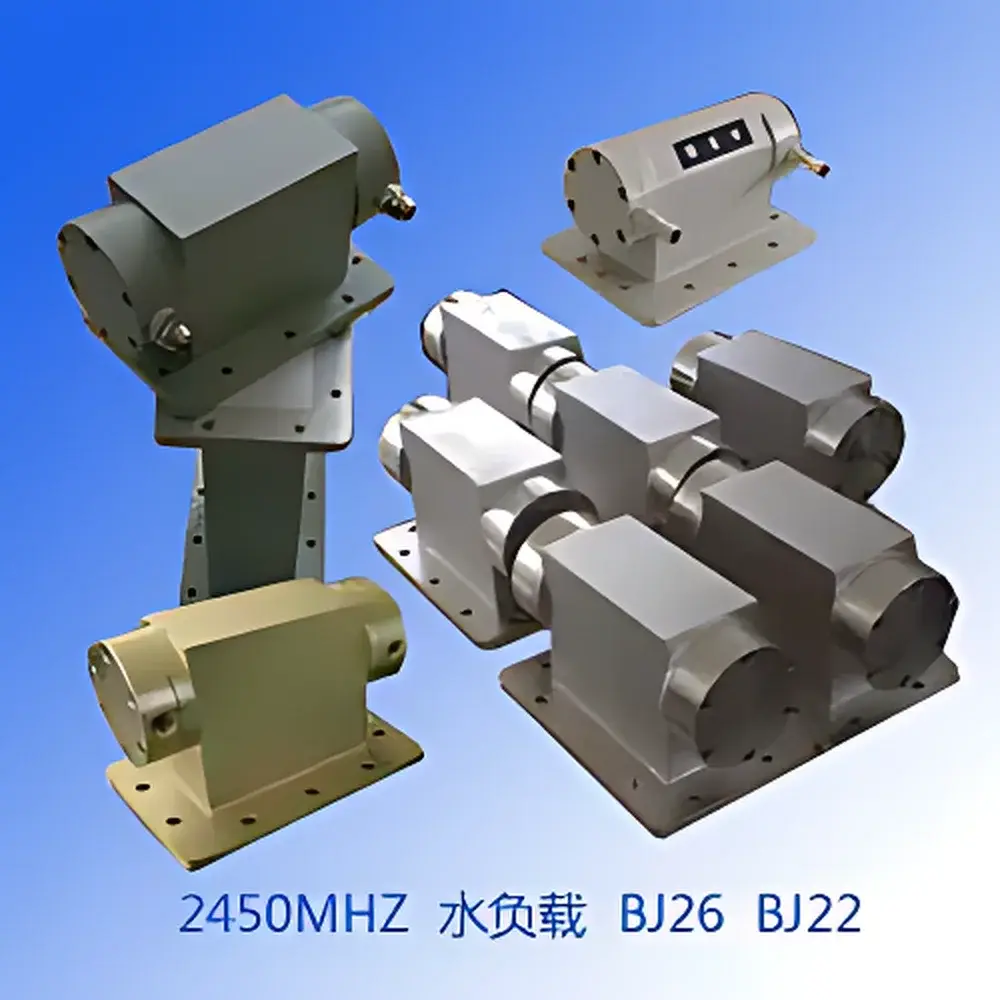

| Model | HY-W26FA / HY-W22FA |
| Quotation | Available Upon Request |
| Microwave Frequency | 2450 MHz ± 25 MHz |
| Rated Power Handling | 1 kW / 3 kW / 5 kW / 10 kW |
| Waveguide Interface | BJ-26 (WR-340) / BJ-22 (WR-430) |
| VSWR | ≤ 1.10 |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |

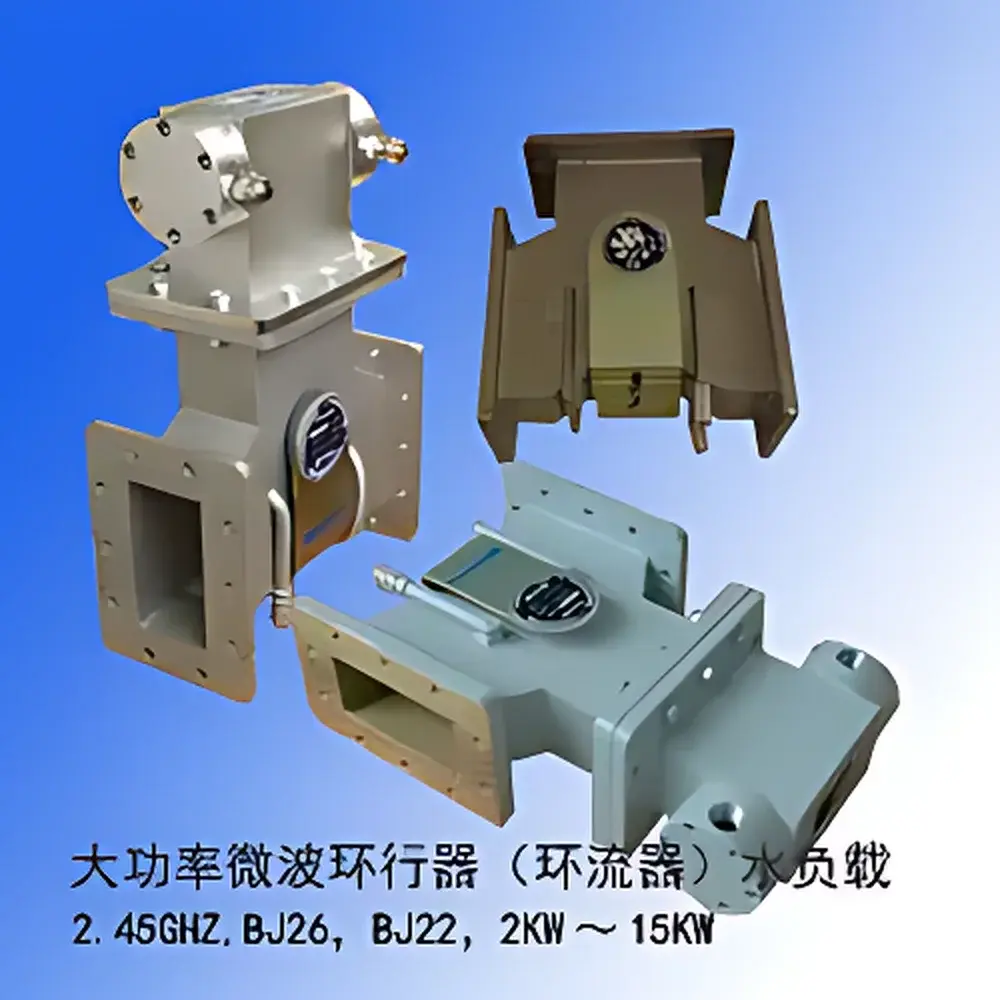

| Model | HY-C22FA / HY-C26FB |
| Frequency | 2.45 GHz |
| Waveguide Interface | BJ-22 (WR-430) / BJ-26 (WR-340) |
| Isolation | >20 dB |
| Insertion Loss (Forward) | ≤0.3 dB |
| VSWR | <1.2:1 |
| Power Handling | 2 kW – 15 kW |
| Cooling | Forced Water Cooling |
| Load Type | Integrated Water Load |
| Compliance | IEC 61000-4, MIL-STD-461E (EMI), RoHS |
| Brand | Huayan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | BJ26 |
| Pricing | Upon Request |
| Microwave Frequency | 2450 ± 50 MHz |
| Interface Standard | WR-284 (BJ-26) |
| Maximum Withstand Voltage | 50 kV DC / Peak AC |
| Operating Mode | TE₁₀ |
| Impedance | ~500 Ω (characteristic wave impedance for rectangular waveguide) |
| Brand | HyYan |
|---|---|
| Origin | Jiangsu, China |

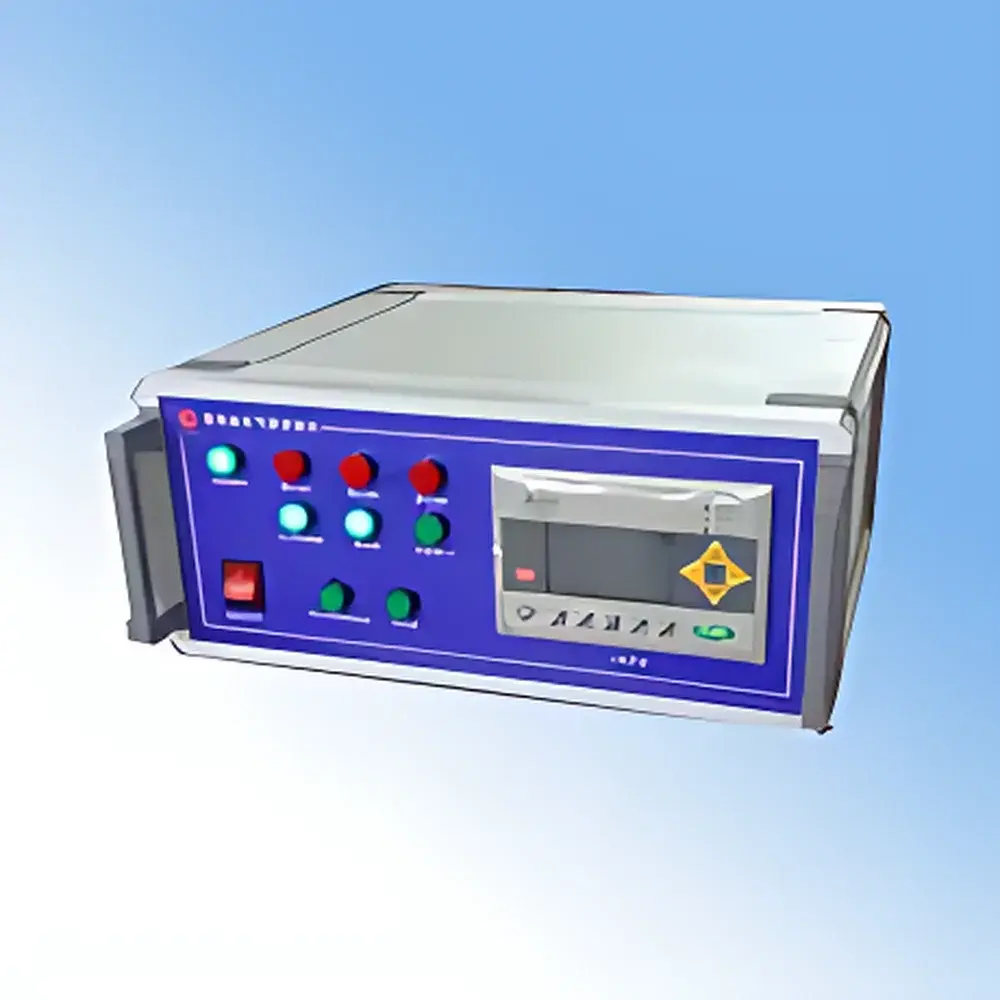

| Model | QLY-1000 |
| Control Architecture | Industrial-grade microcomputer with embedded real-time logic |
| Display Interface | Full Chinese text LCD (240×128) |
| Valve Output | AC 220 V, 50 Hz |
| Pressure Sensing Input | 0–5 V analog (corresponding to 0–1000 Torr) |
| Pressure Setpoint Output | 0–5 V DAC |
| Solenoid Valve Timing Resolution | 0.1 s |
| Solenoid Valve 1 Mode | Normally open / programmable toggle (1–120 s) |
| Solenoid Valves 2 & 3 | Synchronized operation, independent on/off timing (on: 0.5–30 s |
| off | 1–50 s) |
| Shut-off Valves 1–3 | Individually programmable (Valve 1: NO + 1–120 s toggle |
| Valves 2 & 3 | on 1–50 s / off 1–60 s) |
| Auxiliary Power Output | DC ±15 V (200 mA) |
| Enclosure | Aluminum alloy, powder-coated |
| Compliance | CE-marked industrial control unit (EN 61000-6-2/6-4), RoHS-compliant |
| Brand | HY |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | Custom-Engineered |
| Pricing | Available Upon Technical Consultation |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

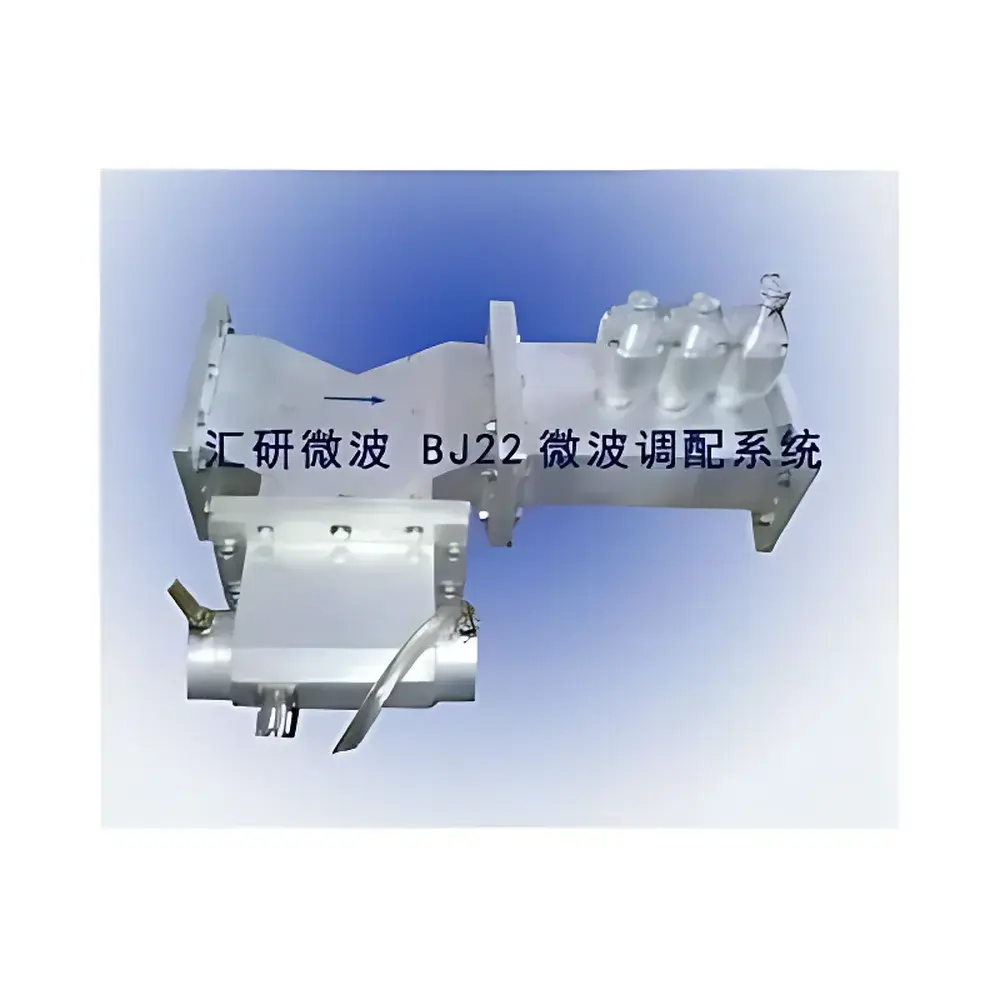

| Model | BJ22 |
| Pricing | Upon Request |
| Microwave Frequency | 2450 MHz |
| Waveguide Interface | BJ22 |
| Brand | Huiyan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | BJ26-BJ32 |
| Pricing | Upon Request |
