| Brand | Huayan |
|---|---|
| Origin | Jiangsu, China |

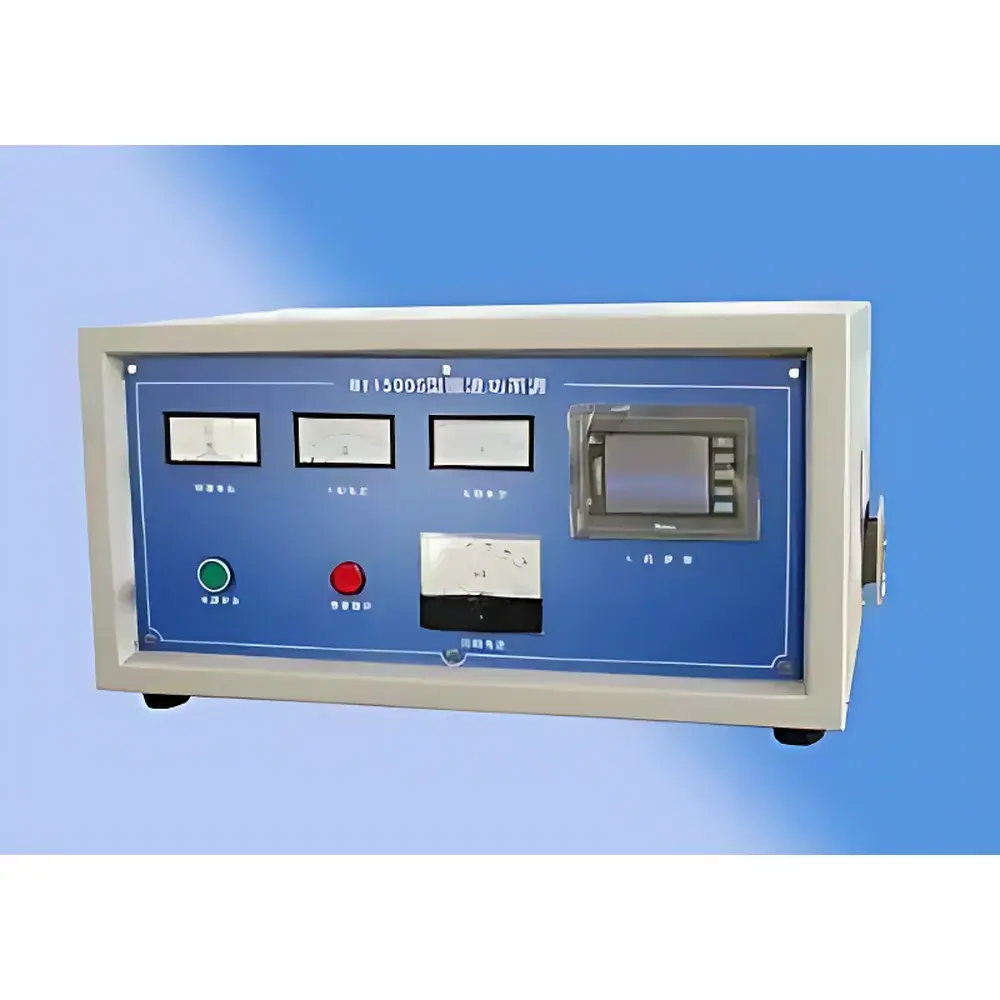

| Model | MY1500S / MY800S |
| Output Power | 0–1500 W (MY1500S) / 0–800 W (MY800S), continuously adjustable |
| Frequency | 2450 MHz ±50 MHz |
| Waveguide Interface | Standard BJ-26 or BJ-22 |
| Input Voltage | 220 V AC, 50 Hz |
| Cooling | Forced-air or water-cooled (configurable) |
| Safety Compliance | Meets GB 4706.21 & GB 10683 (Chinese National Standards for Microwave Leakage ≤5 mW/cm² at 5 cm) |
| Brand | Hyeyan |
|---|---|

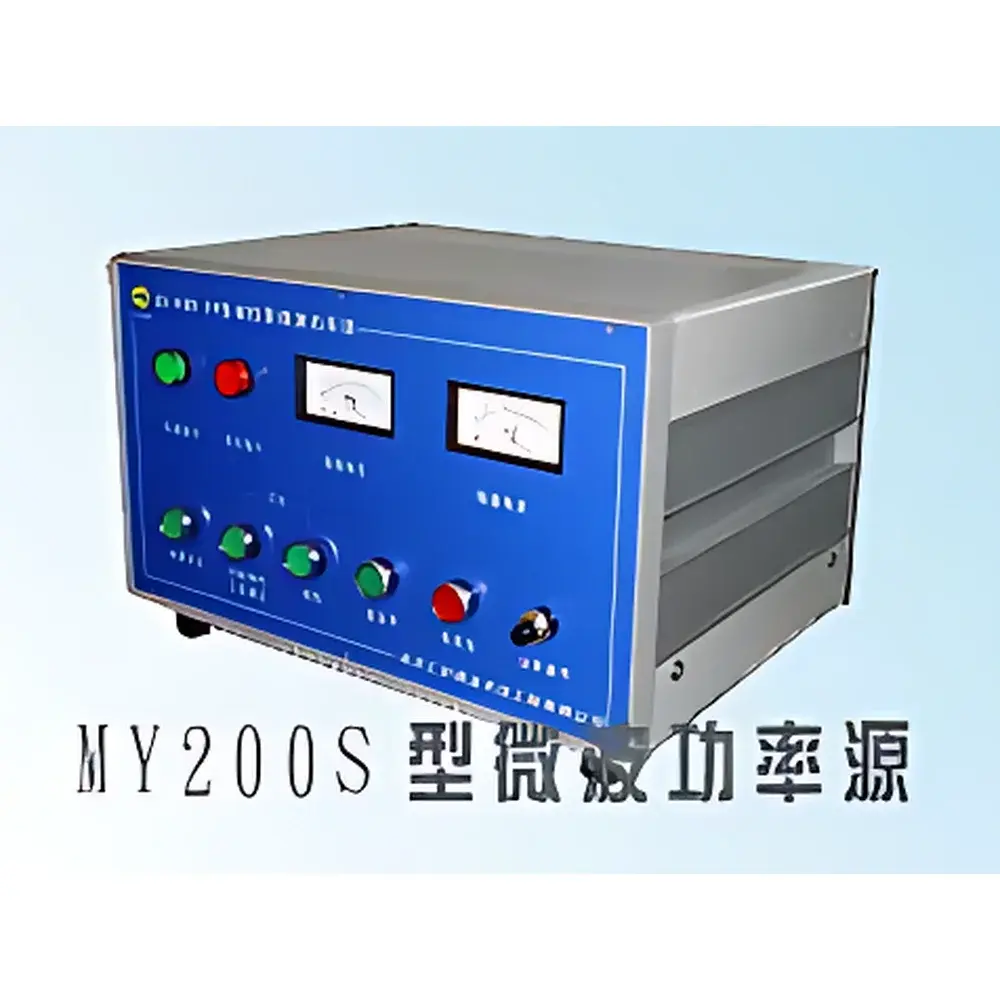

| Model | MY200S |
| Output Type | LY16 Coaxial or BJ26 Waveguide |
| Max. Output Power | 200 W (linearly adjustable) |
| Operating Frequency | 2450 ± 50 MHz |
| Input Voltage | AC 220 V ± 10%, 50 Hz |
| Input Apparent Power | < 500 VA |
| Anode Current | Continuously Adjustable with Overload Protection |
| Housing | Full Aluminum with Powder-Coated Finish |
| Safety | Multi-Level Interlock Protection, Overcurrent Protection, Real-Time Control Logic |
| Compliance | Designed for integration into CE-compliant microwave synthesis platforms per IEC 61000-6-3/6-4 and EN 61010-1 |

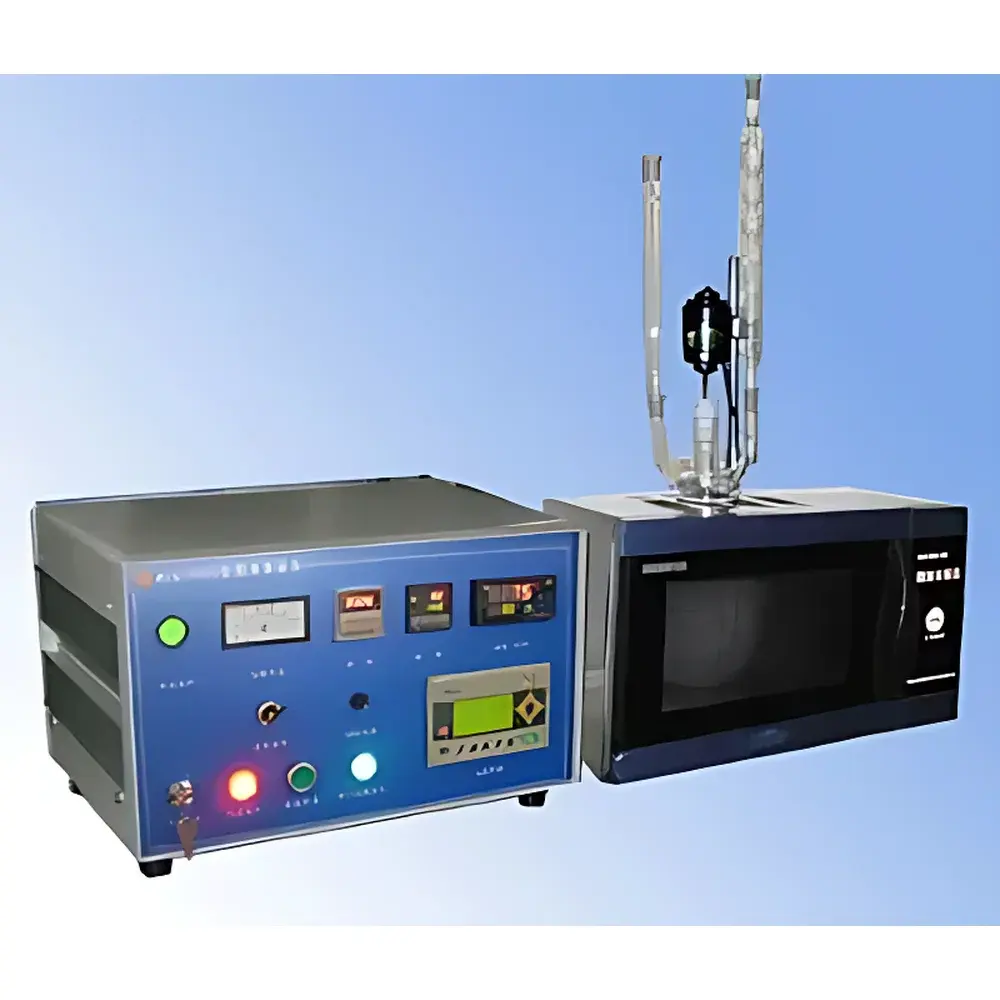

| Frequency | 2450 MHz ±50 MHz |
|---|---|
| Power Output | 0–1500 W (non-pulsed continuous & adjustable pulsed modes) |
| Temperature Range | 0–300 °C, accuracy ±1 °C |
| Temperature Sensor | Pt100 contact probe with corrosion-resistant tip |
| Timing Control | 0–900 min, resolution 1 s |
| Reaction Volume | 10–1000 mL |
| Stirring | Dual-mode (magnetic & mechanical, speed continuously adjustable) |
| Safety | Microwave leakage < GB 10436-2008 limit |
| Control System | Industrial PLC + full-color Chinese touchscreen HMI |
| Safety Interlocks | Magnetron overtemperature protection, door interlock, cavity shielding |

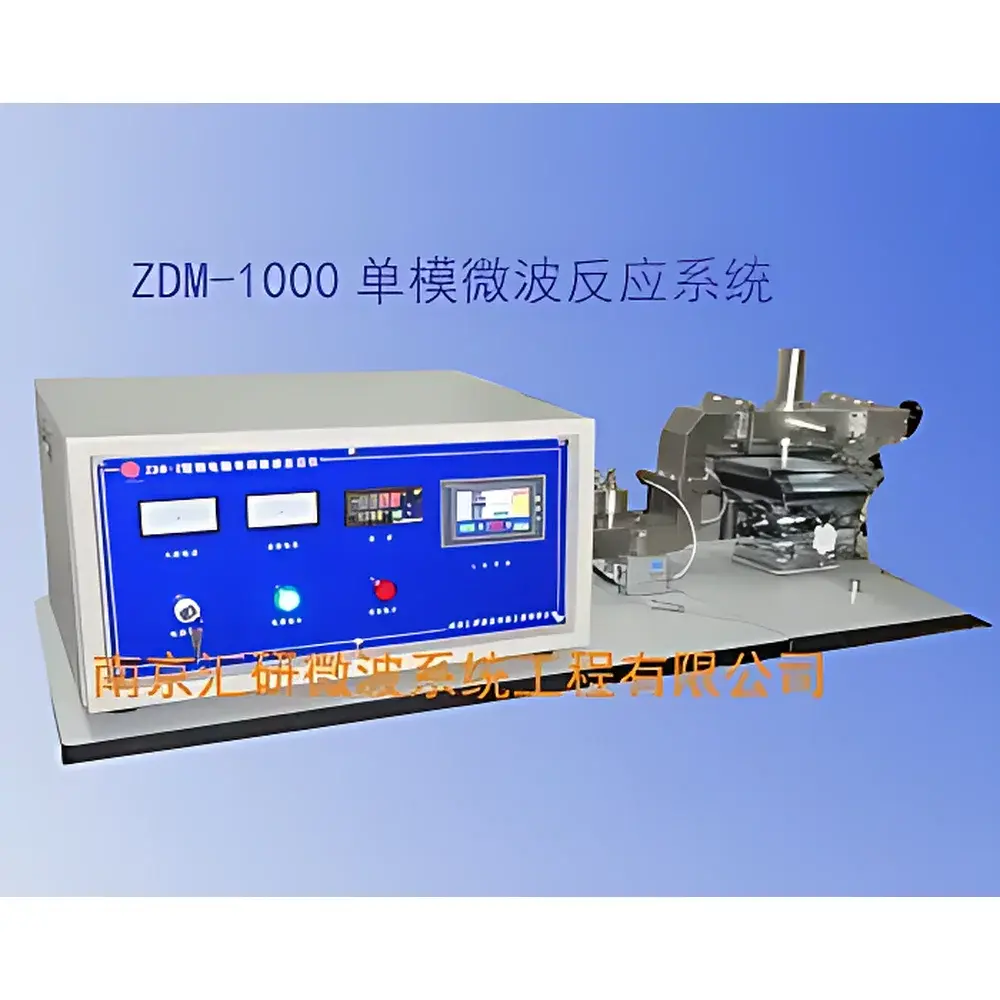

| Brand | Hyeyan |
|---|---|
| Model | ZDM-1000 |
| Microwave Power | 0–1000 W (continuously adjustable, linear control) |
| Frequency | 2450 MHz ± 50 MHz |
| Input Power | 220 V, 50 Hz |
| Temperature Monitoring Range | 0–500 °C |
| Temp. Control Accuracy | ±1 °C |
| Waveguide Interface | Standard WR-340 (or equivalent) |
| Safety Compliance | Meets GB 10436–2008 (China National Standard for Microwave Leakage Limits) |
| Control Interface | Industrial-grade color touchscreen HMI (Chinese-language UI) |
| Cooling | Forced-air magnetron cooling with thermal interlock |
| Protection Features | Circulator-based isolation, full-reflection tolerance, IR-based real-time temperature feedback, multi-level hardware safety interlocks |
| Brand | Huayan |
|---|---|
| Origin | Jiangsu, China |

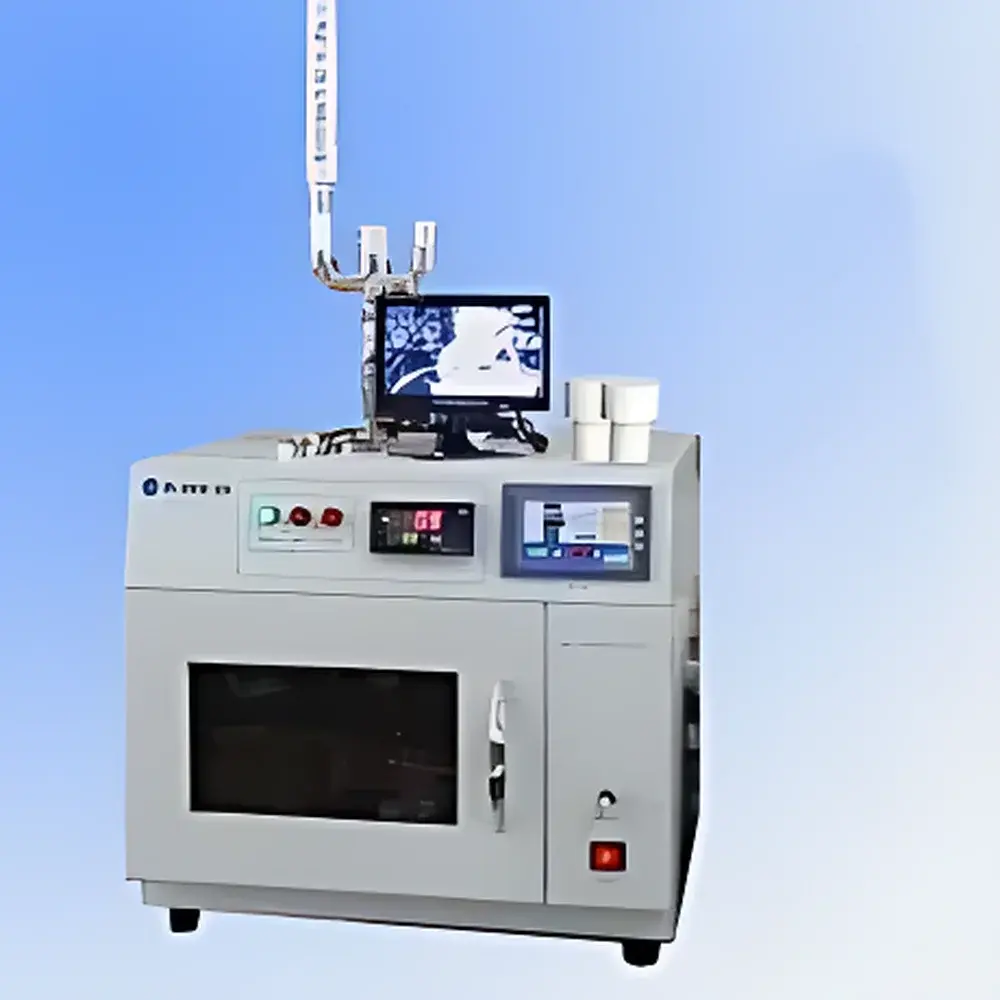

| Model | ML08S-3 |
| Temperature Range | 0–300 °C |
| Pressure Rating | Atmospheric (open-vessel operation) |
| Microwave Power Output | 0–1000 W (non-pulsed continuous & variable-pulse dual mode) |
| Microwave Frequency | 2.45 GHz ±50 MHz |
| Stirring | Integrated magnetic stirring + optional top-mounted mechanical stirring |
| Reaction Cavity Volume | 23 L |
| Temperature Sensor | Pt100 contact probe, accuracy ±1 °C |
| Safety | Microwave choke-sealed top ports, interlocked door, magnetron thermal protection |
| Compliance | Meets GB 4706.21 / GB 10436 (Chinese national standards for microwave leakage <5 mW/cm²) |
| Brand | Hyeyan |
|---|---|
| Origin | Jiangsu, China |

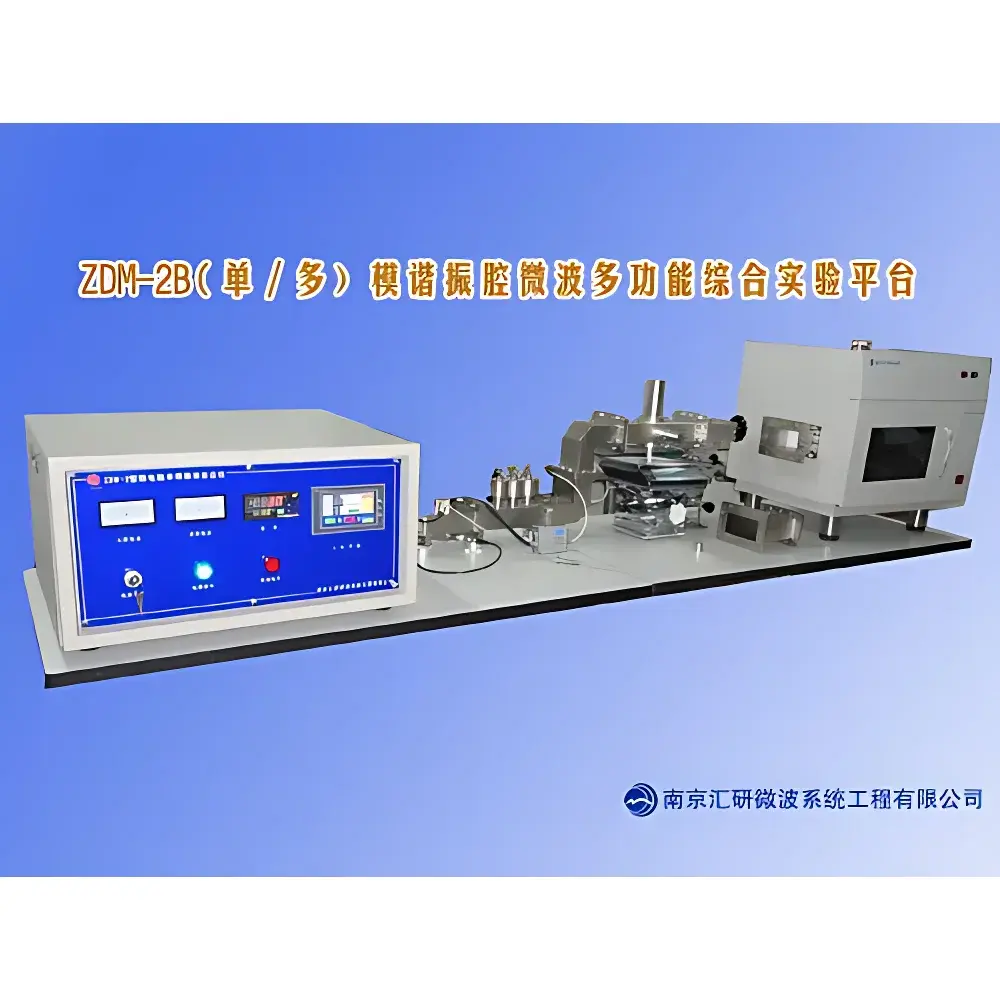

| Model | ZDM-2B |
| Microwave Frequency | 2450 MHz ± 50 MHz |
| Output Power Range | 0–1500 W (continuous linearly adjustable) |
| Power Control Modes | Continuous mode & programmable pulsed mode |
| Pulse Period & Pulse Width | User-definable via touchscreen interface |
| Temperature Monitoring Range | 0–500 °C |
| Temperature Accuracy | ±1 °C |
| Input Power | 220 V, 50 Hz |
| Waveguide Output | Standard WR-340 |
| Safety Compliance | Meets GB 10436-2008 (China National Standard for Microwave Leakage) |
| Cooling Interface | Reflux port with microwave suppression on multi-mode cavity |
| Stirring Options | Built-in magnetic stirrer (multi-mode cavity) + optional mechanical stirring |
| Tuning System | Terminal tuning & focal point adjustment for single-mode cavity |
| Real-time Diagnostics | Integrated waveguide coupler, crystal detector, and tuner for standing-wave observation and impedance matching |
| Optional Connectivity | RS-485 interface for PC-based control and third-party software integration |
| Brand | Hyway |
|---|---|

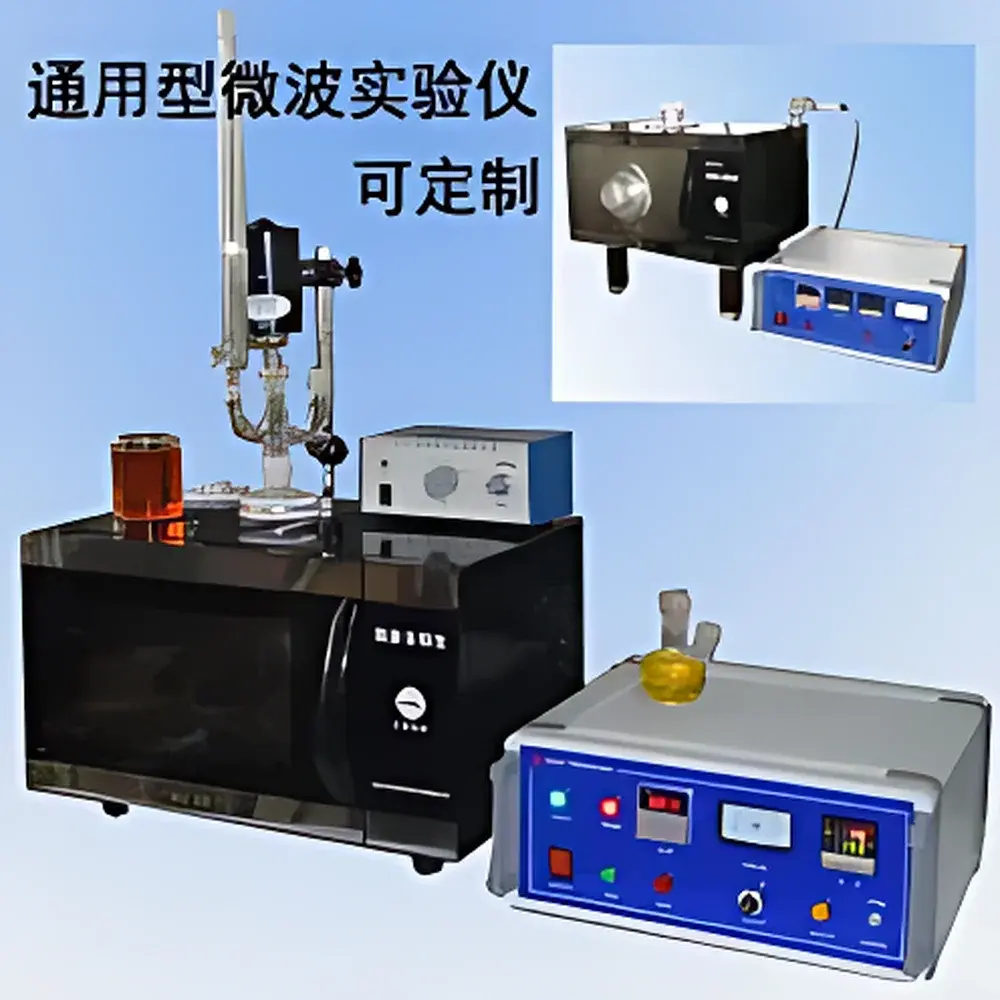

| Model | MG08S-2B |
| Origin | Jiangsu, China |
| Microwave Power | 0–900 W (continuous linear adjustment) |
| Frequency | 2450 MHz ±50 MHz |
| Temperature Range | 0–300 °C (±1 °C accuracy) |
| Temperature Sensor | Shielded Pt100 contact probe |
| Timer Range | 0–900 min |
| Cavity Volume | 23 L |
| Reaction Vessel Capacity | 10–1000 mL |
| Stirring | Dual-mode (built-in magnetic + external mechanical, both continuously adjustable) |
| Safety Features | Microwave leakage < GB 10436-2008 limit, interlocked door switch, magnetron overtemperature protection, waveguide-mounted microwave suppressors |
| Inlet/Outlet Ports | Two rear-mounted, wave-suppressed ports for gas/liquid feed or inert atmosphere purging |
| Reflux Interface | Top-mounted standard taper port with integrated microwave suppression |
| Brand | HyYan |
|---|---|
| Origin | Jiangsu, China |

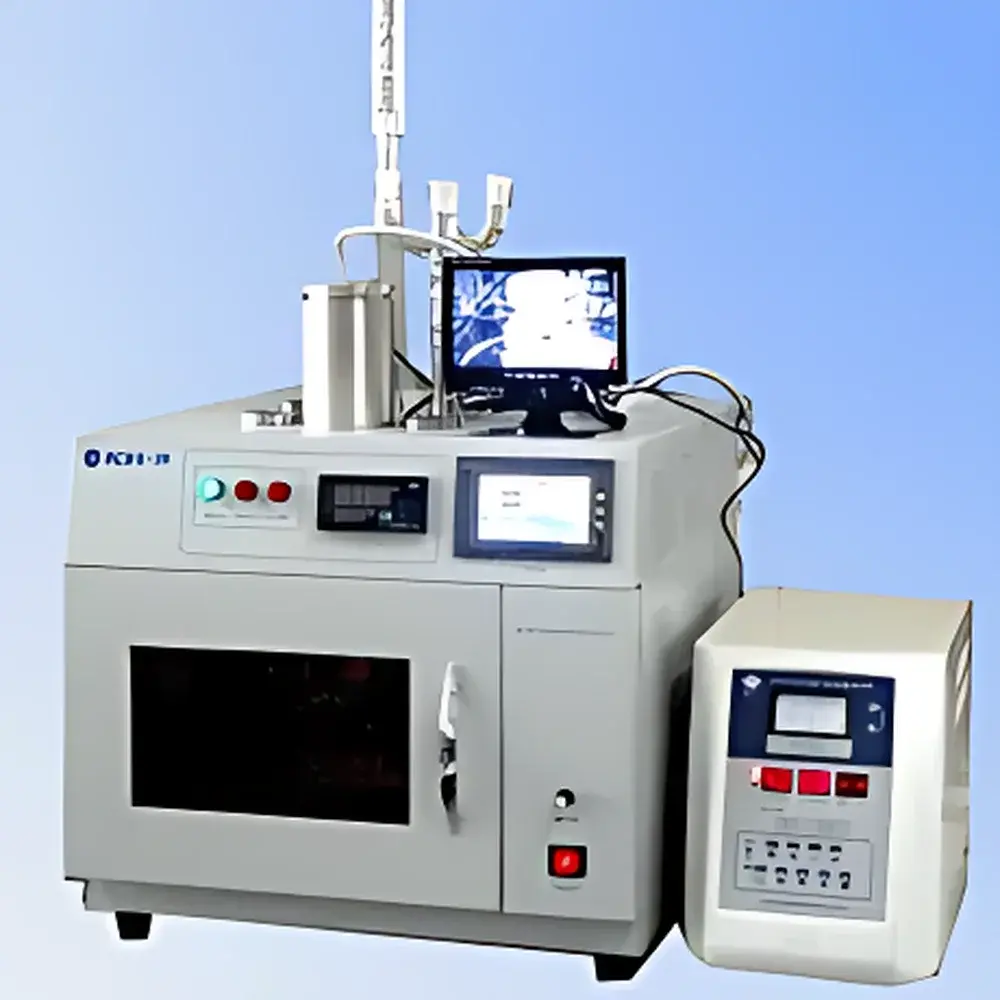

| Model | MC8S-3 |
| Temperature Range | 0–300 °C |
| Pressure Condition | Ambient (Open-Vessel Operation) |
| Microwave Power | 0–1000 W (continuous, linearly adjustable) |
| Microwave Frequency | 2.45 GHz ± 50 MHz |
| Ultrasonic Power | 0–900 W (submersible transducer) |
| Ultrasonic Frequency | 25 kHz (auto-frequency tracking) |
| UV Wavelength | 365 nm |
| UV Power | 250 W |
| Stirring | Adjustable Magnetic Stirring |
| Reaction Volume Capacity | 10–1000 mL |
| Cavity Material | Stainless Steel |
| Safety Compliance | Meets GB 10436 (Chinese Microwave Leakage Standard) |
| Interface | RS-485 (MODBUS RTU), VGA video output, touchscreen HMI |
| Brand | Hyeyan |
|---|---|
| Origin | Jiangsu, China |

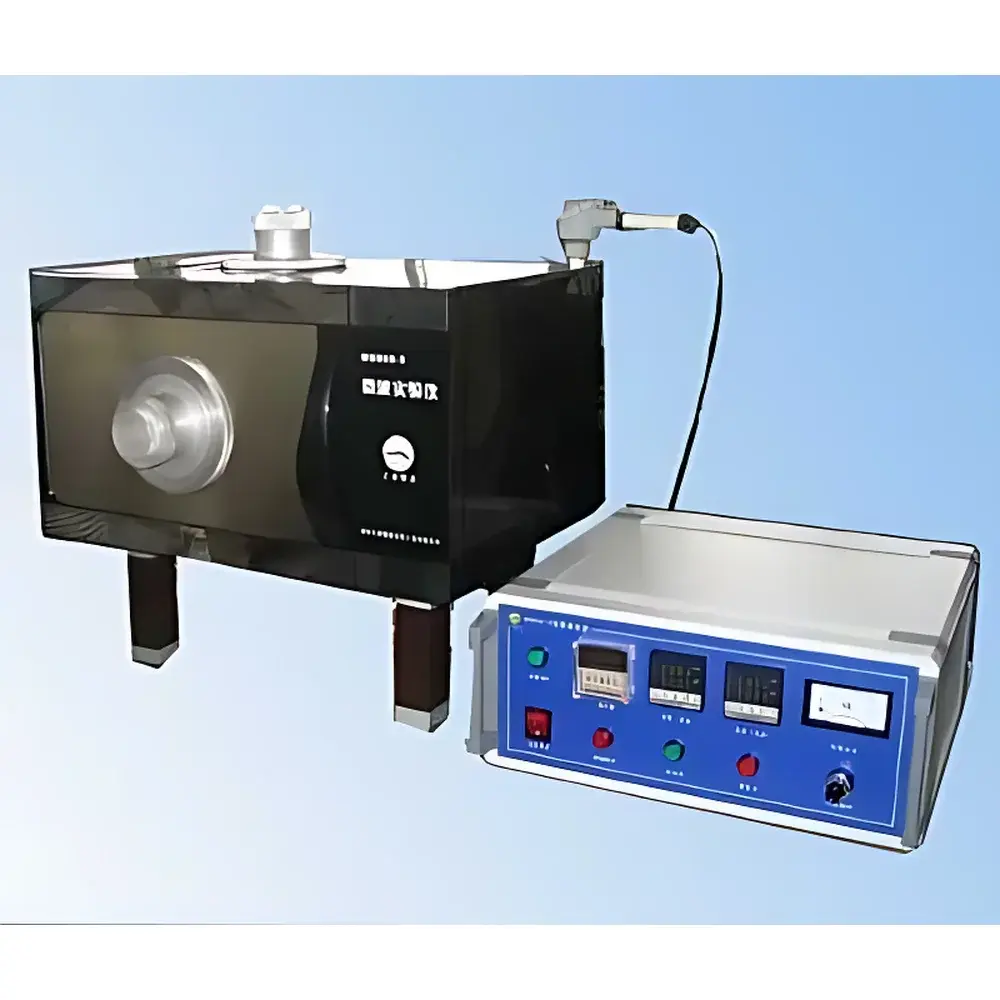

| Model | MG08S-3 |
| Microwave Power | 0–800 W (continuously adjustable) |
| Frequency | 2450 MHz ±50 MHz |
| Aperture Diameter | 28–40 mm |
| Timer Range | 0–900 min |
| Temperature Monitoring | High-precision RTD sensor |
| Cavity Material | Stainless steel |
| Safety Features | Magnetron thermal protection, interlocked door switch, microwave leakage < GB 10436-2008 limit |
