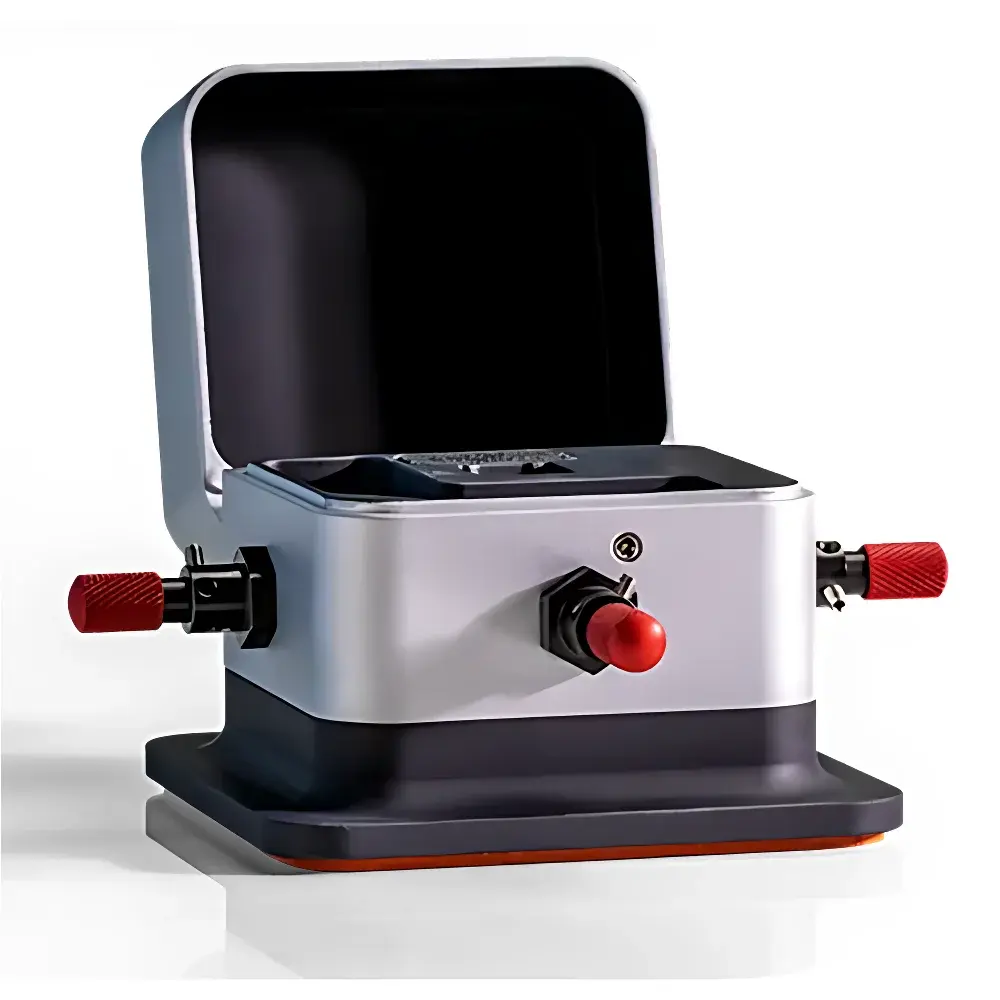

| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | SQUARE ONE |
| Pricing | Upon Request |
| Cuvette Pathlength | 1 cm |
| Enclosure | Light-Tight Lid |
| Filter Slots | 2 (accepts 12.5 mm or 25 mm diameter optical filters) |
| Integrated Mirror | 74-MSP Specular Reflector |
| Diffuse Reflector Option | CVD-DIFFUSE PTFE-coated Surface |
| Collimating Lenses | Three Fused Silica Lenses (200–2000 nm transmission) |
| Fiber Optic Interface | SMA 905 |
| Dimensions | 111 × 90 × 74 mm |
| Weight | 618 g |

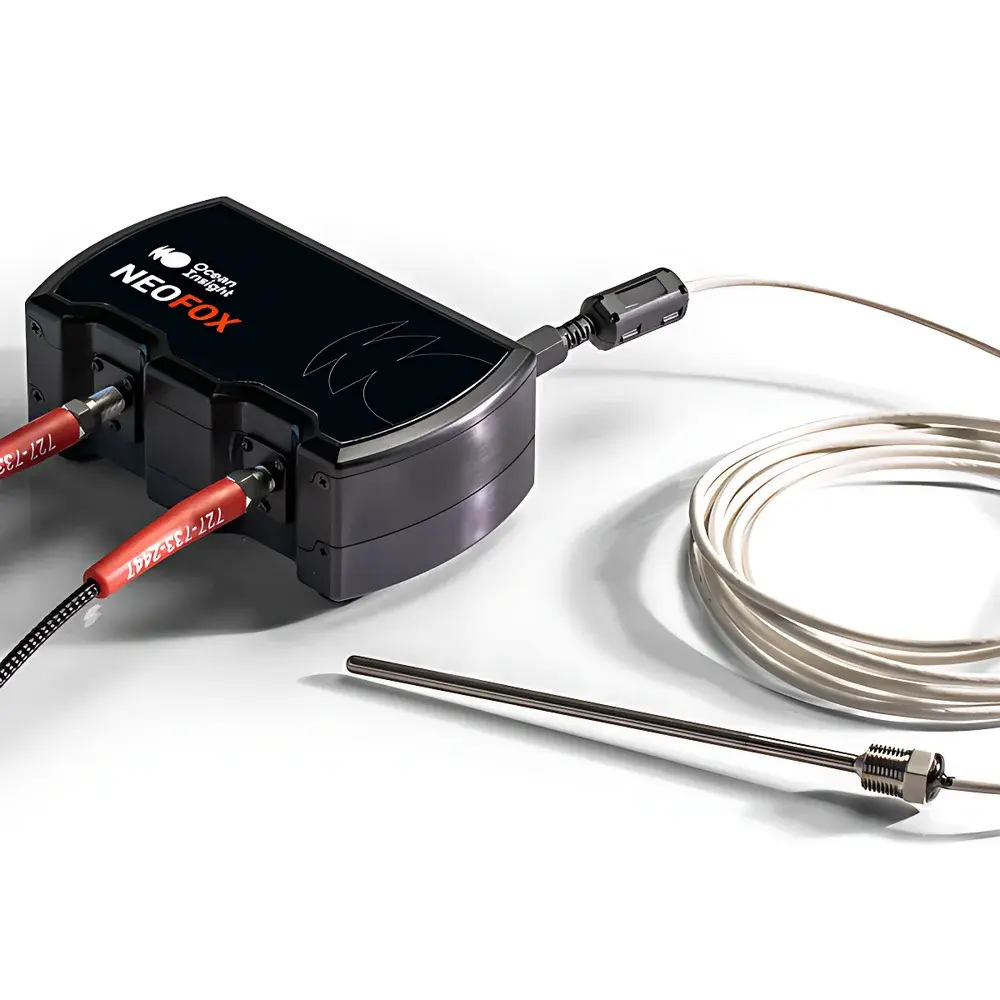

| Brand | Ocean Optics |
|---|---|
| Origin | Imported |
| Manufacturer | Ocean Optics, Inc. |
| Model | NeoFox |
| Measurement Principle | Fluorescence Quenching (Phase-Modulation) |
| Accuracy | ±0.1–0.5% O₂ (full scale) |
| Resolution | 0.005–0.20% O₂ |
| Probe Coating | Sol-Gel or Polymer-Based Oxygen-Sensitive Luminescent Layer |
| Interface | USB/RS-232 |
| Software | NeoFox Data Acquisition & Control Suite (v4.0+) |
| Compliance | CE, RoHS, ISO/IEC 17025-compatible operation environment |
| Operating Temperature | 0–50 °C |
| Pressure Range | Ambient to 3 bar (absolute), optional high-pressure variants available |
