| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |

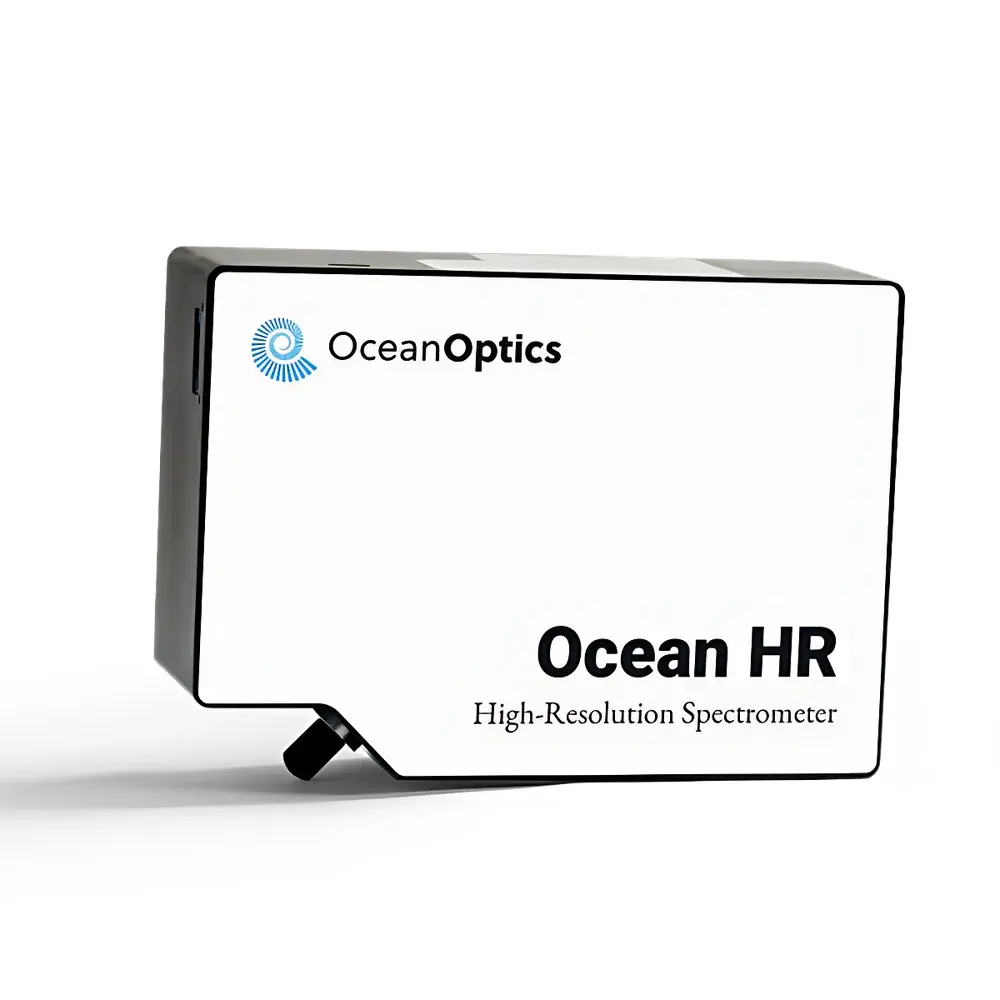

| Model | Ocean HR6 |
| Spectral Range | ~185–1100 nm |
| Optical Resolution | <1.0 nm FWHM (configurable, e.g., with 25 µm slit) |
| Signal-to-Noise Ratio | 3500:1 (on-board averaging mode) |
| Dynamic Range | 12,000:1 (single-scan) |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (China) |

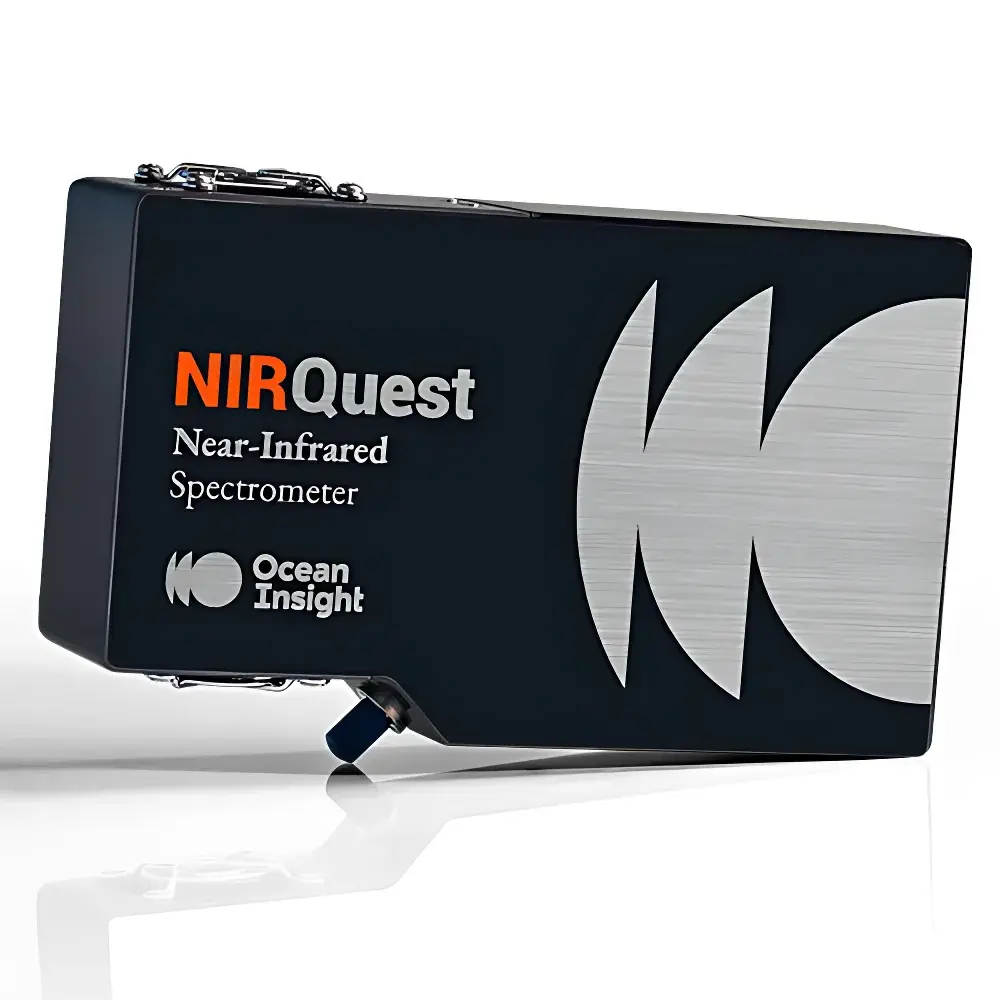

| Model | NIRQuest+ |
| Spectral Range | 900 nm – 2500 nm |
| Detector | InGaAs linear array |
| Resolution | 3.13 nm FWHM (typical), 5.47 nm FWHM (typical), 6.25 nm FWHM (typical) |
| Signal-to-Noise Ratio | >15,000:1 @ 100 ms integration |
| >13,000 | 1 @ 1000 ms integration |
| Dynamic Range | 7.5 × 10⁶ (system) |
| 10,000 | 1 (single acquisition) |
| Slit Width | 25 µm |
| Grating Options | GRATING_#NIR1, GRATING_#NIR2, GRATING_#NIR3 |
| Order-Sorting Filter | OF1-RG830 long-pass NIR filter (optional) |
| Dimensions | 182 × 110 × 47 mm |
| Weight | 1.18 kg (without power supply) |
| Integration Time | 1 ms – 12 s |
| Dark Noise | 6 RMS counts @ 100 ms |
| Fiber Connector | SMA 905 |
| Thermoelectric Cooling | -20 °C |
| Brand | Ocean Optics |
|---|---|
| Origin | Imported |
| Manufacturer Type | Manufacturer |

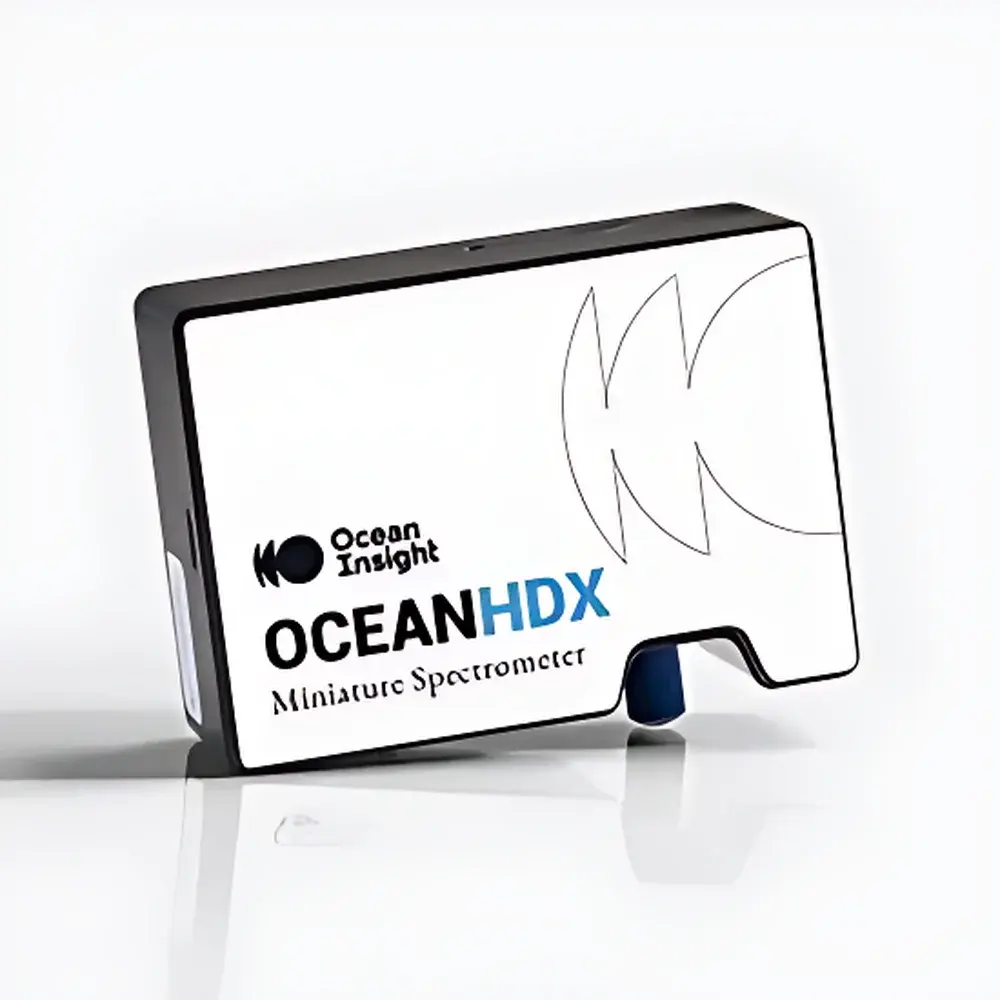

| Model | HDX |
| Spectral Range | 200–925 nm |
| Detector | Back-Illuminated CCD |
| Resolution | 0.61–0.72 nm FWHM (with 10 µm slit) |
| Signal-to-Noise Ratio | 400:1 |
| Dynamic Range | 12,000:1 |
| Stray Light | < 0.1% (typical, 3 AU at 600 nm) |
| A/D Conversion | 16-bit |
| Integration Time | 6 ms – 10 s |
| Thermal Stability | ±1 pixel over 0–40 °C |
| F-number | f/4 |
| Onboard Memory | Up to 50,000 spectra |
| I/O | 8 user-programmable digital I/O lines |
| Communication Interfaces | USB 2.0, Gigabit Ethernet, Wi-Fi (802.11 b/g/n), SPI, RS-232 |
| Operating Temperature | 0–40 °C |
| Dimensions | 88.9 × 63.5 × 52.4 mm |
| Weight | 400 g |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Regional Origin | Domestic (China) |

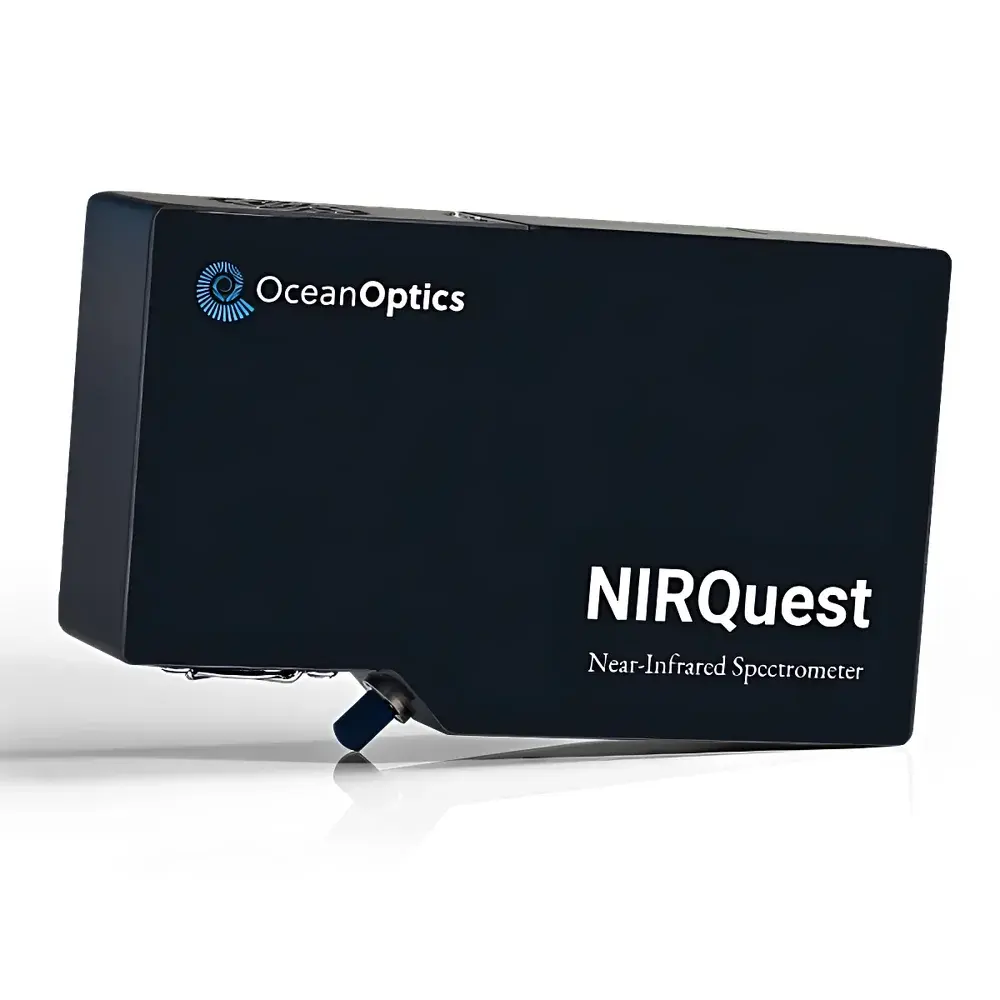

| Model | NIRQuest |
| Instrument Type | Laboratory |
| Application Field | Grain Analysis |
| Operating Principle | Portable & Online Deployment |
| Wavelength Range | 900–1700 nm (extendable to 2500 nm) |
| Scan Speed | 1 ms |
| Measurement Mode | Diffuse Reflectance / Transmission |
| Detector | InGaAs Linear Array with Integrated Thermoelectric Cooling |
| Optical Platform | Crossed Czerny-Turner |
| A/D Resolution | 16-bit USB |
| Interface | SMA905 Fiber Optic Connector |
| Compliance | Compatible with ASTM E1655, ISO 12099, USP <856>, and GLP/GMP-aligned data workflows |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic |
| Model | NIRQuest+ |
| Instrument Type | Portable |
| Operating Principle | Grating-Based Scanning Spectrometer |
| Wavelength Range | 900 nm – 2500 nm |
| Detector | Thermoelectrically Cooled InGaAs Linear Array |
| Slit Width | 25 µm |
| Optical Resolution (FWHM) | 3.13 nm (typ.), 5.47 nm (typ.), 6.25 nm (typ.) |
| Integration Time | 1 ms – 12 s |
| Dark Noise | 6–24 RMS counts (dependent on integration time) |
| Dynamic Range | 7.5 × 10⁴ (system) |
| 10,000 | 1 (single acquisition) |
| Signal-to-Noise Ratio | >15,000:1 @ 100 ms |
| >13,000 | 1 @ 1000 ms |
| Dimensions | 182 × 110 × 47 mm |
| Weight | 1.18 kg (without power supply) |
| Fiber Connector | SMA 905 |
| Order-Sorting Filter | OF1-RG830 Longpass NIR Filter (optional) |
| Grating Options | GRATING_#NIR1, GRATING_#NIR2, GRATING_#NIR3 |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |

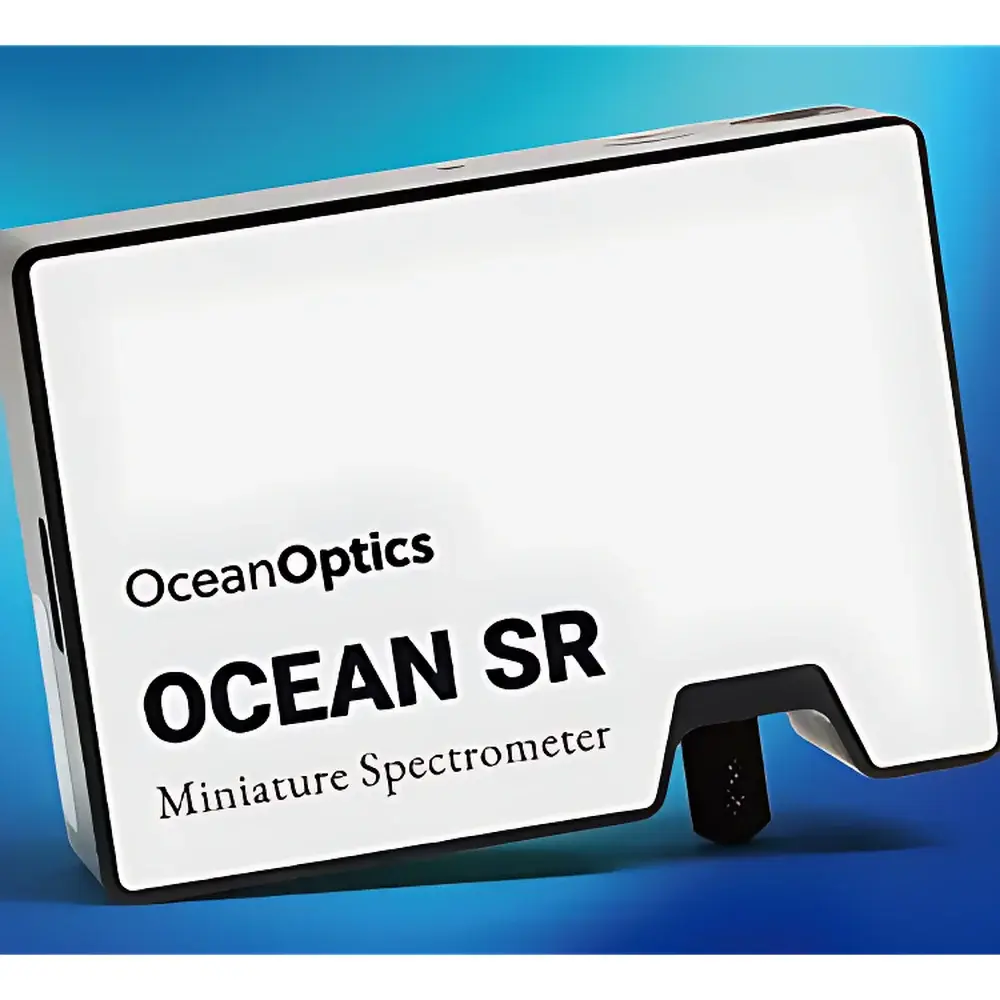

| Model | Ocean SR4 |
| Detector Type | 3648-pixel CCD linear array |
| Spectral Range | 190–1100 nm (configurable) |
| Optical Resolution (25 µm slit) | 1.36–1.65 nm (FWHM) |
| Signal-to-Noise Ratio | 3000:1 (per second, High-Speed Averaging Mode) |
| Dynamic Range | 1370:1 (single scan) |
| Integration Time | 3.8 ms – 10 s |
| Stray Light | < 2.3 AU |
| Thermal Wavelength Stability | 0.05 pixels/°C |
| Scan Rate | 74 spectra/s |
| ADC | 16-bit |
| Trigger Modes | External TTL, Software, Hardware Synchronization |
| Interface | USB 3.2 Gen 1 (Type-B connector, TFM-108-02-L-DH compliant) |
| Dimensions | 88.1 × 63.5 × 31.4 mm |
| Weight | 254 g |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

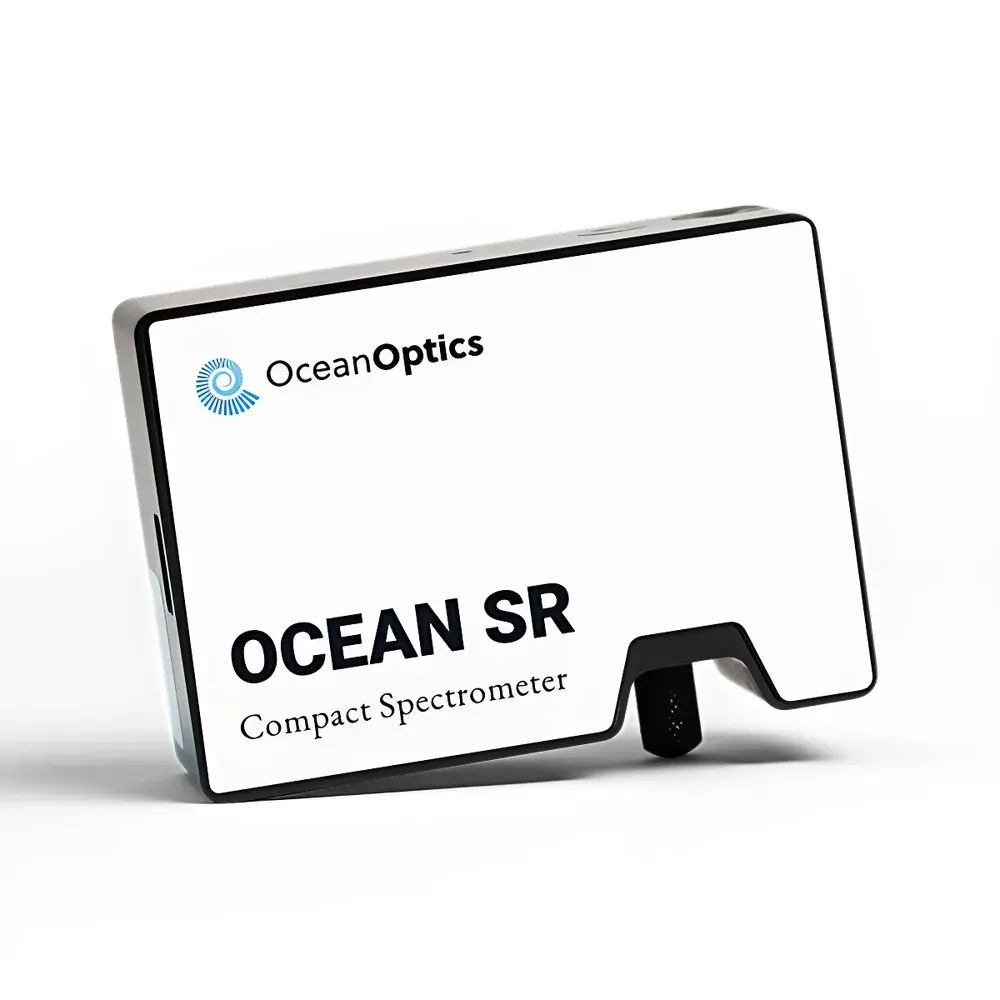

| Model | Ocean SR6 |
| Detector Type | CCD |
| Spectral Range | ~185–1100 nm (configuration-dependent) |
| Optical Resolution (25 µm slit) | 0.50–2.0 nm FWHM (configuration-dependent) |
| Signal-to-Noise Ratio | 3500:1 (on-board averaging mode) |
| Dynamic Range | 12,000:1 (single-scan) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

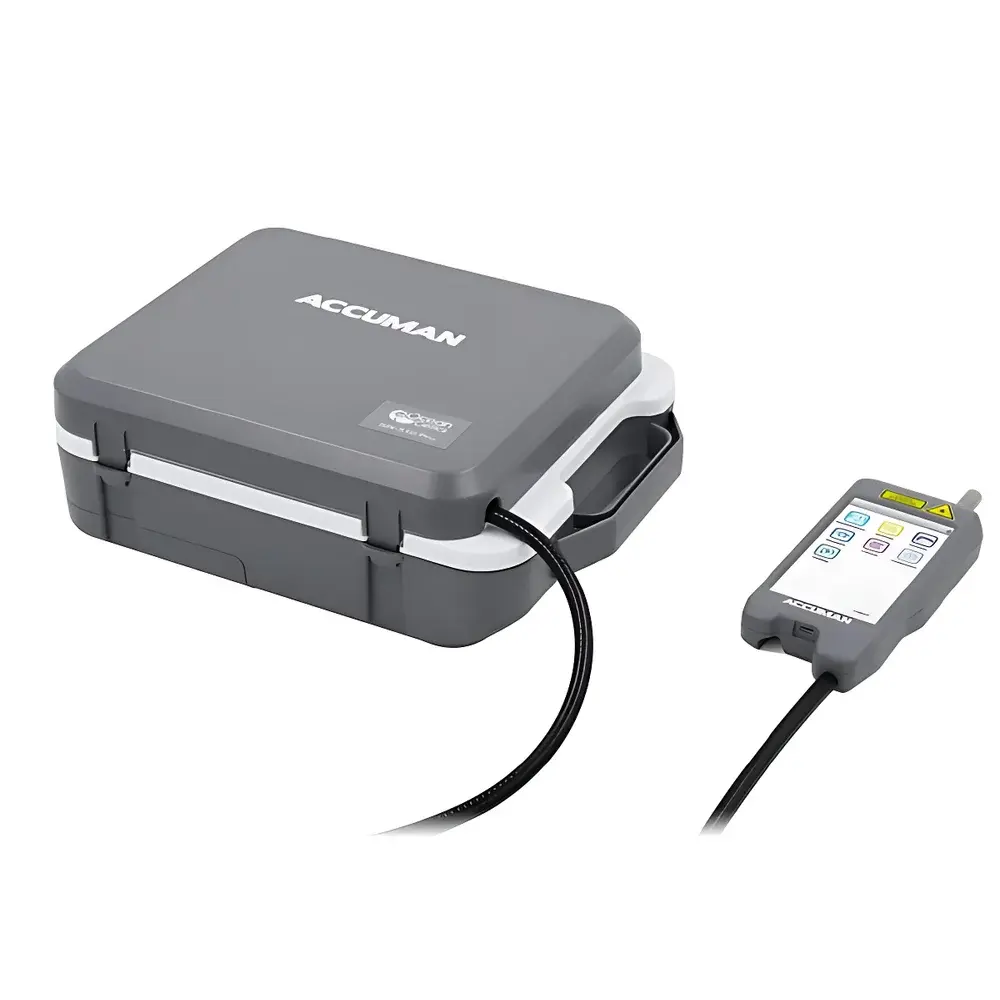

| Model | ACCUMAN SR-510 Pro |
| Instrument Type | Portable / Handheld Raman Spectrometer |
| Spectral Range | 200–3900 cm⁻¹ (configurable options) |
| Spectral Resolution | 4–12 cm⁻¹ (dependent on grating and spectral window selection) |
| Laser Wavelength | 785 nm ± 0.5 nm, linewidth < 2 cm⁻¹, frequency stability < 0.1 cm⁻¹ |
| Laser Power | Up to 350 mW, 10-step linear adjustment |
| Detector | TE-cooled back-illuminated thin CCD array |
| Signal-to-Noise Ratio | 1000:1 |
| Integration Time | 0.1–30 s |
| Optical NA | 0.22 |
| Working Distance | 7.5 mm |
| Display | 4.5″ capacitive multi-touch LCD (720p) |
| Data Interfaces | USB 2.0, Wi-Fi |
| Data Formats | .pdf, .csv, .txt, .jdx, .rdb |
| Battery Life | >5 hours (rechargeable Li-ion) |
| Weight | 330 g (handheld probe), 3.8 kg (main unit) |
| Dimensions | 15.5 × 7.4 × 2.5 cm (probe), 29 × 22 × 10 cm (main unit) |
| Operating Temperature | 0–45 °C |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |

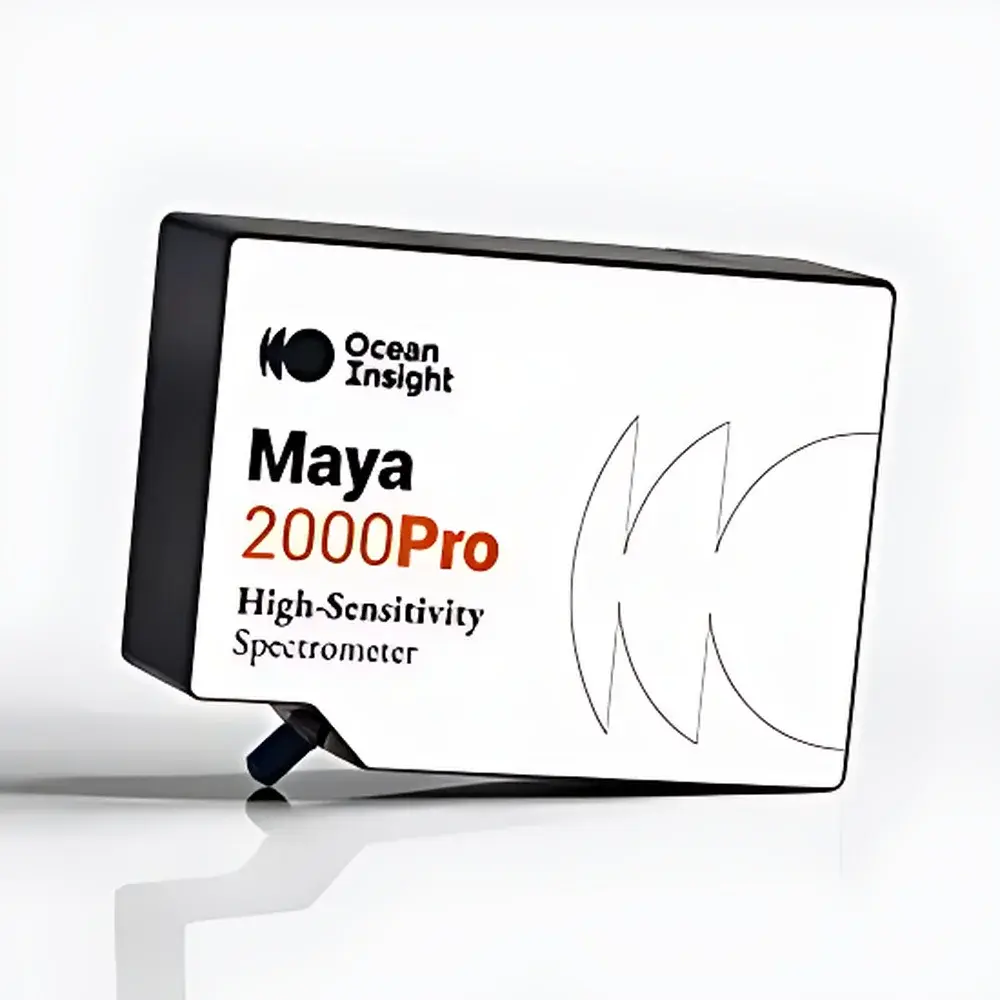

| Model | Maya 2000 |
| Spectral Range | 200–1100 nm |
| Detector Type | Back-illuminated 2D FFT-CCD (Hamamatsu S9840) |
| Quantum Efficiency | up to 90% @ 250 nm |
| Signal-to-Noise Ratio | 450:1 (full well, with 5 s integration) |
| Dynamic Range | 15,000:1 (typical, A/D-limited) |
| Stray Light | <0.05% @ 600 nm |
| Optical Resolution (FWHM) | ~0.035 nm (configurable via grating and slit selection) |
| Integration Time | 5 ms – 20 s |
| A/D Conversion | 16-bit, 500 kHz sampling |
| Pixel Array | 2048 × 14 active pixels (14 µm × 14 µm) |
| Readout Speed | Optimized for high-throughput acquisition |
| Slit Options | 5, 10, 25, 50, 100, 200 µm |
| Grating Options | 14 standard gratings, including HC-1 broadband grating (175–1100 nm) |
| Onboard Features | 10 user-programmable GPIOs, programmable trigger modes (single/continuous), integrated order-sorting filters, focusing lens assembly for enhanced throughput |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Category | Imported Instrument |

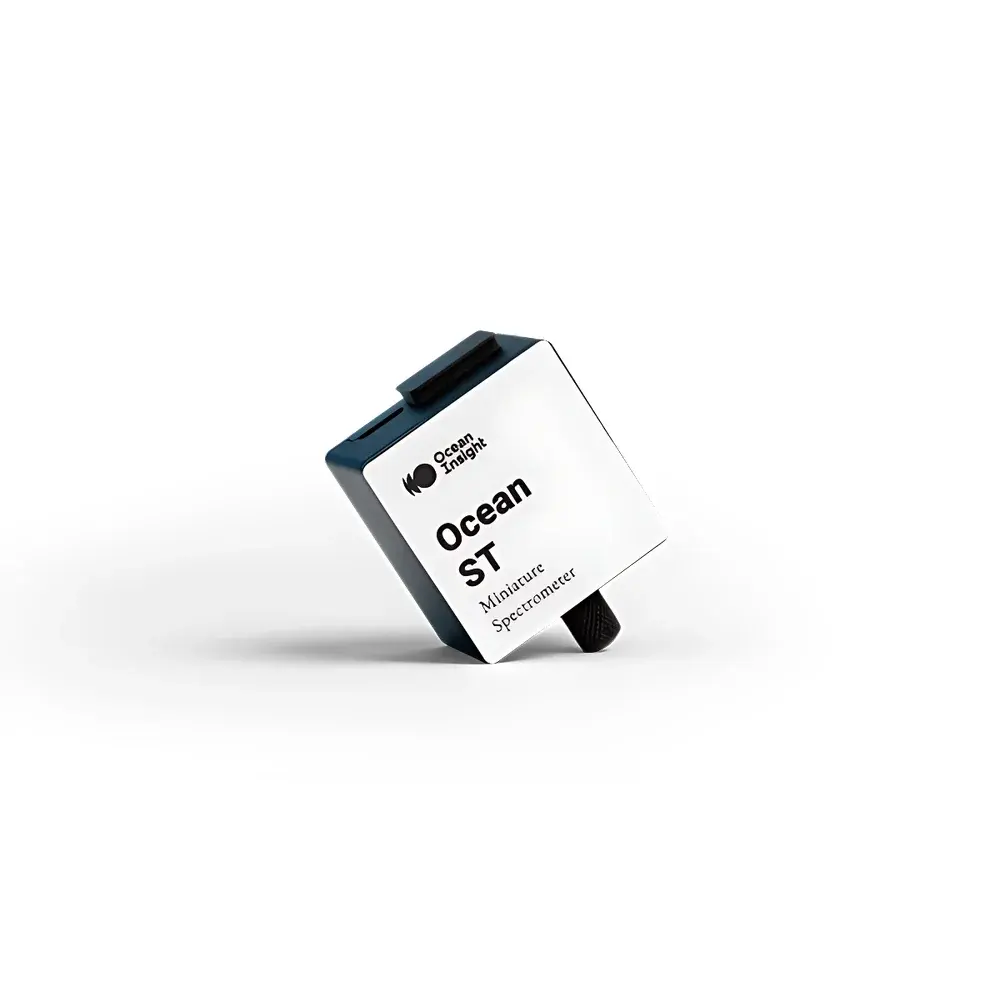

| Model | Ocean ST |
| Spectral Range | 185–650 nm (UV-VIS), 350–810 nm (VIS-NIR), 645–1085 nm (NIR) |
| Optical Resolution | 2.2 nm FWHM (configuration-dependent) |
| Signal-to-Noise Ratio | >250:1 (full-scale, single-scan, typical) |
| Dynamic Range | 1000:1 (single-scan) |
| Stray Light | <0.2% at 600 nm (typical) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |

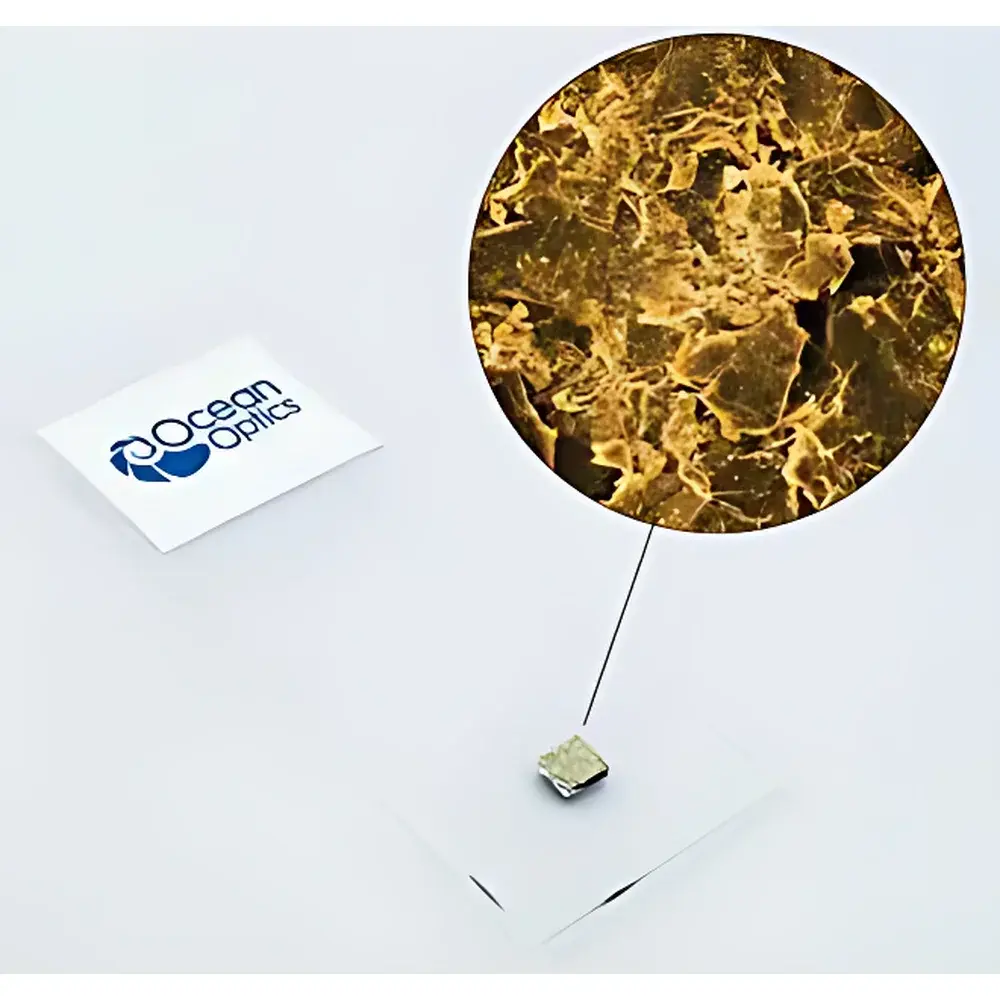

| Model | Nano-Sponge SERS Substrate |
| Pricing | Available Upon Request |
| Brand | Ocean Optics |
|---|---|

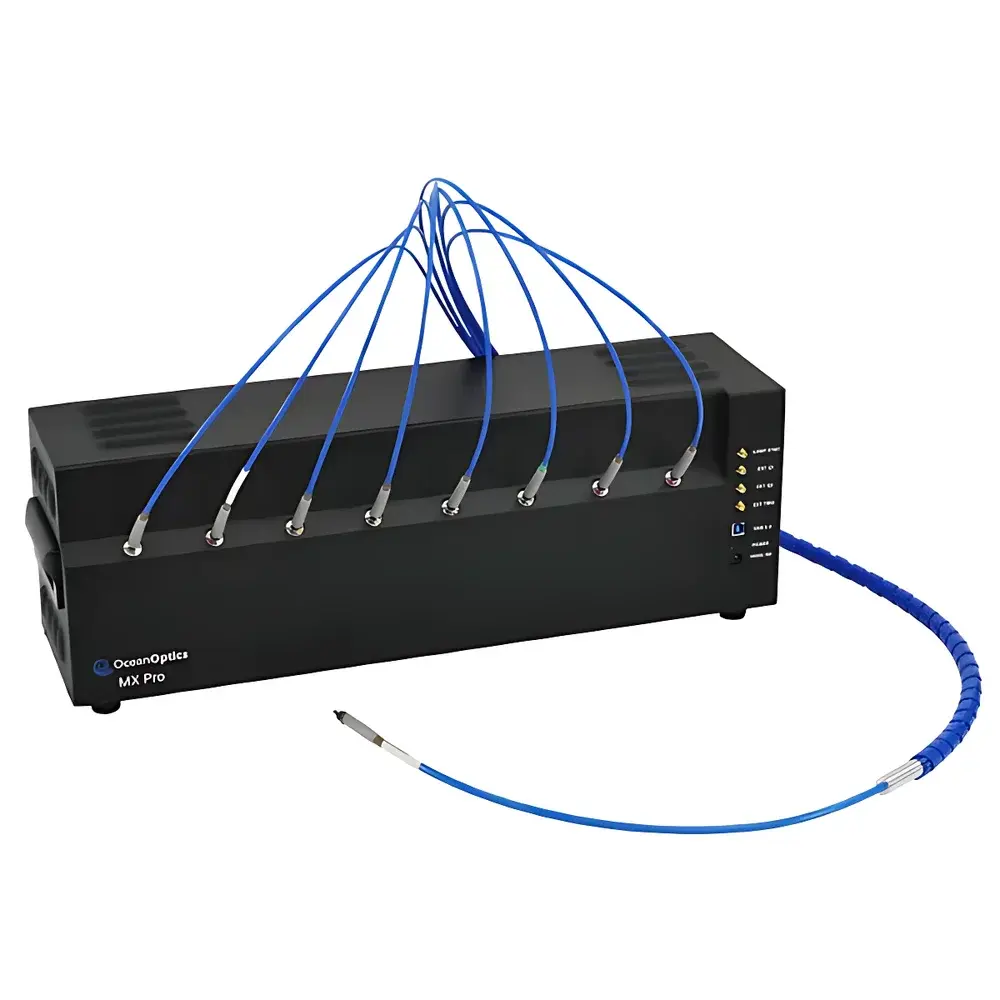

| Model | MX Pro |
| Instrument Type | Benchtop |
| Integration | Fully Integrated Multi-Channel Spectrometer |
| Spectral Range | 180–1100 nm |
| Max Channels | 8 |
| Optical Resolution (FWHM) | 0.1 nm (configurable) |
| SNR (single-scan) | 380:1 |
| A/D Resolution | 16-bit |
| Detector Options | Linear CCD or Area CCD |
| Scan Rate | 500 Hz |
| Integration Time | 1 µs – 2 s |
| Trigger Delay Range | –450 ns to +450 ns |
| Trigger Jitter | 20–30 ns |
| Timing Step Resolution | 13.8 ns |
| Trigger Interface | TTL-compatible, <5.5 V |
| Data Interface | USB 3.0 |
| Power Supply | 5 V DC, 5 A |
| Operating Systems | Windows 7/8/10/11 (32-/64-bit) |
| Dimensions (8-ch) | 585 × 165 × 210 mm |
| Weight (8-ch) | 12 kg |
| Dimensions (4-ch) | 345 × 165 × 210 mm |
| Weight (4-ch) | 6.5 kg |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |

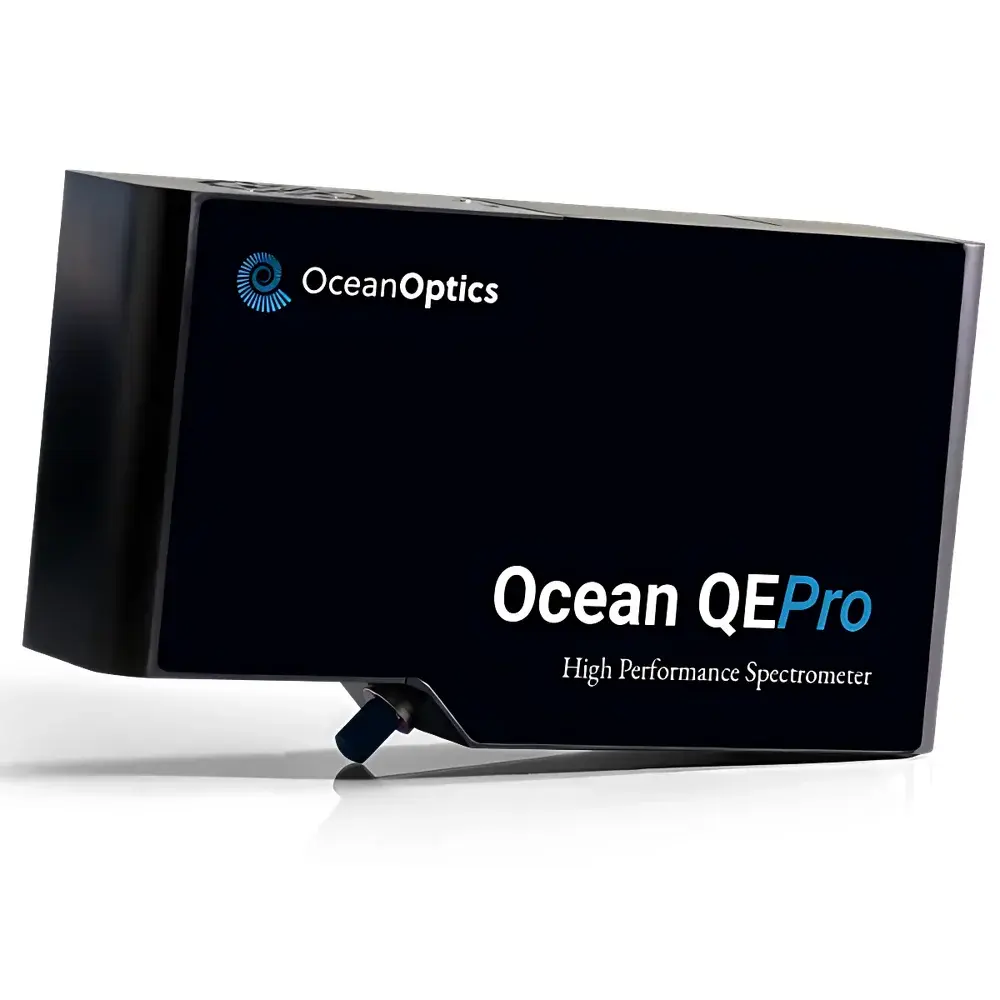

| Model | QE Pro Raman+ |
| Instrument Type | Portable / Handheld Raman Spectrometer |
| Spectral Range | 150 cm⁻¹ – 4000 cm⁻¹ |
| Spectral Resolution | 0.42 nm (FWHM, typical) |
| Detector | TE-cooled 1044 × 64-pixel back-thinned FFT-CCD |
| Quantum Efficiency | 90% (peak) |
| Signal-to-Noise Ratio | 1000:1 (single acquisition) |
| Integration Time | 8 ms – 3600 s |
| Dynamic Range | ~85,000:1 |
| Optical Interface | SMA 905 |
| Onboard Memory | 15,000 spectra |
| Dimensions | 182 mm × 110 mm × 47 mm |
| Weight | 1.15 kg (instrument only) |
| Power Supply | 0.45 kg |
| Operating Temperature | 0 °C – 50 °C |
| Humidity | ≤90% RH (non-condensing) |
| Communication | USB 2.0 (480 Mbps, USB 1.1 compatible), RS-232 |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |

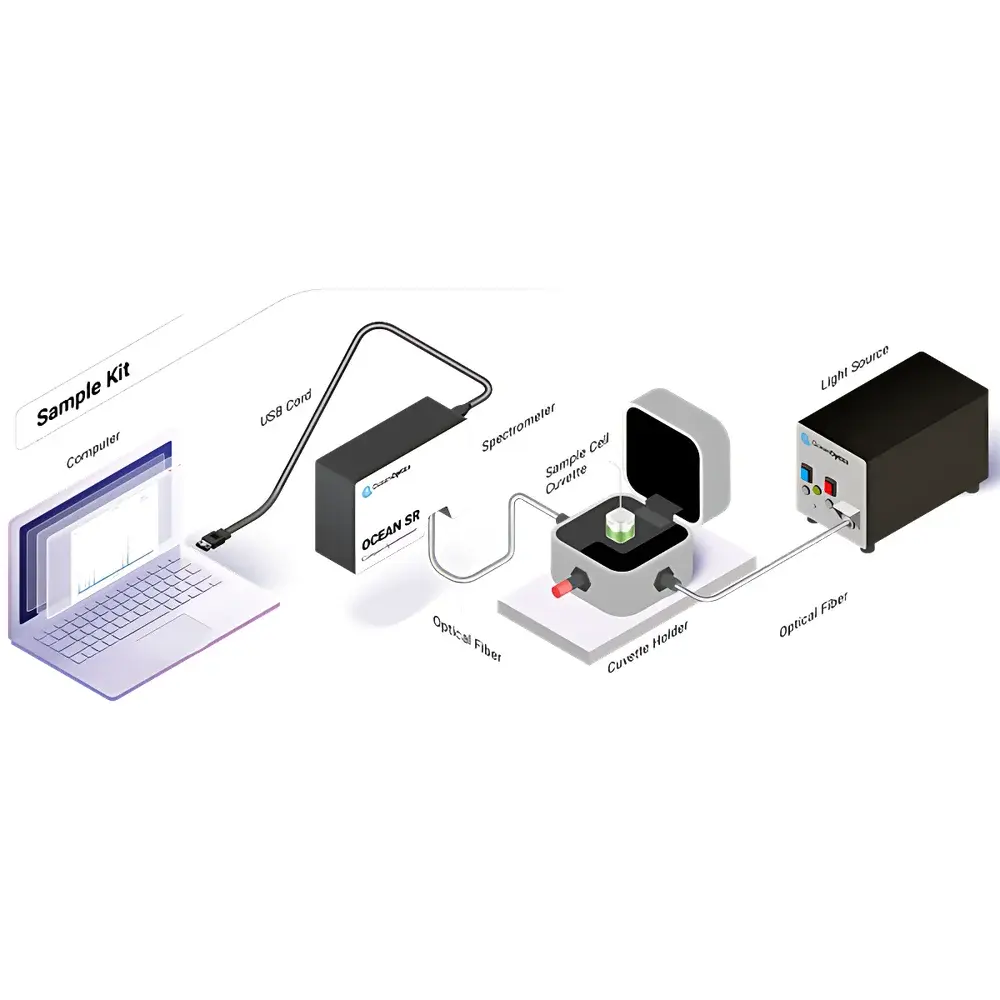

| Model | Spectral Measurement Kit |
| Spectral Range | 200–1100 nm (configurable) |
| Detector Type | CCD or CMOS (application-dependent) |
| Optical Resolution | Configurable (typically 0.1–10 nm FWHM, dependent on grating and slit) |
| Sensitivity | Configurable (quantum efficiency up to ~90% in visible range) |
| Signal-to-Noise Ratio | ≥300:1 (full signal, 1 s integration) |
| Dynamic Range | >4.5 OD (optical density) |
| Stray Light | <0.05% at 600 nm, <0.1% at UV edge |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Instrument Type | Laboratory |
| Optical Principle | Fixed-grating array-detector non-scanning spectrometer |
| Wavelength Ranges | NIRQuest+1.7 (900–1700 nm), NIRQuest+2.2 (900–2200 nm), NIRQuest+2.5 (900–2500 nm) |
| Detector | InGaAs linear array (TE-cooled) |
| Resolution | 1.7–4.0 nm FWHM (configuration-dependent) |
| Integration Time | 1 ms to 65 s |
| Interface | USB 3.0 or Ethernet (optional) |
| Compliance | CE, RoHS, FDA 21 CFR Part 11 ready (with compliant software stack) |
| Brand | Ocean Optics |
|---|---|

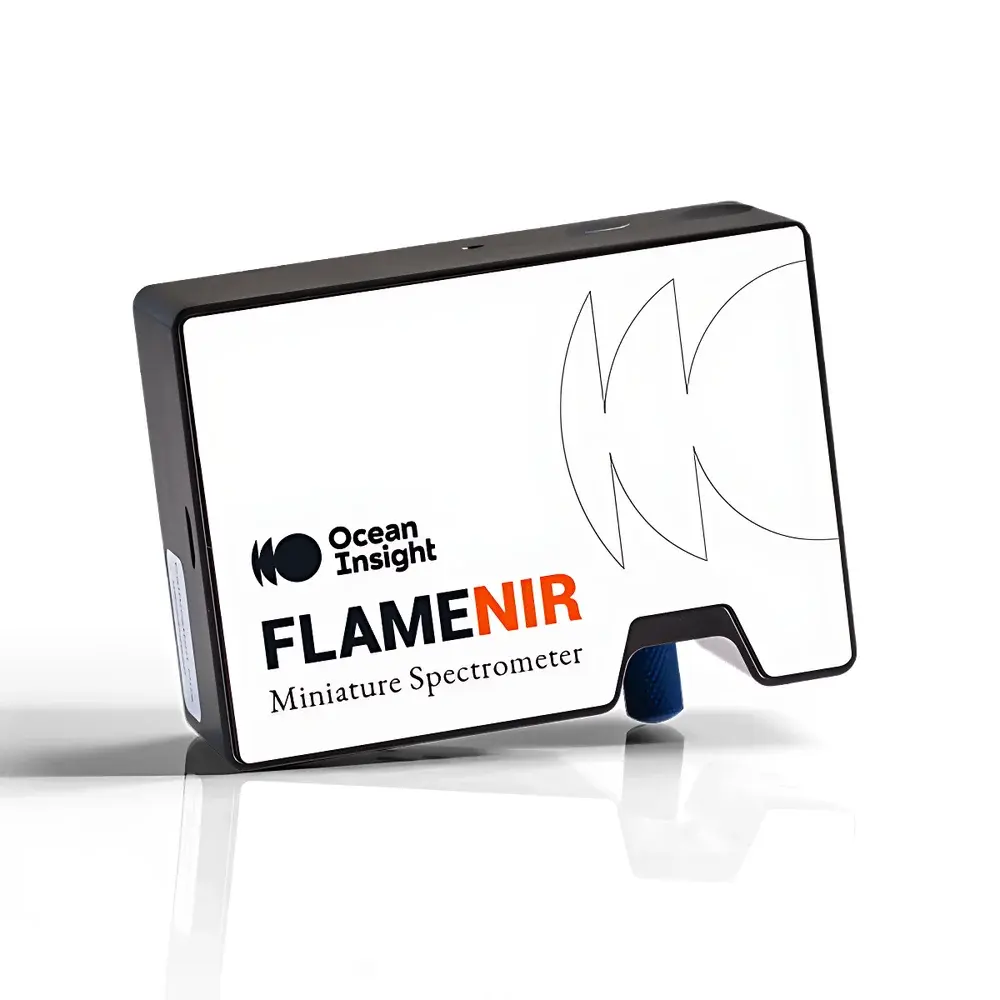

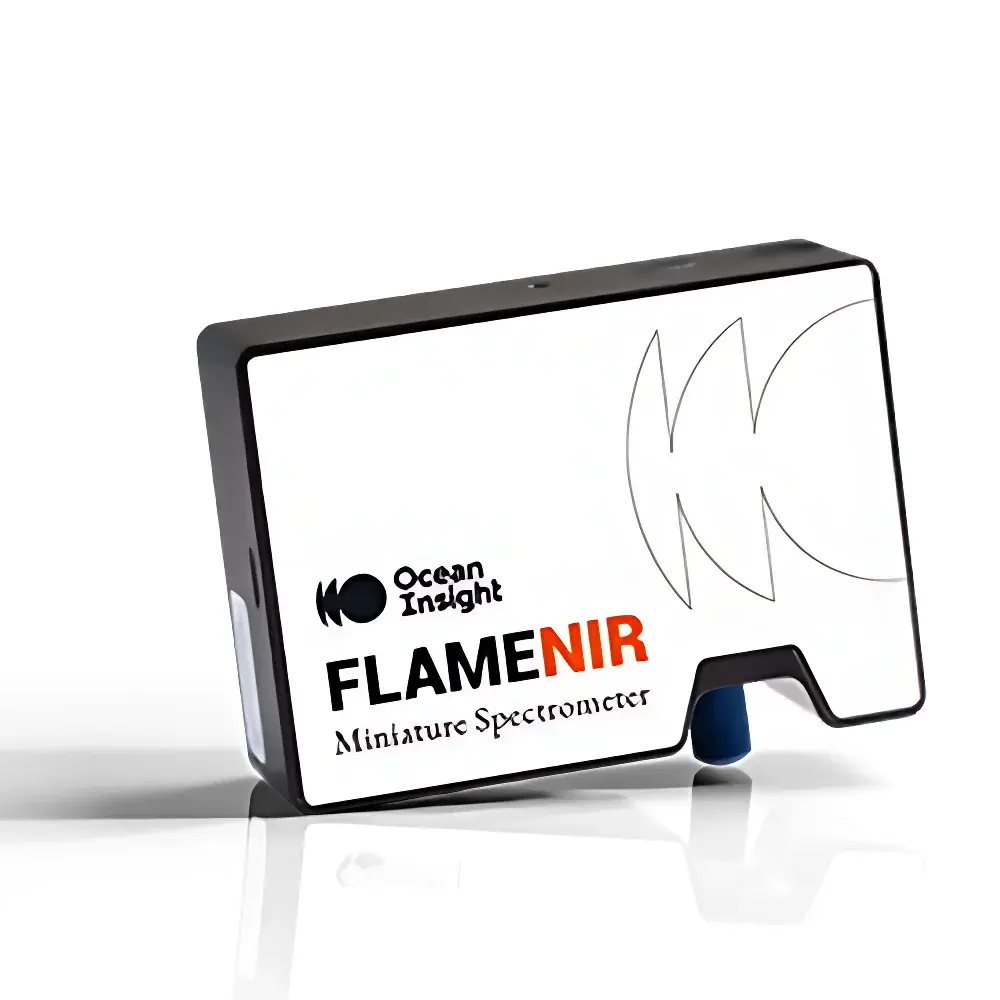

| Model | Flame-NIR+ |
| Type | Portable NIR Spectrometer |
| Principle | Grating-based Scanning Spectrometer |
| Wavelength Range | 970–1700 nm |
| Optical Resolution | ~10 nm FWHM (25 µm slit) |
| Signal-to-Noise Ratio | 6000:1 (full signal) |
| Dynamic Range | 6000:1 (single acquisition) |
| Thermal Drift | 0.08 nm/°C |
| Scan Rate | ~400 Hz |
| Integration Time | 1 ms to 45 s |
| Detector | Uncooled InGaAs linear array (128 pixels) |
| Dimensions | 89.1 × 63.3 × 31.9 mm (34.4 mm including feet) |
| Weight | 265 g |
| Interface | Micro-USB |
| Origin | Shanghai, China |
| Manufacturer | Ocean Optics (Shanghai) |
| Brand | Ocean Optics |
|---|---|

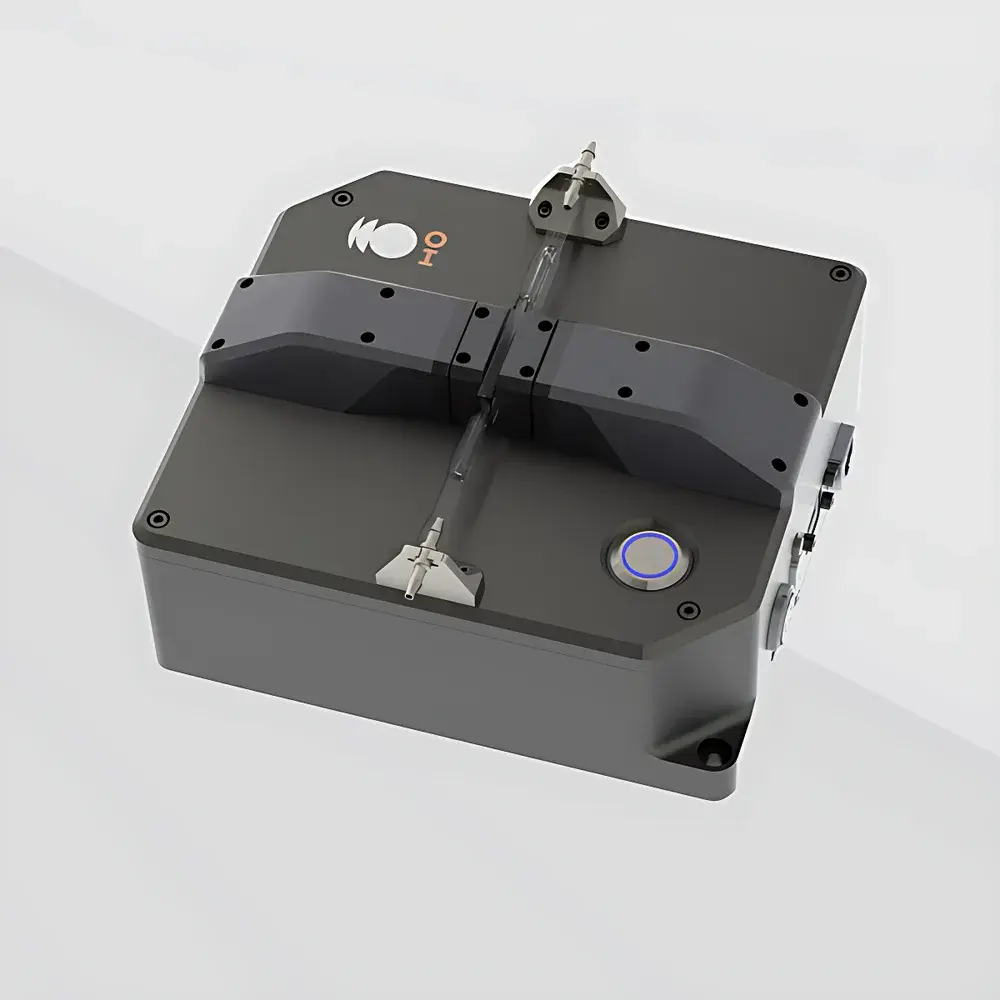

| Model | FD-LTMS |
| Wavelength Range | 400–700 nm |
| Detector | 1024-element linear array |
| Optical Design | Asymmetric crossed Czerny-Turner spectrometer |
| Spectral Sampling Interval | 10 nm |
| FWHM | 6 nm |
| Light Source | Pulsed LED (>250 million measurements lifetime) |
| Sample Holders | 10 mm pathlength cuvette & flow-cell interface |
| Connectivity | USB 2.0 |
| OS Compatibility | Windows 7+, 64-bit |
| Enclosure Rating | IP67 |
| Origin | Shanghai, China |
| Manufacturer | Ocean Optics (Shanghai) |
| Brand | Ocean Optics |
|---|---|
| Model | FLAME-NIR |
| Type | Portable NIR Spectrometer |
| Principle | Fiber-coupled, non-cooled InGaAs-based dispersive spectroscopy |
| Wavelength Range | 950–1650 nm |
| Optical Resolution | ~10 nm FWHM (configuration-dependent) |
| Scan Rate | 400 spectra/sec |
| Integration Time | 1 ms – 65 s |
| Sampling Interval | 1 ms – 65 s |
| Measurement Mode | Transmission |
| Detector | Uncooled 128-pixel InGaAs linear array (900–1700 nm response) |
| SNR | 6000:1 (full signal) |
| Dynamic Range | 6000:1 |
| Dimensions | 89.1 × 63.3 × 34.4 mm (incl. feet) |
| Weight | 265 g |
| Interface | Micro-USB (plug-and-play) |
| Software Compatibility | OceanView, OceanInsight NIR Chemometrics Suite |
| Compliance | CE, RoHS, FCC Class B |
| Modularity | Interchangeable slits, fiber-optic coupling, OEM-ready architecture |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

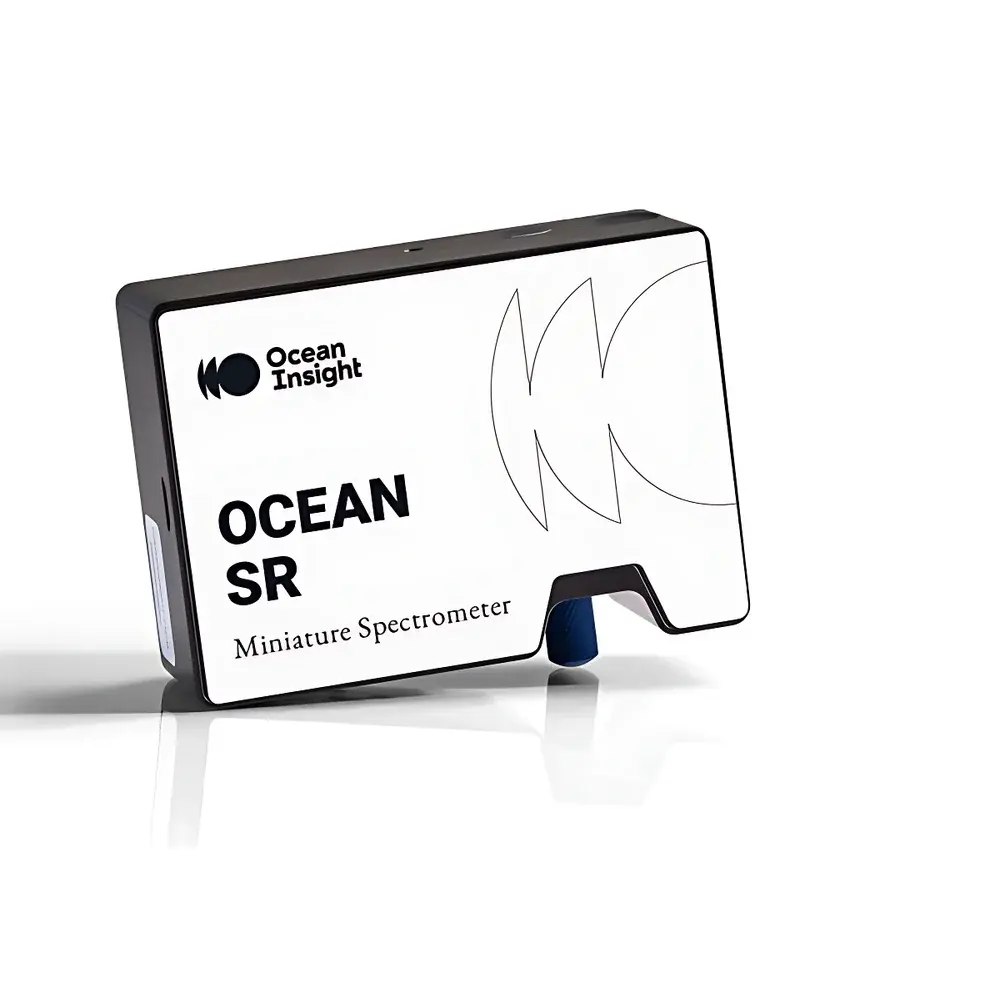

| Model | SR2 |
| Spectral Range | 185–1100 nm (configuration-dependent) |
| Detector Type | CCD |
| Optical Resolution (FWHM) | 0.56–1.71 nm |
| Signal-to-Noise Ratio (SNR) | 380:1 (single acquisition) |
| Dynamic Range | 3400:1 (single acquisition) |
| Integration Time | as low as 10 µs |
| Stray Light | Not Specified |
| Sensitivity | Not Specified |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | FS1100 |
| Spectral Range | 300–1100 nm |
| Detector Type | CCD |
| Optical Resolution (FWHM) | 1.3 nm |
| Signal-to-Noise Ratio | 450:1 |
| Dynamic Range | 8,000:1 |
| Stray Light | <0.05% at 600 nm |

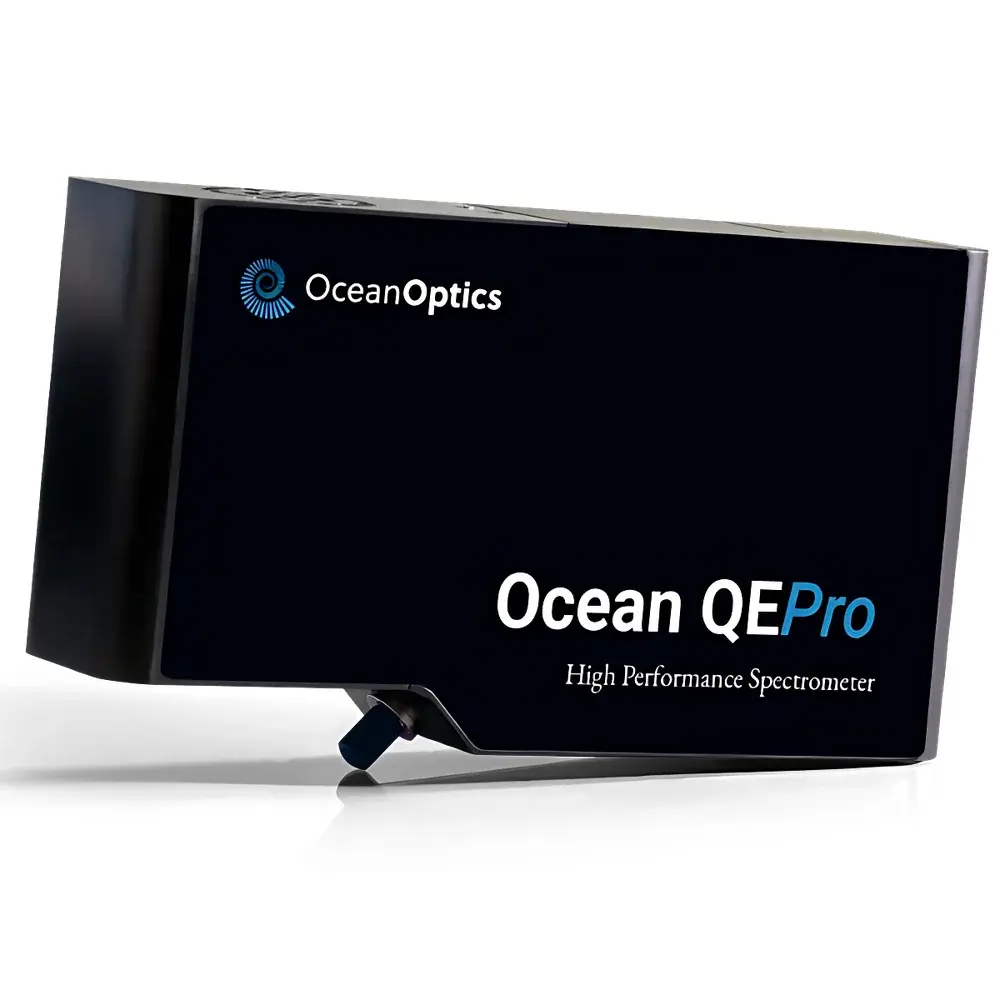

| Brand | Ocean Insight |
|---|---|
| Origin | USA (Manufactured in Orlando, FL) |
| Detector Type | Back-Illuminated CCD |
| Spectral Range | Configurable from 185–1100 nm |
| Resolution | 18-bit digitization |
| Peak Quantum Efficiency | 90% |
| Signal-to-Noise Ratio | 1000:1 (full well, single acquisition) |
| Dynamic Range | 85,000:1 (typical, with on-board averaging) |
| Stray Light | <0.08% at 600 nm |
| Onboard Memory Buffer | 15 MB |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

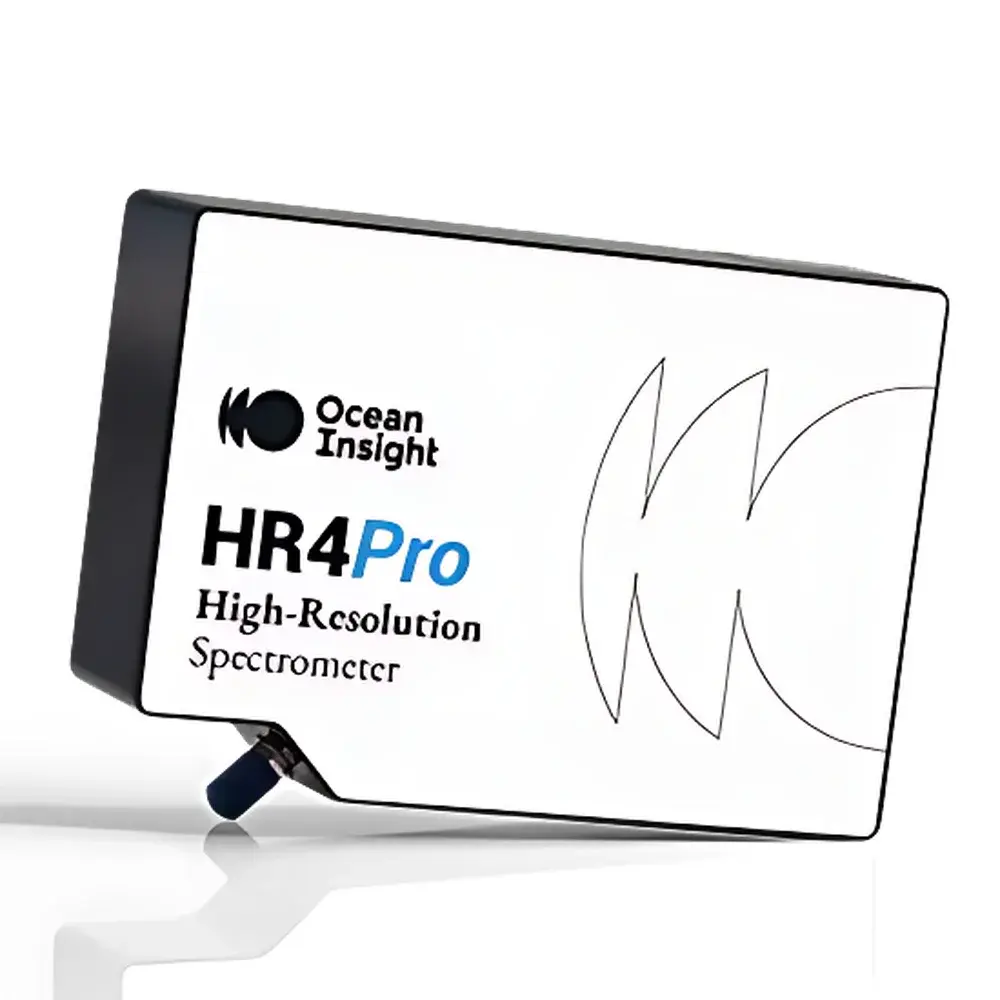

| Model | HR4Pro |
| Spectral Range | 190 nm – 1100 nm |
| Detector | Linear Silicon CCD Array |
| Optical Resolution (FWHM) | 0.42 nm (typical), 0.72 nm (typical) |
| Sensitivity | 6 counts (RMS dark noise) |
| Signal-to-Noise Ratio | 250:1 (full signal), 290:1 (full signal), 300:1 (full signal) |
| Dynamic Range | 2000:1, 2500:1, 1500:1 (single acquisition) |
| Stray Light | <0.05% at 600 nm |
| Slit Options | 5 µm, 10 µm |
| Grating Options | H13, H38, H48, HC1 |
| A/D Resolution | 14-bit |
| Integration Time | 3.8 ms – 10 s |
| Thermal Drift | 0.03–0.06 pixels/°C |
| Dimensions | 148.6 mm × 104.8 mm × 45.1 mm |
| Weight | 570 g |
| Interface | USB 2.0 (480 Mbps), RS-232, I²C |
| Fiber Connector | SMA 905 |
| Brand | Ocean Optics |
|---|---|
| Model | Ocean-FX |
| Spectral Range | 200–1100 nm |
| Optical Resolution | 0.8 nm (FWHM) |
| Detector | Hamamatsu S11639 CMOS |
| Slit Options | 5, 10, 25, 50, 100, or 200 µm (SMA 905 or FC connector) |
| Signal-to-Noise Ratio (single scan) | ~270:1 |
| Dynamic Range (single scan) | ~6400:1 |
| Integration Time | 10 µs – 10 s |
| Maximum Scan Rate | 3000 scans/s (host-dependent) |
| Stray Light | <0.08% at 600 nm |
| Thermal Drift | 0.11 pixels/°C |
| Onboard Buffer | 50,000 spectra with timestamping |
| Connectivity | Gigabit Ethernet, Wi-Fi 802.11n, USB 3.0 |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | MicroTEQ-S1 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Range | 400–1100 nm |
| Spectral Resolution | ~10 cm⁻¹ @ 5 µm slit |
| Spatial Resolution | 0.14–7.7 nm (dependent on objective magnification and laser wavelength) |
| Minimum Wavenumber Shift | 200 cm⁻¹ |
| Spectral Reproducibility | Not specified |
Show next
