| Brand | Ocean Optics |
|---|---|

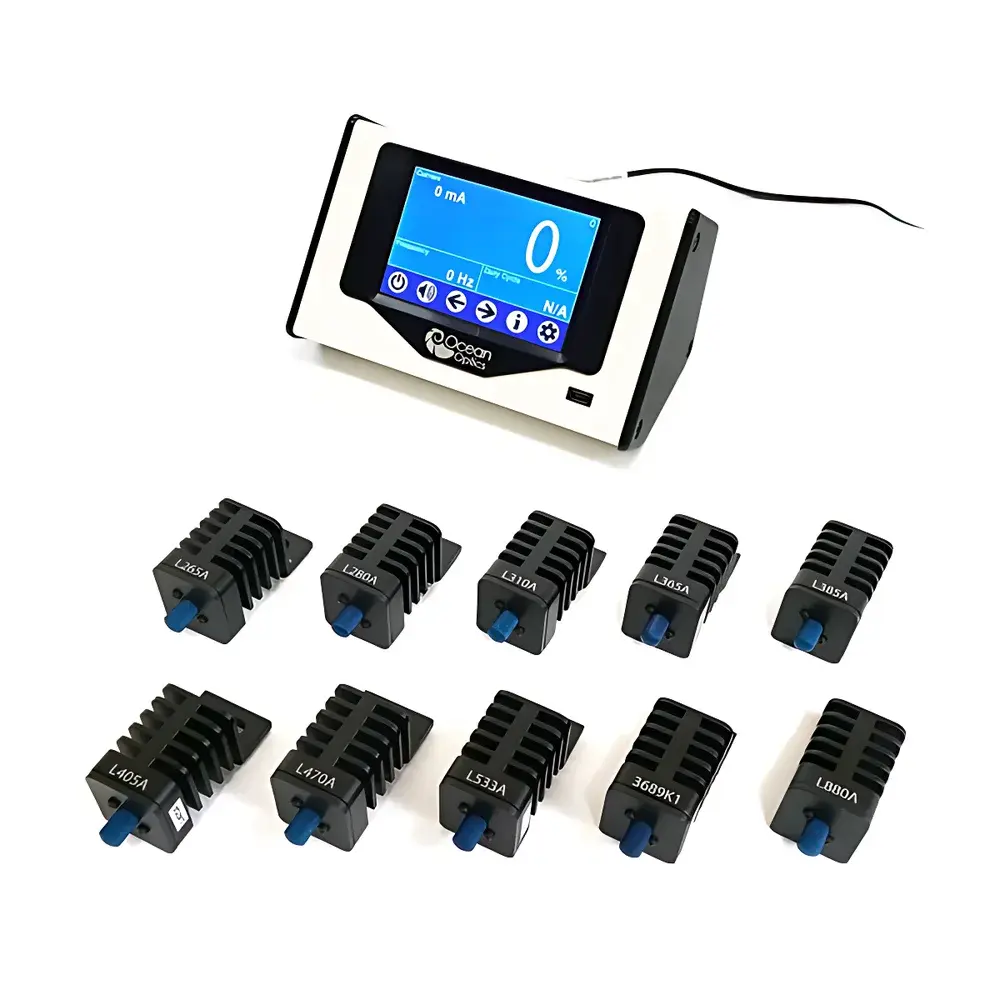

| Model | LSM |
| Light Source Type | High-Stability Narrowband LED |
| Illumination Mode | Internal Illumination (Fiber-Coupled) |
| Optical Interface | SMA 905 |
| Dimensions (LSM) | 3.0 × 6.4 × 3.3 cm |
| Weight (LSM) | 120 g |
| Power Consumption (LSM) | ≤2 A max |
| Operating Temperature | 0–50 °C |
| Relative Humidity | ≤85% RH, non-condensing |
| Safety Compliance | CE |
| Dimensions (LDC-1 Controller) | 14.7 × 7.3 × 8.9 cm |
| Weight (LDC-1) | 800 g |
| Power Supply | 15 VDC, 30 W max |
| Display | 3.5″ 480×320 touchscreen |
| Modulation Modes | Internal DC, sine, triangle, square wave |
| Max Drive Current | 350–2000 mA (model-dependent) |
| Typical CW Output Power (into 400 µm, 0.39 NA fiber) | 0.18–20.55 mW |
| Pulsed Output Power (same fiber) | 0.22–20.55 mW |
| Center Wavelength (CWL) Range | 265–880 nm |
| FWHM | 1–44 nm (model-dependent) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

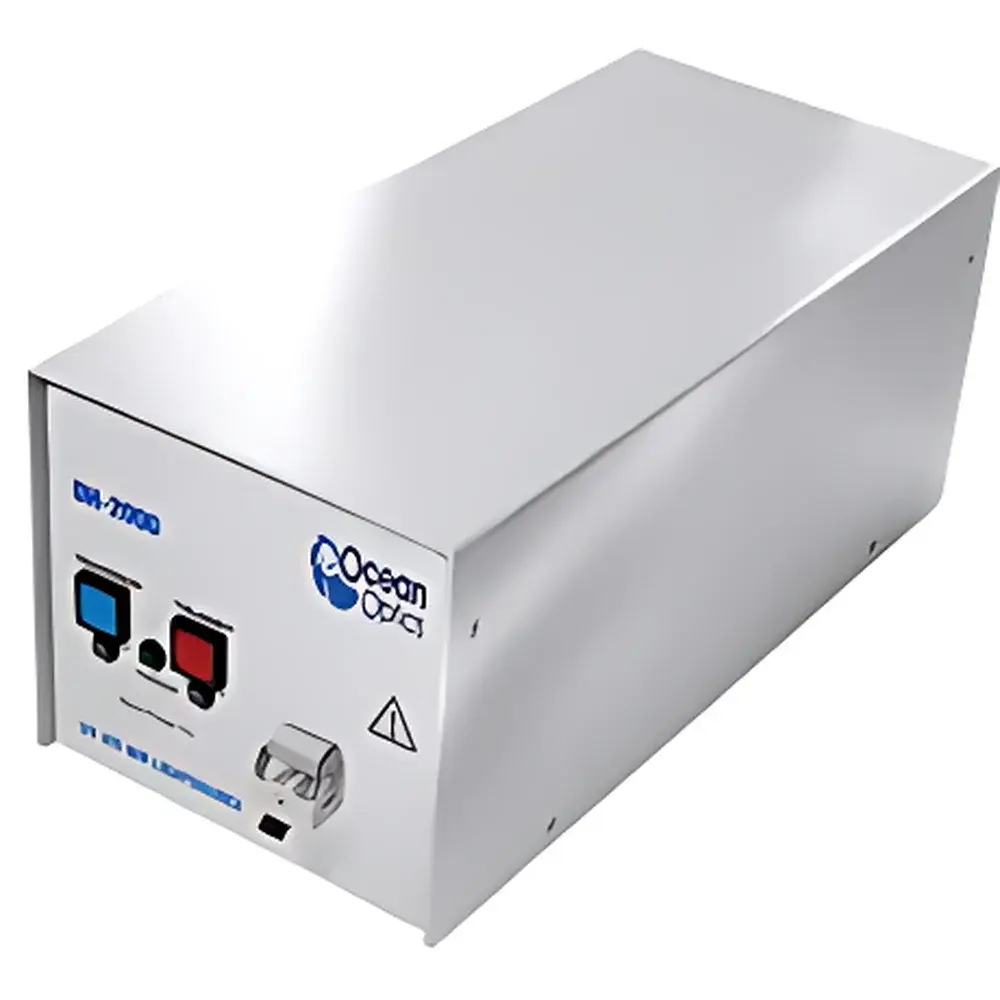

| Model | DH-2000 |
| Light Source Type | Deuterium + Tungsten-Halogen Hybrid |
| Illumination Mode | External Illumination |
| Spectral Range | 190–1700 nm (UV-enhanced option), 215–2000 nm (standard) |
| Dimensions | 150 mm × 135 mm × 319 mm |
| Weight | 3.5 kg |
| Power Consumption | 25 W (deuterium lamp), 20 W (tungsten-halogen lamp), ~78 VA total |
| Warm-up Time | 40 min (D₂), 20 min (W-Hal) |
| Lamp Lifetime | 1,000 hours |
| Operating Temperature | 5–35 °C |
| Humidity | 5–95% RH at 40 °C (non-condensing) |
| Voltage Stability | <5 × 10⁻⁶ peak-to-peak (0.1–10.0 Hz) |
| Drift | <0.01% per hour |
| Safety Certifications | CE, VDI/VDE 0160, EN 61010 |
| Brand | Ocean Optics |
|---|---|
| Origin | Imported |
| Manufacturer | Ocean Optics |

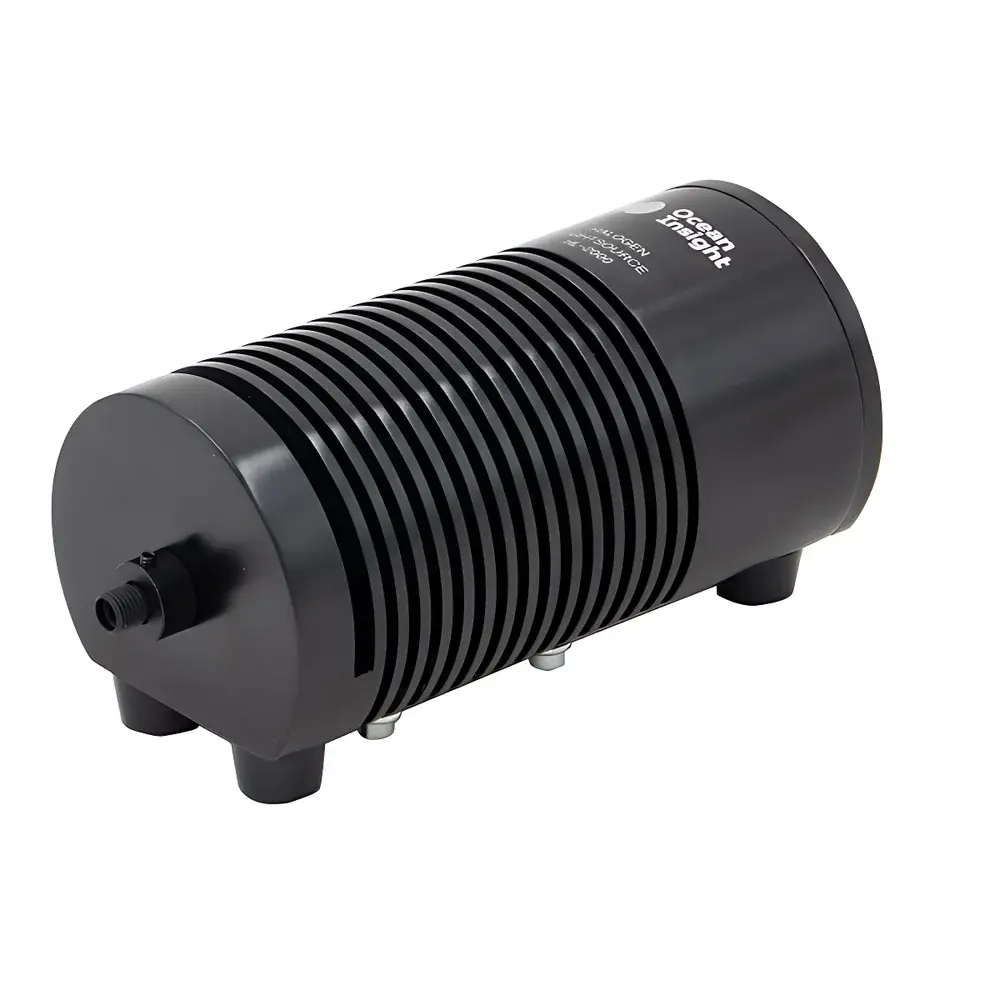

| Model | HL-2000-CAL |
| Light Source Type | Tungsten-Halogen (Calibrated) |
| Illumination Mode | External Illumination |
| Spectral Range (Calibrated) | 300–1050 nm |
| Output Intensity Unit | µW/cm²/nm |
| Power Supply | 12 VDC, 600 mA |
| Lamp Power | 6.5 W |
| Lamp Lifetime | 900 h |
| Recommended Recalibration Interval | Every 50 h of operation |
| Color Temperature | 3100 K |
| Voltage Stability | ±0.2% |
| Warm-up Time to Stability | ~30 min |
| Fiber Connector | SMA905 |
| Cosine Adapter Interface | 6.35-mm barrel |
| Integrating Sphere Interface | PTFE plug |
| Certifications | NIST-traceable calibration certificate provided (paper + digital) |
| Brand | Ocean Optics |
|---|---|
| Model | HL-2000 |
| Light Source Type | Tungsten-Halogen |
| Spectral Range | 360 nm – 2000 nm |
| Output Power | 7 W (standard), 20 W (HP variant) |
| Lamp Life | 1,500 h (standard), 10,000 h (LL variant), 2,000 h (HP) |
| Stability | ±0.5% |
| Drift | <0.3% per hour |
| Warm-up Time | ~5 min |
| Color Temperature | 2,960 K (standard), 2,800 K (LL), 3,000 K (HP) |
| Operating Temperature | 5–35 °C |
| Relative Humidity | 5–95% at 40 °C |
| Cooling | Integrated fan-cooled thermal management |
| Fiber Interface | SMA905-compatible adjustable coupling |
| Filter Holder | 25.4 mm × 25.4 mm or 50.8 mm × 50.8 mm square, 3 mm thick |
| Control Interface | RS-232 (optional on HP-RS-232), TTL shutter, manual attenuator |
| Shutter Options | Manual and TTL-controlled (HL-2000-FHSA) |
| Power Supply | Integrated stabilized DC supply |
| Brand | Ocean Optics |
|---|---|
| Model | HPX-2000 |
| Light Source Type | Xenon Lamp |
| Spectral Range | 185–2200 nm |
| Output Power | 35 W |
| Electrical Input | 60 W AC |
| Dimensions | 145 × 165 × 260 mm |
| Weight | 5000 g |
| Lamp Lifetime | ≥1000 h (typ. 2000 h) |
| Shutter Control | Integrated mechanical shutter with manual switch & TTL-compatible trigger (15-pin D-sub) |
| Filter Holder | Accepts 25 mm round or 25 × 25 mm square filters, up to 14 mm thick |
| Fiber Coupling | SMA 905 connector |
| UV-Optimized Operation | Requires UV-grade optical fiber for sub-300 nm applications |
| Brand | Ocean Optics |
|---|---|
| Origin | Imported |
| Manufacturer Type | Manufacturer |
| Model | DH-2000-BAL |
| Light Source Type | Deuterium + Tungsten-Halogen Hybrid |
| Illumination Mode | External Illumination |
| Wavelength Range | 215–2000 nm |
| Deuterium Lamp Range | 215–400 nm |
| Tungsten-Halogen Lamp Range | 360–2000 nm |
| Power Consumption | 25 W (D₂), 20 W (W-Hal), Max. 190 W |
| Warm-up Time | 40 min (D₂), 20 min (W-Hal) |
| Dimensions | 150 × 135 × 319 mm |
| Weight | 3.8 kg |
| Operating Temperature | 5–35 °C |
| Humidity | 5–95% RH (non-condensing at 40 °C) |
| Stability | <0.01% per hour (intensity drift), <5 × 10⁻⁶ peak-to-peak (0.1–10 Hz) |
| Certifications | CE, VDI/VDE 0160, EN 61010 |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |

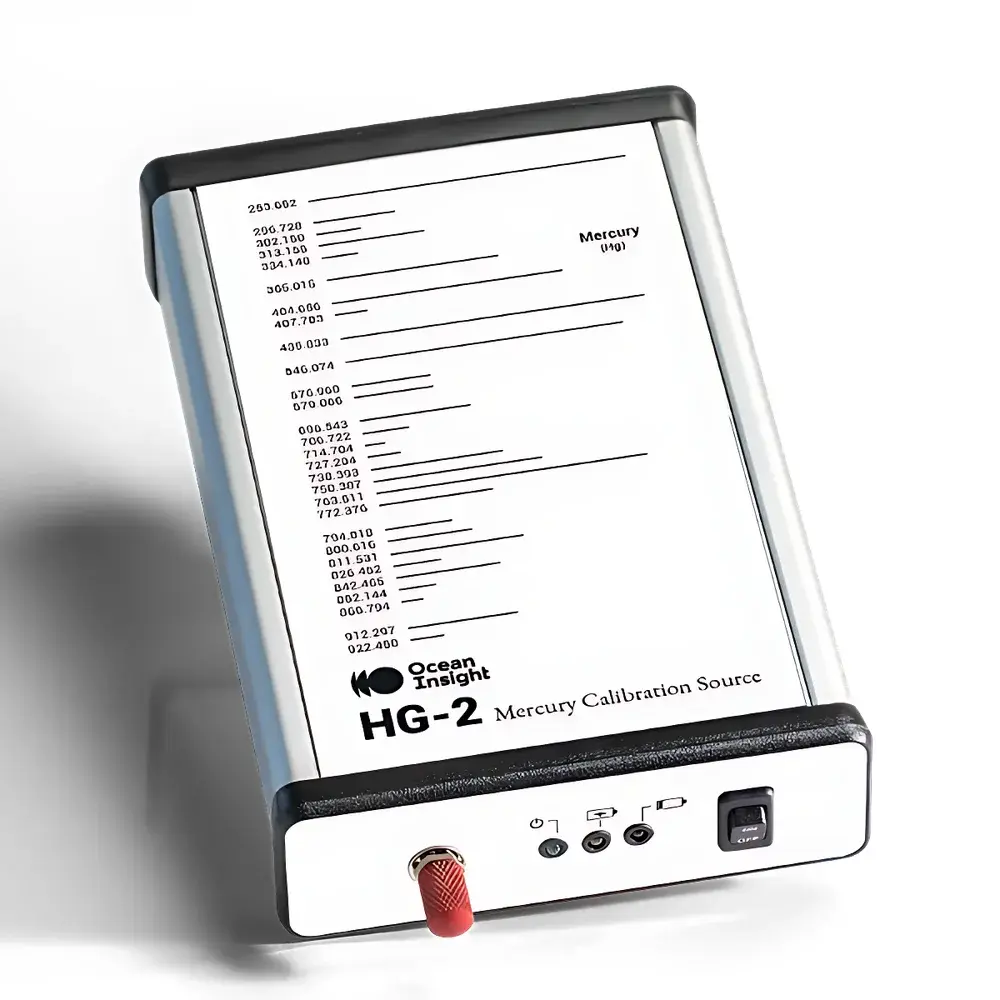

| Model | HG-2 Calibration Light Source |
| Light Source Type | Low-Pressure Mercury Vapor Lamp |
| Illumination Mode | Internal Illumination Configuration |
| Dimensions | 12.6 × 7.0 × 2.6 cm |
| Weight | 180 g |
| Power Consumption | ≤2 A at 5 VDC (external supply or embedded Li-ion battery charging mode) |
| Battery | Rechargeable, integrated lithium-ion |
| Lamp Lifetime | 3,500 hours (typical) |
| Aperture Diameter | 3 mm |
| Amplitude Stability | <±0.5% over 60 s (after thermal stabilization) |
| Fiber Connector | SMA 905 |
| Spectral Range | 170–1700 nm (HG-2 variant) |
| Brand | Ocean Optics |
|---|---|
| Origin | Imported |
| Manufacturer Type | Manufacturer |

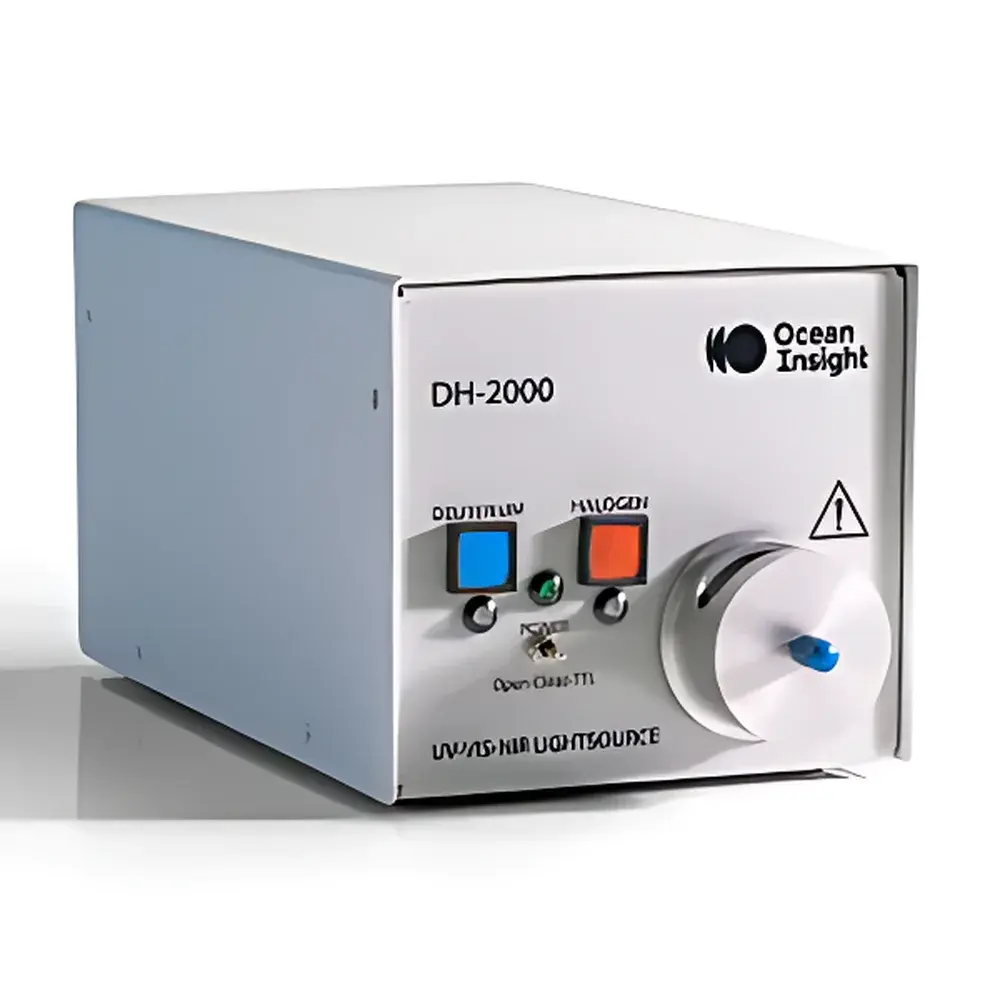

| Model | DH-2000-CAL |
| Light Source Type | Xenon-based (Deuterium + Tungsten-Halogen) |
| Illumination Mode | External Illumination |
| Calibration Wavelength Range | 220–1050 nm |
| Calibration Uncertainty | ±5% |
| Calibration Validity | 50 hours of operation |
| Power Consumption | 25 W (D₂), 20 W (W-Halogen), max. 190 W total |
| Warm-up Time | 40 min (D₂), 20 min (W-Halogen) |
| Dimensions | 150 × 135 × 319 mm |
| Weight | 6 kg |
| Input Voltage | 85–264 V AC, 50/60 Hz |
| Voltage Stability | <5 × 10⁻⁶ peak-to-peak (0.1–10.0 Hz) |
| Humidity | 5–95% RH (non-condensing at 40 °C) |
| Operating Temperature | 5–35 °C |
| Certifications | CE, VDI/VDE 0160, EN 61010 |
| Brand | Ocean Optics |
|---|---|

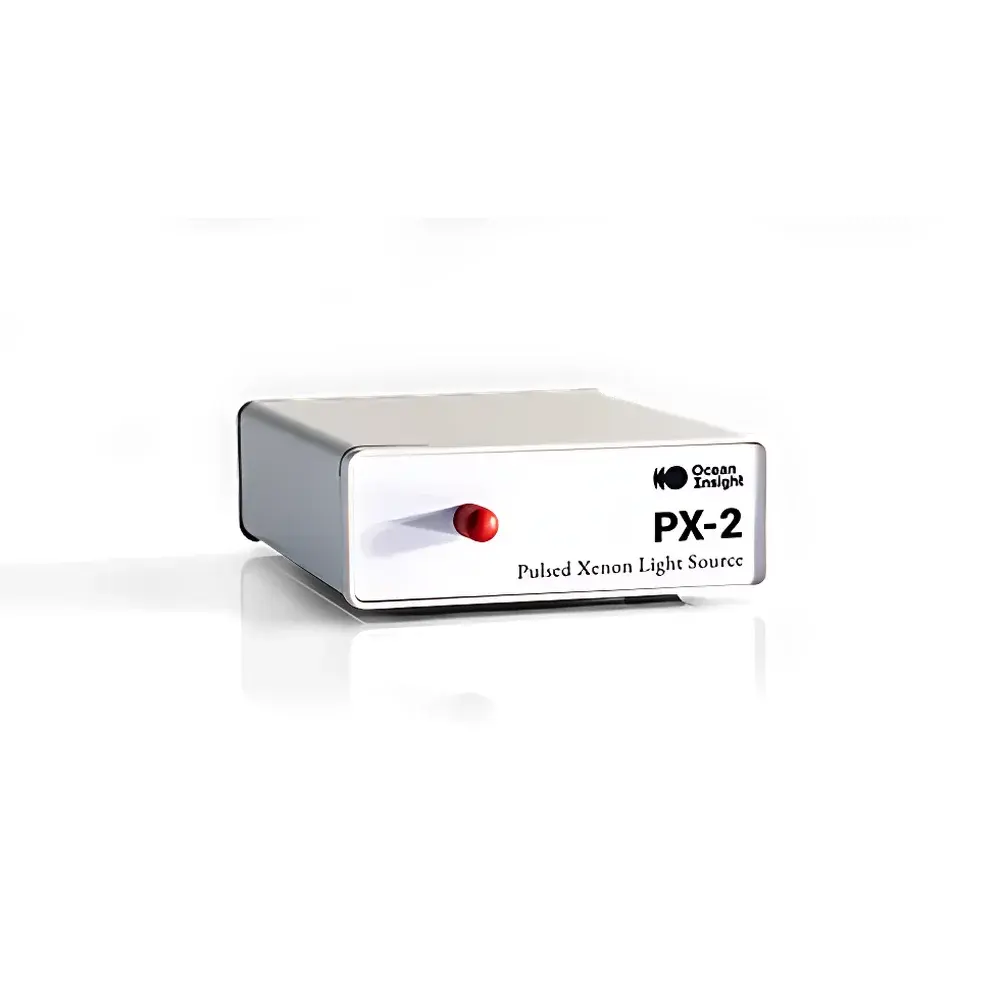

| Model | PX-2 |
| Light Source Type | Pulsed Xenon Lamp |
| Spectral Range | 220–750 nm |
| Pulse Duration | 5 µs (FWHM) |
| Max Pulse Repetition Rate | 220 Hz |
| Pulse Energy per Flash | up to 45 µJ |
| Average Lamp Power | 9.9 W |
| Trigger Input | TTL-positive via 15-pin D-sub connector |
| Output Coupling | SMA 905 fiber port |
| Dimensions | 14 × 10.5 × 4 cm (L×W×H) |
| Lamp Lifetime | 1×10⁹ pulses (≈230 days at 50 Hz) |
| Compliance | CE-marked, RoHS-compliant |
| Software Control | Dual-mode TTL triggering (single-channel & multi-channel synchronization) |
| Interface Compatibility | Fully integrated with Ocean Insight spectrometers (e.g., USB2000+, QE Pro, Flame series) and third-party DAQ systems |
