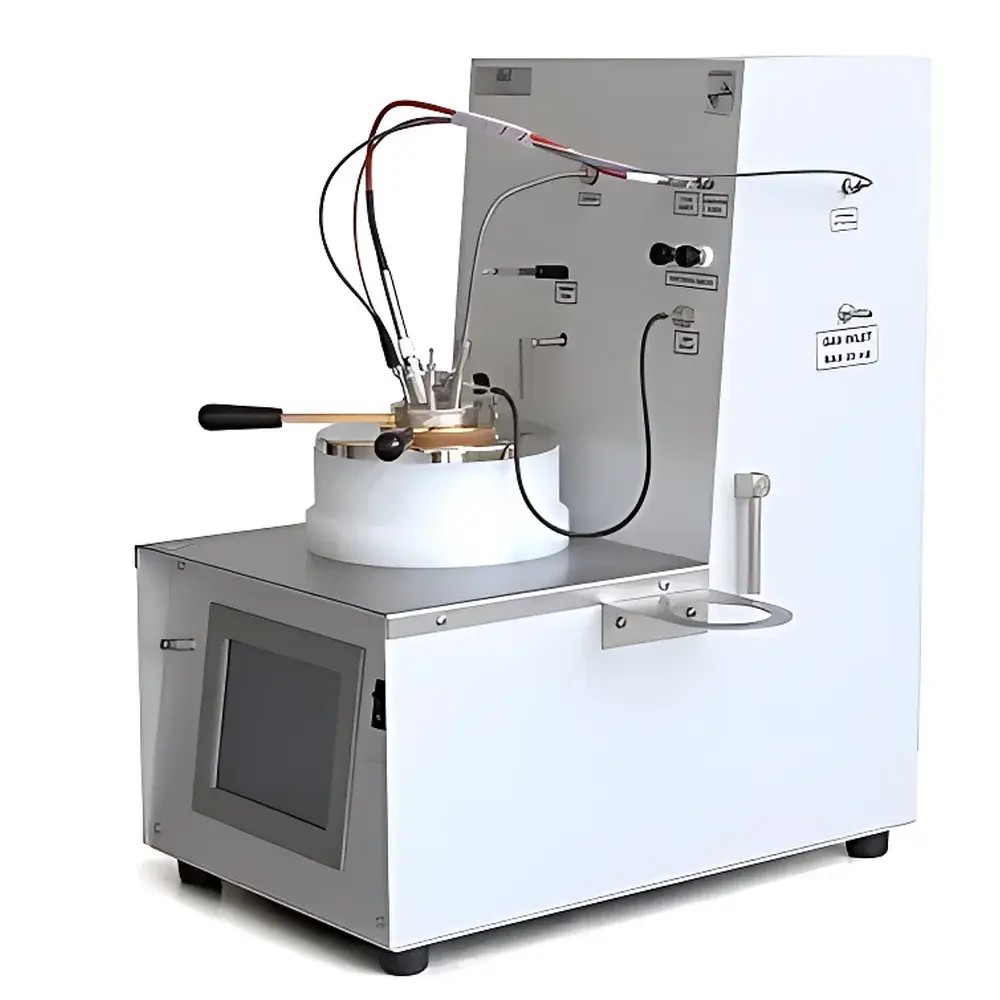

Abel IP170 Automatic Flash Point Tester
| Origin | Switzerland |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IP170 |
| Pricing | Available Upon Request |
Overview
The Abel IP170 Automatic Flash Point Tester is a precision-engineered, fully automated instrument designed for the accurate determination of flash point in petroleum products and related hydrocarbon-based liquids using the standardized Abel closed-cup method. It operates in strict accordance with internationally recognized test standards—including IP 170 (Institute of Petroleum), ISO 13736, and ASTM D3278—ensuring regulatory compliance and methodological traceability for quality control laboratories, refineries, and independent testing facilities. The instrument employs a controlled heating cycle within a sealed brass test cup, coupled with precise electronic temperature regulation and timed gas ignition, to detect the lowest temperature at which vapors above the sample ignite momentarily when exposed to an ignition source. Its operational range spans from –30 °C to +71 °C, making it particularly suitable for low-flash-point fuels such as gasoline, naphtha, kerosene fractions, and solvent blends where high thermal resolution and repeatability are critical.
Key Features
- Abel closed-cup methodology fully implemented per IP 170 and ISO 13736 specifications
- Electronically regulated heating system with PID-controlled thermal ramping for stable, reproducible temperature profiles
- Brass test cup and lid assembly engineered for optimal thermal mass and vapor containment; integrated manual gas ignition valve for operator-initiated flame application
- Motor-driven stirrer ensures uniform sample temperature distribution during heating and equilibration phases
- Copper air bath enclosure with stainless-steel outer housing provides consistent ambient thermal isolation and mechanical durability
- Digital platinum resistance thermometer (PRT) probe with ±0.1 °C accuracy and real-time display of cup temperature throughout the test sequence
- Automated endpoint detection logic minimizes subjective interpretation and supports GLP-compliant documentation workflows
Sample Compatibility & Compliance
The IP170 is validated for use with transparent and slightly hazy liquid petroleum samples—including distillates, light fuel oils, and hydrocarbon solvents—with kinematic viscosities up to 5 mm²/s at 40 °C. It is not intended for viscous or highly volatile mixtures outside its specified flash point range. Regulatory alignment includes full compatibility with ISO/IEC 17025 laboratory accreditation requirements, and test reports generated via connected data systems may be structured to support audit readiness under FDA 21 CFR Part 11 (when paired with compliant software and user access controls). Instrument design conforms to IEC 61010-1 safety standards for electrical equipment used in laboratory environments.
Software & Data Management
While the base IP170 operates as a stand-alone unit with on-device digital readout and manual result recording, optional RS-232 or USB interfaces enable integration with laboratory information management systems (LIMS) or custom QA/QC databases. When interfaced, the instrument transmits timestamped test parameters—including start temperature, heating rate, observed flash point, and operator ID—supporting automated report generation and long-term trend analysis. Data export formats include CSV and ASCII text, facilitating import into statistical process control (SPC) platforms. For regulated environments, supplementary software modules can provide electronic signatures, audit trails, and user permission hierarchies aligned with GLP and GMP documentation practices.
Applications
- Flash point verification of gasoline, aviation turbine fuel (Jet A-1), and diesel blendstocks prior to blending or shipment
- Quality assurance testing in refinery intermediate product streams and finished fuel certification
- Compliance screening for transportation regulations (e.g., UN TDG Class 3, ADR/RID, IMDG Code)
- Research and development of low-flash formulations, including biofuel blends and specialty solvents
- Third-party conformity assessment laboratories accredited to ISO/IEC 17025 conducting routine flash point certification
FAQ
What standards does the Abel IP170 comply with?
It is fully compliant with IP 170, ISO 13736, and technically aligned with ASTM D3278 for closed-cup flash point determination.
Can the IP170 be used for samples with flash points above 71 °C?
No—the instrument’s certified operating range is strictly –30 °C to +71 °C; higher-temperature applications require alternative methods such as Pensky-Martens (IP 34/ASTM D93).
Is calibration traceable to national standards?
Yes—temperature sensor calibration is performed using NIST-traceable reference thermometers, and calibration certificates are provided upon installation or service.
Does the system support automated data archiving?
With optional interface hardware and compatible host software, raw test data and metadata can be exported and archived in accordance with internal QA protocols or regulatory retention policies.
What maintenance is required for routine operation?
Daily cleaning of the brass cup and lid with approved solvent, periodic verification of stirrer function and ignition gas flow, and annual recalibration of the temperature sensor are recommended per the manufacturer’s maintenance schedule.
