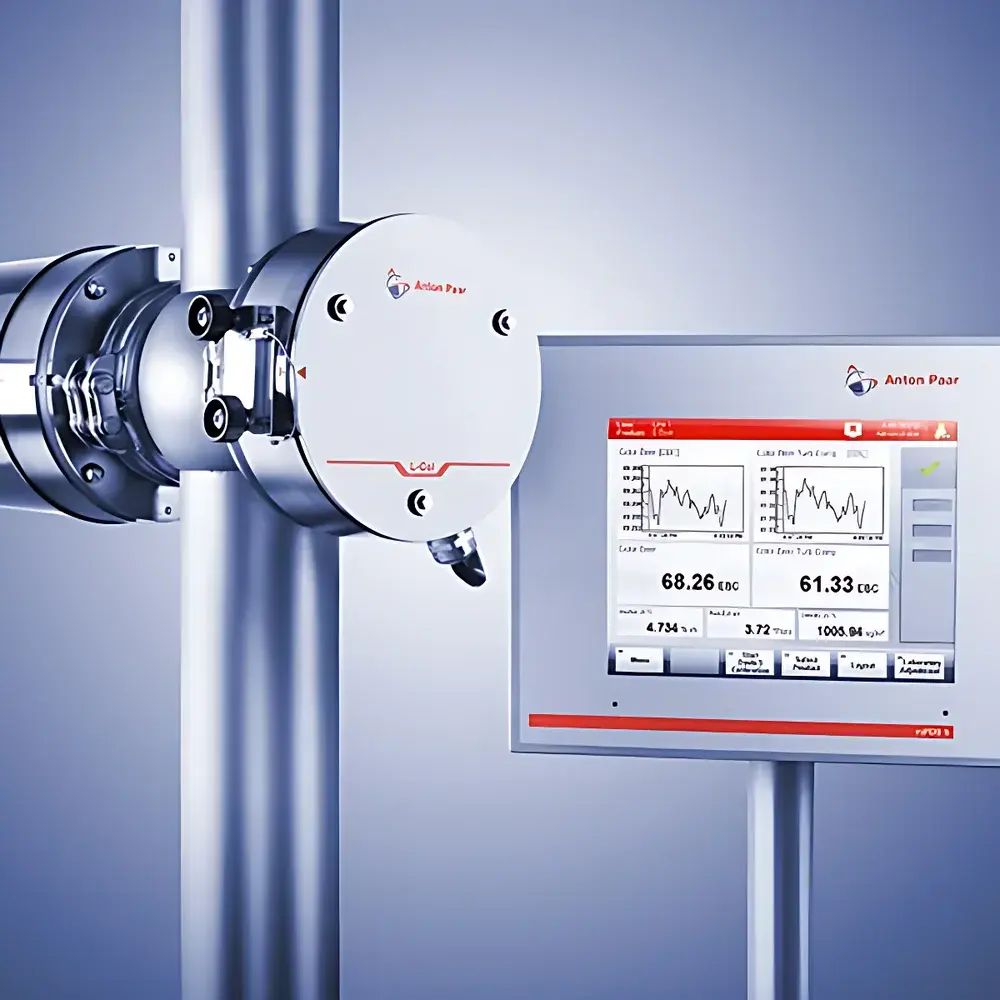

Anton Paar L-Col 6100 Beverage Color Sensor

Overview

The Anton Paar L-Col 6100 Beverage Color Sensor is a purpose-built, in-line photometric sensor engineered for continuous, real-time color measurement of liquid beverages during production. It operates on the principle of absorbance spectroscopy—measuring light attenuation at defined wavelengths as process fluid flows through a calibrated optical path—enabling precise quantification of color intensity in compliance with internationally recognized brewing and beverage quality standards. Designed specifically for integration into sanitary process lines, the L-Col 6100 delivers traceable, reproducible color data without sample extraction, dilution, or offline lab intervention. Its core application domain spans beer, soft drinks, spirits, liqueurs, and wine—where color serves not only as an aesthetic attribute but also as a critical process indicator of wort boiling efficiency, aging progression, oxidation status, and additive dosing accuracy.

Key Features

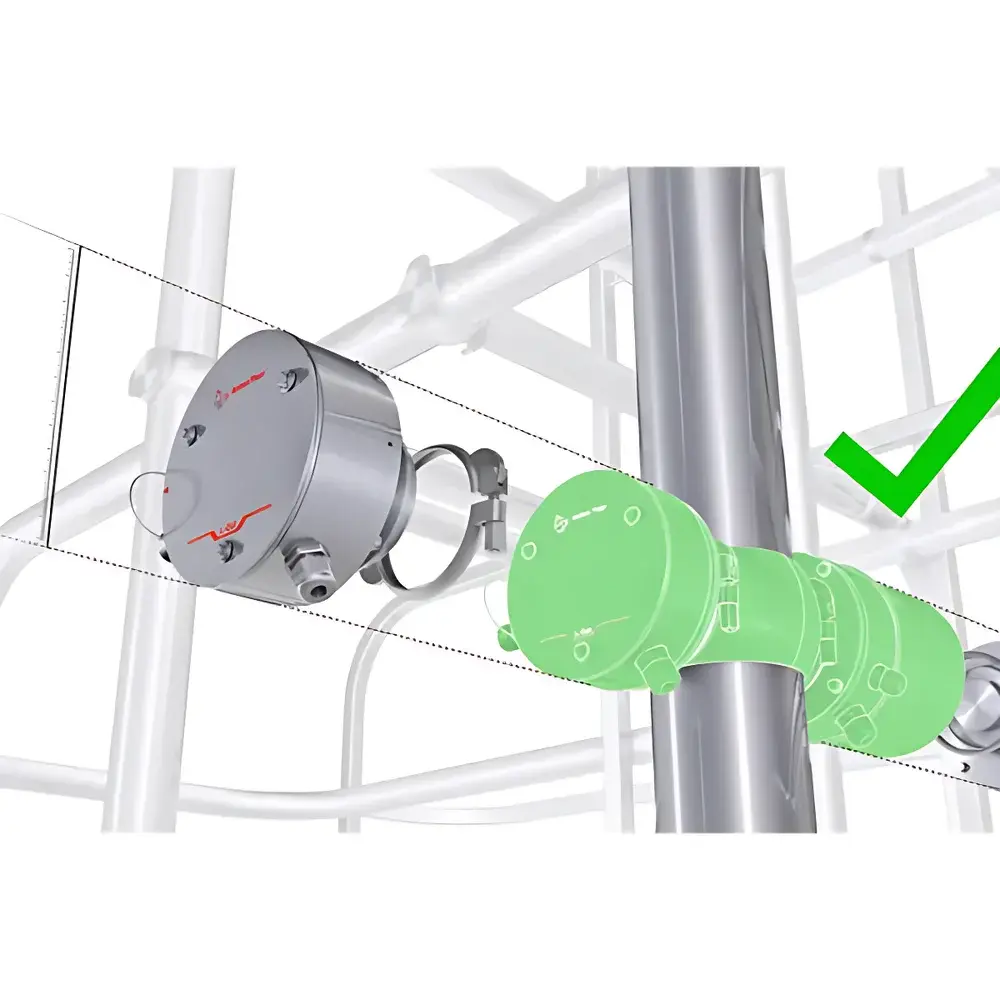

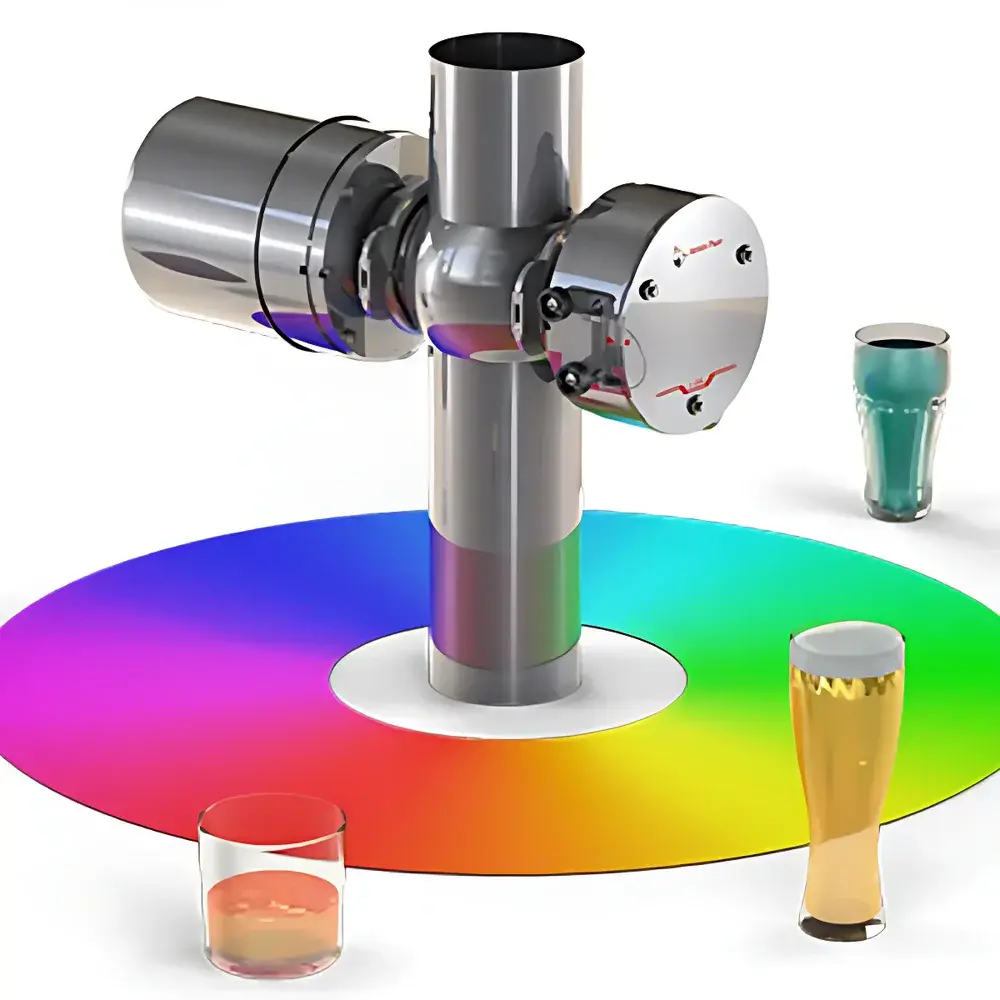

• Sanitary inline installation via EHEDG-certified VARIVENT® N-type hygienic fitting—no bypass loop, no tubing, no external flow cells required
• Optical path length (OPL) selection from 10 preconfigured options (ranging from 1 mm to 50 mm) to match pipe diameters and product opacity
• High-resolution absorbance detection from 0.000 to 3.000 AU with 0.001 AU resolution and linearity better than ±0.5% transmittance
• Dual-wavelength operation: primary measurement at 430 nm (EBC/MEBAK®/ASBC-compliant beer color), with automatic turbidity compensation at 700 nm to correct for yeast haze or particulate interference
• Optional multi-wavelength configuration: up to three user-selectable wavelengths—including UV (280 nm, 340 nm, 380 nm) and visible (390–700 nm in 10 nm increments; 455 nm, 760 nm)
• Long-life, thermally stabilized LED light source ensuring stable photometric output over extended operational lifetimes and minimal maintenance intervals
• Low power consumption (<5 W) and compact footprint—eliminates floor space requirements and preserves cleanroom or hygienic line integrity
• Full integration with Anton Paar’s mPDS 5 and Davis 5 software platforms for centralized data visualization, statistical process control (SPC), and audit-ready reporting

Sample Compatibility & Compliance

The L-Col 6100 is validated for use with transparent to moderately turbid aqueous beverages across pH 2.5–6.5 and temperatures up to 85 °C (process-dependent). It complies with MEBAK® specifications for beer color measurement and supports EBC (European Brewery Convention), ASBC (American Society of Brewing Chemists), and IOB (Institute of Brewing) standard conversions. The sensor meets EHEDG EL Class A hygienic design criteria and carries CE, ATEX (optional), and FDA-compliant wetted material certifications (316L stainless steel, EPDM/FKM gaskets, quartz optical windows). All firmware and calibration routines adhere to GLP/GMP principles, with full traceability of calibration history, operator logs, and timestamped measurement records aligned with 21 CFR Part 11 requirements when deployed with Davis 5 software.

Software & Data Management

The L-Col 6100 communicates via 4–20 mA analog output, Modbus RTU/TCP, or PROFIBUS DP to PLCs and DCS systems. When connected to Anton Paar’s mPDS 5 evaluation unit or integrated into the Davis 5 analytics platform, it enables synchronized trending of color alongside other online parameters (e.g., alcohol, CO₂, density). Davis 5 provides automated report generation, SPC charting (X-bar/R, Cpk), deviation alerts, and direct correlation of inline color values with laboratory reference measurements—such as those obtained from packaged beverage analyzers (e.g., Alcolyzer Beer M, DMA 4500 M). Audit trails include user authentication, parameter change logs, and electronic signatures compliant with regulated environments.

Applications

• Real-time monitoring of beer color evolution during maturation and cold storage
• End-of-line final quality verification prior to packaging (bottling/canning)
• Control of caramel dosing and adjunct blending in non-alcoholic malt beverages
• Turbidity-compensated color tracking in unfiltered craft beers and hazy IPAs
• Batch-to-batch consistency validation in spirit aging and liqueur formulation
• Early detection of oxidative browning in fruit-based soft drinks and ready-to-drink teas
• Correlation studies between inline color and laboratory spectrophotometric results (e.g., HunterLab, Konica Minolta)

FAQ

Does the L-Col 6100 require periodic recalibration?

Yes—calibration is performed using certified reference standards traceable to NIST or PTB. Factory calibration is valid for 12 months under normal operating conditions; field verification with zero and span standards is recommended before each production shift.
Can the sensor be installed in existing pipelines without process interruption?

Yes—the VARIVENT® N mounting allows hot-tap installation on pressurized lines up to 10 bar, provided appropriate isolation valves and CIP/SIP compatibility are verified.
Is UV wavelength capability necessary for standard beer applications?

Not for routine EBC color determination; however, 280 nm and 340 nm channels support advanced applications such as polyphenol index estimation or Maillard reaction monitoring during wort boiling.
How is temperature drift compensated during long-term operation?

Internal temperature sensors feed real-time correction coefficients to the photometric algorithm, maintaining absorbance stability across the specified operating range (0–85 °C).
Can the L-Col 6100 interface with third-party MES or SCADA systems?

Yes—via standard industrial protocols (Modbus TCP, PROFIBUS DP, OPC UA with optional gateway), enabling seamless data ingestion into enterprise-level manufacturing execution systems.
