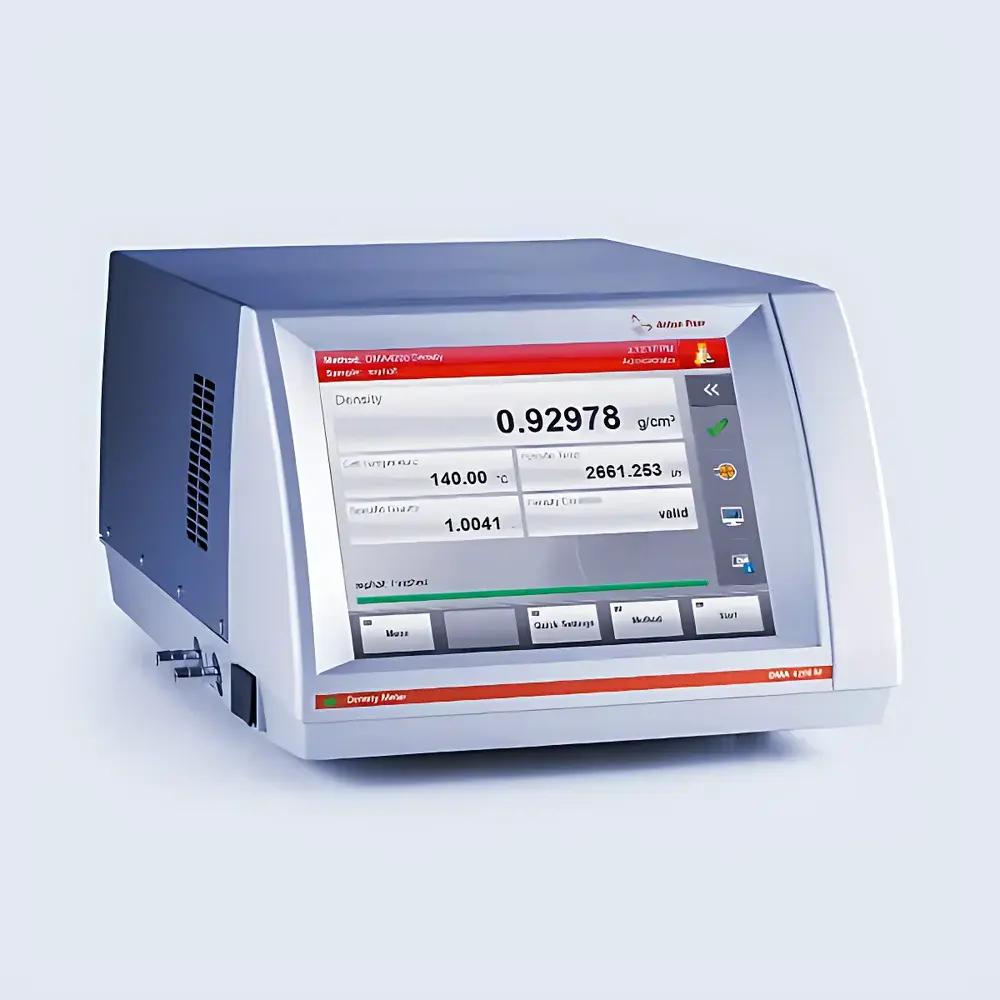

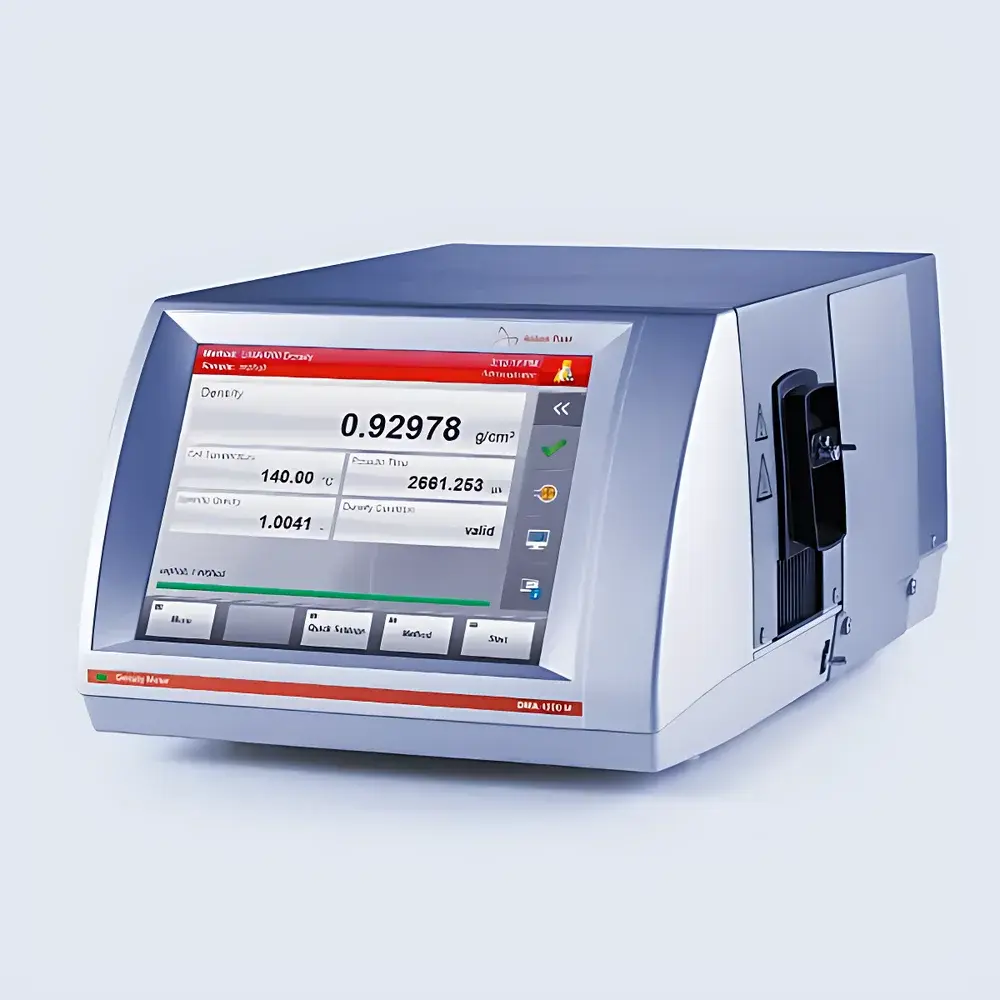

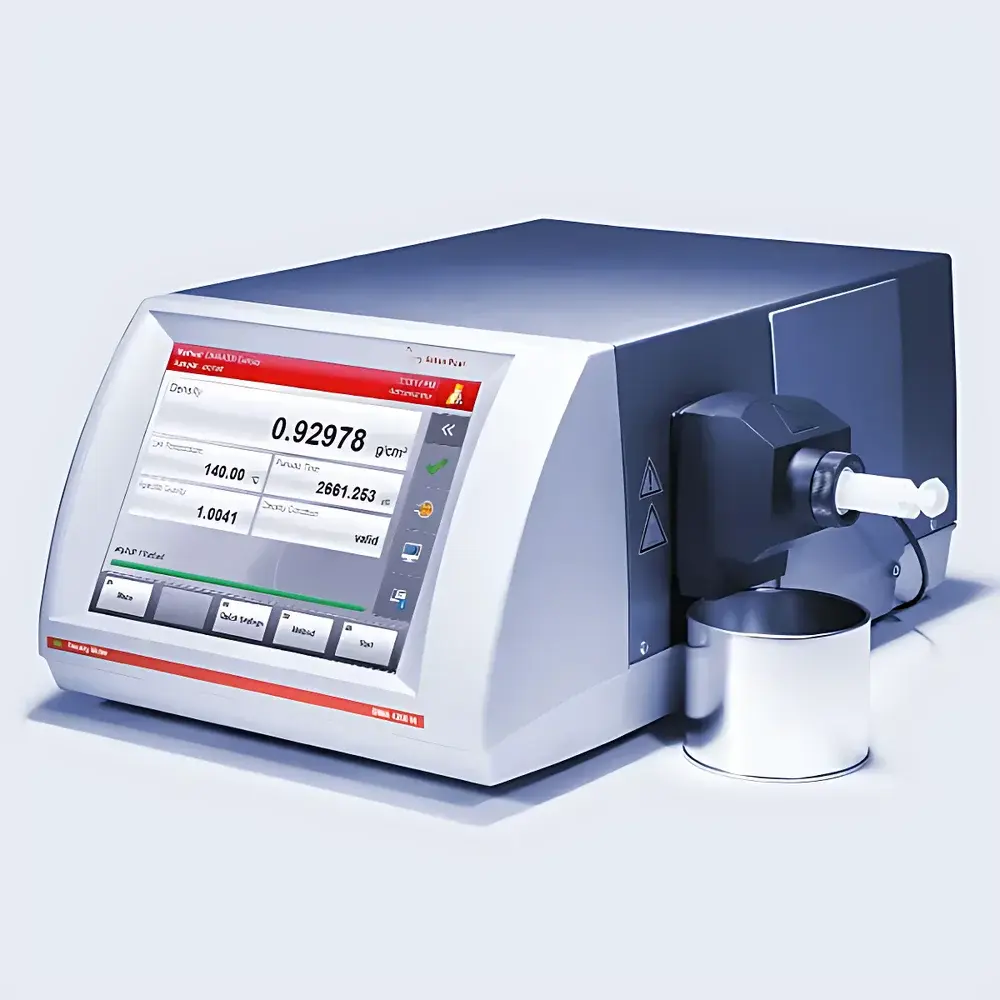

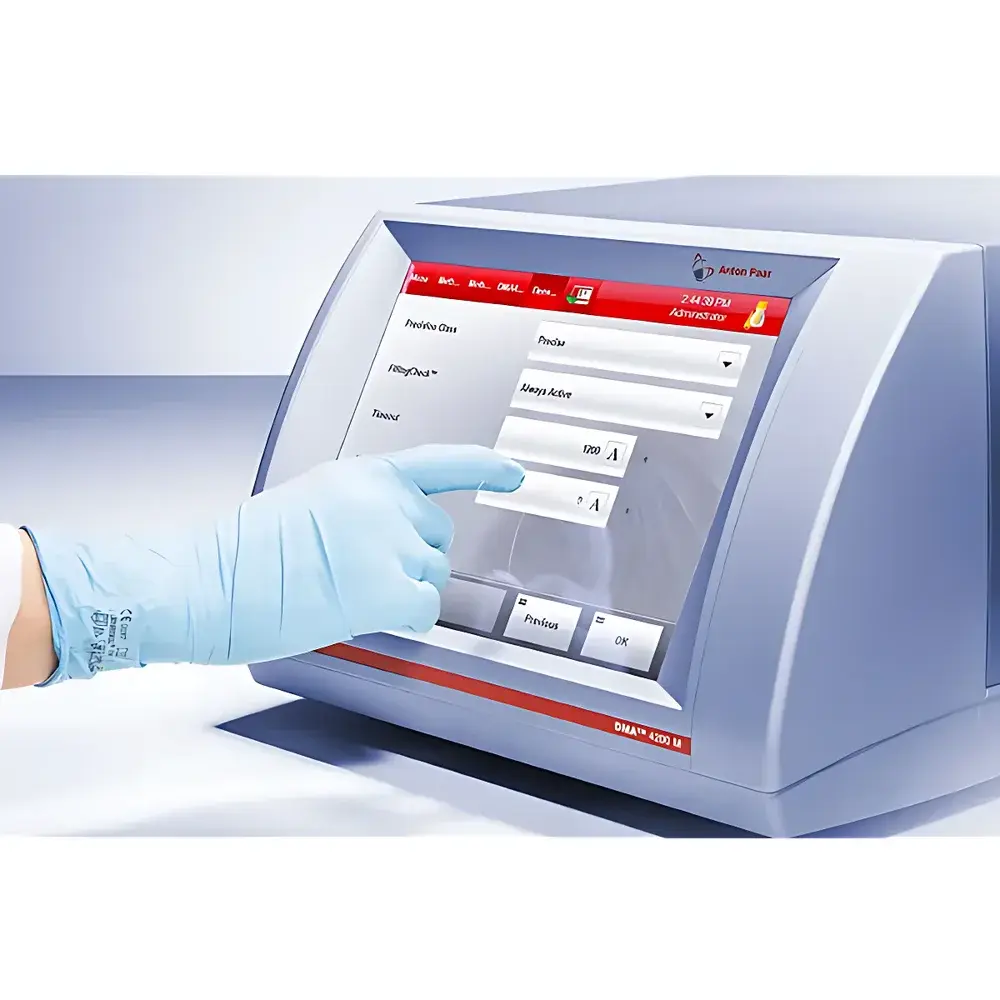

Anton Paar DMA 4200M High-Temperature and High-Pressure Oscillating U-Tube Densimeter
| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | DMA 4200M |
| Instrument Type | Oscillating U-Tube Densimeter |
| Form Factor | Benchtop Laboratory Instrument |
| Sample Type | Liquid |
| Density Range | 0–3 g/cm³ |
| Density Accuracy | ±0.0002 g/cm³ |
| Density Repeatability (s.d.) | ±0.00005 g/cm³ |
| Digital Resolution | 0.00001 g/cm³ |
| Temperature Range | −10 °C to 200 °C (14 °F to 392 °F) |
| Pressure Range | 0–500 bar (7250 psi) |
| Minimum Sample Volume | 2 mL |
| Viscosity Correction | Fully Automated, Real-Time |
| Filling Verification | FillingCheck™ |
| Thermal Equilibration Technology | Temperfect™ |
| Oscillation Excitation Method | Pulsed Excitation Method (Patent AT 516420 B1) |
| Wetted Materials | Hastelloy C-276 |
| Compliance Standards | ASTM D4052, ASTM D5002, GB/T 29617 |
| Power Supply | AC 100–240 V, 50–60 Hz, 250 VA |
| Interface Ports | 4× USB 2.0, 1× Ethernet (100 Mbit), 1× CAN Bus, 1× RS-232, 1× VGA, 1× 1/8″ OD metal pressure fitting |
Overview
The Anton Paar DMA 4200M is a high-precision, benchtop oscillating U-tube densimeter engineered for demanding density measurements under extreme thermal and pressure conditions—specifically designed for heavy hydrocarbon streams, crude oils, bitumens, and chemically aggressive process fluids. It operates on the fundamental physical principle of resonant frequency shift in a vibrating U-shaped tube: density is derived from the inverse square relationship between the measured oscillation period and the mass of the sample filling the tube. This method delivers inherent linearity, minimal drift, and exceptional long-term stability without calibration drift over time. Unlike traditional hydrometers or pycnometers, the DMA 4200M eliminates operator-dependent errors and enables direct, traceable measurement under process-relevant conditions—up to 500 bar and −10 °C to 200 °C—making it indispensable for PVT (pressure-volume-temperature) analysis, phase behavior studies, and real-time quality control across upstream, midstream, and downstream petroleum operations.
Key Features
- Pulsed Excitation Method (Patent AT 516420 B1): Delivers superior signal-to-noise ratio and mechanical robustness by applying controlled, non-resonant excitation pulses—minimizing tube fatigue and ensuring consistent oscillation amplitude across viscosity gradients.
- FillingCheck™: An integrated optical-acoustic bubble detection system that validates complete, void-free sample filling in real time—mandatory for compliance with ASTM D4052 and GB/T 29617 reporting requirements.
- Temperfect™ Technology: Enables immediate density measurement at any temperature between 0 °C and 150 °C under ambient pressure—eliminating thermal equilibration delays and reducing cycle time by up to 60% compared to conventional thermostatted systems.
- Hastelloy C-276 Wetted Path: Chemically inert construction resists corrosion from H₂S, HCl, HF, and acidic crudes—ensuring operational integrity and extended service life in sour service environments.
- Automated Viscosity Correction: Applies dynamic, real-time correction algorithms based on measured damping characteristics—removing viscosity-induced bias without external rheological input or manual intervention.
- Low-Volume Operation: Requires only 2 mL of sample per measurement—reducing solvent consumption, hazardous waste generation, and exposure risk during handling of toxic or volatile fractions.
Sample Compatibility & Compliance
The DMA 4200M is validated for use with highly viscous, thermally unstable, and chemically reactive liquids—including vacuum residues, deasphalted oils, synthetic lubricants, biofuels, and CO₂-saturated hydrocarbons. Its pressure-rated cell allows direct measurement of live crude samples without depressurization—preserving compositional integrity and eliminating flash-loss artifacts. All measurement protocols adhere to internationally recognized standards: ASTM D4052 (standard test method for laboratory determination of density of petroleum products), ASTM D5002 (for crude oils), and GB/T 29617 (Chinese national standard for density determination of liquid petroleum products). The instrument supports full audit trail generation and electronic signature capability compliant with FDA 21 CFR Part 11 when operated with SOP-controlled software workflows—enabling GLP/GMP-aligned data governance in regulated laboratories.
Software & Data Management
Controlled via Anton Paar’s proprietary mPDS (multi-Parameter Data System) software, the DMA 4200M provides comprehensive instrument management, method scripting, and automated report generation. Raw oscillation data—including frequency, damping, temperature, and pressure—are logged at 100 Hz resolution and stored with embedded metadata (operator ID, timestamp, environmental conditions, calibration history). Data export conforms to ASTM E1382-compliant CSV and XML formats for integration into LIMS, MES, or refinery process simulation platforms (e.g., Aspen HYSYS, Petro-SIM). Software modules support multi-point calibration verification, statistical process control (SPC) charting, and deviation alerting—ensuring continuous measurement validity. All firmware updates and method templates are digitally signed and version-controlled through Anton Paar’s secure cloud portal.
Applications
- Crude assay and custody transfer verification in upstream production and pipeline terminals
- PVT characterization for reservoir simulation and enhanced oil recovery (EOR) design
- Bitumen and heavy oil density-to-mass conversion for blending and transportation logistics
- Refinery process monitoring: feedstock qualification, distillation cut tracking, and catalyst performance evaluation
- Research applications in fluid thermodynamics, equation-of-state (EOS) development, and interfacial property modeling
- Quality assurance of specialty solvents, drilling muds, and acidizing fluids in oilfield services
FAQ
What pressure and temperature conditions can the DMA 4200M sustain during measurement?
It operates continuously at temperatures from −10 °C to 200 °C and pressures up to 500 bar—fully rated for static and cyclic loading per ASME B31.4 and EN 13480 standards.
How does FillingCheck™ ensure measurement validity?
By combining ultrasonic transit-time analysis and high-resolution optical imaging, it detects micro-bubbles, meniscus misalignment, or partial filling before data acquisition begins—rejecting invalid runs automatically.
Is viscosity correction performed in real time or post-processing?
Viscosity correction is applied algorithmically during oscillation decay analysis—no post-measurement manipulation is required, and corrected density values are output as primary results.
Can the DMA 4200M be integrated into an automated sampling system?
Yes—its CAN Bus and RS-232 interfaces support deterministic communication with third-party autosamplers and PLC-based process analyzers; API documentation and Modbus TCP drivers are available upon request.
What maintenance intervals are recommended for routine operation?
Hastelloy C-276 cell cleaning is advised after every 200 measurements using approved solvents; full system verification (frequency calibration, temperature/pressure sensor validation) is recommended quarterly or per ISO/IEC 17025 internal audit schedule.
