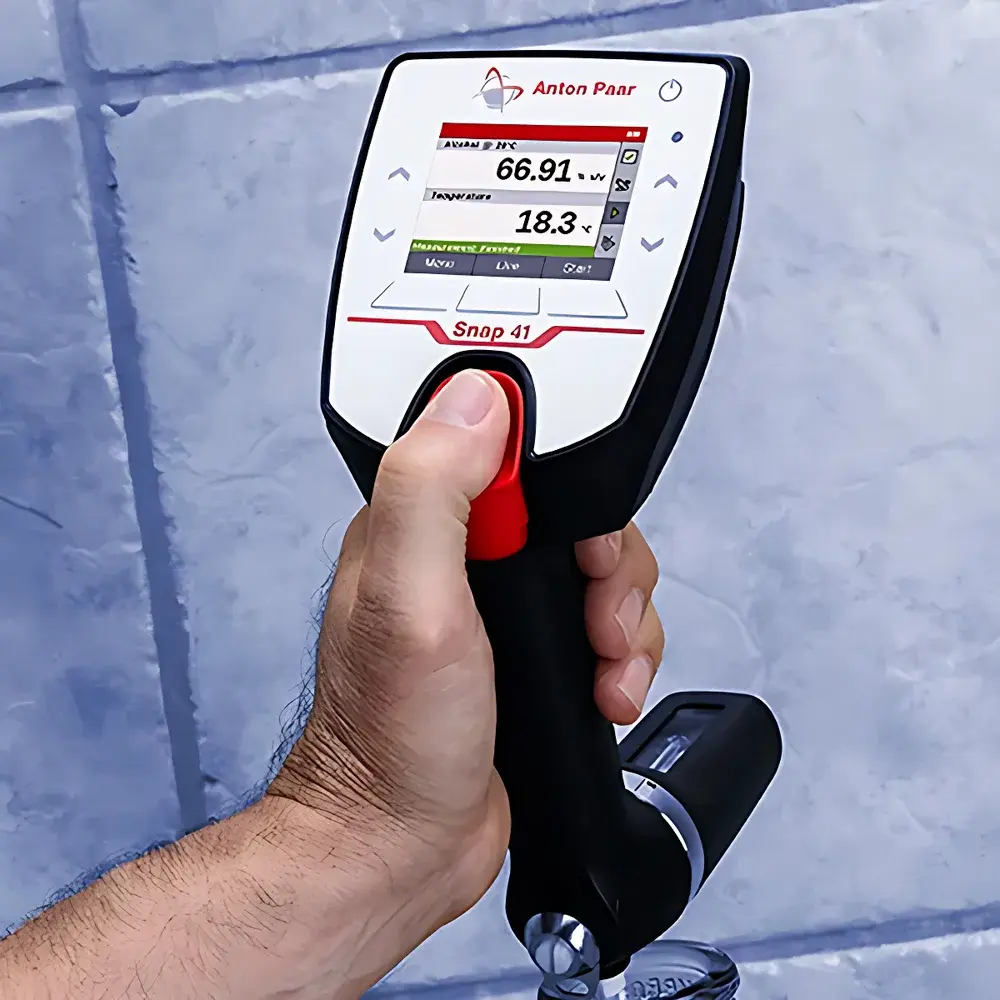

Anton Paar Snap 41 Portable Alcohol Meter

Overview

The Anton Paar Snap 41 Portable Alcohol Meter is a handheld, battery-powered density-based instrument engineered for rapid, field-deployable alcohol concentration determination in ethanol–water solutions. It operates on the well-established U-tube oscillation principle: a precisely machined glass U-tube is filled with sample liquid and electromagnetically excited to resonate at its natural frequency. This frequency correlates directly with the sample’s density via the Hooke–Newton relationship, and—through built-in, matrix-calibrated algorithms—is converted into alcohol content expressed as volume percent (% v/v) at standardized reference temperatures (15 °C or 20 °C), Proof, or complementary units including °Brix and °Plato. Designed specifically for regulatory compliance and process control in distilleries, wineries, craft breweries, customs laboratories, and quality assurance departments, the Snap 41 delivers metrologically traceable results without requiring laboratory infrastructure. Its compact form factor, low sample volume requirement (2 mL), and automatic temperature compensation eliminate manual interpolation, reference tables, or external thermostats—enabling reliable measurements directly at the still, tank, or bottling line.

Key Features

• True portable operation: Fully self-contained with integrated rechargeable-free AA batteries supporting >1,000 measurements per set
• Robust mechanical design: IP54-rated enclosure with splash-resistant housing and optional rubber protective sleeve for impact resilience in industrial environments
• Patented U-tube coupling mechanism: Enables safe, tool-free replacement of the oscillating measuring cell if damaged—minimizing downtime and service costs
• High-resolution digital display with intuitive icon-driven interface; supports multi-language UI (English, German, Spanish, French, Chinese, Japanese)
• Automatic temperature compensation across 5–30 °C measurement range, referenced to standard conditions per ISO 3696 and OIML R 22
• On-device data management: Stores up to 1024 measurements with timestamps, 250 unique sample IDs, and 30 customizable method profiles
• Calibration traceability: Factory-calibrated against NIST-traceable ethanol–water standards; supports user verification using certified reference materials

Sample Compatibility & Compliance

The Snap 41 is optimized for homogeneous, degassed, low-viscosity ethanol–water mixtures typical of distilled spirits, wine base liquids, fermentation broths, and fortified beverages. It is not intended for suspensions, emulsions, or highly viscous samples (>100 mPa·s). The instrument complies with international standards governing alcoholometry, including ASTM D1152 (Standard Test Method for Alcohol Content of Water–Ethanol Mixtures), ISO 3696 (Water for Analytical Laboratory Use), OIML R 22 (International Recommendation for Alcoholometers), and EU Regulation (EC) No 1234/2007 Annex XI for official control of spirit drinks. Its measurement uncertainty budget has been validated under GLP-aligned conditions and supports audit readiness for ISO/IEC 17025-accredited laboratories. All firmware and calibration records are digitally signed and version-controlled to meet FDA 21 CFR Part 11 requirements for electronic records and signatures when used in regulated environments.

Software & Data Management

While the Snap 41 does not require PC connectivity for routine operation, its embedded Bluetooth® module enables secure firmware updates and optional synchronization with Anton Paar’s free LabX Lite mobile application (iOS/Android). LabX Lite provides remote configuration, method export/import, PDF report generation with digital signature fields, and CSV export compatible with LIMS integration. All stored measurements include metadata: date/time stamp, operator ID (if assigned), ambient temperature, sample ID, applied method, and raw oscillation frequency data. Audit trails—including calibration events, method modifications, and user logins—are retained onboard and exportable. The device supports configurable auto-zero and auto-calibration prompts aligned with internal QA protocols and ISO/IEC 17025 clause 7.7.

Applications

• Real-time alcohol verification during spirit distillation, rectification, and blending operations
• Pre-shipment QC testing of bottled spirits prior to customs clearance
• Field audits by national excise authorities and tax agencies
• In-process monitoring of fermentation progress in craft distilleries
• Raw material screening of incoming ethanol for pharmaceutical or food-grade use
• Teaching and demonstration of density–composition relationships in analytical chemistry curricula

FAQ

Does the Snap 41 require external calibration standards for daily use?
No—factory calibration remains stable for ≥6 months under normal operating conditions. However, daily verification using a certified 20 % v/v ethanol reference standard is recommended before critical measurements.
Can the Snap 41 measure alcoholic beverages containing sugars or flavorings?
It measures total density and calculates alcohol % v/v assuming a binary ethanol–water system. High sugar content (>5 % w/w) introduces bias; for such samples, use paired measurement with a refractometer or HPLC for correction.
Is the U-tube replaceable by the end user?
Yes—the patented quick-lock coupling allows field replacement of the U-tube sensor without tools or recalibration, preserving metrological integrity.
What is the minimum sample temperature equilibration time?
For optimal repeatability, allow ≥30 seconds after sample loading for thermal stabilization within the U-tube, especially near temperature extremes (5 °C or 30 °C).
How is measurement uncertainty reported?
Total expanded uncertainty (k=2) is ±0.3 % v/v across 0–100 % v/v at 20 °C, derived from type A (repeatability) and type B (calibration, temperature, resolution) components per GUM (JCGM 100:2008).
