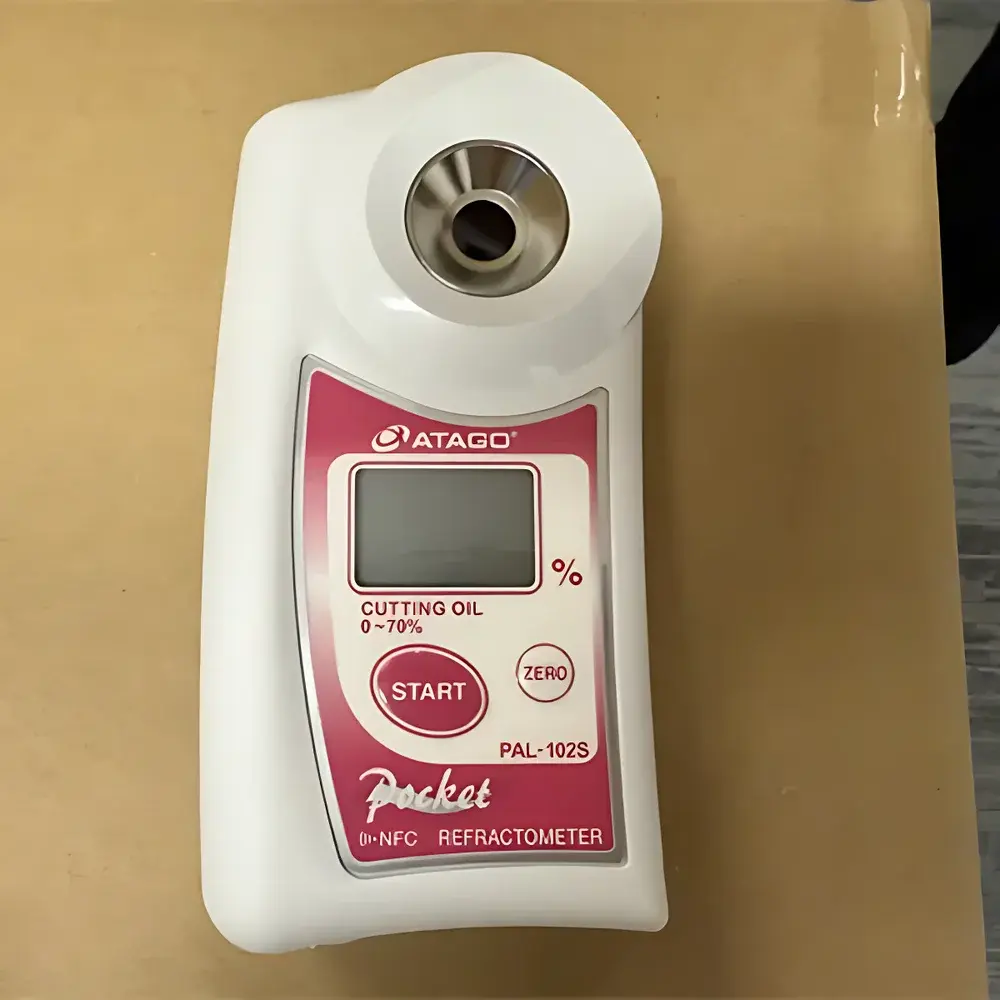

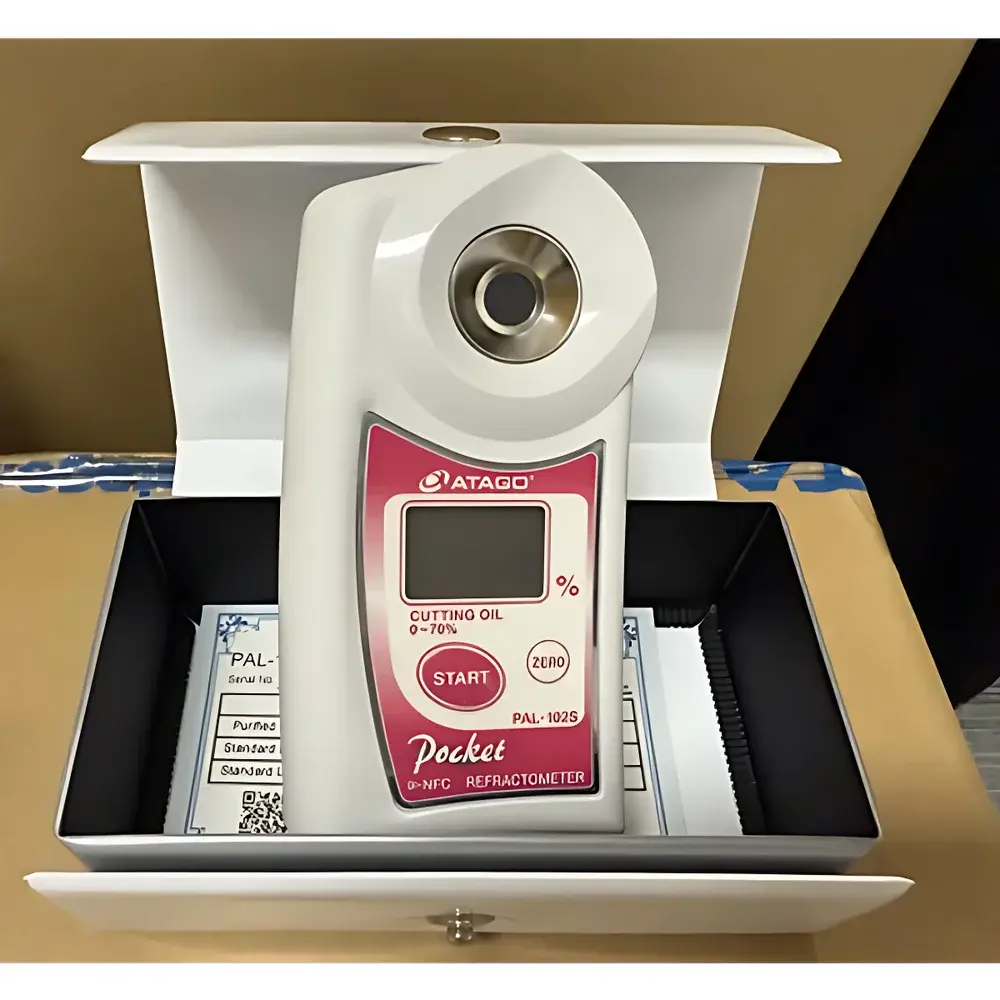

ATAGO PAL-102S Handheld Refractometer for Cutting Fluid Concentration Measurement

Overview

The ATAGO PAL-102S is a precision-engineered handheld refractometer designed specifically for rapid, on-site determination of cutting fluid concentration in metalworking environments. Based on the fundamental optical principle of total internal reflection, the instrument measures the refractive index of aqueous-based coolants and lubricants—directly correlating to solute concentration via pre-calibrated algorithms optimized for industrial cutting oils, forming lubricants, rust inhibitors, and cleaning solutions. Unlike generic Brix or salinity refractometers, the PAL-102S employs a custom optical path and temperature-compensated scale calibrated exclusively for hydrocarbon-in-water emulsions typical in machining operations. Its compact form factor, robust magnesium-alloy housing, and IP65-rated enclosure enable reliable operation in demanding shop-floor conditions—including exposure to coolant mist, metal chips, and incidental splashes—without compromising optical integrity or measurement repeatability.

Key Features

• Automatic temperature compensation (ATC) across 10–75 °C ensures consistent readings regardless of sample thermal drift—a critical requirement for real-time process monitoring during machine warm-up or extended shifts.
• Dual-wavelength LED illumination and high-precision Abbe-type prism deliver stable optical performance with minimal calibration drift over time and usage cycles.
• Optimized optical scale calibrated for 0–70.0 % w/w cutting oil concentration, with 0.1 % resolution and ±0.2 % accuracy traceable to NIST-traceable reference standards.
• Minimal sample requirement (0.3 mL) enables non-destructive testing directly from sump tanks or drip lines without downtime or waste.
• Three-second measurement cycle supports high-throughput quality control workflows across multiple CNC stations or production lines.
• IP65 ingress protection certifies resistance to dust and low-pressure water jets, meeting ISO 20653 requirements for industrial instrumentation.

Sample Compatibility & Compliance

The PAL-102S is validated for use with water-miscible cutting fluids—including soluble oils, semi-synthetic, and synthetic formulations—as well as hydraulic oil dilutions, rust preventive solutions, and alkaline cleaning agents commonly deployed in automotive, aerospace, and precision machining facilities. It complies with ISO 21748 (Guidance for the use of repeatability, reproducibility and trueness estimates in measurement uncertainty evaluation) and supports adherence to internal QC protocols aligned with ISO 9001:2015 Clause 7.1.5 (Monitoring and measuring resources). While not a regulated medical device, its metrological stability satisfies GLP-relevant documentation needs for routine calibration verification and operator training records.

Software & Data Management

As a standalone optical instrument, the PAL-102S does not incorporate embedded data logging or wireless connectivity. However, its analog optical output is fully compatible with manual entry into LIMS, MES, or paper-based SPC charts. For digital integration, users may pair the device with ATAGO’s optional PAL-USB adapter (sold separately) to export timestamped measurements to Excel or CSV via USB interface—enabling audit-ready traceability required under FDA 21 CFR Part 11 when used in regulated manufacturing environments. Calibration certificates are available upon request and include uncertainty budgets per ISO/IEC 17025 guidelines.

Applications

• Real-time verification of coolant mixing ratios prior to tank replenishment in CNC machining cells.
• Routine monitoring of emulsion stability in grinding, milling, and turning operations to prevent tool wear acceleration and surface finish degradation.
• Preventive maintenance support: detecting phase separation, contamination, or bacterial growth through anomalous refractive index deviations outside baseline ranges.
• Validation of cleaning solution strength in post-machining degreasing baths to ensure compliance with RoHS and REACH surface residue limits.
• Educational use in mechanical engineering labs for teaching fluid property–concentration relationships and statistical process control fundamentals.

FAQ

Does the PAL-102S require periodic recalibration?
Yes. ATAGO recommends annual verification against certified reference standards (e.g., ATAGO Standard Solution Set SS-01), especially after mechanical shock or prolonged exposure to extreme ambient temperatures.
Can it measure neat oil or undiluted cutting fluid?
No. The scale is calibrated only for aqueous emulsions within 0–70.0 % concentration; neat oils fall outside the optical detection range and will yield invalid readings.
Is the prism surface resistant to aggressive solvents like chlorinated hydrocarbons?
The borosilicate glass prism is chemically resistant to most water-based coolants but not compatible with strong organic solvents; cleaning must be performed using distilled water or isopropyl alcohol only.
How does automatic temperature compensation work?
An integrated thermistor continuously monitors sample temperature at the prism interface and applies real-time correction based on the published refractive index–temperature coefficient for standard cutting fluid matrices.
What battery life can be expected under typical usage?
With two AAA alkaline batteries, the unit delivers approximately 10,000 measurements before replacement—equivalent to ~12 months of daily shop-floor use at 30 tests per shift.
