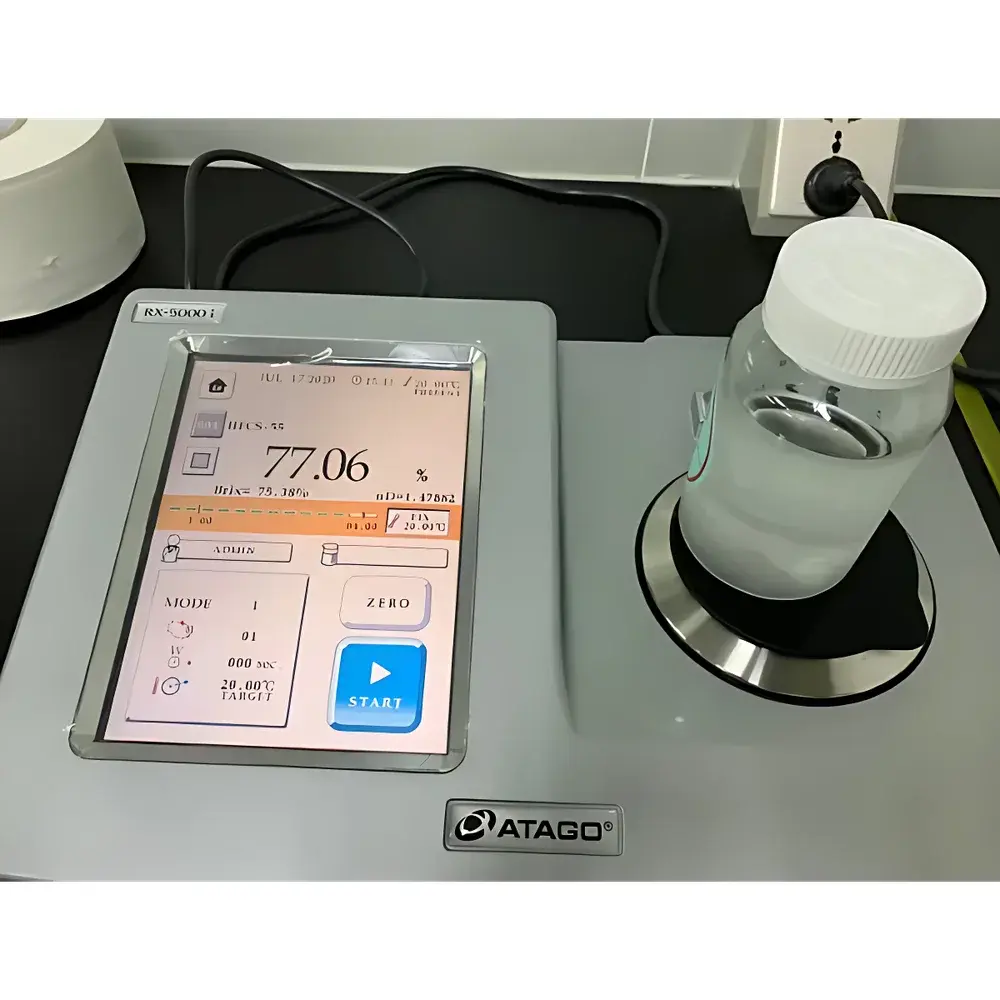

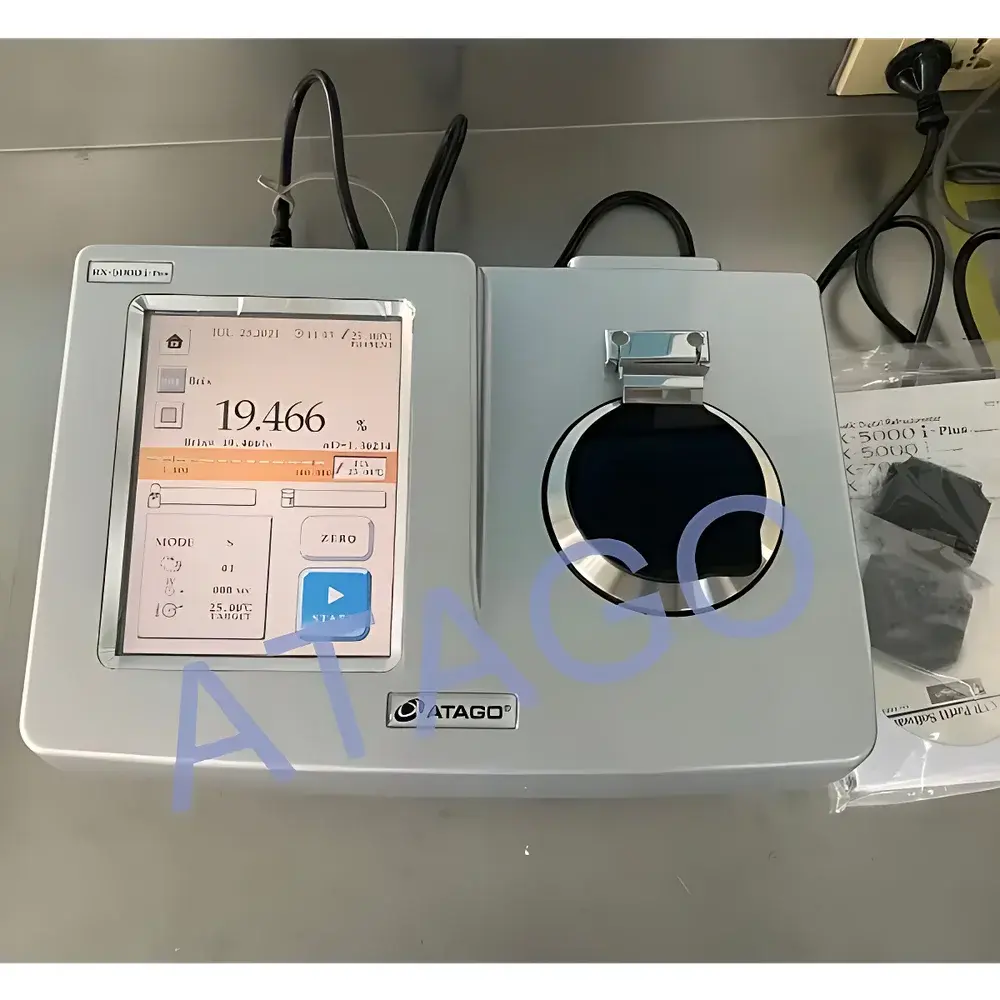

ATAGO RX-5000i High-Precision Digital Automatic Refractometer

Overview

The ATAGO RX-5000i is a high-precision, benchtop digital automatic refractometer engineered for traceable, temperature-controlled concentration analysis of organic solvents and industrial process liquids. It operates on the fundamental optical principle of critical angle refraction: a collimated LED light beam (wavelength 589 nm, sodium D-line equivalent) passes through a sapphire prism in contact with the sample; the resulting refracted angle is detected by a high-resolution linear CCD array, enabling real-time calculation of refractive index (n_D) with sub-microrefractive resolution. The instrument integrates a solid-state Peltier thermoelectric module capable of precise temperature stabilization from 10 °C to 70 °C (±0.1 °C), eliminating reliance on external water baths and ensuring thermodynamic equilibrium prior to measurement — a prerequisite for reproducible quantification of thermosensitive solvents such as DMAC, DMF, DMSO, NMP, and NMMO.

Key Features

• Peltier-based active temperature control with auto-equilibration and thermal drift compensation — no external chiller or bath required
• High-accuracy optical detection system: sapphire measuring prism, 589 nm LED source, and 256-pixel CCD sensor for robust signal-to-noise ratio
• Measurement repeatability: ≤±0.000020 n_D under controlled conditions (ASTM D1218 compliance verified)
• Intelligent prism diagnostics: automatic surface contamination check via reflected light intensity analysis prior to each measurement cycle
• Four operational modes: Standard (single-point), Continuous (real-time monitoring), Auto-Start (triggered by sample contact), and Sample-ID (batch-tagged logging)
• Onboard calibration verification using certified reference standards (e.g., distilled water at 20 °C: n_D = 1.33300)

Sample Compatibility & Compliance

The RX-5000i is validated for direct, non-destructive analysis of clear to slightly turbid liquid samples with viscosity ≤500 mPa·s — including polar aprotic solvents, aqueous polymer solutions, electrolyte mixtures, and pharmaceutical intermediates. Its DMAC-T30 scale (calibrated at 30 °C) is traceably derived from gravimetrically prepared reference solutions (certified mass fraction ±0.01%) and conforms to ISO 21747-1:2020 for refractometric determination of solvent concentration. The instrument supports GLP/GMP workflows through optional FDA 21 CFR Part 11-compliant software, providing electronic signatures, audit trails, user access levels, and immutable data export (CSV/Excel). All internal firmware and calibration coefficients are stored in tamper-evident memory with checksum validation.

Software & Data Management

The embedded operating system enables full local data handling without PC dependency: measurements include n_D, Brix, concentration (% w/w), temperature, scale ID, operator code, and timestamp. Internal storage retains ≥500 records with cyclic overwrite protection. Optional PC software (ReflaX™ v4.2) extends functionality with multi-scale regression modeling, custom curve fitting (linear, polynomial, spline), statistical process control (SPC) charting, and automated report generation compliant with ISO/IEC 17025 documentation requirements. Data export supports CSV, PDF, and XML formats; network connectivity via USB or Ethernet allows integration into LIMS environments.

Applications

The RX-5000i serves critical QC/QA functions across chemical manufacturing, polymer synthesis, and pharmaceutical processing. In acrylic fiber production, it monitors DMAC concentration (40–65% w/w) in coagulation baths at 20–30 °C to ensure consistent fiber morphology and tensile strength. In polyimide film casting, it verifies NMP concentration in dope solutions to maintain solution viscosity and film uniformity. For solvent recovery systems, it validates reclaimed DMAC purity post-distillation (target: ≥99.5% w/w). Additional validated applications include concentration control of ethylene glycol in antifreeze formulations, glycerol in cosmetic emulsions, and propylene glycol in e-liquid manufacturing — all performed without reagents, consumables, or sample dilution.

FAQ

Does the RX-5000i require daily recalibration?
No — the instrument performs automatic optical self-checks before each measurement and only requires periodic verification against certified standards (e.g., water or sucrose solutions) per ISO 8655-6 recommended intervals (typically weekly or per shift change).
Can I create a custom calibration curve for a proprietary solvent blend?
Yes — up to 100 user-defined scales can be programmed using up to 20 paired reference points (concentration vs. measured n_D), with curve-fitting options including linear, quadratic, and cubic regression.
Is the prism resistant to aggressive solvents like DMAC or NMP?
Yes — the sapphire prism (Mohs hardness 9) exhibits negligible swelling or etching after repeated exposure to DMAC, DMSO, and other high-boiling polar aprotic solvents under standard operating conditions.
How does temperature stabilization affect measurement uncertainty?
The Peltier system reduces thermal gradient-induced error to <0.000010 n_D/°C, meeting ASTM E1222 requirements for temperature-sensitive refractive index determination.
Can measurement data be exported to ERP or MES systems?
Yes — via ReflaX™ software with configurable ODBC drivers or RESTful API endpoints, supporting direct integration with SAP QM, Siemens Opcenter, or Rockwell FactoryTalk.
