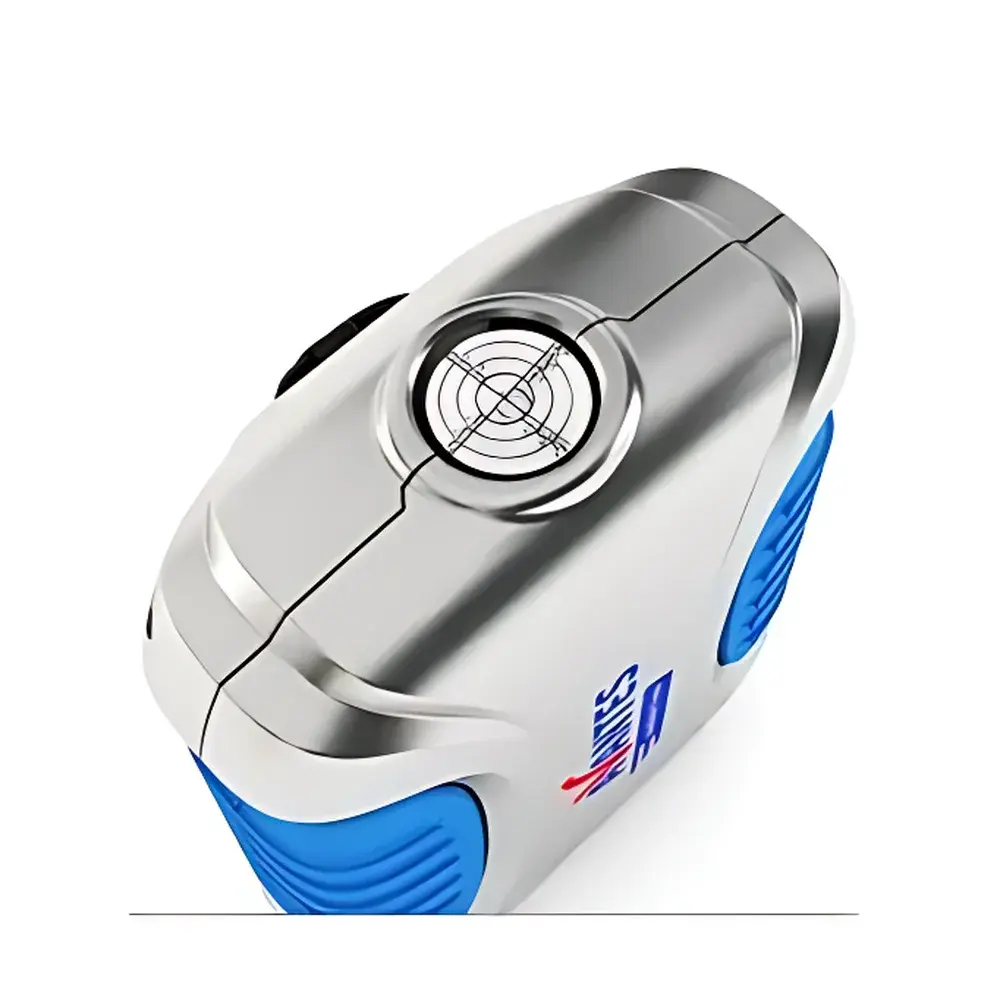

Avantes AvaField-EDU Educational Hyperspectral Field Spectroradiometer

Overview

The Avantes AvaField-EDU Educational Hyperspectral Field Spectroradiometer is a purpose-engineered, ground-based spectral measurement system designed for academic instruction, field-based remote sensing fundamentals, and hands-on spectroscopic methodology training. It operates on a filter-based optical architecture incorporating a binary optical element to enable spatial-spectral data acquisition across the full visible to near-infrared (VNIR) spectrum (350–1050 nm). Unlike scanning or push-broom hyperspectral imagers requiring motion compensation, the AvaField-EDU captures instantaneous line-scan spectra using a fixed-grating monochromator and a 2048-pixel linear CCD array — delivering high spectral fidelity without mechanical wavelength tuning. Its compact form factor (170 × 120 × 60 mm), integrated dark current correction, and onboard optical shutter ensure measurement stability under variable ambient lighting and thermal conditions typical of outdoor classroom environments. The instrument is calibrated traceably to NIST-traceable standards and supports radiometric, reflectance, and irradiance measurement modes — making it suitable for quantitative spectral analysis in earth observation pedagogy.

Key Features

• Fixed-grating optical path with inherent mechanical stability — eliminates wavelength drift during extended field sessions
• Dynamic dark current compensation algorithm executed in real time, reducing thermal noise impact across temperature gradients (0–40 °C operating range)
• Integrated optical shutter enabling precise exposure control down to 1.1 ms integration time — critical for minimizing motion blur during handheld or tripod-mounted acquisitions
• Second-order diffraction suppression via factory-applied anti-reflective coating on detector window — ensures spectral purity without post-acquisition correction
• IP54-rated enclosure with sealed optics and ruggedized housing — certified for operation in dusty, humid, or intermittently wet field conditions
• Onboard GPS interface support (optional external module) — enables geotagged spectral metadata acquisition aligned with GIS teaching workflows
• USB-powered operation with plug-and-play compatibility — no external power supply or driver installation required on Windows/macOS platforms

Sample Compatibility & Compliance

The AvaField-EDU is optimized for non-contact, non-destructive spectral characterization of natural and engineered surfaces under ambient daylight or controlled illumination. It supports reflectance measurements of vegetation canopies, soil samples, mineral specimens, painted surfaces, and calibration targets (e.g., Spectralon® or provided Avantes white reference panel). All optical components comply with ISO 9001-certified manufacturing protocols. Radiometric calibration certificates are supplied with each unit, traceable to PTB/NIST standards. The system adheres to IEC 61000-4 electromagnetic compatibility requirements and meets RoHS Directive 2011/65/EU for hazardous substance restrictions. While not intended for regulatory-grade compliance testing, its measurement repeatability (±0.5 nm wavelength accuracy, <1% radiometric variation over 8-hour field use) satisfies ASTM E275, ISO 13406-2, and EN 13032-4 educational validation criteria.

Software & Data Management

The instrument ships with AvaSoft-Educational Edition — a streamlined spectral acquisition and visualization platform developed specifically for undergraduate and graduate laboratory curricula. It provides real-time spectral preview, batch averaging (up to 100,000 scans), dark/light reference subtraction, and reflectance calculation using user-defined white reference spectra. Export formats include ASCII (.txt), CSV, and ENVI-compatible BIL/BIP headers for interoperability with QGIS, ENVI, MATLAB, and Python-based spectral libraries (e.g., scikit-learn, spectral). Audit trails record acquisition timestamp, integration time, GPS coordinates (if enabled), and environmental metadata — supporting GLP-aligned lab notebook practices. No proprietary runtime or dongle is required; software runs natively on Windows 10/11 and macOS 12+.

Applications

• Remote sensing principles: Demonstrating spectral signature differentiation between healthy/stressed vegetation, bare soil, water bodies, and urban materials
• Agricultural science labs: Quantifying NDVI, PRI, and other vegetation indices from field-collected spectra
• Geoscience education: Identifying diagnostic absorption features of clay minerals, iron oxides, and carbonate deposits
• Environmental monitoring modules: Assessing water quality parameters (e.g., chlorophyll-a, turbidity proxies) via reflectance inversion models
• Physics of light labs: Exploring dispersion, diffraction efficiency, and detector quantum efficiency across the VNIR band
• Instrumentation courses: Teaching calibration transfer, signal-to-noise optimization, and spectral resampling techniques

FAQ

Is the AvaField-EDU suitable for research-grade publications?
It is validated for pedagogical use and preliminary field surveys. For peer-reviewed spectral quantification, users should perform independent validation against reference spectroradiometers per ASTM E275 and document calibration history.
Can the instrument be mounted on a drone or UAV?
No — the AvaField-EDU is designed exclusively for ground-based, static or slow-moving measurements. Its 8° TFOV and lack of inertial stabilization preclude airborne deployment.
Does the software support automated spectral library matching?
AvaSoft-Educational Edition does not include spectral unmixing or library search algorithms. These capabilities require Avantes’ commercial AvaSpec-Solar or AvaSpec-HS platforms.
What spectral preprocessing steps are recommended before analysis?
Standard workflow includes dark frame subtraction, white reference normalization, atmospheric correction (using MODTRAN or 6S if co-located with meteorological sensors), and spectral smoothing only where justified by SNR constraints.
Is firmware upgradable in the field?
Yes — firmware updates are distributed via Avantes’ secure customer portal and applied through USB connection using AvaSoft’s built-in updater utility.
