Showing all 29 results
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaLight-LED |
| Light Source Type | High-Stability LED Array |
| Illumination Mode | External Illumination |
| Connector | SMA 905 |
| Power Supply | 12 VDC, 40 mA |
| Dimensions & Weight | 175 × 110 × 44 mm, 480 g |
| Spectral Options | 355/380 nm, 400/410/430 nm, 450/470/490 nm, 530/590/780 nm |
| FWHM | 11–30 nm (model-dependent) |
| Output Power (into 600 µm fiber) | 10–25 µW |
| Control Interface | TTL-compatible pulse modulation via IC-DB26-2 cable (optional, for synchronization with AvaSpec-USB2 spectrometers) |
| Compliance | CE, RoHS |

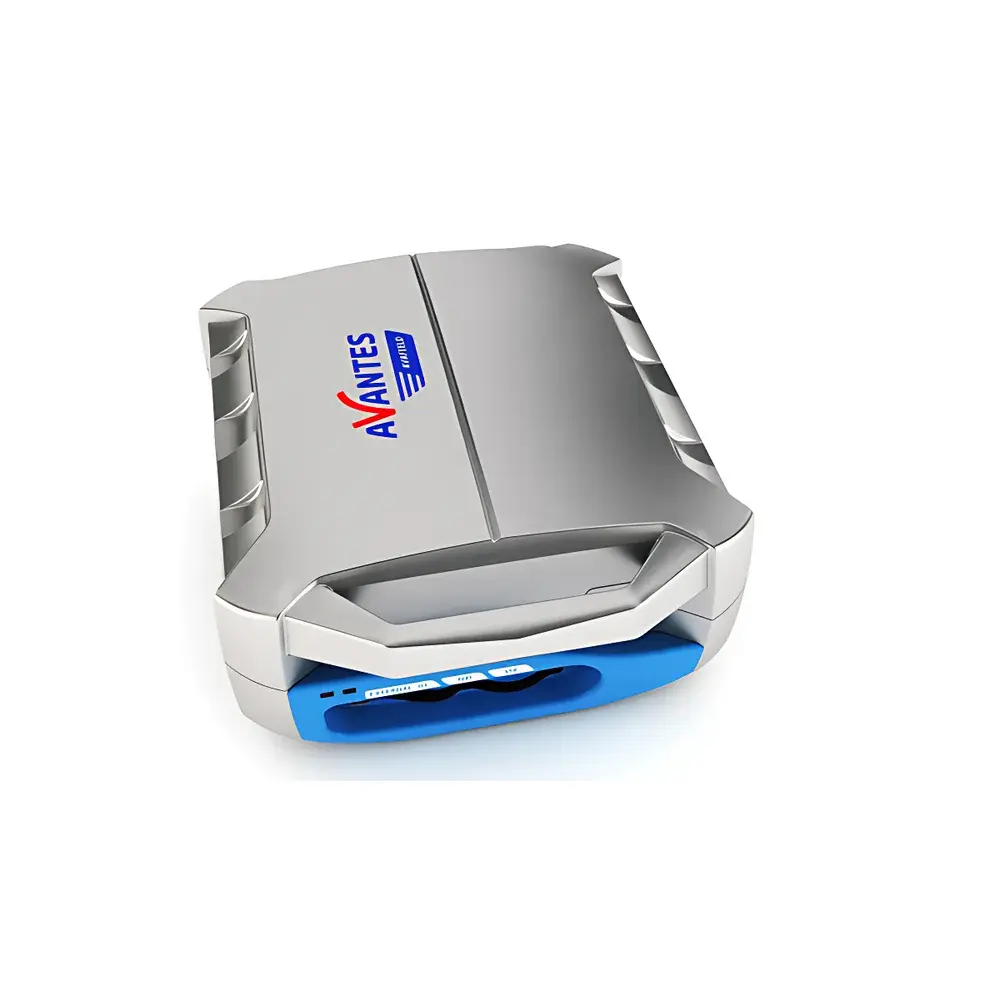

| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Detector Type | CCD (AvaField-1/2/EDU), InGaAs (AvaField-3) |
| Spectral Range | 300–1100 nm (AvaField-1), 350–1050 nm (AvaField-EDU), 300–1700 nm (AvaField-2), 300–2500 nm (AvaField-3) |
| Spectral Resolution | 1.4–15.0 nm (model-dependent) |
| Spectral Sampling Interval | 0.6–6.0 nm |
| Wavelength Accuracy | ±0.3–±3.0 nm |
| Wavelength Repeatability | ±0.1 nm |
| Detector | Back-thinned CCD (2048 px, 14×500 µm), CMOS (2048 px, 14×200 µm), or TE-cooled InGaAs array (256 px) |
| Linearity | >99% |
| Integration Time | ~10 ms per spectrum |
| Dynamic Range | 3800:1 |
| Signal-to-Noise Ratio | 500:1 |
| Stray Light | <0.1% |
| Operating Temperature | 0–40 °C |
| Dimensions & Weight | 275×140×85 mm / 2.0 kg (AvaField-1), 170×120×60 mm / 0.8 kg (EDU), 310×270×135 mm / 5.2–5.8 kg (AvaField-2/3) |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaField-EDU |
| Spectral Range | 350–1050 nm |
| Spectral Resolution | 2.5 nm |
| Spatial Resolution (IFOV) | 0.18 mrad |
| Field of View (TFOV) | 8° |
| Imaging Resolution | 14 × 200 µm |
| Frame Rate | 15 fps |
| Optical Design | Filter-based with binary optical element |
| Measurement Platform | Ground-based |
| Detector | 2048-pixel CCD |
| Pixel Size | 14 × 200 µm |
| Wavelength Accuracy | ±0.5 nm |
| Spectral Sampling Interval | 0.6 nm |
| Minimum Integration Time | 1.1 ms |
| Dark Current Compensation | Dynamic onboard correction |
| Environmental Rating | IP54 (dust- and splash-resistant) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −15–55 °C |
| Dimensions | 170 × 120 × 60 mm |
| Weight | 0.8 kg |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | Avalight-DH-S-BAL |
| Light Source Type | Deuterium-Halogen Hybrid |
| Illumination Mode | Internal Illumination |
| Spectral Range | 215–2500 nm |
| Preheat Time (D₂) | 30 min |
| Preheat Time (Halogen) | 20 min |
| Deuterium Lamp Power | 78 W / 0.75 A |
| Halogen Lamp Power | 5 W / 0.5 A |
| Deuterium Lamp Lifetime | 2000 h |
| Halogen Lamp Lifetime | 1000 h |
| Intensity Noise (D₂) | 2 × 10⁻⁵ AU |
| Intensity Noise (Halogen) | 10⁻⁴ AU |
| Intensity Drift (D₂, max) | ±0.5 %/hr |
| Intensity Drift (Halogen, max) | ±0.1 %/hr |
| Color Temperature (Halogen) | 3000 K |
| Output Power (200 µm fiber) | 6 µW (D₂), 17 µW (Halogen) |
| Output Power (400 µm fiber) | 33 µW (D₂), 160 µW (Halogen) |
| Output Power (600 µm fiber) | 90 µW (D₂), 448 µW (Halogen) |
| Total Power Consumption | 90 W (190 W during D₂ preheat pulse) |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Dimensions & Weight | 315 × 165 × 140 mm, ~5 kg |
| Integrated TTL Shutter | Yes |
| Filter Mount | 50 × 50 × 5 mm |
| Coupling Interface | SMA905 with Adjustable Focus Lens Assembly |
| UV-Resistant Fiber Recommendation | SR-grade optical fiber |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaLight-DHc |
| Light Source Type | Deuterium–Tungsten Halogen Hybrid |
| Illumination Mode | External Illumination |
| Wavelength Range | 200–2500 nm (Deuterium: 200–400 nm |
| Halogen | 400–2500 nm) |
| Output Power (600 µm fiber) | 0.2 µW (200–400 nm), 7 µW (400–2500 nm) |
| Lamp Lifetime | 1000 h (D₂), 2000 h (Halogen) |
| Power Supply | 12 VDC / 450 mA |
| Dimensions | 175 × 110 × 44 mm |
| Warm-up Time | 8 min (D₂), 1 min (Halogen) |
| Integrated TTL Shutter | Yes |
| Fiber Coupling | SMA 905 |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaLight-HAL-S-Mini |
| Light Source Type | Broadband Visible–NIR Halogen |
| Illumination Mode | Internal (Fiber-Coupled) |
| Wavelength Range | 360–2500 nm |
| Power Stability | < 0.1 %/°C |
| Warm-up Time | < 10 min |
| Lamp Lifetime | 1000–13,000 hrs (mode-dependent) |
| Color Temperature | 2647–2879 K |
| Output Power (via 1000 µm fiber) | 9.5–15.9 mW |
| Dimensions | 150 × 78 × 37 mm |
| Weight | 510 g |
| Cooling | Air-cooled |
| Fiber Interface | SMA-905, Focusable |
| Filter Slot | Accepts 25.4 mm round or 50.8 × 50.8 mm square filters |
| TTL Shutter | Integrated, Software-Controlled via AvaSpec Spectrometers |
| Power Control | Rear-panel potentiometer or external TTL/Dongle interface |
| Compliance | CE, RoHS |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaLight-XE |
| Light Source Type | Pulsed Xenon Lamp |
| Illumination Mode | External Illumination |
| Wavelength Range | 200–1000 nm |
| Pulse Energy | 39 µJ (avg. 66 mW) |
| Fiber-Coupled Output Energy (200 µm) | 0.66 µJ/pulse (avg. 20 µW) |
| Fiber-Coupled Output Energy (600 µm) | 3.2 µJ/pulse (avg. 320 µW) |
| Fiber-Coupled Output Energy (1000 µm) | 7.4 µJ/pulse (avg. 744 µW) |
| Pulse Width (FWHM) | 5 µs |
| Pulse Delay | 6 µs |
| Lamp Lifetime | ≥10⁹ pulses |
| Power Supply | 12 VDC / 550 mA |
| Dimensions & Weight | 175 × 110 × 44 mm, 540 g |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaLight-XE-HP |
| Light Source Type | Pulsed Xenon Lamp |
| Spectral Output Range | 200–1000 nm |
| Pulse Energy | 39 mJ per flash |
| Average Optical Power | 6 W (pulsed) |
| Lifetime | >1 × 10⁹ flashes |
| Synchronization Interface | 9-pin D-sub, TTL-compatible |
| Electrical Requirements | 11–28 VDC, 2.08 A |
| Connector | SMA-905 |
| Dimensions | 98 × 44 × 35 mm |
| Weight | 192 g |
| Mounting | OEM-integrated design |
| Illumination Mode | External illumination |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaRaman Bundles |
| Instrument Type | Portable Raman Spectrometer |
| Spectral Range | 100–3600 cm⁻¹ |
| Spectral Resolution | 6 cm⁻¹ |
| Laser Excitation | 785 nm integrated |
| Detector Platform | AvaSpec-ULS2048x64TEC-EVO-RS or AvaSpec-ULS2048CL-EVO-RS (TE-cooled CCD) |
| Slit Options | 25 µm |
| Fiber Connector | FC/PC |
| Software | Panorama-Light with AvaRaman module |
| Compliance | CE, RoHS, FDA 21 CFR Part 11-ready (audit trail & user access control enabled) |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaRaman-532TEC / AvaRaman-785TEC / AvaRaman-532HERO-EVO |
| Instrument Type | Portable Raman Spectrometer |
| Spectral Range | 100–5400 cm⁻¹ (AvaRaman-532TEC), 100–3500 cm⁻¹ (AvaRaman-785TEC), 100–3650 cm⁻¹ (AvaRaman-532HERO-EVO) |
| Spectral Resolution | 6–10 cm⁻¹ |
| Excitation Wavelength | 532 nm or 785 nm |
| Laser Linewidth | <0.2 nm |
| Detector Cooling | Thermoelectrically cooled to constant 5 °C (ΔT ≤ −35 °C vs ambient) |
| Signal-to-Noise Ratio | 200:1 (benzene, AvaRaman-532TEC), 300:1 (benzene, AvaRaman-785TEC), 800:1 (benzene, AvaRaman-532HERO-EVO) |
| Integration Time | Up to 600 s |
| Optical Platform | AvaSpec-ULS2048L-TEC (TE-cooled 3-stage CCD) or AvaSpec-HERO (HSC1200-0.75 grating, FC/PC input) |
| Slit Options | 25 µm standard, exchangeable |
| Stray Light Suppression | Enhanced ULS-TEC optical architecture |
| Dimensions | 240 × 140 × 250 mm (L × W × H) |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSolar |
| Spectral Range | 300–2500 nm |
| Detector Type | Back-illuminated CCD & InGaAs array |
| Spectral Resolution | 0.5–20 nm (model-dependent) |
| Optical Dynamic Range | 3800:1 |
| Signal-to-Noise Ratio | 450:1 to 5000:1 (wavelength-dependent) |
| Stray Light | <0.3% to <0.5% |
| Wavelength Accuracy | ±0.3 nm (UV-VIS), ±1.5–3.0 nm (NIR-SWIR) |
| Pixel Resolution | 2048-pixel CCD (14 × 500 µm) / 256-pixel TE-cooled InGaAs |
| Integration Time | 2 µs – 20 s |
| Linearity | >99% (nonlinear calibration applied) |
| Calibration Traceability | NIM (National Institute of Metrology, China), U = 8.0% (k=2) |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Instrument Type | Benchtop |
| Integration | Integrated Multi-Channel Platform |
| Laser Energy | Not Integrated (External Laser Required) |
| Compatible Spectrometer Series | AvaSpec-EVO, AvaSpec-ULS |
| Communication Interfaces | USB 2.0 / USB 3.0 / Gigabit Ethernet |
| Max Channel Count | 10 (Rack-Mount), 4 (Desktop) |
| Power Supply | 100–240 VAC |
| Compliance | CE, RoHS, IEC 61326-1 (EMC for Laboratory Equipment) |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-HS2048XL-EVO |
| Spectral Range | 200–1160 nm |
| Detector | Back-Illuminated CCD (2048 pixels) |
| Resolution (FWHM) | 1–20 nm (configuration-dependent) |
| Sensitivity | 1,250,000 counts/µW·ms |
| Signal-to-Noise Ratio | 525:1 |
| Stray Light | < 1% |
| Dynamic Range | 200–1160 nm |
| Numerical Aperture | 0.22 |
| Focal Length | 37.5 mm |
| Integration Time | 2 µs – 600 s |
| A/D Conversion | 16-bit, 1 MHz |
| Interface | USB 3.0 (5 Gbps) / Gigabit Ethernet (1 Gbps) |
| Data Acquisition Rate | 2.44 ms per scan (with on-board averaging) |
| Digital I/O | HD-26 connector with 2 analog inputs, 2 analog outputs, 3 digital inputs, 12 digital outputs, trigger & sync support |
| Power Supply | USB-powered (700 mA) or external 12 VDC (360 mA) |
| Dimensions & Weight | 175 × 165 × 85 mm, 1.95 kg |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-HSC1024x58TEC-EVO |
| Spectral Range | 200–1160 nm |
| Detector | Back-Illuminated CCD |
| Resolution (FWHM) | 0.2–7 nm (configurable) |
| Sensitivity | 445,000 counts/µW per ms integration time |
| Signal-to-Noise Ratio | 1200:1 |
| Dynamic Range | 40,000 |
| Stray Light | 0.5% |
| Optical Platform | Symmetrical Czerny-Turner, f = 100 mm, NA = 0.13 |
| Cooling | Single-stage thermoelectric (TEC) |
| ADC | 16-bit, 250 kHz |
| Integration Time | 5.2 ms – 60 min |
| Interfaces | USB 3.0 (5 Gbps), Gigabit Ethernet (1 Gbps), HD-26 I/O connector |
| Dimensions | 185 × 161 × 185 mm |
| Weight | 3500 g |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-Mini MK-II |
| Spectral Range | 200–1100 nm |
| Detector | Hamamatsu CMOS (2048 or 4096 pixels) |
| Optical Design | Symmetric Czerny-Turner, 75 mm focal length |
| Resolution (FWHM) | down to 0.09 nm (with 1800 l/mm grating & 10 µm slit) |
| Stray Light | <0.2% |
| Sensitivity | up to 375,000 counts/nJ (2048CL) |
| Signal-to-Noise Ratio | 330:1 (2048CL), 300:1 (4096CL) |
| Dynamic Range | 3300:1 |
| A/D Converter | 16-bit, 6 MHz |
| Integration Time | 30 µs – 50 s |
| Data Transfer Speed | 4.6 ms/scan (2048CL), 8.9 ms/scan (4096CL) |
| Interface | USB 2.0 |
| Digital I/O | 5 programmable bidirectional I/O lines, 1 analog output, 1 analog input |
| Dimensions & Weight | 95 × 68 × 20 mm, 174 g |
| Power Supply | USB-powered (500 mA) |
| Operating Temperature | 0–55 °C |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-NIR-Mini |
| Spectral Range | 900–1750 nm |
| Detector | InGaAs (256-pixel array) |
| Optical Resolution | 6 nm (typical, slit- and grating-dependent) |
| Sensitivity (HS mode) | 665,000 counts/µW/ms (integrated over 1000–1750 nm) |
| Signal-to-Noise Ratio (HS) | 1900:1 |
| Dynamic Range (HS) | 4750:1 |
| Stray Light | <1% |
| A/D Converter | 16-bit, 500 kHz |
| Integration Time (HS) | 10 µs – 300 ms |
| Interface | USB 2.0 (480 Mbps), fiber-coupled input, 50 cm integrated cable |
| Dimensions | 95 × 68 × 20 mm |
| Weight | 185 g |
| Operating Temperature | 0–55 °C |
| Software Compatibility | AvaSoft v8+, Windows/Linux DLL support |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-NIR256-1.7-EVO |
| Wavelength Range | 900–1750 nm |
| Scan Speed | 0.53 ms/scan (USB 3.0) |
| Integration Time | 10 µs – 500 ms |
| Detector | 256-pixel InGaAs linear array (50 µm × 500 µm) |
| Optical Platform | Symmetrical Czerny-Turner, 50 mm focal length |
| Resolution (FWHM) | 2–50 nm (configurable via slit and grating) |
| Stray Light | <1% |
| Dynamic Range | 6000:1 (HS mode), 9000:1 (LN mode) |
| SNR | 1900:1 (HS), 5000:1 (LN) |
| Sensitivity | 8.2 × 10⁶ counts/µW·ms (HS, 1000–1750 nm) |
| ADC | 16-bit, 500 kHz |
| Interfaces | USB 3.0 (5 Gbps), Gigabit Ethernet (1 Gbps), HD-26 digital I/O |
| Power | USB-powered (600 mA) or external 12 VDC (320 mA) |
| Dimensions & Weight | 185 × 100 × 184 mm, 2.7 kg |
| Software | AvaSoft v8+ with chemometrics support |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | NIR256-1.7-HSC-EVO |
| Wavelength Range | 900–1750 nm |
| Scan Speed | 0.13 ms/scan |
| Data Sampling Interval | 0.4 ms/scan |
| Measurement Mode | Transmission/Reflection |
| Optical Design | Symmetrical Czerny-Turner, 100 mm focal length, 1-stage TE-cooled |
| Detector | TE-cooled InGaAs linear array (256 × 50 µm × 500 µm) |
| Interface | USB 3.0 (5 Gbps) and Gigabit Ethernet (1 Gbps) |
| AD Converter | 16-bit, 1.2 MHz |
| Integration Time (HS mode) | 20 µs – 500 ms |
| Integration Time (LN mode) | 20 µs – 20 s |
| Dynamic Range (HS/LN) | 4900:1 / 7600:1 |
| SNR (HS/LN) | 1900:1 / 5000:1 |
| Gain Modes | High Sensitivity (HS) and Low Noise (LN) |
| Grating Options | Four selectable, exchangeable gratings |
| Slit Options | Interchangeable slits (25–500 µm) |
| Digital I/O | HD-26 connector with 13 bidirectional digital I/O lines, 2 analog inputs/outputs, trigger/sync/gate/laser control |
| Operating Temperature | 0–40 °C |
| Cooling | ΔT = 24 °C below ambient |
| Dimensions & Weight | 185 × 160 × 184 mm, 3.6 kg |
| Software | AvaSoft suite with chemometrics support |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-NIR512-1.7-EVO |
| Wavelength Range | 900–1750 nm |
| Scan Speed | 0.53 ms/scan |
| Data Sampling Interval | 0.53 ms/scan |
| Detector | 512-pixel InGaAs linear array (25 µm × 500 µm) |
| Optical Platform | Symmetrical Czerny-Turner, 50 mm focal length |
| Resolution (FWHM) | 2–50 nm (configurable via slit and grating) |
| Stray Light | <1% |
| AD Converter | 16-bit, 500 kHz |
| Interface | USB 3.0 (5 Gbps) and Gigabit Ethernet (1 Gbps) |
| Integration Time | 10 µs – 10 s |
| Dynamic Range | up to 9000:1 (LN mode) |
| SNR | up to 5000:1 (LN mode) |
| Trigger & I/O | HD-26 connector with 13 digital I/O lines, 2 analog in/out, TTL trigger, sync, strobe, laser control |
| Power | USB-powered (600 mA) or external 12 VDC (320 mA) |
| Dimensions & Weight | 185 × 100 × 184 mm, 2.7 kg |
| Software | AvaSoft suite with chemometrics support |
| Compliance | CE, RoHS, FDA 21 CFR Part 11-ready (audit trail & user access control enabled) |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | NIR512-1.7-HSC-EVO |
| Wavelength Range | 900–1750 nm |
| Scan Speed | 0.24 ms/scan |
| Detector | TE-cooled InGaAs linear array, 512 pixels (25 µm × 500 µm) |
| Optical Platform | Symmetrical Czerny-Turner, 100 mm focal length, 1st-order TE cooling |
| Resolution (FWHM) | 1.7–32 nm (dependent on grating and slit) |
| Stray Light | <1% |
| Sensitivity (HS mode) | 2,500,000 counts/µW·ms (1000–1750 nm) |
| SNR (LN mode) | 5000:1 |
| Integration Time | 20 µs – 20 s |
| AD Converter | 16-bit, 1.2 MHz |
| Interfaces | USB 3.0 (5 Gbps), Gigabit Ethernet (1 Gbps), HD-26 digital I/O |
| Dimensions & Weight | 185 × 160 × 184 mm, 3.6 kg |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-ULS2048CL-EVO |
| Spectral Range | 200–1100 nm |
| Detector | CMOS linear array (2048 pixels) |
| Optical Resolution (FWHM) | 0.06–20 nm (configuration-dependent) |
| Sensitivity | 375,000 counts/µW per ms integration time |
| Signal-to-Noise Ratio | 300:1 |
| Dynamic Range | 4000:1 |
| Stray Light | 0.19–1.0% (grating-dependent) |
| AD Converter | 16-bit, 6 MHz |
| Integration Time | 9 µs – 59 s |
| Interface | USB 3.0 (5 Gbps) / Gigabit Ethernet (1 Gbps) |
| Sampling Speed | 0.38 ms/spectrum (USB3), 1.0 ms/spectrum (Ethernet) |
| I/O | HD-26 connector with 2 analog in/out, 13 digital I/O, trigger/sync/laser control |
| Power | USB 3.0 (500 mA) or 12 VDC (300 mA) |
| Dimensions & Weight | 177 × 127 × 44.5 mm, 1135 g |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-ULS2048x64-EVO |
| Spectral Range | 200–1160 nm |
| Detector | Back-Illuminated CCD (2048 × 64 pixels, 0.89 mm height) |
| Optical Resolution | 0.09–20 nm (configuration-dependent) |
| Sensitivity | 650,000 counts/µW per millisecond |
| Signal-to-Noise Ratio | 450:1 |
| Stray Light | <1% |
| AD Converter | 16-bit, 1.33 MHz |
| Integration Time | 2.4 ms – 25 s |
| Read Noise | 7.5 counts RMS |
| Data Transfer Rate | 2.44 ms/scan (USB 3.0) |
| Interface | USB 3.0 (5 Gbps), Gigabit Ethernet (1 Gbps), HD-26 digital I/O |
| Power | USB-powered (885 mA) or 12 VDC (420 mA) |
| Dimensions & Weight | 175 × 127 × 44.5 mm, 1180 g |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-ULS2048x64TEC-EVO |
| Spectral Range | 200–1160 nm |
| Detector | Back-Illuminated CCD (2048 × 64 pixels) |
| Resolution (FWHM) | 0.09–20 nm (configurable via slit width & grating) |
| Sensitivity | 300,000 counts/µW per ms integration time |
| Signal-to-Noise Ratio | 550:1 |
| Stray Light | <1% |
| Dark Noise Reduction | 2–3× via thermoelectric cooling |
| Cooling Delta | −35 °C relative to ambient |
| Integration Time | 9.7 ms – 500 s |
| A/D Converter | 16-bit, 500 kHz |
| Interface | USB 2.0 (480 Mbps) / RS-232 (115.2 kbps) |
| Optical Design | Symmetric Czerny-Turner, 75 mm focal length |
| Power Supply | 5 VDC, 3.0 A (instrument) |
| Dimensions & Weight | 250 × 179 × 144 mm, 3.6 kg |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-ULS2048XL-EVO |
| Spectral Range | 200–1160 nm |
| Detector | Back-Illuminated CCD (2048 pixels) |
| Optical Resolution (FWHM) | 0.09–20 nm (dependent on grating and slit width) |
| Sensitivity | 460,000 counts/µW per ms integration time |
| Signal-to-Noise Ratio | 525:1 |
| Dynamic Range | 3800 |
| Stray Light | < 0.3% |
| Integration Time | 2 µs – 20 s |
| AD Converter | 16-bit, 1 MHz |
| Data Interface | USB 3.0 (5 Gbps) and Gigabit Ethernet (1 Gbps) |
| Sampling Speed | 2.44 ms per scan |
| Optical Platform | ULS (Ultra-Low Stray Light) Czerny-Turner, 75 mm focal length |
| UV Quantum Efficiency | 60% (200–300 nm) |
| Dimensions & Weight | 175 × 127 × 44.5 mm, 1180 g |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSpec-ULS4096CL-EVO |
| Spectral Range | 200–1100 nm |
| Detector | CMOS |
| Optical Resolution (FWHM) | 0.05–20 nm (configuration-dependent) |
| Sensitivity | 261,000 counts/µW per ms integration time |
| Signal-to-Noise Ratio | 300:1 |
| Dynamic Integration Time Range | 9 µs – 40 s |
| Stray Light | 0.19–1.0% (grating-dependent) |
| AD Converter | 16-bit, 6 MHz |
| Interface | USB 3.0 (5 Gbps), Gigabit Ethernet (1 Gbps) |
| Data Transfer Speed | 0.75 ms/scan (USB 3.0), 1.9 ms/scan (Ethernet) |
| Optical Design | Symmetrical Czerny-Turner, 75 mm focal length |
| Dimensions | 177 × 127 × 44.5 mm |
| Weight | 1135 g |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSR-96 |
| Detector | InGaAs |
| Spectral Range | 350–2500 nm |
| Resolution | 1.5 nm @ 350–1100 nm |
| Sampling Interval | 0.6 nm (VIS) / 6 nm (NIR-SWIR) |
| Wavelength Accuracy | ±0.3 nm (VIS) / ±3 nm (NIR-SWIR) |
| Wavelength Repeatability | ±0.1 nm over ±10 °C |
| Detector | Back-thinned CCD (2048 px) + TE-cooled InGaAs array (256 px) |
| Integration Time | 0.01–100 ms |
| Communication | Wireless (Wi-Fi/Bluetooth) |
| Operating Temp. | 0–40 °C |
| Dimensions | 310 × 270 × 135 mm |
| Weight | 5.2 kg |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | AvaSun Spectroradiometer |
| Spectral Range | 200–1100 nm |
| Detector Type | Back-Illuminated CCD (2048 pixels, 14 × 500 µm) |
| Optical Resolution | 0.09–20 nm (configurable, 1.5 nm typical @ 200–1100 nm) |
| Spectral Sampling Interval | 0.6 nm |
| Wavelength Accuracy | ±0.3 nm |
| Wavelength Repeatability | ±0.1 nm over ±10 °C |
| Sensitivity | 460,000 counts/nW |
| Signal-to-Noise Ratio | 525:1 |
| Dynamic Range | 13,700 |
| Stray Light | <0.5% |
| Integration Time | 2 µs – 20 s |
| Linearity | >99% |
| Communication Interface | Wireless (Wi-Fi/Bluetooth) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −15–55 °C |
| Dimensions & Weight | 275 × 140 × 85 mm, 2 kg |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | NEXOS™ Series |
| Spectral Range | 190–1100 nm |
| Detector Type | CMOS |
| Signal-to-Noise Ratio | 375:1 (NEXOS™, 2K) / 365:1 (PNEXOS™, 4K) |
| Dynamic Range | 4500 |
| Stray Light | 0.1–1% |
| Communication Interfaces | USB (NEXOS™), RS232/SPI (NEXOS™ Link), Optical Bench Only (NEXOS™ Bench Only) |
| Optical Design | Symmetric Czerny-Turner |
| Pixel Options | 2048 or 4096 |
| Slit Options | Configurable slit widths |
| Brand | Avantes |
|---|---|
| Origin | Netherlands |
| Model | VARIUS™ Series |
| Spectral Range | 190–1100 nm |
| Detector Type | CMOS |
| Signal-to-Noise Ratio | 375:1 (VARIUS™ 2K) / 365:1 (VARIUS™ 4K) |
| Dynamic Range | 4500 |
| Stray Light | 0.1–1% |
