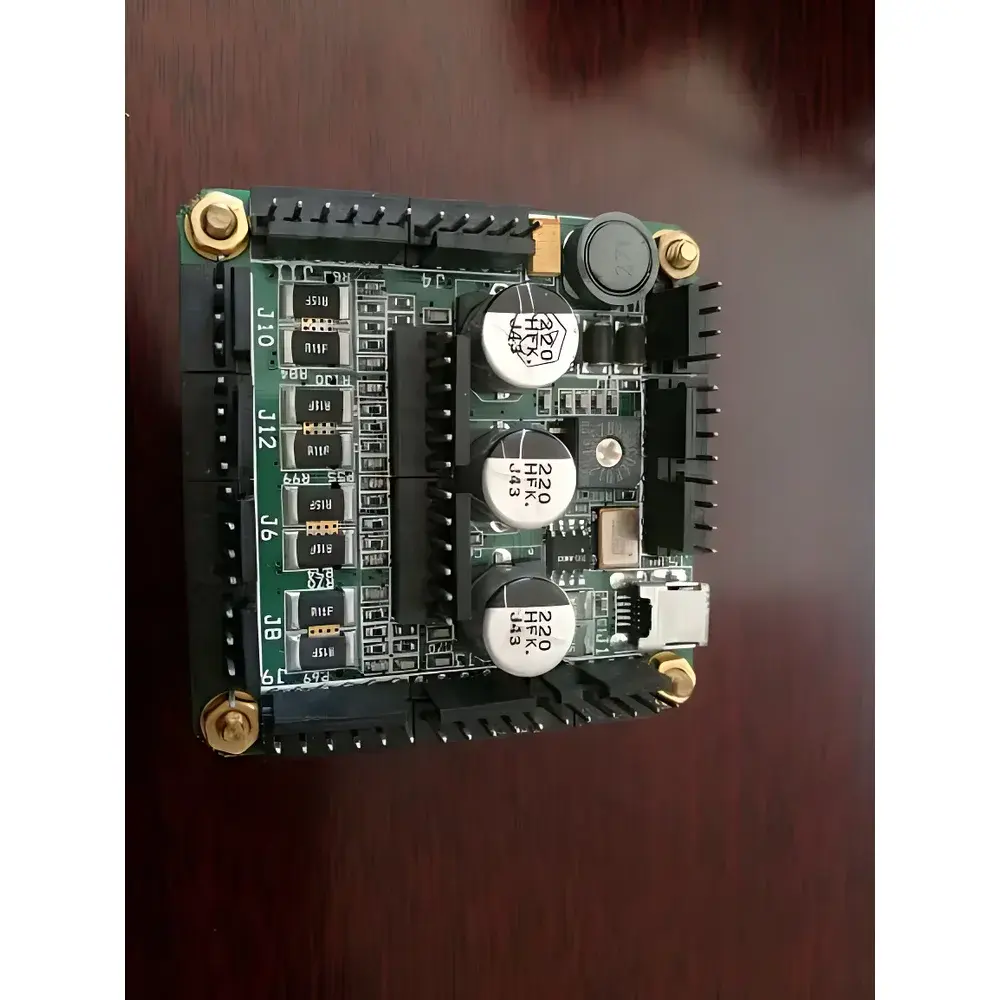

Beifen Sanpu EZ4AXIS Four-Axis Stepper Motor Controller

Overview

The Beifen Sanpu EZ4AXIS Four-Axis Stepper Motor Controller is a dedicated motion control module engineered for precise, synchronized actuation of up to four independent stepper motor axes within analytical laboratory instrumentation—particularly gas chromatographs (GC), liquid chromatographs (LC), autosamplers, valve manifolds, and custom-built sample introduction systems. Unlike general-purpose PLCs or USB-based motion boards, the EZ4AXIS implements deterministic real-time command execution via a proprietary instruction set architecture optimized for chromatographic timing constraints and hardware-level signal integrity. It operates on open-loop step-and-direction principles but supports optional encoder feedback integration for position verification—a critical capability when interfacing with high-precision syringe drives or rotary valves where missed steps must be detected and logged for auditability under GLP/GMP frameworks.

Key Features

• Deterministic Multi-Axis Coordination: Simultaneous control of four stepper axes with microsecond-level inter-axis synchronization, enabling coordinated valve sequencing and carrier-gas flow path switching without jitter or phase drift.
• Chromatography-Optimized Instruction Set: Native support for time-critical commands including Gxx (loop), Mxx (delay in ms), Pxxx/Dxxx (pulse count for forward/reverse rotation), Sxx (signal-wait branching), and eX (subroutine call)—all parsed and executed in fixed-cycle firmware without OS dependency.
• Hardware-Level Signal Conditioning: Opto-isolated digital I/O (16-channel input, 8-channel output) with configurable polarity inversion, debounced edge detection, and programmable pull-up/pull-down resistors—ensuring reliable interaction with TTL/CMOS-level sensors and solenoid drivers across varying lab EMI environments.
• Real-Time Parameter Adjustment: Dynamic modification of acceleration profiles, maximum velocity, microstepping resolution (up to 256-step subdivision), and homing parameters during active motion sequences—without interrupting ongoing chromatographic runs.
• Robust Operational Modes: JOG (manual jog), Joystick (analog stick emulation), and manual key mode for benchtop calibration; all modes retain full access to the same instruction interpreter and event-triggered logic.
• Non-Volatile Program Storage: Onboard flash memory retains up to 32 KB of user-defined motion scripts, supporting persistent deployment in unattended 24/7 operation scenarios typical of environmental or pharmaceutical QC labs.

Sample Compatibility & Compliance

The EZ4AXIS is designed for integration into ISO/IEC 17025-accredited laboratories and aligns with functional requirements outlined in USP <1058> (Analytical Instrument Qualification) for motion-critical subsystems. Its deterministic execution model satisfies traceability needs for FDA 21 CFR Part 11-compliant systems when paired with validated host software (e.g., chromatography data systems with electronic signature and audit trail). The controller itself does not store analytical data but generates timestamped event logs (motion start/stop, signal assertions, error codes) that may be forwarded via RS-485 or UART to external LIMS or CDS platforms for correlation with chromatographic run metadata. All PCB assemblies comply with RoHS 3 and CE EMC Directive 2014/30/EU standards.

Software & Data Management

The EZ4AXIS operates independently of host operating systems and requires no driver installation. Configuration and program upload are performed via ASCII-based serial protocol (9600–115200 bps, configurable parity) using standard terminal emulators or vendor-provided configuration utilities compatible with Windows, Linux, and macOS. Motion scripts are plain-text files encoded in UTF-8, facilitating version control (Git), peer review, and change management per ALCOA+ principles. While classified as “chromatography-class software” due to its primary use case, the controller’s firmware does not perform data acquisition or peak processing—it serves exclusively as an embedded motion orchestrator. Audit trails for script uploads, parameter changes, and firmware updates are maintained in non-volatile memory and exportable via serial dump for regulatory inspection.

Applications

• Automated GC/LC valve sequencing for multi-dimensional separation (MDGC, heart-cutting, column switching)
• Precision syringe pump positioning in autosamplers with variable injection volumes and wash cycles
• Rotary selector valve control in ICP-MS or AAS sample introduction manifolds
• Custom-built thermal desorption units requiring timed trap heating/cooling stage coordination
• Lab-on-a-chip fluidic actuation where microfluidic channel valving demands sub-millisecond timing fidelity
• Calibration station automation for flowmeter or pressure transducer validation rigs

FAQ

Does the EZ4AXIS support closed-loop position verification?
Yes—while it operates natively in open-loop mode, the controller provides dedicated quadrature encoder inputs per axis (A/B/Z signals) and firmware-level position error detection. When enabled, mismatch between commanded and reported position triggers a non-maskable interrupt and logs the event with timestamp and axis ID.

Can multiple EZ4AXIS units be daisy-chained for >4-axis systems?
Yes—via RS-485 multi-drop bus with Modbus RTU slave addressing. Each unit can be assigned a unique address (1–247), allowing centralized orchestration from a single host while maintaining individual real-time autonomy.

Is the instruction set compatible with legacy Beifen Sanpu chromatography software?
Yes—the G/M/P/D/S/e syntax is backward-compatible with Beifen Sanpu’s GC-9790, GC-9720, and LC-970 series instrument control suites, enabling seamless migration of existing motion routines.

What safety certifications does the unit hold?
The EZ4AXIS meets IEC 61010-1:2010 for electrical safety in laboratory equipment and carries CCC certification (CNCA-C06-01) for domestic Chinese deployment. CE marking covers EMC compliance only; UL/cUL listing is not currently held.
