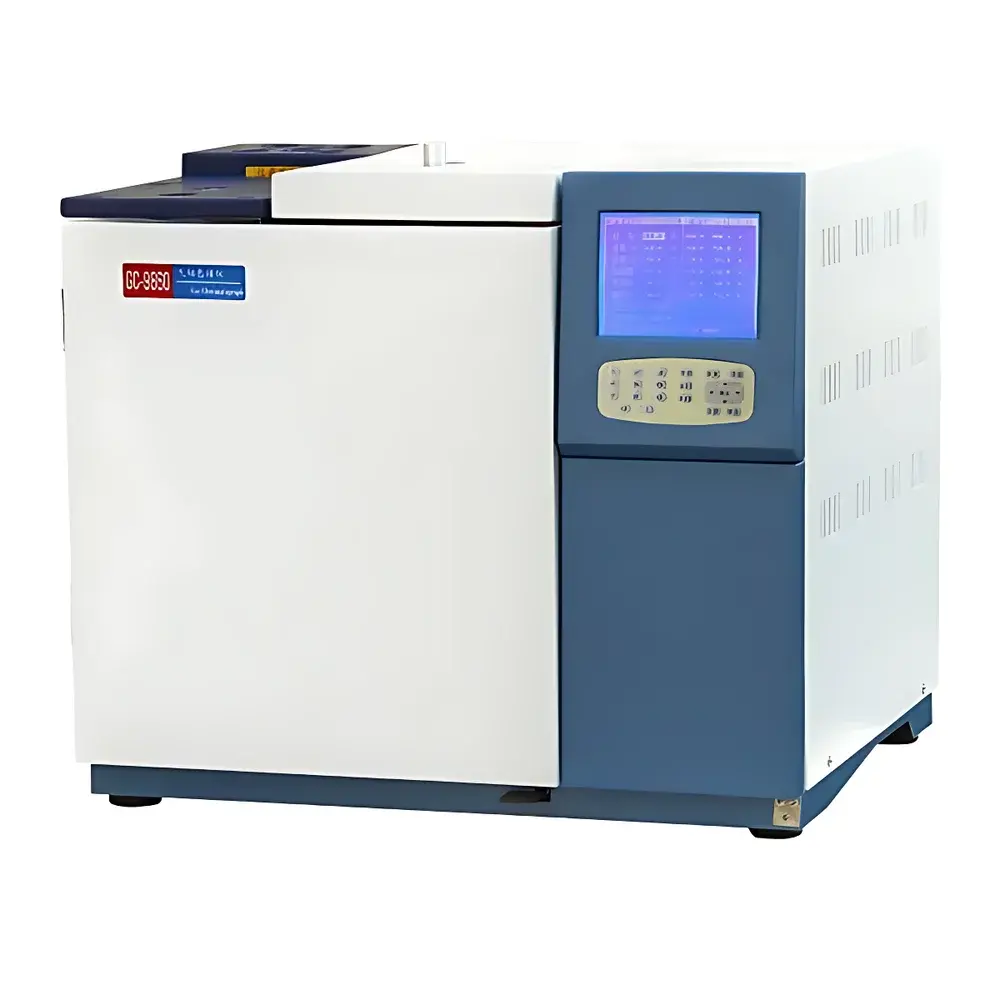

Beifen Sanpu GC-9860 High-Performance Gas Chromatograph for Water Quality Monitoring

Overview

The Beifen Sanpu GC-9860 is a high-performance, laboratory-grade gas chromatograph engineered for precise, reproducible analysis of volatile and semi-volatile organic compounds in water quality monitoring applications. Based on robust packed- and capillary-column separation principles, the instrument employs temperature-programmed elution under precisely controlled carrier gas flow and pressure conditions—compliant with ASTM D5059, ISO 10301, and EPA Method 502.1/601/624/8021B for priority pollutants in aqueous matrices. Its modular detector architecture supports simultaneous multi-analyte detection across environmental, regulatory, and research workflows, including trace-level hydrocarbons, chlorinated solvents, pesticides, and disinfection byproducts. The GC-9860 integrates hardware-level thermal management—including an intelligent dual rear door design enabling near-ambient oven cooling—and microprocessor-driven gas control systems that meet GLP/GMP requirements for auditability and data integrity.

Key Features

• Eight-stage linear programmable temperature ramping (0.1–40 °C/min), with oven setpoint accuracy of ±0.1 °C and thermal uniformity ≤±1% across 100–350 °C range.
• Dual independent rear oven doors enable rapid cooling from 450 °C to 50 °C, reducing cycle time without compromising column lifetime or baseline stability.
• Multi-detector support: up to four detectors (FID, TCD, ECD, NPD, FPD) can be installed and operated simultaneously; detectors may be configured in series or parallel via event-triggered switching.
• Capillary-ready inlet with true split/splitless operation, optimized for low-volume aqueous extracts and derivatized samples; compatible with 6-inch standard column fittings (152.4 mm span).
• Integrated gas control system featuring high-precision mass flow controllers (0–1200 mL/min) and digital pressure regulators (0–970 kPa) for carrier, makeup, and reference gases.
• Bilingual (Chinese/English) 5.7″ LCD interface with 20 customizable display screens, real-time chromatogram visualization, and onboard storage for 20 complete method files—including temperature programs, detector settings, and integration parameters.
• Comprehensive hardware diagnostics with contextual Chinese-language fault prompts, automatic flame ignition for FID, and flash-based non-volatile memory eliminating battery-dependent data retention.
• Advanced safety architecture: automatic carrier gas cutoff upon flow loss, platinum RTD open/short circuit detection, overtemperature cutout, and detector-specific thermal protection (e.g., TCD filament current regulation).

Sample Compatibility & Compliance

The GC-9860 accommodates diverse sample introduction modalities critical for water analysis: direct aqueous injection (via PTV or cold-on-column), headspace sampling (with optional auto-headspace module), purge-and-trap (when paired with external concentrator), and thermal desorption (for solid-phase microextraction or sorbent tube extracts). It supports both packed columns (3–5 mm OD metal/glass) and fused-silica capillaries (standard 0.53/0.32 mm ID), with column oven dimensions (260×250×150 mm) accommodating up to three capillary columns concurrently. Regulatory alignment includes compliance with US EPA SW-846 Methods 502.2, 524.4, 8021B, and ISO 10301 for VOCs in drinking water; ASTM D5059 for gasoline oxygenates; and GB/T 5750.8–2023 (China’s Standard Method for Organic Compounds in Drinking Water). All detector specifications—including FID detection limit (Mt ≤ 2×10⁻¹² g/s n-hexadecane), TCD sensitivity (S ≥ 10,000 mV·mL/mg), and ECD minimum detectable activity (≤1×10⁻¹⁴ g/mL)—are verified per IUPAC-recommended calibration protocols.

Software & Data Management

Data acquisition and processing are performed using Beifen Sanpu’s proprietary ChromaLink GC software (v3.2+), compliant with FDA 21 CFR Part 11 for electronic records and signatures. The software provides full audit trail logging—including user login history, method modification timestamps, and raw data file checksums—as well as automated report generation aligned with ISO/IEC 17025 documentation requirements. Raw chromatograms are stored in vendor-neutral .cdf format (compatible with OpenChrom and Chromeleon), while quantitative results export to CSV, Excel, or LIMS via ODBC. Flash-memory-based firmware ensures method persistence during power loss, and all detector signal outputs (analog ±1 V or digital RS-232/USB) support third-party integration for automated online monitoring configurations.

Applications

• Regulatory compliance testing for VOCs, SVOCs, and pesticides in surface water, groundwater, and drinking water per EPA, ISO, and national standards.
• Wastewater treatment plant effluent monitoring for hydrocarbon breakthrough, chlorinated solvent residuals, and disinfection byproduct formation (e.g., trihalomethanes, haloacetic acids).
• Environmental forensics and source identification using fingerprinting of petroleum hydrocarbons (C₆–C₄₄) via simulated distillation or detailed hydrocarbon analysis (DHA) methods.
• Pharmaceutical manufacturing: residual solvent analysis in purified water (PW) and water-for-injection (WFI) per USP and Ph. Eur. 2.4.24.
• Academic and method development labs requiring flexible detector combinations—for example, simultaneous FID quantification and ECD-selective detection of organochlorines in sediment porewater extracts.

FAQ

Does the GC-9860 support EPA Method 524.4 for purge-and-trap analysis of VOCs in drinking water?
Yes—the instrument’s precise temperature ramping, low-noise FID, and compatibility with commercial purge-and-trap concentrators (e.g., Tekmar Atomx) enable full compliance when operated with certified calibration standards and QC checks.
Can the GC-9860 run two capillary columns with two different detectors independently?
Yes—its dual-column capability allows concurrent operation of two capillary columns with independent temperature zones and detector assignments (e.g., FID on Column A, ECD on Column B), eliminating manual reconfiguration between analyses.
Is the data system 21 CFR Part 11 compliant out-of-the-box?
The ChromaLink software includes role-based access control, electronic signature capture, and immutable audit trails; however, full Part 11 validation requires site-specific IQ/OQ/PQ documentation and administrative policy implementation.
What maintenance intervals are recommended for the FID jet and TCD filament?
FID jets should be cleaned every 200–300 injections with aqueous samples; TCD filaments require periodic resistance verification (monthly) and replacement only upon confirmed open-circuit failure—typically after >10,000 hours of stable operation.
Does the GC-9860 support unattended overnight operation for batch analysis?
Yes—integrated timer functions, auto-shutdown protocols, and continuous power-failure recovery allow scheduled runs up to 6000 minutes (100 hours) with full method retention and post-run reporting.
