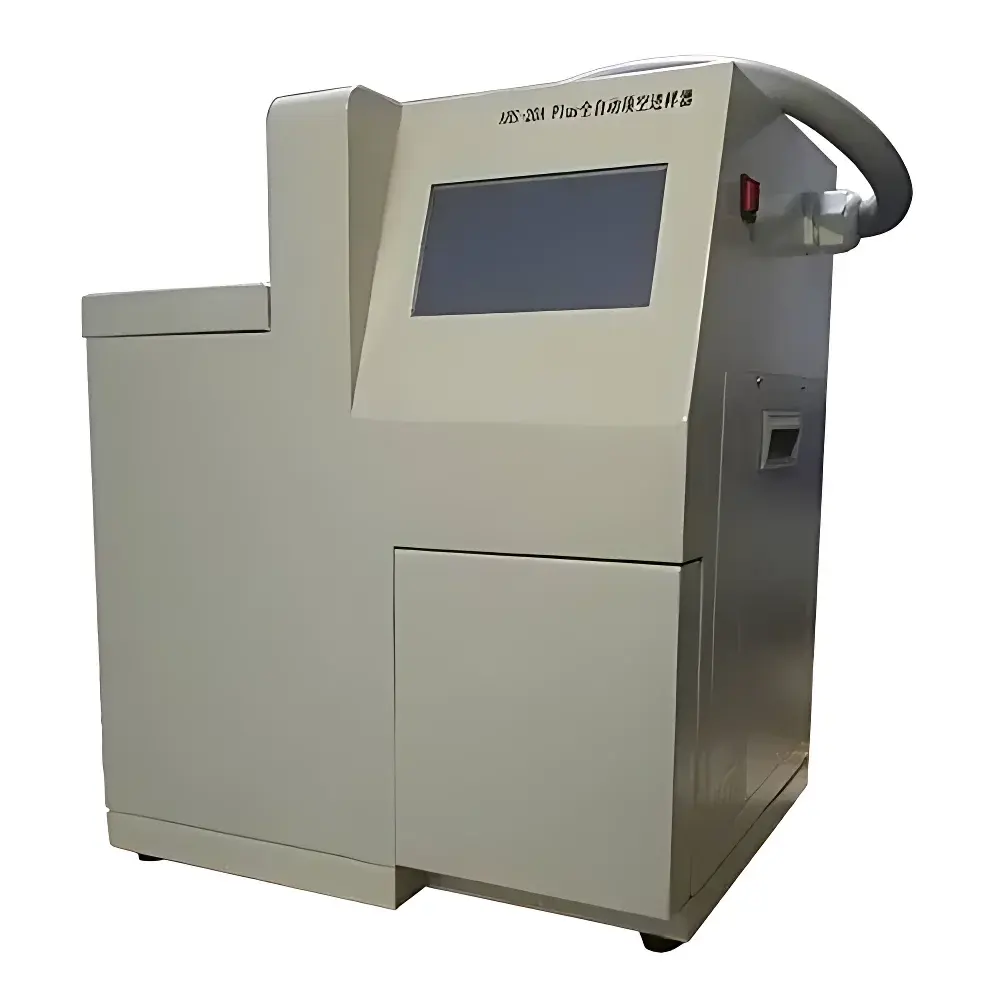

Beifen Sanpu IAHS-20A Plus Fully Automated Headspace Sampler

Overview

The Beifen Sanpu IAHS-20A Plus Fully Automated Headspace Sampler is an engineered solution for precise, reproducible, and unattended volatile organic compound (VOC) analysis in complex solid and liquid matrices. Based on the principle of equilibrium headspace gas-phase extraction—where analytes partition between a sealed sample phase and its overlying vapor phase—the IAHS-20A Plus enables quantitative transfer of thermally labile or semi-volatile compounds directly into a gas chromatograph (GC) without solvent interference or column contamination. Designed for routine QC/QA laboratories, environmental testing facilities, pharmaceutical stability studies, and forensic toxicology workflows, this instrument delivers robust automation while maintaining compliance with internationally recognized analytical standards including USP for residual solvents, ASTM D6866 for biobased content determination, and ISO 11843-2 for detection capability estimation.

Key Features

• 20-position carousel with programmable vial handling; supports standard 10 mL and 20 mL crimp-top vials (50 mL and 100 mL configurations available upon request)
• Independent three-zone heating system: sample oven, six-port valve housing, and transfer line—all maintained within ±0.5 °C stability and calibrated to ±0.5 °C accuracy
• Positive-pressure sampling mechanism eliminates baseline drift and ensures compatibility with both split and splitless GC inlets
• High-inertness flow path: all internal tubing, quantitative loops (1 mL standard), and needle assemblies are fabricated from silanized fused silica or deactivated stainless steel to prevent adsorption or carryover
• Motor-driven actuation system—no external pneumatic supply required—reducing infrastructure dependency and operational hazards
• Integrated self-diagnostic firmware: automatic carousel homing, vial presence detection, positional fault avoidance, mechanical stall protection, and real-time error logging
• Flexible injection protocols: single-vial multi-injection, single-shot per vial, or sequential multi-vial batch runs—all configurable via front-panel interface or remote USB command set
• Optional Electronic Pressure Control (EPC) module for carrier gas flow regulation, enhancing retention time reproducibility across long sequences

Sample Compatibility & Compliance

The IAHS-20A Plus accommodates diverse sample types—including aqueous solutions, polymers, soils, pharmaceutical tablets, food matrices, and biological tissues—without derivatization or extraction. Its sealed vial equilibrium approach minimizes matrix effects and preserves analyte integrity during thermal equilibration. The system meets essential regulatory requirements for GLP and GMP environments: full parameter logging with timestamped audit trails (when paired with compliant chromatography data systems), electronic signature support (per FDA 21 CFR Part 11 when enabled), and traceable calibration records for temperature and pressure modules. All hardware components comply with RoHS directives and CE electromagnetic compatibility (EMC) Class B specifications.

Software & Data Management

Control is executed via a dual-mode interface: a 7-inch resistive touchscreen with intuitive graphical workflow navigation—or a Windows-based USB host application supporting method import/export, sequence scheduling, real-time status monitoring, and remote diagnostics. All method parameters—including equilibration time, pressurization pressure, loop fill duration, injection volume, and post-run purge cycles—are stored as encrypted binary files with version control. Raw event logs capture every motor step, heater state transition, valve actuation, and sensor reading at millisecond resolution. When synchronized with third-party GC data systems (e.g., Agilent OpenLab, Thermo Chromeleon, Shimadzu GCsolution), the IAHS-20A Plus triggers acquisition start signals and embeds sampler metadata directly into chromatographic result files for full traceability.

Applications

• Residual solvent quantification in active pharmaceutical ingredients (APIs) and excipients per ICH Q3C and USP
• VOC profiling in packaging materials, adhesives, and automotive interior components per ISO 12219-1
• Alcohol content determination in beverages and forensic blood samples using static headspace-GC/FID
• Environmental analysis of chlorinated hydrocarbons and BTEX compounds in soil and groundwater extracts
• Flavor and fragrance release kinetics studies in food emulsions and dairy products
• Stability-indicating assays for oxidation-prone compounds under accelerated storage conditions

FAQ

Does the IAHS-20A Plus support method validation per ICH guidelines?
Yes—its temperature uniformity, pressure repeatability, and RSD performance (<1.0% at 100 ppm ethanol) meet ICH Q2(R2) criteria for precision and intermediate precision assessment.
Can it be integrated with legacy GC systems lacking digital trigger inputs?
Yes—external TTL-level dry-contact triggering is supported via rear-panel BNC port, enabling synchronization with older GC models.
Is validation documentation provided for IQ/OQ/PQ execution?
Comprehensive URS-aligned validation templates, factory calibration certificates, and test protocols for temperature mapping, pressure linearity, and carryover evaluation are supplied with each unit.
What maintenance intervals are recommended for optimal long-term performance?
Quarterly inspection of vial septa penetration depth, annual verification of oven temperature uniformity (per ASTM E220), and biannual replacement of quantitative loop seals are advised.
Are custom vial adapters or high-temperature valve options available?
Yes—custom machined carriers for 50 mL and 100 mL vials, plus optional 300 °C-rated valves and heated transfer lines, are offered as factory-installed upgrades.
