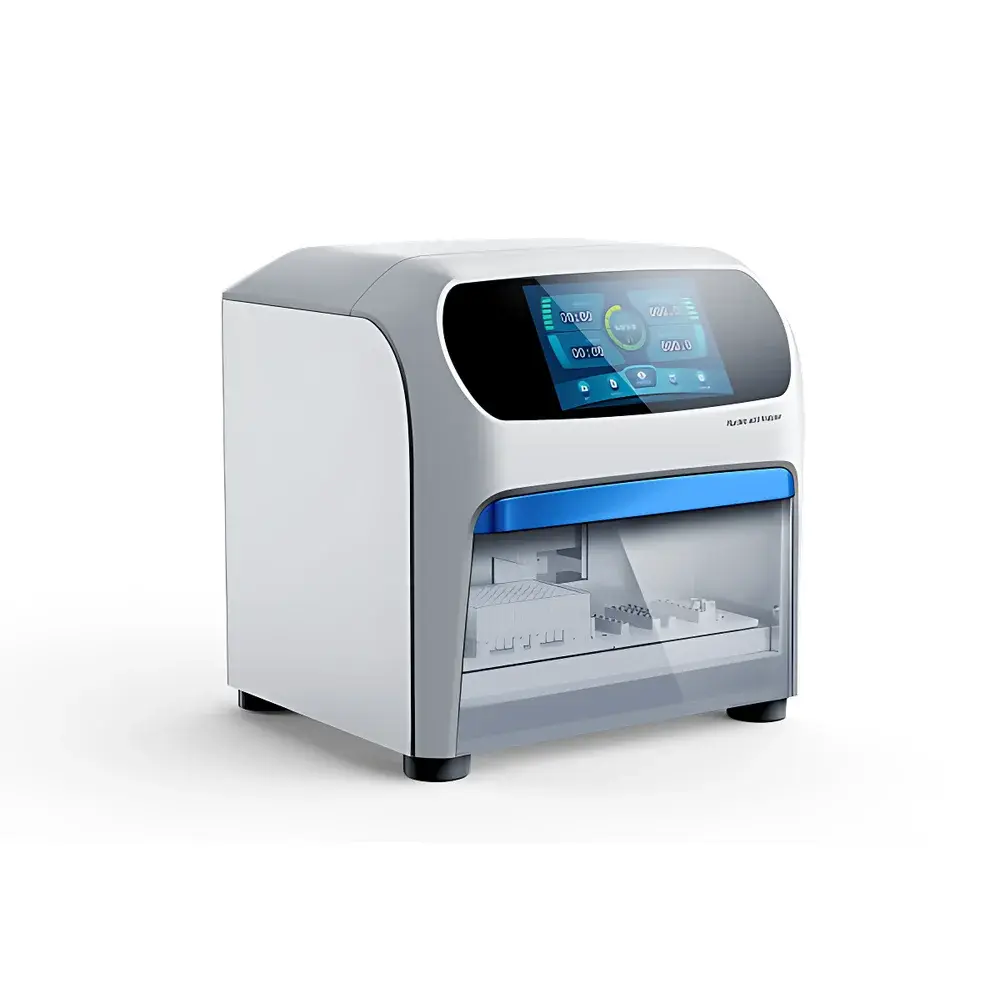

Bioer GenePure Pro NPA-32P Automated Magnetic Bead-Based Nucleic Acid Purification System

Overview

The Bioer GenePure Pro NPA-32P is a fully automated, benchtop nucleic acid purification system engineered for precision, reproducibility, and compliance in clinical diagnostics, translational research, and high-throughput molecular biology laboratories. It employs magnetic bead-based solid-phase extraction—a well-established, ISO 20387-aligned methodology—where nucleic acids bind selectively to paramagnetic beads under controlled chaotropic and pH conditions, followed by sequential washing and elution steps. Unlike column-based or phenol-chloroform methods, this approach eliminates centrifugation, reduces hands-on time, and minimizes operator-induced variability. The NPA-32P integrates thermally regulated deep-well heating blocks, a dynamically adjustable magnetic rod array, and programmable agitation profiles to ensure consistent lysis efficiency, binding kinetics, and elution recovery across diverse sample matrices—including whole blood, FFPE tissue, buccal swabs, plasma, viral lysates, and plant or bacterial cultures.

Key Features

• High-Fidelity Magnetic Separation: Precision-engineered magnetic rod module with amplitude and frequency optimization ensures complete bead capture and minimal carryover—even with low-concentration or viscous samples—reducing residual bead adhesion and improving nucleic acid yield consistency.
• Uniform Thermal Management: Deep-well heating blocks provide ±0.5 °C temperature accuracy across all wells (range: ambient to 95 °C), minimizing thermal gradients during lysis and elution steps critical for RNA integrity and DNA shearing control.
• Contamination Mitigation Architecture: Integrated UV-C germicidal lamp (254 nm) activates automatically between runs; disposable, single-use extraction tips and sealed reaction chambers prevent cross-contamination and aerosol-mediated carryover—supporting CLIA- and CAP-aligned workflow hygiene requirements.
• Modular Scalability: Interchangeable magnetic rod and heating modules allow future expansion from 32-well to 48-well throughput without hardware replacement—preserving capital investment while adapting to evolving lab capacity needs.
• Open-System Compatibility: Designed to accept third-party magnetic bead kits compliant with standard 2.2 mL deep-well plate geometry and common buffer chemistries—enabling method validation flexibility and cost-effective reagent sourcing per ISO/IEC 17025 method equivalence guidelines.
• Robust Software Interface: Touch-enabled cockpit-style UI displays real-time protocol progress, temperature status, motor position, and error logs—facilitating rapid troubleshooting and audit-ready operational transparency.

Sample Compatibility & Compliance

The GenePure Pro NPA-32P supports extraction from >15 validated specimen types, including anticoagulated whole blood, EDTA plasma, saliva, buccal cells, cultured mammalian cells, Gram-positive/negative bacteria, viral supernatants, formalin-fixed paraffin-embedded (FFPE) tissue sections, dry blood spots, amniotic fluid, chorionic villi, and plant tissues. All protocols are developed in alignment with relevant international standards: ASTM D7780-22 (nucleic acid isolation performance criteria), ISO 20387:2018 (biobanking quality requirements), and USP (microbial control of cleanrooms). The system’s closed processing path and traceable run logs support GLP/GMP documentation needs, and its software architecture accommodates 21 CFR Part 11-compliant electronic signatures when deployed with validated IT infrastructure.

Software & Data Management

The embedded control software (v3.2+) provides password-protected user roles (Administrator, Technician, Viewer), full protocol versioning, and timestamped audit trails for every run—including parameter changes, maintenance events, and error notifications. Protocols are stored locally on the device (≥1,000 program capacity) and exportable via USB in CSV or PDF format for regulatory submission. Raw instrument logs—including temperature curves, motor actuation cycles, and UV exposure duration—are retained for ≥12 months. Optional integration with LIMS platforms is supported through RS232 serial commands or configurable ASCII-based API endpoints—enabling automated job dispatch and result ingestion into enterprise data systems.

Applications

This system serves as a core automation node in diagnostic laboratories performing PCR-based infectious disease testing (e.g., SARS-CoV-2, HPV, HBV), non-invasive prenatal testing (NIPT), oncology liquid biopsy workflows (cfDNA extraction), companion diagnostics assay development, and biobank sample processing. Its reproducible yield and purity metrics (A260/A280 ≥ 1.8, A260/A230 ≥ 2.0) meet input requirements for downstream applications including qRT-PCR, digital PCR, next-generation sequencing library preparation, methylation analysis, and CRISPR-based detection assays. In academic settings, it accelerates genotyping, gene expression profiling, and functional genomics studies requiring standardized nucleic acid inputs across large cohort cohorts.

FAQ

Does the GenePure Pro NPA-32P require proprietary consumables?
No—it accepts any magnetic bead-based kit compatible with 2.2 mL deep-well plates and standard lysis/wash/elution buffer volumes. Bioer MagaBio Plus kits are pre-validated, but third-party alternatives may be qualified per your lab’s verification SOP.
Can the system be integrated into an automated laboratory workflow?
Yes—RS232 interface enables bidirectional communication with robotic arms or middleware platforms. Custom command sets are available upon request for scheduling and status polling.
Is the software compliant with FDA 21 CFR Part 11?
The base software includes electronic signature capability, audit trail generation, and role-based access control. Full Part 11 compliance requires deployment within a validated IT environment and documented configuration management per your organization’s QMS.
What maintenance is required for long-term reliability?
Scheduled quarterly calibration of temperature sensors and annual magnetic field strength verification are recommended. UV lamp lifetime is rated at 5,000 hours; replacement is tool-free and documented in the service manual.
How is carryover contamination prevented between runs?
Each run initiates an automated UV decontamination cycle (15 min), and all liquid-contact surfaces—including magnetic rods and pipette tips—are physically replaced or cleaned using ethanol wipe protocols defined in the operator guide.
