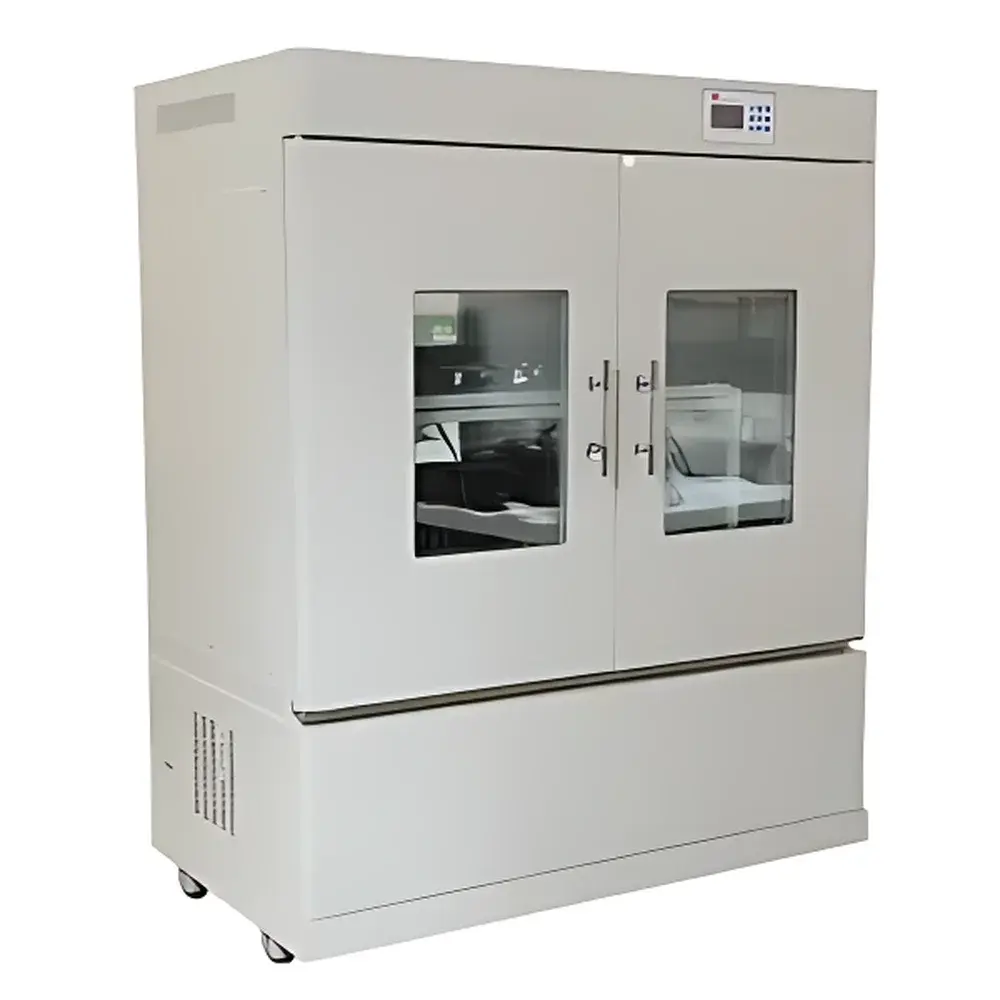

Boxun BSD-YX(F)1600 Vertical High-Capacity Incubated Shaker

Overview

The Boxun BSD-YX(F)1600 is a vertically oriented, dual-shelf incubated shaker engineered for high-throughput biological culture and biochemical reaction systems requiring precise, stable temperature control and programmable agitation. It operates on two distinct motion modes—orbital (circular) and reciprocating (linear)—each independently configurable to accommodate diverse cell growth kinetics, suspension culture requirements, and reagent mixing protocols. The unit employs PID-controlled forced-air convection for uniform thermal distribution across the chamber, with typical temperature uniformity of ±1 °C at 25 °C (empty) and stability of ±0.2 °C at 37 °C. Its structural design integrates a rigid steel frame, electrostatically sprayed exterior housing, and an interior chamber fabricated from electropolished stainless steel (AISI 304), ensuring corrosion resistance, ease of decontamination, and compliance with GLP laboratory infrastructure standards.

Key Features

• Dual independent shelves (970 × 560 mm and 950 × 590 mm) support simultaneous multi-condition experiments without cross-contamination risk.
• PID microprocessor controller with backlit LCD display enables real-time monitoring of setpoints and actual values for temperature, speed, amplitude, and elapsed time.
• Programmable 10-segment curve control allows complex ramp-hold-cool profiles for kinetic studies, enzyme assays, or synchronized fermentation cycles.
• Brushless DC motor drive ensures constant torque across the full speed range (30–300 rpm orbital / 30–250 rpm reciprocating), eliminating carbon brush wear and enabling silent, maintenance-free operation—even at low-speed regimes where mechanical instability commonly occurs in brushed systems.
• Integrated safety architecture includes over-temperature cutoff (independent limit thermostat), motor overheat protection, door interlock switch, and power-failure recovery with automatic resume functionality.
• Adjustable fresh-air inlet and optimized defrost cycle minimize internal temperature fluctuation during humidity management (40–95% RH, ±5% fluctuation).
• Ergonomic design features recessed control panel, tempered glass observation window, and rounded internal corners for validated cleaning procedures per ISO 14644 cleanroom-compatible workflows.

Sample Compatibility & Compliance

The BSD-YX(F)1600 accommodates standard laboratory vessels ranging from 50 mL tubes to 1000 mL Erlenmeyer flasks, with maximum loading capacities of up to 164 × 100 mL bottles per shelf (orbital mode) or 40 × 1000 mL flasks (reciprocating mode). Vessel retention utilizes standardized universal clamps compatible with common polypropylene, borosilicate glass, and stainless-steel containers. The system meets CE marking requirements for electrical safety (EN 61010-1) and electromagnetic compatibility (EN 61326-1). Its temperature and timing control architecture supports audit-ready data integrity when used in regulated environments compliant with FDA 21 CFR Part 11 (when paired with optional printer or GPRS logging modules). All materials contacting the sample chamber conform to USP Class VI biocompatibility specifications.

Software & Data Management

While the base configuration operates via embedded firmware, optional digital interfaces enable extended data governance. The integrated RS-485 port supports Modbus RTU protocol for integration into centralized lab automation networks. Optional accessories include a thermal-printer module capable of generating timestamped hardcopy records of temperature/speed profiles, and a GPRS-enabled alarm transmitter that delivers SMS alerts upon deviation events (e.g., temperature excursion > ±2 °C, door open > 30 s, power loss). When connected to Boxun’s LabLink™ PC software (Windows 10/11), users can export CSV-formatted datasets with millisecond-resolution timestamps, apply post-acquisition filtering, and generate IQ/OQ documentation templates aligned with ISO/IEC 17025 calibration traceability frameworks.

Applications

This shaker serves critical roles in microbial cultivation (E. coli, yeast, bacilli), mammalian cell suspension expansion (CHO, HEK293), hybridoma production, antigen-antibody binding assays, enzymatic hydrolysis optimization, and environmental microbiology (BOD testing, activated sludge simulation). Its wide temperature span (4–60 °C) and dual-motion capability make it suitable for both psychrophilic screening and thermophilic protein expression studies. In pharmaceutical QC labs, it supports dissolution testing per USP , while food safety laboratories use it for pathogen enrichment (e.g., Salmonella, Listeria) under ISO 6579-1:2017 conditions. The inert gas inlet option facilitates anaerobic or oxygen-sensitive cultures (e.g., Clostridium spp., obligate aerobes under controlled O₂ partial pressure).

FAQ

What is the maximum flask size supported in orbital mode?
The unit accommodates up to 1000 mL Erlenmeyer flasks; maximum load per shelf is 36 × 1000 mL (orbital) or 40 × 1000 mL (reciprocating), depending on configuration.
Does the system support validation documentation for GMP environments?
Yes—when equipped with optional printer or LabLink™ software, it provides electronic audit trails, user-access logs, and parameter-change history required for FDA 21 CFR Part 11 compliance.
Can both shelves operate at different temperatures or speeds simultaneously?
No—the BSD-YX(F)1600 maintains uniform chamber-wide temperature and synchronized motion across both shelves; independent control per shelf is not supported.
Is humidity control available as a factory-installed option?
Yes—humidity regulation (40–95% RH, ±5%) is standard on the BSD-YXF1600 variant; the BSD-YX1600 model omits active humidification but retains condensation management.
What certifications does the instrument carry for international shipment?
It holds CE marking (EU Directive 2014/30/EU and 2014/35/EU), RoHS 2011/65/EU compliance, and IEC 61000-6-3 EMC certification for commercial laboratory deployment worldwide.
