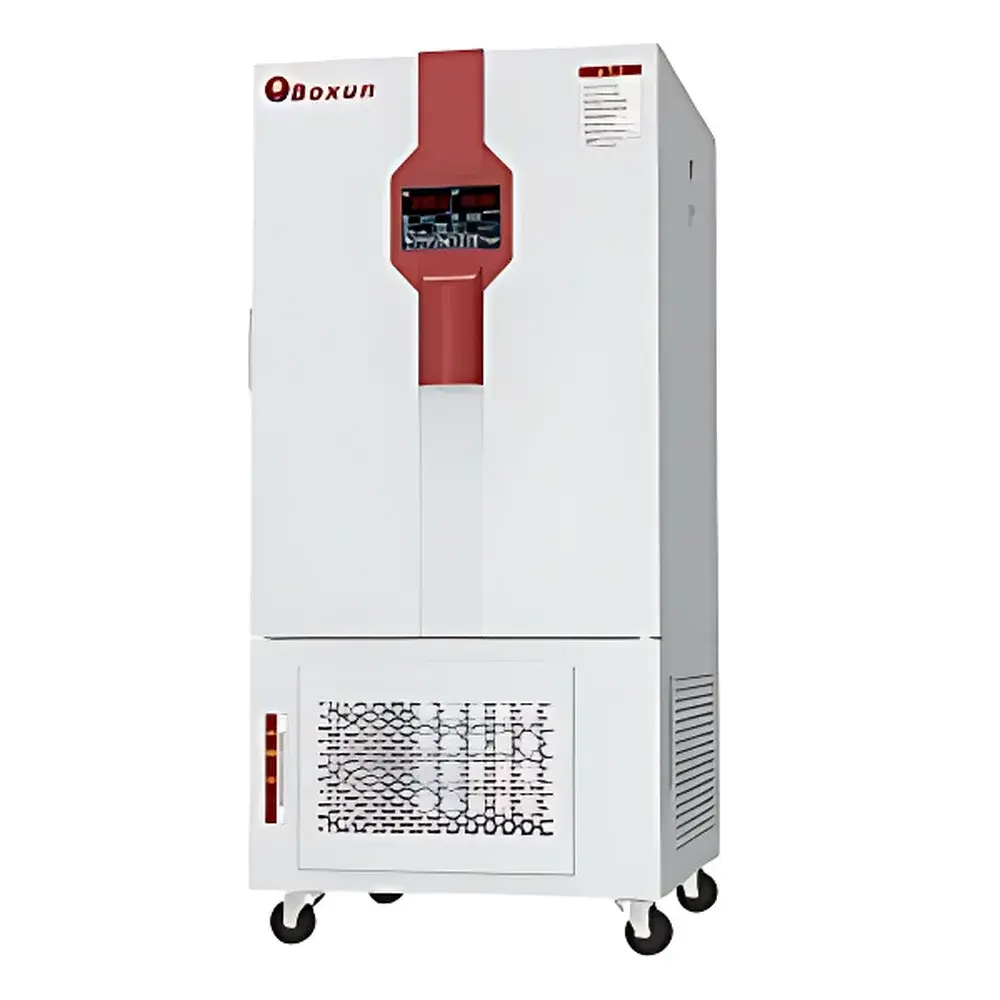

Boxun BXY-150S Drug Stability Testing Chamber

Overview

The Boxun BXY-150S Drug Stability Testing Chamber is a purpose-built environmental simulation system engineered for long-term, controlled-condition stability studies in accordance with ICH Q1–Q5 guidelines and regulatory expectations of the U.S. FDA, EMA, PMDA, and NMPA. It applies precise thermodynamic and hygroscopic control principles—leveraging dual-loop PID regulation, variable-frequency refrigeration, and C.H. (Circulating Heat) energy recovery architecture—to maintain highly reproducible temperature (−10 to 85 °C) and relative humidity (15–98 %RH) profiles across its 150 L working volume. Designed explicitly for pharmaceutical development and quality assurance workflows, the chamber supports accelerated stability testing (e.g., 40 °C/75 %RH), long-term storage (25 °C/60 %RH), intermediate condition protocols, and stress testing (e.g., high-temperature excursions). Its structural integrity, sensor redundancy, and closed-loop feedback ensure compliance with GLP and GMP environments where data traceability, process consistency, and environmental fidelity are non-negotiable.

Key Features

• 7-inch high-resolution capacitive touchscreen interface running on Windows CE OS with ≥512 MB RAM and high-frequency ARM-based CPU for responsive multi-parameter navigation and real-time visualization of setpoints, actual values, elapsed time, active segment, cycle count, and operational status.
• Fuzzy logic-enhanced PID control algorithm enabling stable, overshoot-free regulation under dynamic load conditions—including rapid recovery (<15 min) after door opening—critical for minimizing protocol deviation during routine sample access.
• 30-segment × 99-cycle programmable profile capability with individual segment duration configurable from 1 hour to 9999 hours; supports complex ramp-hold-step sequences required by ICH Q1A(R3) and USP <1151>.
• Imported high-efficiency hermetic compressor, low-noise EC centrifugal fan, and NIST-traceable capacitive humidity/RTD temperature sensors ensure metrological reliability and long-term drift resistance.
• Comprehensive hardware-level protection suite: independent over-temperature cutoff (with latching relay shutdown), door-open alarm, reservoir low-water detection, sensor failure diagnostics, and password-protected screen saver mode to prevent unauthorized parameter modification.
• Integrated data logging system stores up to 1,000,000 timestamped entries (including temperature, humidity, alarms, and user events); enables on-device review of last 1600 records or 6.5-hour graphical trends without external software.

Sample Compatibility & Compliance

The BXY-150S accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum pouches—across three standard stainless-steel shelves (expandable to six). Its internal chamber features tempered double-glazed observation door with anti-fog coating and uniform airflow distribution via rear-mounted ducted circulation, minimizing spatial gradients per ISO 14644-3 and ASTM E2709. The system meets mechanical and electrical safety requirements per IEC 61010-1 and is designed for integration into validated quality systems: optional IQ/OQ/PQ documentation packages align with Annex 15 and EU GMP Part IV; wireless temperature/humidity loggers include 3-point calibration certificates (0 °C, 60 °C, 121 °C for temp; 15 °C/40 %RH, 20 °C/60 %RH, 30 °C/80 %RH for RH), supporting audit readiness per FDA 21 CFR Part 11 when paired with FDA/GMP-compliant monitoring software.

Software & Data Management

Data export is performed directly via USB flash drive—capturing both raw sensor logs and full event history (power-on/off, parameter changes, alarm triggers) with ISO 8601 timestamps. RS232 and RS485 ports support Modbus RTU integration into centralized SCADA or LIMS platforms. Optional FDA Edition and GMP Edition monitoring software provide electronic signature capability, role-based access control, automated report generation (PDF/CSV), and 21 CFR Part 11-compliant audit trails—including immutable record retention, operator authentication, and change justification fields. All software modules undergo periodic cybersecurity assessment and are compatible with Windows 10/11 x64 enterprise environments.

Applications

• ICH-aligned accelerated and long-term stability studies for APIs, finished dosage forms, and biologics.
• Photostability testing when integrated with optional UV/visible light modules (per ICH Q1B).
• Excursion tolerance evaluation during transport simulation and warehouse qualification.
• Reference standard storage under defined climatic zones (Zone IVa/IVb per ICH Q5C).
• Method validation support for dissolution, assay, and impurity profiling under stressed environmental conditions.
• Environmental qualification of cleanrooms, cold rooms, and stability storage suites per ISO 14644 and EU GMP Annex 15.

FAQ

Does the BXY-150S comply with 21 CFR Part 11 requirements?
Yes—when equipped with FDA Edition monitoring software and used with validated user access controls, electronic signatures, and audit-trail-enabled configurations.
Can the chamber be qualified for GMP use?
Yes—Boxun provides complete IQ/OQ/PQ documentation packages, including test protocols, executed reports, and calibration certificates traceable to national standards.
What is the maximum number of shelves supported?
The chamber supports up to six stainless-steel shelves; three are included as standard.
Is remote monitoring available?
Optional GPRS SMS alert module delivers real-time notifications (e.g., temperature excursion, door left open) to designated mobile numbers; Ethernet or Wi-Fi connectivity requires third-party gateway integration.
How is data integrity ensured during power interruption?
All logged data is written to non-volatile flash memory; system state and active program resume automatically after power restoration without data loss.
