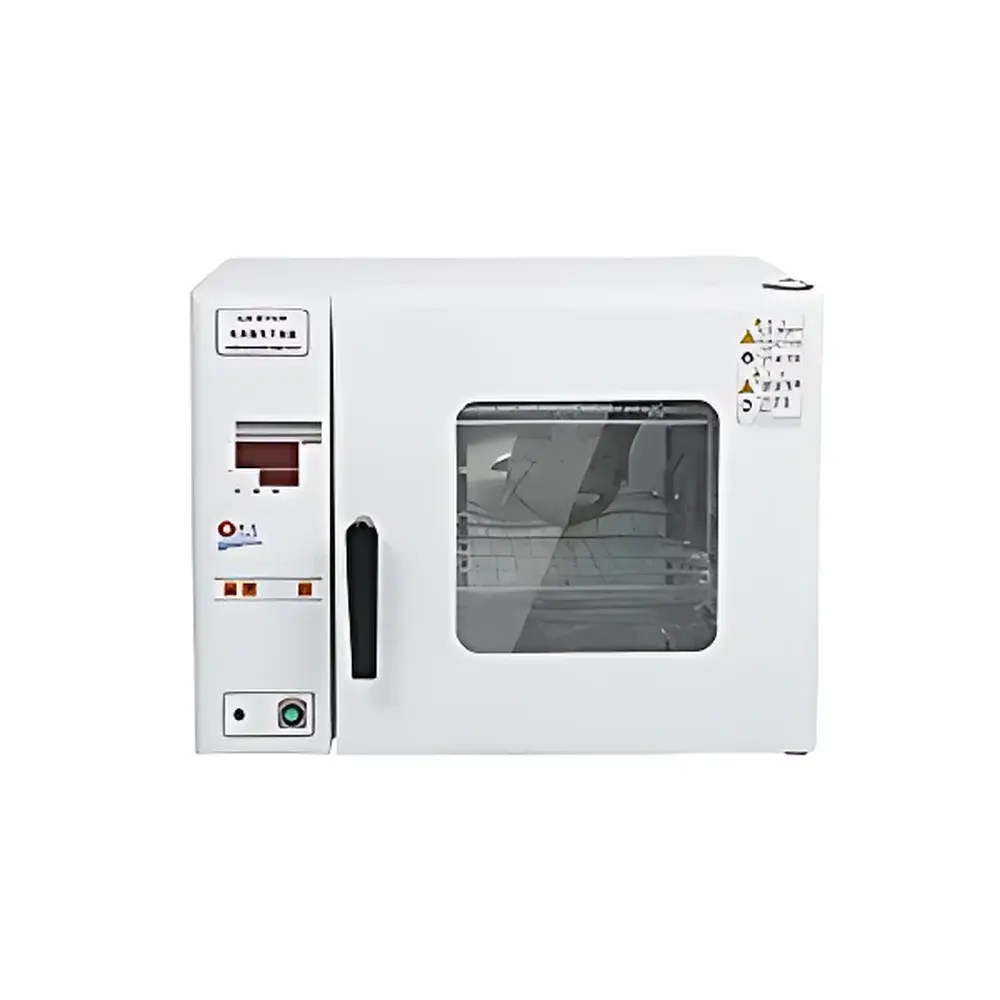

BOXUN GZX-9030MBE Forced-Air Constant-Temperature Drying Oven

Overview

The BOXUN GZX-9030MBE is a precision-engineered forced-air constant-temperature drying oven designed for routine thermal processing in industrial QA/QC laboratories, academic research facilities, and pharmaceutical development environments. It operates on the principle of convective heat transfer, utilizing a continuously recirculated, thermally homogenized airstream to ensure rapid heating and stable thermal equilibrium across the entire working chamber. Unlike natural-convection ovens, the GZX-9030MBE integrates a dedicated axial-flow blower system that actively redistributes heated air—minimizing vertical and horizontal thermal gradients and enabling reproducible drying, baking, sterilization, and moisture-loss testing per ASTM D1654, ISO 5725, and USP guidelines. Its chamber geometry (350 × 330 × 350 mm) and 40 L usable volume support standardized sample trays (e.g., 250 × 250 mm Petri dish racks or 100 mm glass desiccators), while the ambient+5°C to 200°C operating range covers common applications including polymer curing, powder drying, residual solvent removal, and stability-indicating assays.

Key Features

• Forced-air circulation system with low-turbulence centrifugal blower and optimized baffle design ensures ±2.5% temperature uniformity across the full chamber volume at steady state.
• Mirror-finish SUS304 stainless steel interior with seamless corner radii (R15) facilitates cleaning validation and prevents particulate accumulation—critical for GLP-compliant environments.
• Dual-stage rotary door lock mechanism compresses a high-temperature silicone gasket against a precision-machined flange, achieving leak rates <0.5 mL/min under differential pressure (tested per ISO 10648-2).
• Microprocessor-based PID temperature controller with 1°C resolution, real-time deviation monitoring, and programmable over-temperature cutoff (adjustable up to 220°C).
• Preheated air mixing chamber upstream of the working zone enables ramp rates exceeding 4°C/min (measured from 25°C to 180°C with empty chamber), reducing cycle time without sacrificing control fidelity.
• Dual LED display shows setpoint and actual chamber temperature simultaneously; touch-sensitive interface supports timer programming (0–999 minutes) and power-failure memory retention.
• High-efficiency mineral wool insulation (60 mm thick, λ ≤ 0.042 W/m·K) limits surface temperature rise to <45°C at 200°C internal setpoint—meeting IEC 61010-1 Class II safety requirements.

Sample Compatibility & Compliance

The GZX-9030MBE accommodates standard laboratory ware including aluminum weighing dishes (≤150 mm diameter), borosilicate glass beakers (up to 1000 mL), stainless steel sample pans, and stacked ceramic crucibles. Its open-shelf architecture supports both static placement and airflow-permissive stacking configurations. The unit complies with GB/T 5170.2–2017 (Chinese national standard for temperature chamber verification), and its electrical architecture conforms to IEC 61010-1:2010 for laboratory equipment safety. While not inherently 21 CFR Part 11 compliant, audit trails can be generated via external data loggers interfaced through the RS-232 port (optional). Validation documentation—including IQ/OQ templates and temperature mapping protocols—is available upon request for GMP-regulated installations.

Software & Data Management

The GZX-9030MBE operates as a standalone instrument with embedded firmware only; no proprietary software is required for basic operation. For traceable process recording, an optional RS-232 serial interface enables connection to third-party SCADA systems or PC-based logging software (e.g., LabVIEW, WinWedge). All temperature setpoints, timer values, and alarm events are retained in non-volatile memory during power interruption. The controller logs up to 100 event timestamps (e.g., “Overtemp alarm triggered at 14:22:03”) with automatic overwrite cycling. Data export requires manual copy via terminal emulation—no cloud connectivity or remote access capability is implemented, preserving network security integrity in regulated labs.

Applications

• Moisture content determination per AOAC 950.46 and ISO 5530-1 using gravimetric loss-on-drying protocols.
• Thermal aging studies of packaging materials (e.g., PET films, laminated foils) under accelerated conditions (e.g., 60°C/75% RH preconditioning followed by 85°C dry-heat exposure).
• Residual solvent evaporation from API intermediates prior to HPLC analysis, maintaining thermal stability below decomposition thresholds.
• Drying of filter papers post-gravimetric particulate analysis (e.g., EPA Method 13A) with minimal fiber degradation.
• Preconditioning of reference standards and calibration weights in metrology labs per ISO/IEC 17025 clause 6.4.4.
• Curing of epoxy-coated test coupons for adhesion strength evaluation (ASTM D4541).

FAQ

What is the maximum recommended load volume for optimal temperature uniformity?
For certified uniformity (±2.5%), total load should not exceed 60% of chamber volume—i.e., ≤24 L of solid material or equivalent thermal mass. Overloading degrades airflow dynamics and increases stabilization time.
Can this oven be used for sterilization of glassware?
No. The GZX-9030MBE is not validated for microbial kill kinetics. Dry-heat sterilization (e.g., 160°C for 120 min) requires documented bioburden reduction validation per ISO 14937 and is outside the scope of this general-purpose oven’s design qualification.
Is the stainless steel interior electropolished?
No—the interior uses mechanically polished mirror-finish SUS304 (Ra ≤ 0.4 µm), suitable for routine cleaning but not ultra-high-purity applications requiring electropolished surfaces (Ra ≤ 0.2 µm).
Does the unit include a calibration certificate?
A factory calibration report (covering three-point verification at 50°C, 105°C, and 180°C) is included. Full UKAS/NIST-traceable calibration must be performed externally using accredited providers.
What maintenance intervals are recommended?
Blower motor bearings require lubrication every 12 months; door gasket integrity should be verified quarterly using smoke leakage testing per ISO 10648-2 Annex B; temperature sensor drift should be checked semiannually against a calibrated reference thermometer.
