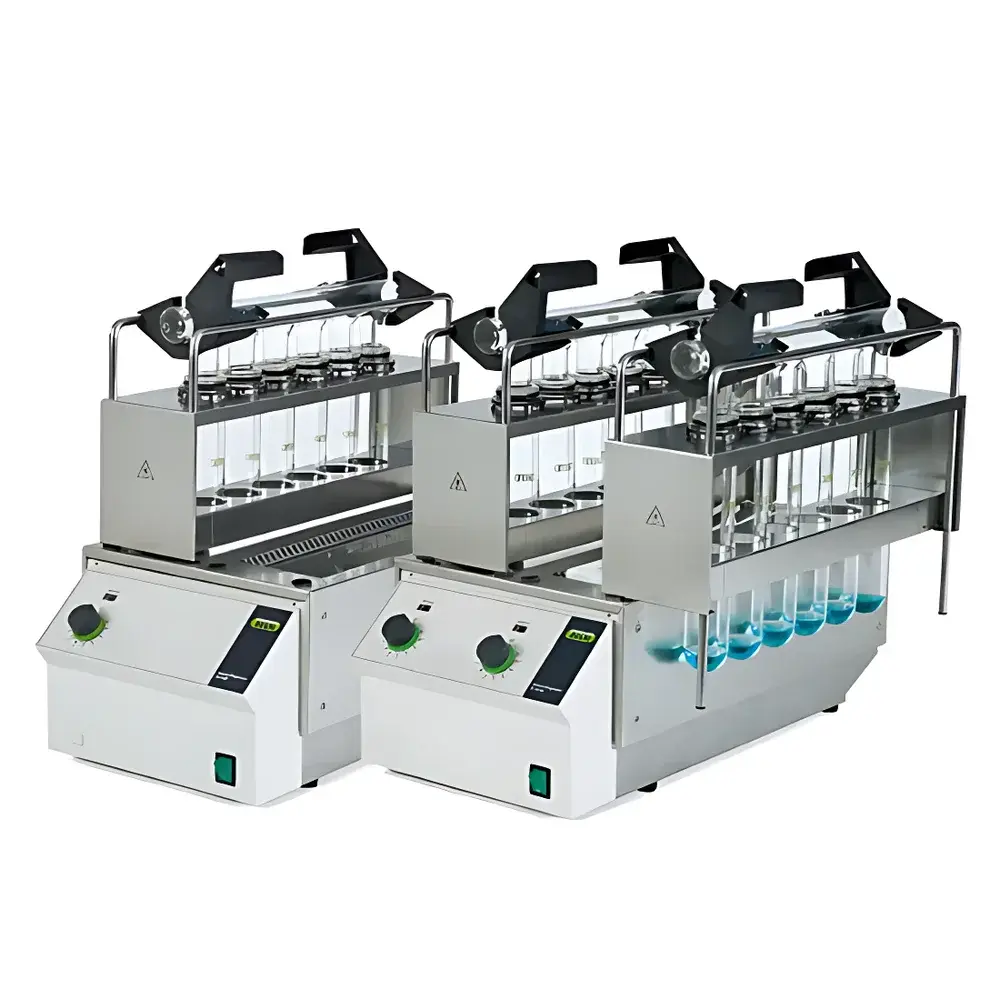

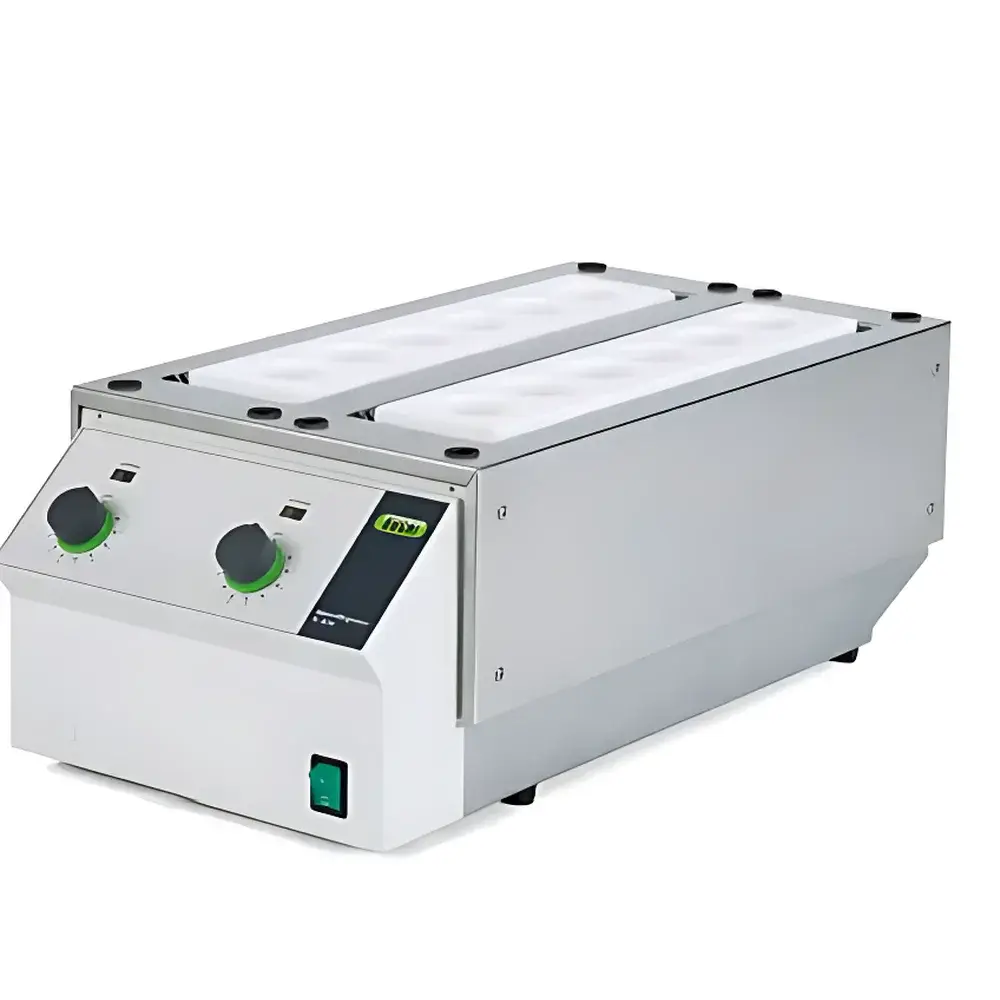

BUCHI K-436 SpeedDigester Infrared Digestion System

Overview

The BUCHI K-436 SpeedDigester is a high-performance infrared heating digestion system engineered for precision, reproducibility, and regulatory compliance in Kjeldahl nitrogen determination workflows. Unlike conventional hot-block or ceramic-heated digesters, the K-436 employs focused infrared radiation to deliver rapid, uniform thermal energy directly to digestion tubes—minimizing thermal inertia, reducing ramp times, and enabling precise control over the entire digestion profile. Designed specifically for laboratories performing routine nitrogen analysis in food, feed, environmental, and pharmaceutical matrices, the K-436 ensures standardized, traceable sample preparation aligned with internationally recognized methods including AOAC 984.13, ISO 5983-1, and USP <467>. Its robust architecture supports method transfer across multi-site operations and integrates seamlessly into GLP- and GMP-compliant environments where documentation integrity and process consistency are non-negotiable.

Key Features

• Infrared radiant heating technology enables fast heating (0–400 °C in <90 s) and rapid cooling, significantly shortening total digestion cycle time versus conduction-based systems.
• Optimized cavity design with integrated thermal insulation and reflective shielding ensures homogeneous temperature distribution across all tube positions—critical for inter-sample repeatability (RSD <2% for duplicate digestions under identical conditions).
• Modular suction system with three interchangeable configurations: Standard (for general acid digestion), H₂O₂-optimized (reducing digestion time by up to 50% for organic-rich samples), and Cold Trap-equipped (prevents condensate reflux during low-boiling-point matrix digestion, e.g., wastewater or dairy effluents).
• Self-supporting weighing stand built into the instrument frame allows direct tare-and-weigh operations without external balance stands—reducing contamination risk and improving ergonomics.
• Universal tube compatibility accommodates both 300 mL and 500 mL borosilicate digestion tubes, supporting flexibility in sample mass and reagent volume requirements per method.
• Stainless steel construction with corrosion-resistant internal coatings ensures long-term durability against aggressive reagents such as concentrated H₂SO₄, H₂O₂, and selenium catalysts.

Sample Compatibility & Compliance

The K-436 is validated for use with a broad spectrum of organic and semi-organic matrices, including cereals, meat products, soil extracts, activated sludge, plant tissues, and pharmaceutical excipients. It complies with key international standards governing digestion performance and analytical validation: ISO 8586 (general principles of sample preparation), ASTM D5176 (Kjeldahl nitrogen in waste materials), and EPA Method 351.2 (total Kjeldahl nitrogen in wastewater). All components contacting reagents meet USP Class VI biocompatibility requirements. The system supports IQ/OQ documentation packages and is compatible with laboratory audit trails required under FDA 21 CFR Part 11 when operated in conjunction with validated LIMS or electronic lab notebook (ELN) platforms.

Software & Data Management

While the K-436 operates as a standalone unit with manual parameter setting via front-panel controls, its operational parameters—including setpoint temperature, dwell time, and ramp profiles—are fully documented in user-maintained SOPs and batch records. For laboratories requiring digital traceability, the K-436’s stable thermal output and repeatable timing enable reliable integration with external data loggers or programmable logic controllers (PLCs) for automated timestamped event capture. Optional BUCHI LabX® software connectivity (via K-439-compatible interface modules) permits centralized method deployment, audit-log generation, and electronic signature support—facilitating alignment with ALCOA+ data integrity principles.

Applications

• Routine nitrogen quantification in food safety testing (e.g., protein content verification per Codex Alimentarius standards)
• Feed formulation and quality control in agritech laboratories
• Environmental monitoring of total Kjeldahl nitrogen (TKN) in municipal wastewater, agricultural runoff, and sediment samples
• Pharmaceutical raw material qualification where residual nitrogen-bearing impurities must be controlled
• Research applications requiring rapid screening of novel biomass or bio-based polymers prior to elemental analysis

FAQ

Is the K-436 compatible with automated distillation units?
Yes—the K-436 produces standardized digests meeting AOAC-recommended specifications for downstream coupling with BUCHI K-375/K-377 distillation units or third-party automated steam distillers.
Can temperature calibration be verified externally?
While the K-436 does not feature built-in real-time temperature feedback like the K-439, its heating profile can be independently validated using NIST-traceable thermocouple probes inserted into reference tubes during OQ protocols.
What maintenance is required for the infrared emitter assembly?
The quartz-encapsulated IR emitters require no scheduled replacement under normal operation; periodic visual inspection for surface deposits and cleaning with isopropanol is recommended every 200 digestion cycles.
Does the system include acid fume containment certification?
The integrated suction module meets EN 14175-3 Class I fume hood performance criteria when connected to a minimum 150 m³/h exhaust system, and is validated for H₂SO₄ vapor capture efficiency >99.8% at 300 °C.
Are spare digestion tubes and gaskets available through BUCHI?
Yes—BUCHI supplies certified borosilicate 300 mL and 500 mL digestion tubes (Cat. No. 02021000 and 02021010), PTFE-coated glass stoppers, and silicone gasket kits (Cat. No. 02021020) with full lot traceability and CoA documentation.
