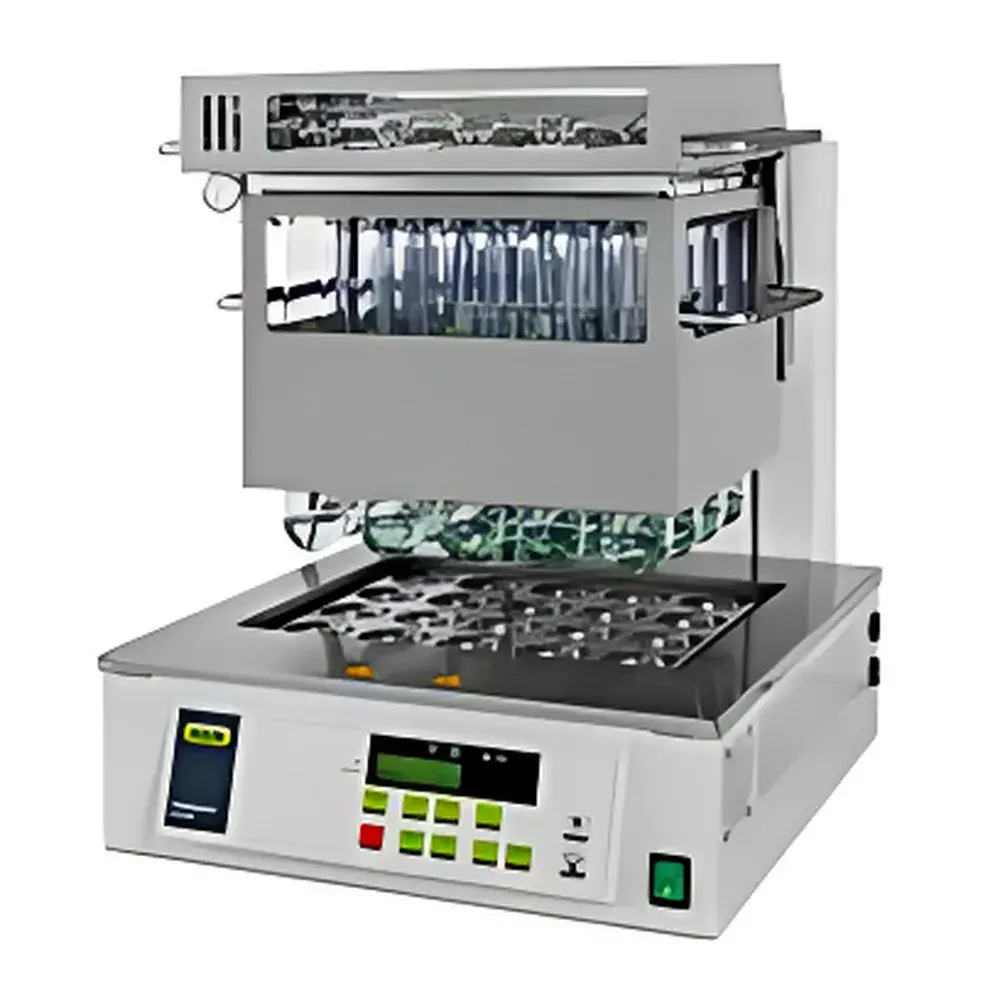

BUCHI K-446/K-449 Block Digestion System
| Brand | BUCHI |
|---|---|
| Origin | Switzerland |
| Manufacturer | BUCHI AG |
| Type | Imported Instrument |
| Model | K-446 / K-449 |
| Power | 2300 W |
| Heating Positions | 20 |
| Temperature Range | 30–450 °C |
| Temperature Accuracy | ±1 °C |
| Display | LCD |
| Automation Level | Semi-Automatic (K-446) / Fully Automatic (K-449) |
| Acid Vapor Containment | Integrated Sealed Block Design |
| Sample Tube Material | High-Purity Borosilicate Glass (BUCHI Certified) |
| Safety Features | Dual Temperature Limiting per Stage |
| User Interface | Programmable Multi-Stage Temperature Profiles with Countdown Timer and Real-Time Temperature Feedback |
Overview
The BUCHI K-446 and K-449 are precision-engineered block digestion systems designed for reproducible, controlled thermal decomposition of solid and liquid samples in analytical chemistry laboratories. Based on a robust aluminum heating block architecture, these instruments operate on the principle of conductive heat transfer to sample tubes placed within precisely machined wells—ensuring uniform thermal distribution across all 20 positions. Unlike open hotplate or sand bath methods, the sealed aluminum block minimizes acid vapor release, enhances operator safety, and improves method compliance with standardized wet digestion protocols including EPA Method 3050B, ISO 11466, and ASTM D3682. The K-446 serves as a semi-automatic platform with manual tube handling and programmable temperature staging, while the K-449 integrates full automation via motorized lift mechanism, enabling unattended ramp-hold-cool cycles with audit-ready event logging.
Key Features
- 20-position aluminum heating block with optimized thermal mass for stable, homogeneous temperature control across the full 30–450 °C operating range
- Programmable multi-stage temperature profiles—including ramp rates, hold times, and cooling phases—configured directly via intuitive LCD interface
- Dual-stage temperature limiting: hardware-based upper limit protection combined with software-enforced stage-specific setpoints to prevent overheating or tube failure
- Integrated acid vapor containment achieved through tight-fitting block lid design and chemically resistant gasketing—eliminating need for external fume hood operation during routine digestions
- Real-time digital temperature monitoring with ±1 °C accuracy, displayed continuously alongside countdown timer for each active stage
- Lightweight, ergonomic lifting mechanism (K-449 only) enabling smooth vertical movement of the entire block assembly for safe tube insertion and removal
- Sample tubes constructed from BUCHI-certified borosilicate glass (Duran®-grade), resistant to thermal shock and aggressive reagents such as HNO₃, HCl, HF, and H₂O₂ mixtures
Sample Compatibility & Compliance
The K-446/K-449 supports digestion of diverse matrices including soils, sediments, biological tissues, foodstuffs, polymers, and metal alloys. Its consistent thermal performance ensures adherence to regulatory digestion requirements under GLP and GMP environments. The system complies with ISO/IEC 17025 documentation expectations for instrument qualification and is compatible with laboratory quality management systems requiring traceable calibration records. While not inherently 21 CFR Part 11 compliant, the K-449’s internal event log (timestamped start/end times, actual vs. setpoint temperatures, error codes) provides foundational data integrity for audit preparation when integrated into validated workflows.
Software & Data Management
The K-446 operates via embedded firmware with local LCD-based programming; no PC connection is required. The K-449 extends functionality with optional BUCHI LabX™ connectivity, enabling remote method deployment, centralized parameter backup, and export of digestion logs in CSV format for LIMS integration. All temperature profiles are stored internally with version control, and the system retains last-used settings after power cycling. Calibration verification can be performed using NIST-traceable PT100 probes inserted into designated reference wells—procedures documented in BUCHI’s IQ/OQ/PQ validation kits.
Applications
- Preparation of environmental samples (e.g., soil, sludge, fly ash) for ICP-OES and ICP-MS analysis per EPA 6010D and 6020B
- Digestion of plant and animal tissues for nutritional mineral profiling (Ca, Mg, Fe, Zn, Cu)
- Decomposition of catalysts and industrial residues prior to XRF quantification
- Acid leaching of geological samples for geochemical mapping studies
- Routine QC digestion in pharmaceutical excipient testing where residual metal limits apply (ICH Q3D)
FAQ
What distinguishes the K-446 from the K-449?
The K-446 is a semi-automatic system requiring manual placement and removal of sample tubes; the K-449 adds a motorized lift mechanism and automated sequence execution with full cycle logging.
Can the system handle hydrofluoric acid (HF)?
Yes—when used with BUCHI’s optional PTFE-coated glass tubes and appropriate ventilation protocols, the system supports HF-containing digestions up to 220 °C.
Is temperature calibration traceable to national standards?
Yes—BUCHI provides factory calibration certificates traceable to DKD/DAkkS-accredited laboratories; users may perform in-house verification using calibrated reference thermometers.
How is method validation supported?
BUCHI supplies comprehensive IQ/OQ documentation templates, temperature uniformity mapping procedures, and performance qualification test scripts aligned with ASTM E2500 and EU Annex 15 guidelines.
What maintenance is required?
Annual inspection of heating element resistance, gasket integrity, and lift mechanism lubrication (K-449); no consumables beyond standard lab-grade digestion tubes.
