Buehler AbrasiMet L Pro Automatic Abrasive Cutting Machine

Overview

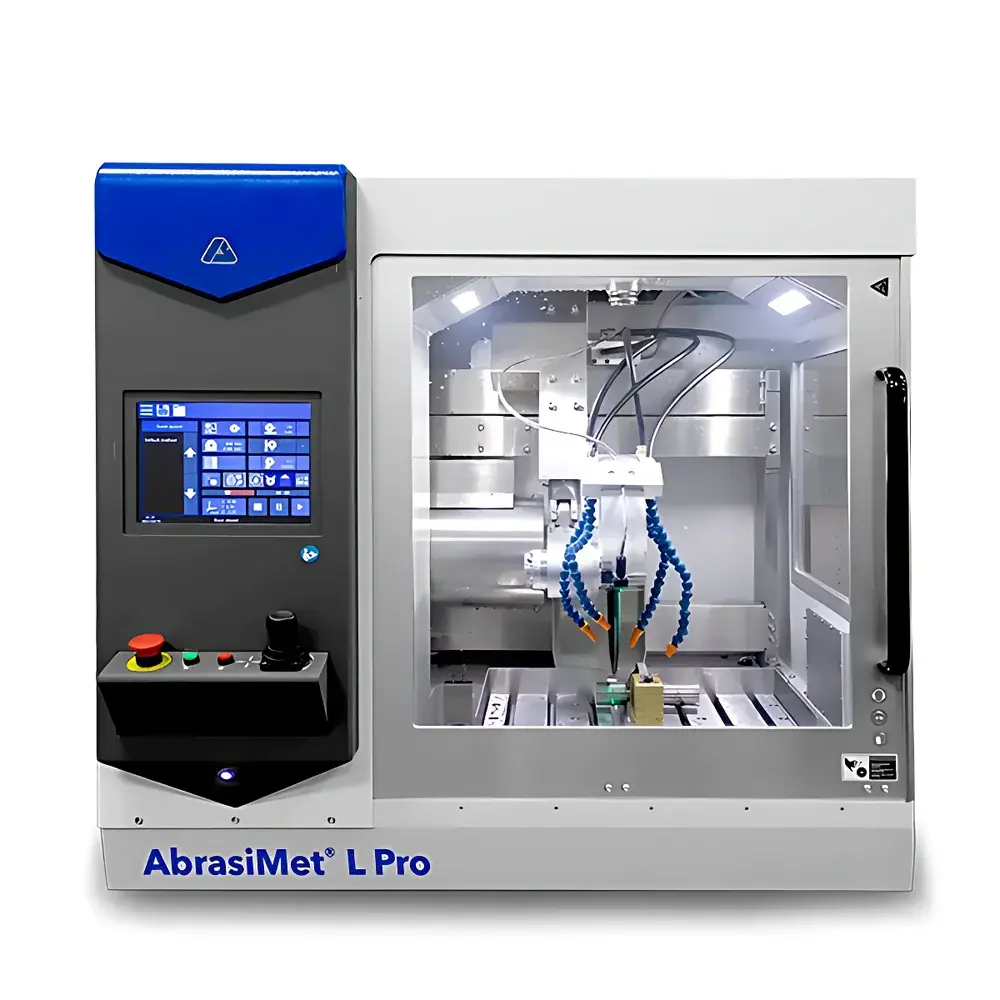

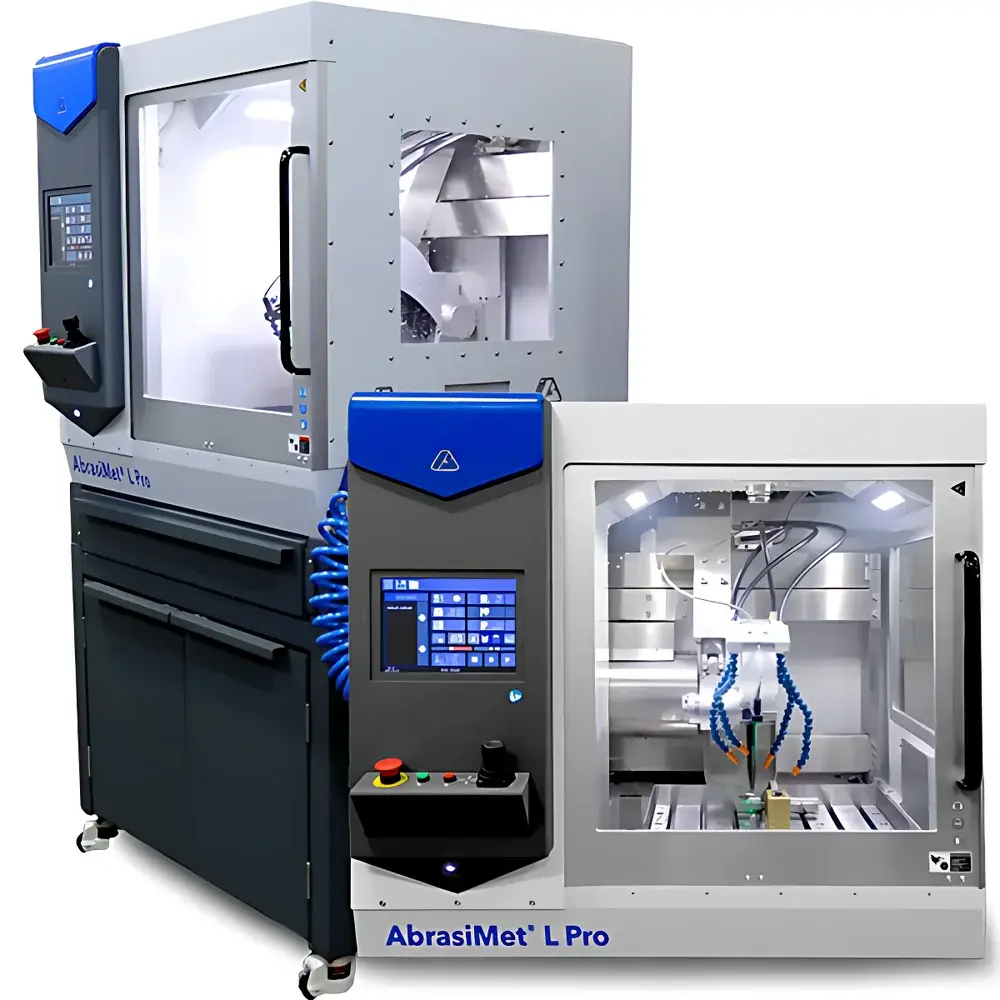

The Buehler AbrasiMet L Pro Automatic Abrasive Cutting Machine is an industrial-grade precision sample preparation system engineered for high-reproducibility sectioning of metallic, ceramic, composite, and geological specimens under demanding laboratory and production environments. Utilizing controlled abrasive wheel cutting—based on regulated mechanical force, coolant-assisted thermal management, and programmable motion trajectories—the AbrasiMet L Pro delivers consistent cross-sectional integrity essential for subsequent metallographic analysis, failure investigation, quality control, and materials R&D. Its modular architecture supports both benchtop and floor-standing configurations, accommodating a broad spectrum of specimen geometries—from small electronic components to large castings and weldments—without compromising dimensional accuracy or microstructural fidelity.

Key Features

• Three-axis programmable motion system: Independent X (wheel horizontal feed), Y (stage longitudinal travel), and Z (wheel vertical descent) axes—each equipped with absolute-position encoders—enable precise spatial positioning, repeatable method execution, and full manual override via ergonomic joystick control.
• SmartCut™ variable-speed intelligent cutting: Dynamically adjusts feed rate and wheel RPM based on real-time load feedback, minimizing thermal damage, edge chipping, and wheel wear while preserving specimen integrity—particularly critical for heat-sensitive alloys and brittle ceramics.
• Multi-mode cutting flexibility: Supports vertical cut, Y-axis cut, planar cut, and fully manual operation; configurable sequences include pulse-cutting, start-detection triggering, and multi-step automated routines with user-defined dwell times and depth increments (down to 1 mm).

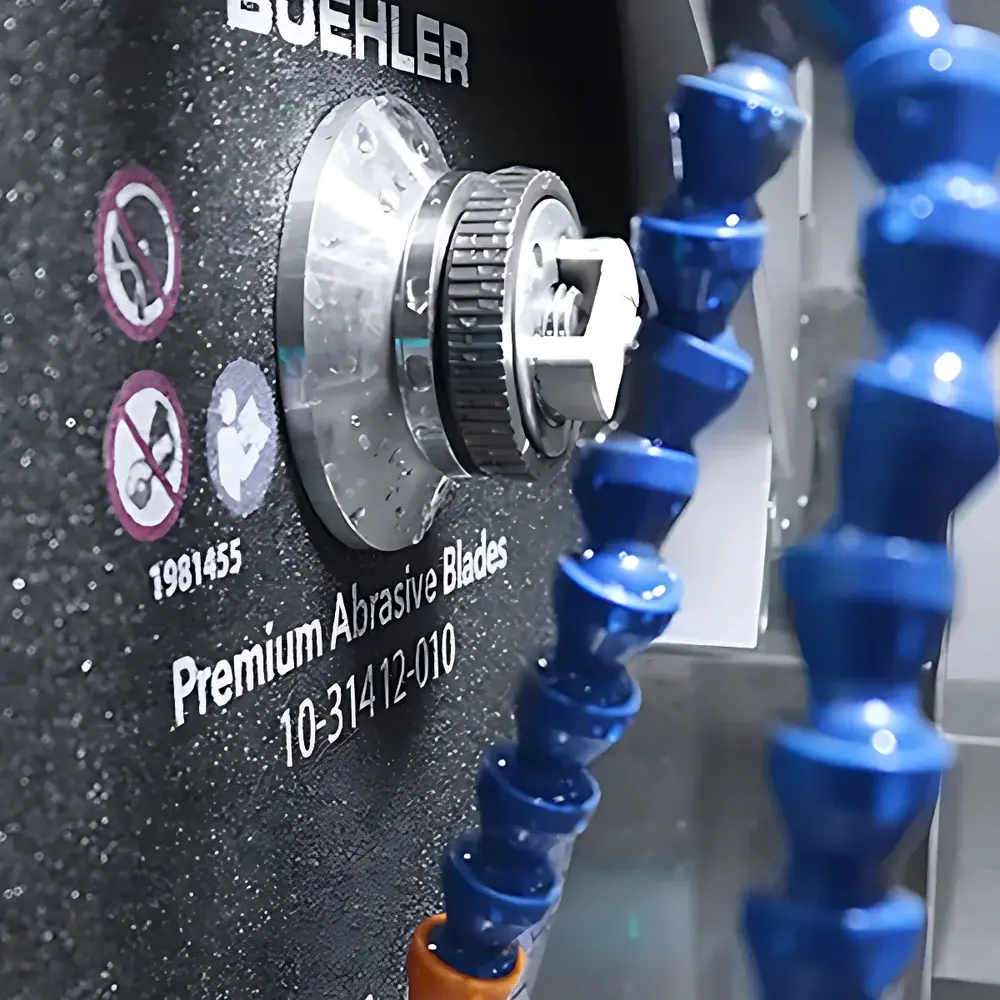

• Integrated high-efficiency cooling: Dual-pump system delivers up to 35 gal (130 L) recirculated coolant at sustained flow rates; four adjustable nozzles target both specimen and wheel interface, while two auxiliary outlets within the wheel guard provide secondary cooling—reducing localized heating and preventing phase transformation or microcracking.

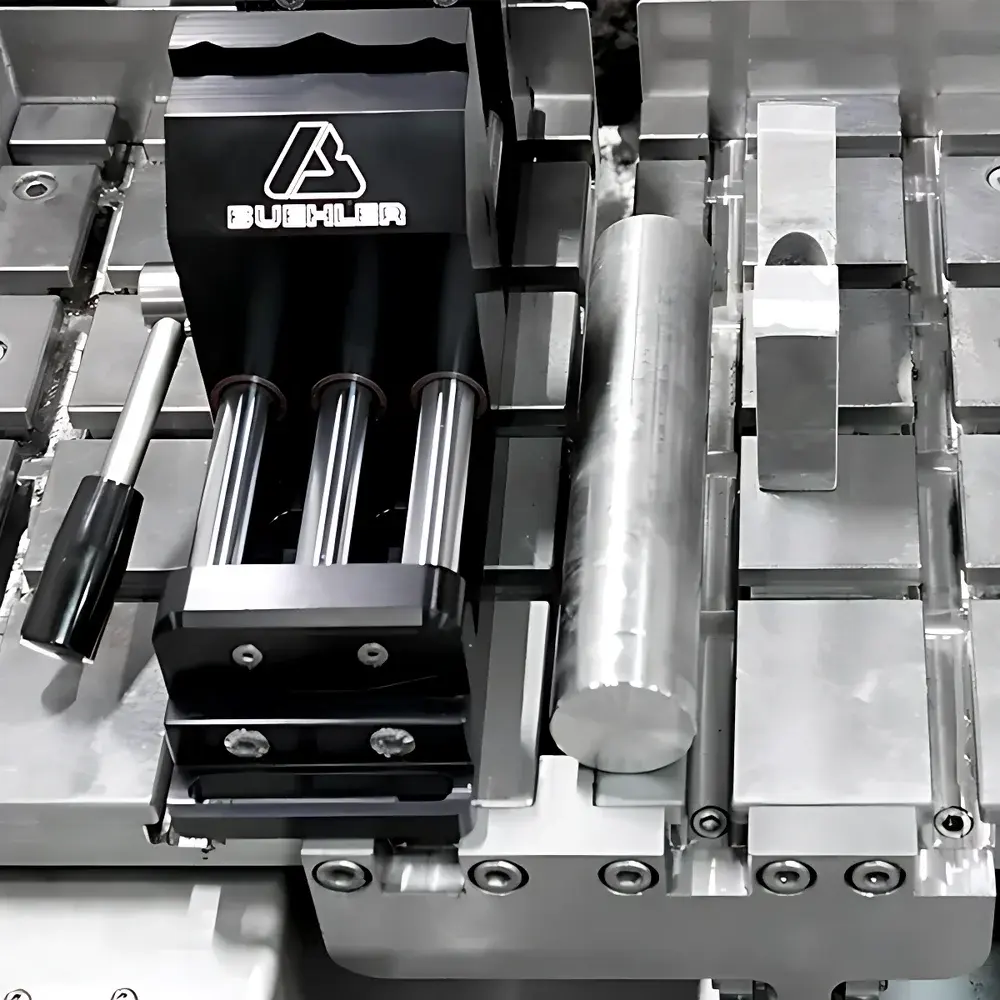

• Automated chamber cleaning: One-touch activation initiates simultaneous top-spray and rear-bottom jetting, effectively removing abrasive slurry and metallic debris from the cutting chamber, worktable, and T-slot fixtures—significantly reducing downtime between samples.
• Enhanced operator visibility and safety: Bright dual-LED lighting with dimmable intensity, wide front and side acrylic windows, and Class II green laser alignment aid accurate placement; all motion functions require simultaneous dual-hand actuation when the door is open, and mechanical overtravel limits prevent axis collision.

Sample Compatibility & Compliance

The AbrasiMet L Pro accommodates specimens up to 660 mm in length and up to 150 mm in maximum cutting depth (depending on wheel diameter). Its removable side panels expand lateral clearance for oversized or irregularly shaped samples—including turbine blades, rail sections, and additively manufactured parts. The system complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions), and meets UL 61010-1 and CSA C22.2 No. 61010-1 requirements for laboratory equipment safety. While not certified for GMP or GLP environments out-of-the-box, its programmable method storage, audit-ready parameter logging, and operator-accessible calibration records support integration into ISO/IEC 17025-accredited laboratories performing ASTM E3, ISO 148-1, and EN 10360-compliant sample preparation workflows.

Software & Data Management

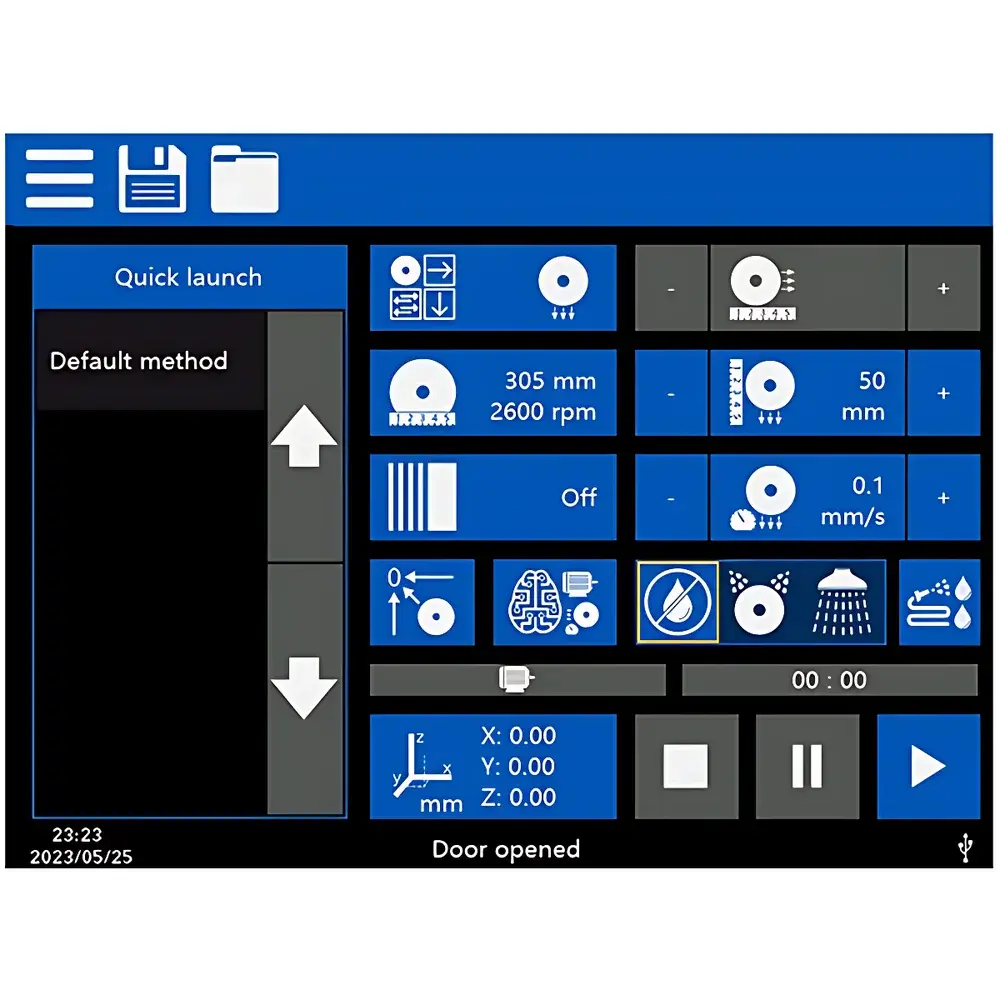

The 10.5-inch capacitive touchscreen interface runs Buehler’s proprietary firmware with intuitive icon-driven navigation and multilingual support (English, German, French, Spanish, Chinese, Japanese). All cutting methods—including feed rates, RPM profiles, coolant settings, and sequence logic—are saved as named protocols with timestamped revision history. System settings persist across power cycles, and up to 100 user-defined programs can be stored locally. Exportable CSV logs capture cycle time, actual feed displacement, motor current draw, and coolant temperature—enabling traceability for internal QA audits or external regulatory review. Firmware updates are delivered via USB drive, ensuring long-term compatibility with evolving metrology standards and cybersecurity best practices.

Applications

• Metallographic specimen preparation for optical and electron microscopy (SEM/TEM)
• Sectioning of welded joints, heat-affected zones (HAZ), and dissimilar metal interfaces per AWS D1.1 and ISO 15614
• Preparation of tensile, Charpy, and creep test coupons in accordance with ASTM E8, E23, and E139
• Cutting of powder metallurgy compacts, sintered ceramics, and refractory materials without delamination
• Routine QC sectioning in foundries, aerospace MRO facilities, and nuclear component manufacturers
• Forensic metallurgical analysis requiring unaltered microstructure preservation

FAQ

What wheel sizes are supported, and how does size affect cutting capacity?
The AbrasiMet L Pro accepts 10 in (254 mm), 12 in (305 mm), 14 in (356 mm), and 16 in (406 mm) abrasive wheels. Maximum cutting depth scales with wheel diameter: 87 mm (3.4 in) for 10 in, up to 150 mm (5.9 in) for 16 in wheels—subject to 7 kW motor configuration.

Is the system compatible with automated material handling or LIMS integration?
While native LIMS or robotic arm interfaces are not included, the machine provides RS-232 and Ethernet ports for custom SCADA-level integration. Protocol documentation and Modbus TCP register maps are available under NDA for OEM-level automation projects.

How is calibration maintained and verified?
Axis position repeatability is validated using the built-in encoder feedback loop; physical verification of Z-axis descent accuracy can be performed using traceable gauge blocks. Buehler recommends annual preventive maintenance—including torque verification of wheel flanges and coolant filter replacement—per the service manual.

Can the system process non-metallic or polymer-based composites?
Yes—with appropriate wheel selection (e.g., diamond-impregnated or resin-bonded SiC) and adjusted SmartCut™ parameters. Users must validate cutting parameters per material-specific guidelines (e.g., ASTM D792 for density-critical polymers or ISO 527-1 for tensile bar preparation).
