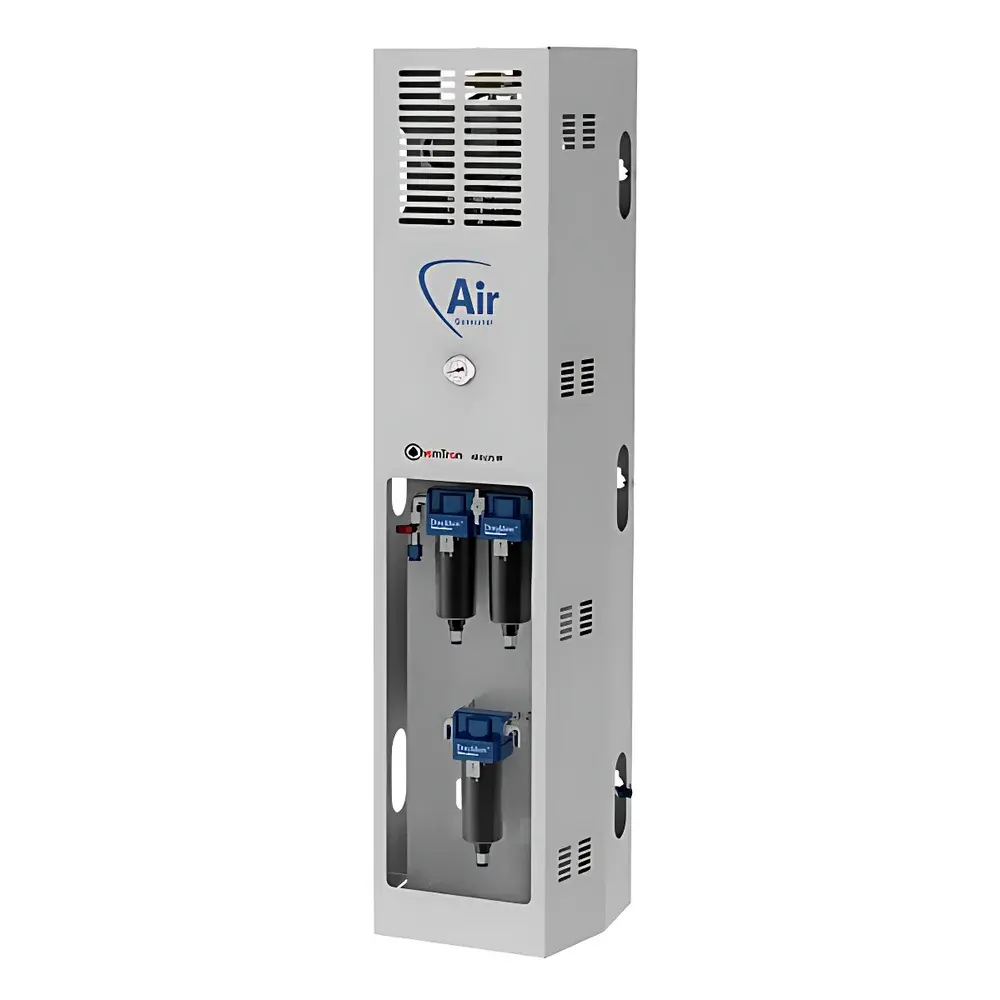

ChemTron AEOLUS ZA30 Zero-Air Generator Module

Overview

The ChemTron AEOLUS ZA30 Zero-Air Generator Module is an engineered solution for laboratories and industrial analytical facilities requiring continuous, ultra-pure air free of hydrocarbons, moisture, and oil vapor. Unlike conventional compressed air systems that introduce contamination from lubricants, ambient particulates, or humidity, the AEOLUS ZA30 employs a dual-stage purification architecture grounded in carbon molecular sieve (CMS) adsorption and multi-stage coalescing/filtration. It does not generate air ex nihilo; rather, it conditions externally supplied compressed air—transforming it into zero-grade air meeting stringent specifications for trace gas analysis, GC-FID detector operation, FTIR background referencing, and calibration gas blending. Its passive operation—requiring no electrical power during purification—eliminates electromagnetic interference and thermal drift, making it uniquely suitable for sensitive instrumentation environments where background signal integrity is non-negotiable.

Key Features

• Passive purification architecture: No internal power supply required—ensures zero electrical noise and eliminates risk of spark-induced hazards in flammable atmospheres.
• Modular scalability: The ZA30 serves as a foundational unit compatible with parallel stacking or cascaded integration with AEOLUS ZA60 modules to achieve aggregate flow rates of 60, 90, or 120 L/min without compromising purity or pressure stability.
• Dual-output capability: Simultaneous delivery of zero-air (≤ 0.1 ppm total hydrocarbons, < −70 °C dew point) and dry oil-free air (ISO 8573-1 Class 1.3.1 compliant) from a single inlet stream.
• Flexible installation: Supports benchtop placement or wall-mount configuration via standardized M6 mounting points—optimized for space-constrained labs and cleanroom utility corridors.
• Vibration- and noise-isolated design: Acoustic enclosure and elastomeric mounting reduce operational sound to < 58 dB(A), preserving acoustic integrity in shared laboratory spaces.
• Pressure-stable output: Integrated pressure regulation maintains ±0.2 bar consistency across full flow range, critical for pneumatic-driven analyzers and mass flow controllers.

Sample Compatibility & Compliance

The AEOLUS ZA30 is validated for compatibility with high-sensitivity analytical platforms including gas chromatographs (GC), flame ionization detectors (FID), photoionization detectors (PID), and ambient air monitoring systems. Its output meets ASTM D6216-22 requirements for zero-air used in ozone photometer calibration and EPA Method TO-15/TO-17 purge-and-trap validation protocols. The module’s adherence to ISO 8573-1 Class 1.3.1 for compressed air input ensures removal of particles ≥ 0.1 µm, water aerosols, and oil aerosols down to ≤ 0.01 mg/m³. While the unit itself carries no CE marking for intrinsic safety, its passive design permits deployment in Zone 2 classified areas when installed upstream of explosion-proof analyzers per IEC 60079-10-1 guidelines.

Software & Data Management

As a purely mechanical purification system, the AEOLUS ZA30 contains no embedded firmware, microcontrollers, or digital interfaces. It requires no software installation, network configuration, or cybersecurity hardening—making it inherently compliant with FDA 21 CFR Part 11 Annex 11 principles for “low-risk” infrastructure components. Maintenance logs, filter replacement schedules, and inlet air quality verification records may be integrated into existing laboratory quality management systems (QMS) such as LabWare LIMS or Thermo Fisher SampleManager. Optional analog pressure gauges (0–10 bar range, ±0.25% FS accuracy) support manual audit trails aligned with GLP documentation standards.

Applications

• GC-FID carrier and detector gas supply in environmental testing labs performing VOC analysis per EPA Methods 8260/8270.
• Zero-air dilution standard generation for calibrating NO_x, SO₂, and CO analyzers in ambient air quality monitoring stations.
• Reference gas stream conditioning for Fourier-transform infrared (FTIR) spectrometers requiring stable, hydrocarbon-free background spectra.
• Supply of instrument-grade air to particle counters, condensation particle counters (CPCs), and scanning mobility particle sizers (SMPS) in nanomaterial characterization workflows.
• Support gas for laser-based optical cavity systems where hydrocarbon adsorption on mirror surfaces degrades reflectivity over time.

FAQ

Does the AEOLUS ZA30 require electricity to operate?

No. It operates solely via pressure-driven flow through CMS beds and depth filters—no pumps, heaters, or electronics are involved.
What compressed air quality is mandatory for reliable performance?

Inlet air must meet ISO 8573-1 Class 1.3.1: ≤ 0.1 µm particles, dew point ≤ −20 °C at atmospheric pressure, and oil content ≤ 0.01 mg/m³. Desiccant-dried, oil-free compressors are strongly recommended.
Can the ZA30 be used with nitrogen-inerted systems?

No—it is designed exclusively for air feedstock. Nitrogen bypasses the CMS adsorption mechanism and will not yield zero-air specification.
How often do consumables need replacement?

CMS cartridges are rated for 12,000 hours at rated flow; pre-filters require replacement every 6 months under continuous use. Replacement intervals scale linearly with average daily runtime and inlet air quality.
Is wall-mount hardware included?

Yes—universal M6 mounting brackets and alignment templates are supplied with each unit. Wall surface must support static load ≥ 35 kg.
